R33C4TT10Touchscreen Display for home automation system

11 Supported models • C4-TT7-1-xx 7" Tabletop Touch Screen (black, white, or red) • C4-TT10-xx 10” Tabletop Touch Screen (black or white) Introduction The Control4® T3 Series Tabletop Touch Screens o er complete system control in an elegant, compact, and portable design. The touch screens are equipped with a full capacitive screen, audio and video Intercom (with the built-in camera) using SIP, and more. This touch screen can be located anywhere, and the convenient recharging station enables it to be used as either a tabletop or portable interface. Choose from four installation options: • Option 1: PoE data and power. Ethernet network connection and power are provided through a PoE injector. No additional wiring is needed. • Option 2: Ethernet data and AC power. Ethernet network connection is provided through an Ethernet cable, and power is provided through the AC power adapter. • Option 3: WiFi data and AC power. WiFi is used as the network connection, and power is provided through the AC power adapter. • Option 4: WiFi data and PoE power. WiFi is used as the network connection, and power is provided through a PoE injector. Note: 802.11b is not recommended for Video Intercom. We recommend using Wireless-N. See “Specifi cations” and “Power and Network Installation Options” for more information. Box contents • Tabletop Touch Screen • Recharging station • Warranty card • Ferrites (10" model only) Accessories available for purchase • Control4 PoE Injector, sold separately (AC-POE1-B). Warnings Warning! This product must be grounded in accordance with the National Electrical Code (NEC) requirements. Avertissement ! Ce produit doit être fondu selon les conditions électriques nationales de code (NEC). Caution! Do not place the touch screen near sources of heat or expose to direct sunlight for an extended time. Avertissement ! Ne placez pas l’unité près des sources de chaleur ou exposition pour diriger la lumière du soleil pendant une période prolongée. Caution! This product generates heat. The room must have adequate ventilation or the ability to dissipate heat e ectively. Avertissement ! Ce produit produit de la chaleur. La salle doit avoir à ventilation proportionnée ou la capacité d’absorber la chaleur e cacement. Caution! Use this product only in dry locations. Avertissement ! Employez ce produit seulement dans des endroits secs. Caution! This product is for residential use only. Avertissement ! Ce produit est pour à l’usage résidentiel ou commercial seulement. Caution! Do not use pens or sharp objects to navigate or make selections on the touch screen. To select an item or scroll through a list, use your fi ngertip. Avertissement ! N’employez pas les stylos ou les objets pointus pour diriger ou pour faire des choix sur l’écran. Pour choisir un article ou un rouleau par une liste, employez votre bout du doigt. Caution! Improper use or installation can cause DAMAGE OF PROPERTY. Avertissement ! L’utilisation ou l’installation inexacte peut causer DAMAGE DE PROPRIÉTÉ. Caution! Do not use shielded Ethernet cable. Doing so will void the warranty. Attention ! Ne pas utiliser de câble Ethernet blindé . Cela annulera la garantie. Important! Using this product in a manner other than outlined in this document voids your warranty. Further, Control4 is NOT liable for any damage incurred with the misuse of this product. See “Warranty.” T3 Series Tabletop Touch Screens Installation Guide 2 Specifi cations and requirements Specifi cations Model Numbers C4-TT7-1-BL, C4-TT7-1-WH, C4-TT7-1-RD, C4-TT10-BL, C4-TT10-WH Screen Resolution: 1280 × 800, capacitive touch Camera: 720p Network Ethernet or WiFi (802.11g/n [2.4 GHz]) Security: WEP, WPA/WPA2 PSK, 802.1x EAP, PEAP Notes: (1) While technically the touch screen can use 802.11b, 802.11b is not supported. (2) 802.11n is recommended for best performance. Even with 802.11n, broadcasting to several devices will degrade Video Intercom response time and images. Broadcasting to additional devices will further degrade performance. See “Wireless Network Limitations.” Power supply PoE (IEEE 802.3af) 13W peak; 44~57VDC; 10W @ 44VDC = 0.22A 100-240VAC, 50/60 Hz International power supply adapters included Operating temperature 32 ~ 104 ̊F (0 ̊ ~ 40 ̊C) Storage temperature 4 ~ 158 ̊F (-20 ̊ ~ 70 ̊C) Charging station connections RJ-45 (PoE, Ethernet) 5VDC power Dimensions (W×H×D) 7" Touch screen: 7.0 × 5.1 × 0.75” (178 × 130 × 19 mm) 7" Charging station: 4.17 × 3.11 × 2.21” (106 × 79 × 56 mm) 10" touch screen: 9.65 × 6.77 × 0.91” (245 × 172 × 23 mm) 10" dock: 4.53 × 4.02 × 2.60” (115 × 102 × 66 mm) Weight 7" Touch screen: 0.7 lbs. (0.32 kg) 7" charging station: 0.8 lbs. (0.36 kg) 10" Touch screen: 1.35 lbs. (0.60 kg) 10" charging station: 1.05 lbs. (0.46 kg) Requirements • A controller fully installed and confi gured with Control4 OS 2.7.2 or later. For the 10" model, Control4 OS 2.8.0 or later is recommended. • If using Ethernet data: • Ethernet network installed and available that includes a gateway/router/switch. • One Ethernet cable that runs from the Ethernet gateway/ router/switch to the touch screen • If using WiFi data: • Wireless network (WiFi 802.11b/g/n) installed and available with a wireless access point (WAP). Security can be WEP, WPA/WPA2 PSK, 801.1x EAP, PEAP. • If using PoE power: • Control4 PoE Injector (model #AC-POE1-B) or another third-party PoE Injector or switch (UL/ANSI certifi ed). • Two unshielded Ethernet CAT5/6 cables: (1) one that runs from the Ethernet gateway/router/switch to the PoE Injector/switch and (2) one that runs from the PoE injector/switch to the Ethernet connection in the touch screen’s wall box. • If using AC power: • Access to AC power outlet (AC power adapter included) • Wireless network (WiFi 802.11b/g/n) installed and available with a wireless access point (WAP). Security can be WEP, WPA/WPA2 PSK, 801.1x EAP, PEAP. • Access to AC power outlet (AC power adapter included) Views Front C AB A Camera LED B Camera C 7" diagonal,…

Text truncated - open the document above for the full version.

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent- FCC On our behalf, I authorize Nemko-CCL, Inc. at 1940 W. Alexander Street, Salt Lake City, UT 84119, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc. still resides with Control4, located at 11734 S. Election Road, Suite 200, Draper UT, 84020. Dated this 8 th Day of December 20 15 Agency agreement expiration date: December 31, 2016 By: Roger Midgley Signature Printed Title: Sr. Regulatory Compliance Engineer On behalf of : Control4 Corporation Telephone: 801-523-3187

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax December 10, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: R33C4TT10 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards Roger Midgley Sr. Regulatory Compliance Engineer

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax January 5, 2016 Deferral of Grant REQUEST LETTER Federal Communications Commission Authorization and Evaluation Division Deferral of Grant Request regarding application for certification of FCC ID: R33C4TT10 Pursuant to Section 0.457 (d) (1) (ii) of the Commission’s Rules, we hereby request the Commission to defer this grant until January 26, 2016: The information in this grant contains trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Roger Midgley Sr. Regulatory Compliance Engineer

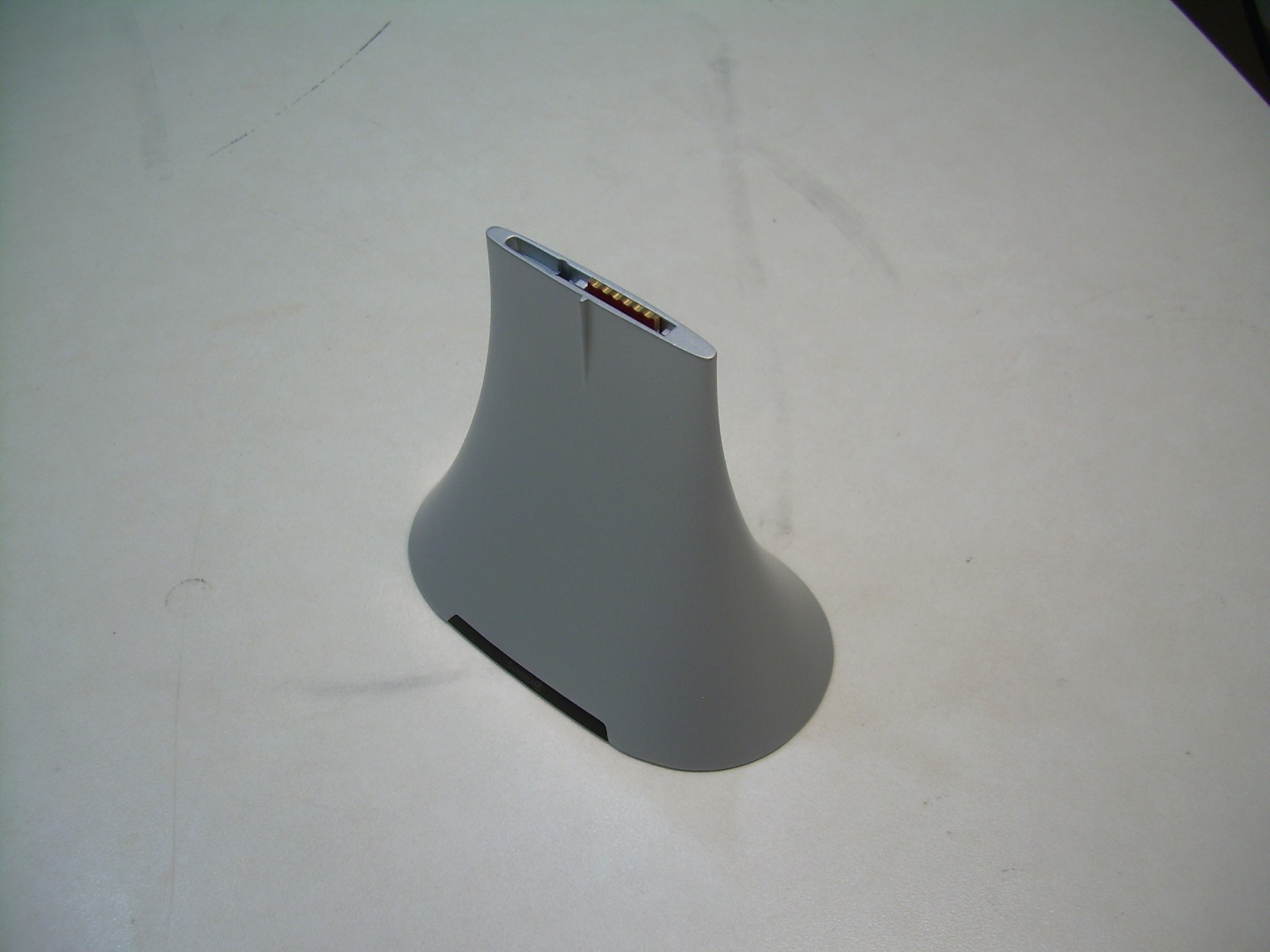

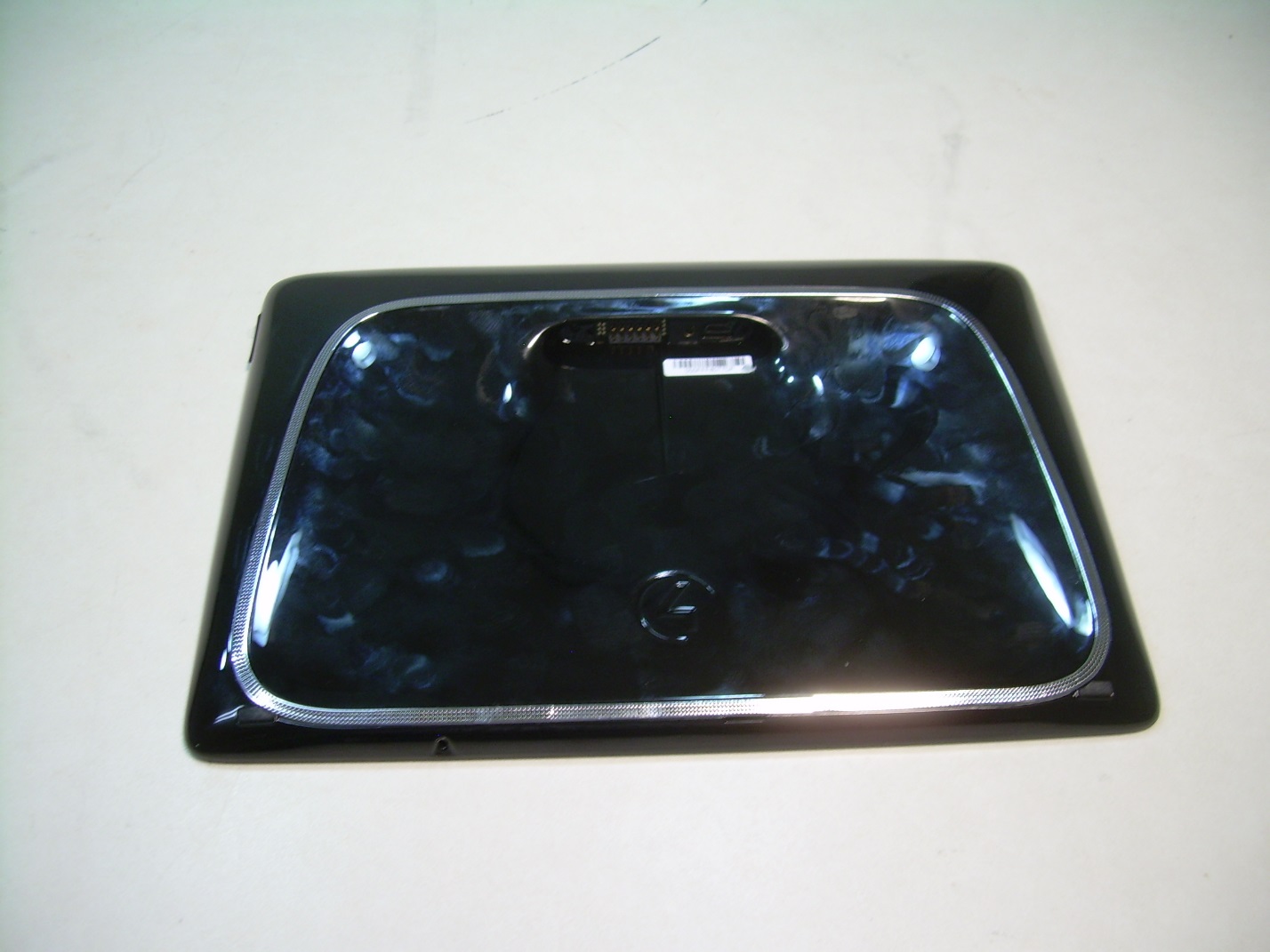

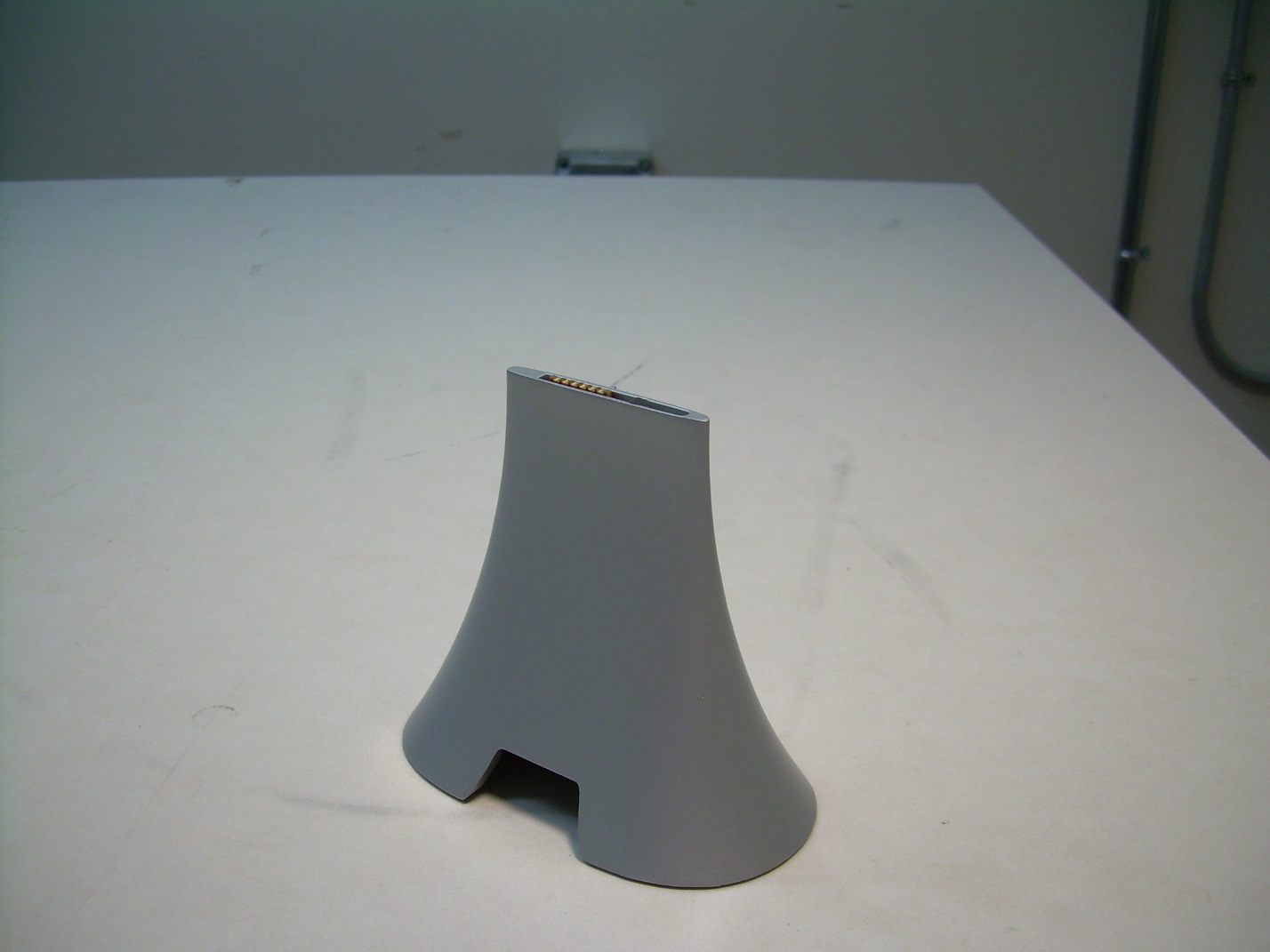

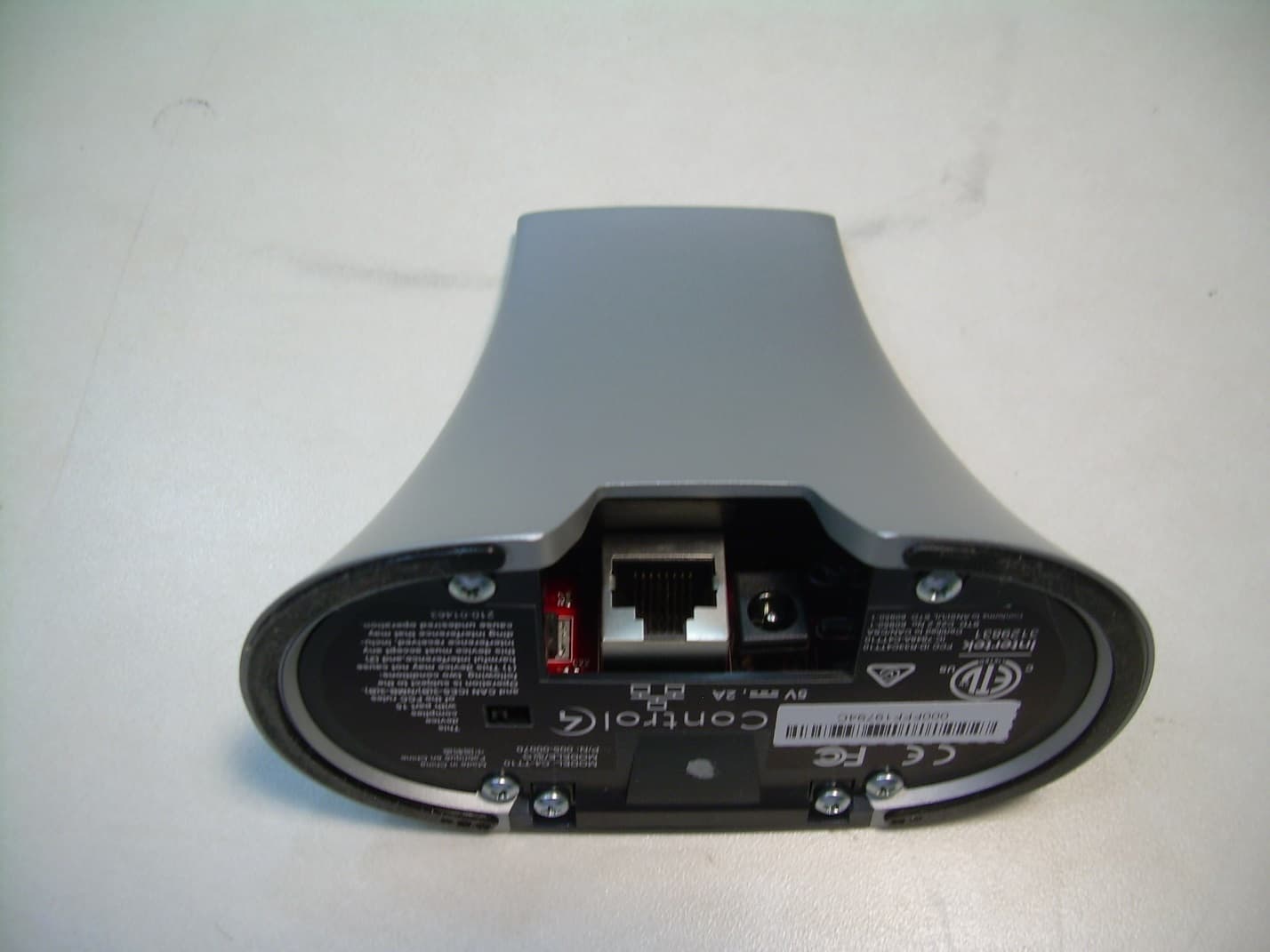

Front View of the Touchscreen Back View of the Touchscreen Front View of the Base Back View of the Base Bottom View of the Base

FOR REFERENCE ONLYNOT TO SCALESHEET 2 OF 2 REVSIZEPART # AB 11734 S. Election Road, Suite 200 Draper, UT 84020 Phone: 801-523-3100 Fax: 801-523-3199 TITLE 210-01463 COPYRIGHT 2015 LABEL, PRODUCT ID W/REGULATORY LOGO TT10 BASE P/N: 005-00070 Certified to CAN/CSA STD. C22.2 No. 60950-1 Conforms to ANSI/UL STD. 60950-1 This device complies with part 15 of the FCC rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, inclu- ding interference that may cause undesired operation. CAN ICES-3(B)/NMB-3(B) 210-01463 MODEL: C4-TT10 MODÉLE/型号 Made in China Fabriqué en Chine 中国制造 5V , 2A IC:7848A-C4TT10 FCC ID:R33C4TT10 3129831 MAC ID BOTTOM VIEW 4.00in 2.25in SCALE 1:1DO NOT SCALESHEET 1 OF 2 REVSIZEPART # A DECIMAL: ± 0.508 2 DECIMAL: ± 0.254 3 DECIMAL: ± 0.127 RAD/CHAM: ± 0.508 ANGLE: ± 1.00° TOLERANCES: (ALL DIMENSIONS ARE IN MM) B 1. MATERIAL: COLOR: WHITE SEE PART NUMBER 211-00023 FOR MATERIAL SPECIFICATION AND APPROVED MANUFACTURES 2. PRINTING: PRINT COLOR: Pantone 426C BLK (Black) USE SHEET 2 FOR LABEL PLACEMENT REFERENCE PDF DOCUMENT IS FOR REFERENCE ONLY 3. DOCUMENT SCHEDULE: SHEET 1: ARTWORK SHEET 2: LABEL PLACEMENT THE INFORMATION CONTAINED IN THIS DRAWING AND THE ASSOCIATED CAD DATA IS CONFIDENTIAL, AND IS THE SOLE PROPERTY OF CONTROL4. ANY USE, REPRODUCTION, OR DISCLOSURE - IN WHOLE OR IN PART - WITHOUT WRITTEN PERMISSION FROM CONTROL4 IS PROHIBITED 11734 S. Election Road, Suite 200 Draper, UT 84020 Phone: 801-523-3100 Fax: 801-523-3199 TITLE 210-01463 NO.REVISIONSDATEBY COPYRIGHT 2015 ARelease to Production10/28/15MDL BFCC NOTE CHANGE12/23/15MDL NOTES (UNLESS OTHERWISE SPECIFIED): LABEL, PRODUCT ID W/REGULATORY LOGO TT10 BASE P/N: 005-00070 Certified to CAN/CSA STD. C22.2 No. 60950-1 Conforms to ANSI/UL STD. 60950-1 This device complies with part 15 of the FCC rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, inclu- ding interference that may cause undesired operation. CAN ICES-3(B)/NMB-3(B) 210-01463 MODEL: C4-TT10 MODÉLE/型号 Made in China Fabriqué en Chine 中国制造 5V , 2A IC:7848A-C4TT10 FCC ID:R33C4TT10 3129831 MAC ID 0.0 0.39 0.44 0.64 0.84 1.43 0.0 1.47 1.102.65 2.27 2.70 2.95 3.75 Control4 Model: C4-TT10 FCC ID: R33C4TT10 IC: 7848A-C4TT10 25.4 mm 6.35 mm SCALE 1:1DO NOT SCALESHEET 1 OF 2 REVSIZEPART # A DECIMAL: ± 0.508 2 DECIMAL: ± 0.254 3 DECIMAL: ± 0.127 RAD/CHAM: ± 0.508 ANGLE: ± 1.00° TOLERANCES: (ALL DIMENSIONS ARE IN MM) A 1. MATERIAL: COLOR: WHITE SEE PART NUMBER 211-00023 FOR MATERIAL SPECIFICATION AND APPROVED MANUFACTURERS 2. PRINTING: PRINT COLOR: PANTONE 426C BLK (Black) USE SHEET 2 FOR LABEL PLACEMENT REFERENCE PDF DOCUMENT IS FOR REFERENCE ONLY 3. DOCUMENT SCHEDULE: SHEET 1: ARTWORK SHEET 2: LABEL PLACEMENT THE INFORMATION CONTAINED IN THIS DRAWING AND THE ASSOCIATED CAD DATA IS CONFIDENTIAL, AND IS THE SOLE PROPERTY OF CONTROL4. ANY USE, REPRODUCTION, OR DISCLOSURE - IN WHOLE OR IN PART - WITHOUT WRITTEN PERMISSION FROM CONTROL4 IS PROHIBITED 11734 S. Election Road, Suite 200 Draper, UT 84020 Phone: 801-523-3100 Fax: 801-523-3199 TITLE 210-01499 NO.REVISIONSDATEBY LABEL, PRODUCT ID W/REGULATORY LOGOS, C4-tt10 COPYRIGHT 2015 APRODUCTION RELEASE11/17/15MDL NOTES (UNLESS OTHERWISE SPECIFIED): FOR REFERENCE ONLYNOT TO SCALESHEET 2 OF 2 REVSIZEPART # AA 11734 S. Election Road, Suite 200 Draper, UT 84020 Phone: 801-523-3100 Fax: 801-523-3199 TITLE 210-01499 LABEL, PRODUCT ID W/REGULATORY LOGOS, C4-tt10 COPYRIGHT 2015 PLACE STICKER ON PRODUCT AS SHOWN, 70.0 mm 3.0 mm

View of the Touchscreen with Housing Open View of the PCB with the RF Shielding and ESD Tape Removed View of the Back Side of the PCB View of the RF Section and Antenna View of the Front Side of the Base PCB View of the Back Side of the Base PCB

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For 2.4GHz WLAN Portable Touch Screen Device FCC ID: R33C4TT10 Model Name: C4-TT10 Report Number: 15U22124-S1V1 Issue Date: 12/8/2015 Prepared for CONTROL4 CORP 11724 S. ELECTION RD SALT LAKE CITY, UT 84020 U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15U22124-S1V1 Issue Date: 12/8/2015 Page 2 of 17 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By V1 12/8/2015 Initial Issue -- Report No.: 15U22124-S1V1 Issue Date: 12/8/2015 Page 3 of 17 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 4 2. Test Specification, Methods and Procedures ............................................................................ 5 3. Facilities and Accreditation ........................................................................................................ 5 4. SAR Measurement System & Test Equipment .......................................................................... 6 4.1. SAR Measurement System ........................................................................................................ 6 4.2. SAR Scan Procedures ............................................................................................................... 7 4.3. Test Equipment .......................................................................................................................... 9 5. Measurement Uncertainty ........................................................................................................... 9 6. Device Under Test (DUT) Information ...................................................................................... 10 6.1. DUT Description ...................................................................................................................... 10 6.2. Wireless Technologies ............................................................................................................. 10 6.3. Nominal and Maximum Output Power from Tune-up Procedure .............................................. 10 7. RF Exposure Conditions (Test Configurations) ...................................................................... 11 7.1. Standalone SAR Test Exclusion Considerations ...................................................................... 11 7.2. Required Test Configurations .................................................................................................. 11 8. Dielectric Property Measurements & System Check .............................................................. 12 8.1. Dielectric Property Measurements ........................................................................................... 12 8.2. System Check.......................................................................................................................... 13 9. Conducted Output Power Measurements ................................................................................ 14 9.1. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 14 10. Measured and Reported (Scaled) SAR Results ....................................................................... 15 10.1. Wi-Fi (DTS Band) ................................................................................................................. 15 11. SAR Measurement Variability ................................................................................................... 16 12. Simultaneous Transmission SAR Analysis ............................................................................. 16 Appendixes .......................................................................................................................................... 17 15U22124-S1V1 SAR_App A Photos & Ant. Locations ...................................................................... 17 15U22124-S1V1 SAR_App B System Check Plots ............................................................................ 17 15U22124-S1V1 SAR_App C Highest Test Plots ............................................................................... 17 15U22124-S1V1 SAR_App D Tissue Ingredients ............................................................................... 17 15U22124-S1V1 SAR_App E Probe Cal. Certificates ......................................................................... 17 15U22124-S1V1 SAR_App F Dipole Cal. Certificates ........................................................................ 17 Report No.: 15U22124-S1V1 Issue Date: 12/8/2015 Page 4 of 17 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 1. Attestation of Test Results Applicant Name CONTROL4 CORP. FCC ID R33C4TT10 Model Name C4-TT10 Applicable Standards FCC 47 CFR § 2.1093 Published RF exposure KDB procedures IEEE Std 1528-2013 SAR Limits (W/Kg) Exposure Category Peak spatial-average(1g of tissue) General population / Uncontrolled exposure 1.6 The Highest Reported SAR (W/kg) RF Exposure Conditions Equipment Class Licensed DTS U-NII DSS (BT) Standalone N/A 0.265 N/A N/A Date Tested 11/17/2015 - 11/20/2015 Test Results Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties w…

Text truncated - open the document above for the full version.

Report No.: 15U22124 DUT and SAR Set-up Photos Overall Dimensions 245.76 mm 172.66 mm 256 mm 292 mm Report No.: 15U22124 Front View of the DUT Rear View of the DUT Report No.: 15U22124 Setup Photos Handset Vertical and Horizontal Reference Lines Vertical Center Line Horizontal Line Report No.: 15U22124 Standalone Exposure Conditions Edge 1 Report No.: 15U22124 Antenna Dimensions & Separation Distances Edge 2 Edge 4 Edge 1 Edge 3 Front Rear Front Rear

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab H Date/Time: 11/17/2015 12:33:36 AM 20151117_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 2.007 S/m; ε r = 52.98; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1472; Calibrated: 3/5/2015 - Probe: EX3DV4 - SN7335; ConvF(7.54, 7.54, 7.54); Calibrated: 3/13/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 B; Type: QDOVA002AA; Serial: 1248 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.64 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.093 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 11.0 W/kg SAR(1 g) = 5.23 W/kg; SAR(10 g) = 2.39 W/kg Maximum value of SAR (measured) = 7.49 W/kg 0 dB = 7.49 W/kg = 8.74 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab H Date/Time: 11/17/2015 12:53:32 AM 20151117_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.40 W/kg

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab H Date/Time: 11/18/2015 11:20:49 PM Wi-Fi 2.4GHz Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.989 S/m; ε r = 53.026; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1472; Calibrated: 3/5/2015 - Probe: EX3DV4 - SN7335; ConvF(7.54, 7.54, 7.54); Calibrated: 3/13/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 B; Type: QDOVA002AA; Serial: 1248 Edge 1/802.11b_ch 6/Area Scan (8x24x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.470 W/kg Edge 1/802.11b_ch 6/Zoom Scan (7x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.716 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.745 W/kg SAR(1 g) = 0.259 W/kg; SAR(10 g) = 0.120 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.403 W/kg 0 dB = 0.403 W/kg = -3.95 dBW/kg

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: C4-TT10 FCC ID: R33C4TT10 Test Specifications: FCC PART 15, Subpart C Test Report Serial No: 297670-4.2 Applicant: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 U.S.A Date of Test: October 4, 6, & 16, 2015 and November 3 & 4, 2015 Report Issue Date: December 28, 2015 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 Nemko-CCL, Inc. TEST REPORT: 297670-4.2 REPORT ISSUE DATE: 12/28/2015 Page 2 of 91 TRF-15.247 DTS SUBC Issue 2 Sept.. 2015 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: C4-TT10 - FCC ID: R33C4TT10 On this 28 th day of December 2015, I, individually and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Nemko-CCL, Inc. EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen Test Technician Reviewed by: Thomas C. Jackson Certification Manager Nemko-CCL, Inc. TEST REPORT: 297670-4.2 REPORT ISSUE DATE: 12/28/2015 Page 3 of 91 TRF-15.247 DTS SUBC Issue 2 Sept.. 2015 Revision History Revision Description Date 1 Original Report Release December 1, 2015 2 1. Corrected section 2.3 Network router FCC ID 2. P27 802.11g output power at 2462 MHz was changed to 11.85 dBm, 15.31 mW to agree with plot 3. P37 changed to state The highest output power measured using 802.11n was -2.53 dBm; 4. P68 High Channel plot inserted December 28, 2015 Nemko-CCL, Inc. TEST REPORT: 297670-4.2 REPORT ISSUE DATE: 12/28/2015 Page 4 of 91 TRF-15.247 DTS SUBC Issue 2 Sept.. 2015 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................5 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)..................................................................6 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................8 SECTION 4.0 OPERATION OF EUT DURING TESTING..................................................14 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................15 SECTION 6.0 MEASUREMENTS AND RESULTS ...............................................................16 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT .........................................69 APPENDIX 2 PHOTOGRAPHS ................................................................................................74 Nemko-CCL, Inc. TEST REPORT: 297670-4.2 REPORT ISSUE DATE: 12/28/2015 Page 5 of 91 TRF-15.247 DTS SUBC Issue 2 Sept.. 2015 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 U.S.A Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 U.S.A Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer Nemko-CCL, Inc. TEST REPORT: 297670-4.2 REPORT ISSUE DATE: 12/28/2015 Page 6 of 91 TRF-15.247 DTS SUBC Issue 2 Sept.. 2015 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Number: C4-TT10 Serial Number: 000FFF8077DF Dimensions: Touchscreen – 24.1 cm x 17.8 cm x 2.0 cm Base – 10.0 cm x 6.4 cm x 12.7 cm 2.2 Description of EUT: The C4-TT10 is a 10” display with capacitive touchscreen for use in Control4 home automation and security systems. The C4-TT10 is comprised of 2 parts, base and touchscreen. The base contains a DC input jack and Ethernet jack. The touchscreen can either be fixed to the base via a screw or taken off the base and used as a portable unit (WiFi mode only). Power is provided via an external DC power supply, POE using the Ethernet port, or when off the base, by internal batteries in the touchscreen. Configurations using each power source were tested. An Ault PW130 was used to power the EUT using the Ethernet port. A Phihong PSC15R-050 or a Phihong PSAA20R-050, 5 Vdc at 3.0 A was used to power the device when using the DC input port. The C4-TT10 has an 802.11b/g/n transceiver for WiFi communication with the Control4 automation/security system. The antenna is a Shenzhen Subaner Technology Co. Ltd. HRJ- W2141A with a peak gain of 2.51 dBi in the 2400 – 2483.5 MHz range. The frequencies and channel assignments are shown in the table below. Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2412 5 2432 9 2452 2 2417 6 2437 10 2457 3 2422 7 2442 11 2462 4 2427 8 2447 This report covers the circuitry of the devices subject to FCC Part 15, Subpart C. The circuitry of the device subject to FCC Subpart B was found to be compliant and is covered in Nemko-CCL, Inc. report 297669-1. Nemko-CCL, Inc. TEST REPORT: 297670-4.2 REPORT ISSUE DATE: 12/28/2015 Page 7 of 91 TRF-15.247 DT…

Text truncated - open the document above for the full version.
