R33C4SR260Remote control

Supported models • SR260 System Remote Control-English (C4-SR260) • SR260-I System Remote Control-Iconic (C4-SR260-I) Introduction The Control4® SR260 System Remote Control goes beyond a typical “universal” remote that simply learns IR codes from TVs, VCRs, CD players, and DVD players. This remote control offers complete system control in an elegant and compact design. The remote is equipped with a full-color screen, battery gauge, hidden ambient light sensor, faster processor, iconic button layout (C4SR260-I model), improved List Navigator, nine programmable shortcut buttons, and more. It’s included with the purchase of select Control4 controllers, and can also be purchased separately. The SR260 requires Control4 OS 2.7 or later. Use this guide along with the SR260 User Guide. Use the remote to: • Navigate system menus and access network-stored media on a TV or monitor with the on-screen Navigator • Navigate system menus and access media information on the remote’s display • Control all system devices Features • Bi-directional communication with system components • ZigBee® wireless mesh networking technology • Full access to system components • Full-color screen display • Back-lit keys and display for ease of use in dark rooms • Ambient light sensor for efficient control of backlighting • 50 buttons total: • Two quick-access buttons (WATCH and LISTEN) to display either the most used AV devices or a list of all available AV devices • Nine programmable buttons • Eight transport control buttons • Standard alphanumeric buttons • Control4 button • Paging functionality • Standard control features for digital satellite systems (DSS), cable boxes, tuners, digital video recorders (DVR), DVD changers/players, CD changers/players, MP3 players, VCRs, or TVs • Built-in motion detection can wake up the remote automatically • Powered by four AA batteries (included) SR260 buttons B C D E F H K NQ O R T U S P M L IJ G A SR260 English B C D E F H K NQ O R T U S P M L IJ G A SR260-I Iconic ROOM OFF—Turns off devices in room Display—Screen that displays color text options WATC H—Displays video devices Control4 button—Displays Control4 Home page on TV LISTEN—Displays audio devices LIST—Displays system’s menu (Navigator) on the display screen Programmable buttons—Functions vary GUIDE—Displays TV program listings ▲PAGE/PAGE▼—Scrolls pages up or down PREV—Returns to previous channel or screen VOL—Controls device volume SELECT and directional buttons— Scrolls up, down, left, or right; the center SELECT button selects the menu option A J D G B K E H C L F I CH—Scrolls up or down through TV channels MUTE—Toggles device sound off or on INFO—Shows program information MENU—Accesses device features and settings CNCL—Sends “Cancel” or “Exit” command DVR—Controls the DVR Playback control buttons: • Rewind/Fast forward—Rewinds or fast forwards • Skip back/Skip forward—Skips back or forward • Play—Plays • Record—Starts recording • Stop—Stops • Pause—Pauses Programmable buttons—Functions vary Alphanumeric buttons—Directly enters channel numbers or text descriptions O N M R P S T U Q Install and maintain batteries Install the batteries Install the four AA batteries (included) into the back of the SR260 according to the diagram in the battery compartment (with the + and - terminals aligned correctly). Battery use and care • Keep the battery contacts and compartment clean. • Remove the batteries from the remote if it is not going to be used for several months. • Extreme temperatures reduce battery performance. Avoid putting the SR260 in very warm places. Battery replacement safety rules Warning! To prevent a battery short, leakage or rupture: • Use typical AA Alkaline batteries only. • Do not mix battery types, such as Alkaline and rechargeable NiMH batteries. • Do not attempt to recharge a battery unless the battery is specifically marked “rechargeable.” • Never dispose of batteries in a fire. AVERTISSEMENT! Pour empêcher court-circuiter, fuite ou rupture de batterie: • Utilisez les accumulateurs alcalins typiques d’AA seulement. • Ne mélangez pas les types de batterie, tels que les batteries alkalines et rechargeables de NiMH. • N’essayez pas de recharger une batterie à moins que la batterie soit spécifiquement marqué « rechargeable ». • Ne vous débarassez jamais des batteries dans un feu. Recharging station A Remote Recharging Station is also available (sold separately) with a rechargeable battery to keep your remote always charged. For more information, see the Dealer Portal. Configure the remote Add and configure the remote control with Composer Pro. See the Composer Pro User Guide for instructions about adding devices. To configure the remote: 1 In Composer Pro, add and identify the System Remote Control SR260 driver to your project. 2 In the System Design view, select System Remote Control SR260 to view and change the remote’s properties. • Display Brightness—Sets the brightness of the remote’s screen, from 0 (off) to 100 (full brightness). • Keypad Brightness—Sets the brightness of the keypad backlight, from 0 (off) to 100 (full brightness). • Sleep Mode—Sets how long the remote stays awake after no activity. The default setting is 15 seconds, but can be extended up to 90 seconds or reduced to 10 to conserve battery life. • Battery Level—Displays the current battery charge level. • Channel—Displays the ZigBee channel set for the remote, which should match the ZigBee channel for the controller. • Gateway—Displays the MAC address of the ZigBee Server (usually your controller, unless you specify differently). • MAC—Displays the remote’s MAC address. • Firmware Version—Displays the remote’s current firmware version. • Watch/Listen Button Behavior—Sets whether the buttons show a list of available devices or only the most recently used devices. 3 On the remote, press LIST, then select Settings > Config. The following menu opens, where you can change remote control settings: • Display Brightness—Sets the brightness of the r…

Text truncated - open the document above for the full version.

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent- FCC On our behalf, I authorize Nemko-CCL, Inc. at 1940 W. Alexander Street, Salt Lake City, UT 84119, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc. still resides with Control4 Corporation, 11734 S. Election Road, Draper, Utah 84020, USA. Dated this 18 th Day of January 20 15 Agency agreement expiration date: December 31, 2015 By: Roger Midgley Signature Printed Title: Sr. Regulatory Compliance Engineer On behalf of : Control4 Corporation Telephone: 801-523-3187

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax February 11, 2015 Declaration of Similarity Control4, located at 11734 S. Election Road, Suite 200, Salt Lake City, UT, USA 84020, hereby states that the models listed below are identical on the following aspects functionally and electrically and only differ from each other on the silkscreen on the buttons. The C4-SR260 has text on the buttons and the C4-SR260-I has icons on the buttons. Therefore both models can be considered a model variant in all regulatory compliance test reports and certification. We wish to certify all of these models as a family approval. Brand Name: Model number: Control4 C4-SR260 Control4 C4-SR260-I Control4 Authorized Representative Roger Midgley Sr. Regulatory Compliance Engineer

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax Date: February 18, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: R33C4SR260. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Schematics Operational Description Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Best Regards Roger Midgley Sr. Regulatory Compliance Engineer

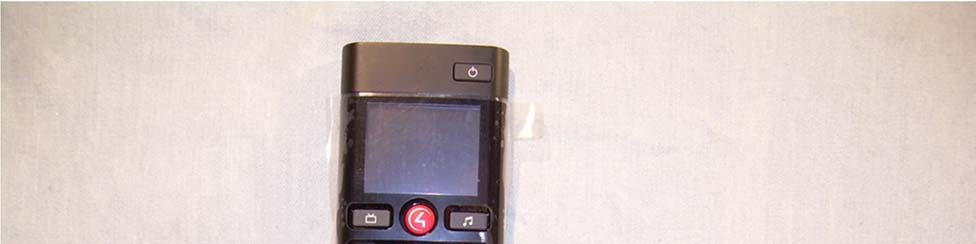

External Photographs Front View of the Remote Back View of the Remote

SCALE 1:1DO NOT SCALESHEET 1 OF 2 REVSIZEPART # A DECIMAL: ± 0.508 2 DECIMAL: ± 0.254 3 DECIMAL: ± 0.127 RAD/CHAM: ± 0.508 ANGLE: ± 1.00° TOLERANCES: (ALL DIMENSIONS ARE IN INCHES) A.0 1. MATERIAL: COLOR: BLACK SEE PART NUMBER 211-00023 FOR MATERIAL SPECIFICATION AND APPROVED MANUFACTURES 2. PRINTING: PRINT COLOR: WHITE (PANTONE 7541 C OR EQUIVALENT) USE SHEET 2 FOR LABEL PLACEMENT REFERENCE PDF DOCUMENT IS FOR REFERENCE ONLY 3. DOCUMENT SCHEDULE: SHEET 1: ARTWORK SHEET 2: LABEL PLACEMENT THE INFORMATION CONTAINED IN THIS DRAWING AND THE ASSOCIATED CAD DATA IS CONFIDENTIAL, AND IS THE SOLE PROPERTY OF CONTROL4. ANY USE, REPRODUCTION, OR DISCLOSURE - IN WHOLE OR IN PART - WITHOUT WRITTEN PERMISSION FROM CONTROL4 IS PROHIBITED 11734 S. Election Road, Suite 200 Draper, UT 84020 Phone: 801-523-3100 Fax: 801-523-3199 TITLE 210-01439 NO.REVISIONSDATEBY Label, Product ID W/Regulatory Logos C4-SR260 COPYRIGHT 2015 3.0BETA RELEASE10/12/14CJK NOTES (UNLESS OTHERWISE SPECIFIED): IC: 7848A-C4SR260 210-01439 FCC ID: R33C4SR260 MODEL: C4-SR260 N1743 Z703 MODÉLE: Made in Korea Fabriqué en Corée 38.10 mm 9.525 mm This device complies with part 15 of the FCC rules and CAN ICES-3(B)/NMB-3(B). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. A.0PRIDUCTION RELEASE01/23/15CJK FOR REFERENCE ONLYNOT TO SCALESHEET 2 OF 2 REVSIZEPART # AA.0 11734 S. Election Road, Suite 200 Draper, UT 84020 Phone: 801-523-3100 Fax: 801-523-3199 TITLE 210-01439 Label, Product ID W/Regulatory Logos C4-SR260 COPYRIGHT 2015 IC: 7848A-C4SR260 210-01439 FCC ID: R33C4SR260 MODEL: C4-SR260 N1743 Z703 MODÉLE: Made in Korea Fabriqué en Corée This device complies with part 15 of the FCC rules and CAN ICES-3(B)/NMB-3(B). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCALE 1:1DO NOT SCALESHEET 1 OF 2 REVSIZEPART # A DECIMAL: ± 0.508 2 DECIMAL: ± 0.254 3 DECIMAL: ± 0.127 RAD/CHAM: ± 0.508 ANGLE: ± 1.00° TOLERANCES: (ALL DIMENSIONS ARE IN MM) A.0 1. MATERIAL: COLOR: BLACK SEE PART NUMBER 211-00023 FOR MATERIAL SPECIFICATION AND APPROVED MANUFACTURES 2. PRINTING: PRINT COLOR: WHITE (PANTONE 7541 C OR EQUIVALENT) USE SHEET 2 FOR LABEL PLACEMENT REFERENCE PDF DOCUMENT IS FOR REFERENCE ONLY 3. DOCUMENT SCHEDULE: SHEET 1: ARTWORK SHEET 2: LABEL PLACEMENT THE INFORMATION CONTAINED IN THIS DRAWING AND THE ASSOCIATED CAD DATA IS CONFIDENTIAL, AND IS THE SOLE PROPERTY OF CONTROL4. ANY USE, REPRODUCTION, OR DISCLOSURE - IN WHOLE OR IN PART - WITHOUT WRITTEN PERMISSION FROM CONTROL4 IS PROHIBITED 11734 S. Election Road, Suite 200 Draper, UT 84020 Phone: 801-523-3100 Fax: 801-523-3199 TITLE 210-01448 NO.REVISIONSDATEBY Label, Product ID w/ Regulatory Logo’s C4-SR260-I COPYRIGHT 2015 3.0BETA RELEASE10/12/14CJK NOTES (UNLESS OTHERWISE SPECIFIED): IC: 7848A-C4SR260 210-01448 FCC ID: R33C4SR260 MODEL: C4-SR260-I N1743 Z703 MODÉLE: Made in Korea Fabriqué en Corée This device complies with part 15 of the FCC rules and CAN ICES-3(B)/NMB-3(B). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 38.10 mm 9.525 mm A.0PRODUCTION RELEASE 01/23/15 CJK FOR REFERENCE ONLYNOT TO SCALESHEET 2 OF 2 REVSIZEPART # AA.0 11734 S. Election Road, Suite 200 Draper, UT 84020 Phone: 801-523-3100 Fax: 801-523-3199 TITLE 210-01448 Label, Product ID w/ Regulatory Logo’s C4-SR260-I COPYRIGHT 2015 IC: 7848A-C4SR260 210-01448 FCC ID: R33C4SR260 MODEL: C4-SR260-I N1743 Z703 MODÉLE: Made in Korea Fabriqué en Corée This device complies with part 15 of the FCC rules and CAN ICES-3(B)/NMB-3(B). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photographs View of the Component Side of the PCB View of the Keypad Side of the PCB

Page 1 of 2 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax RF Exposure Considerations Control4 Model: C4-SR260 & C4-SR260-I FCC ID: R33C4SR260 IC: 7848A-C4SR260 Per FCC KDB 447498 D01 general RF Exposure Guidance v05r02. The 1-g and 10-g SAR test exclusion threshold for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by Eq. 1 below: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] If result of Eq. 1 is less than or equal to the exemption limits below, then corresponding SAR test is not required. SAR Test Configuration Exemption Limit 1-g SAR Result of Eq. 1 ≤ 3.0 10-g extremity SAR Result of Eq. 1 ≤ 7.5 Where; f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation. The result is rounded to one decimal place for comparison. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 2 of 2 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax For our device, the parameters for consideration are as follows: The Maximum source-based time averaged conducted output power is based on the worst case conducted output power as reported in Nemko-CCL test report 277005-1.2 section 6.2.4, declared antenna gain of 1.1 dB and declared maximum variation for the output power during manufacturing testing (tune-up procedure) is  0.5 dB. Frequency (GHz) Maximum source-based time averaged conducted output power including tune-up tolerance (mW) Minimum separation distance (mm) Result of Eq.1 Limit for 1-g SAR Limit for 10-g extremity SAR Verdict 2.405 2 5 0.7 3.0 7.5 Exempt from SAR 2.445 2 5 0.5 3.0 7.5 Exempt from SAR 2.475 2 5 0.5 3.0 7.5 Exempt from SAR CONCLUSION: Therefore our device complies with the FCC’s RF radiation exposure limits for general population without SAR evaluation. Best Regards Roger Midgley Sr. Regulatory Compliance Engineer

Setup Photographs View Radiated Disturbance Configuration – Horizontal View Radiated Disturbance Configuration – On Edge View Radiated Disturbance Configuration Front View AC Mains Conductance Back View AC Mains Conductance
