Control4 CONFIDENTIAL Page 1 of 2 Label, Temporary, FCC ID, AVM-16S1-B, Silver w/Black Text, 1.500" x 0.750", Metallized Polyester, Matte Silver, Perm Acrylic Adh Specification Control4 P/N 22-0300-51 Rev A 1. Label Type: 8 ½” x 11” laser-printable sheet 2. Manufacturer: Brady (www.bradyid.com) or equivalent 3. Mfr. P/N: LAT-20-773 4. Label Size: 1.500” x 0.750” 5. # per Sheet: 60 6. Material: B-773 Matte Silver Metallized Polyester or equivalent 7. Adhesive: Permanent Acrylic Adhesive 8. Temp Range: -65C to 120C 9. Approvals: UL Recognized / CSA Approved materials 10. Printer/Toner: CSA : Refer to bradyid.com, Support/Knowledge Base, document # JM173350 (titled CSA Accepted Materials) for approved types. Or refer to Brady’s Acceptance Record (LS41833) with CSA. UL: Refer to bradyid.com, Support/Knowledge Base, document # JM134823 (titled UL Recognized Components) for approved types. 11. Artwork: Inherent in source file number “22-0300-51 Rev A.lab” provided by Control4 12. File Type: “.lab” (Wasp Barcode Labeler v5) 13. Software: “Wasp Barcode Labeler v5” (www.waspbarcode.com ) 14. Barcode: None required on this label 15. # Sequencing: None required on this label Label Example – Actual Size Control4 CONFIDENTIAL Page 2 of 2 Enlarged REVISION HISTORY Date Rev Description Person 5 Mar 2005 A Initial design specification and production release. Roger Johnsen Control4 CONFIDENTIAL Label, FCC Compliance, Black w/White Text, H=1.000" x W=1.750" x Rmax=0.125", Polyester, Gloss, Perm Adh, UL Specification Control4 P/N 22-3012 Rev A 1. Size: H=1.000” x W=1.750” label with 0.125” max radius on each corner 2. Base Material: 2.0 mil (0.002”) white polyester, 3M 7871 or equivalent (UL) 3. Laminate Overlay: 2.0 mil (0.002”) clear gloss polyester, 3M 7861 or equivalent (UL) 4. Adhesive: 2.0 mil (0.002”) permanent acrylic, 3M #350 or equivalent (UL) 5. Liner: 50# bleached white kraft paper 6. Printing: Flexopress 7. Ink: Reverse print, black, Akzo Nobel 4000 Series or equivalent (UL) 8. Art: See graphic below 9. Font: Arial 6.5 pt. 10. Wording: See paragraph below This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. REVISION HISTORY Date Rev Description Person 5 Mar 2005 A Initial design specification and production release. Roger Johnsen This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

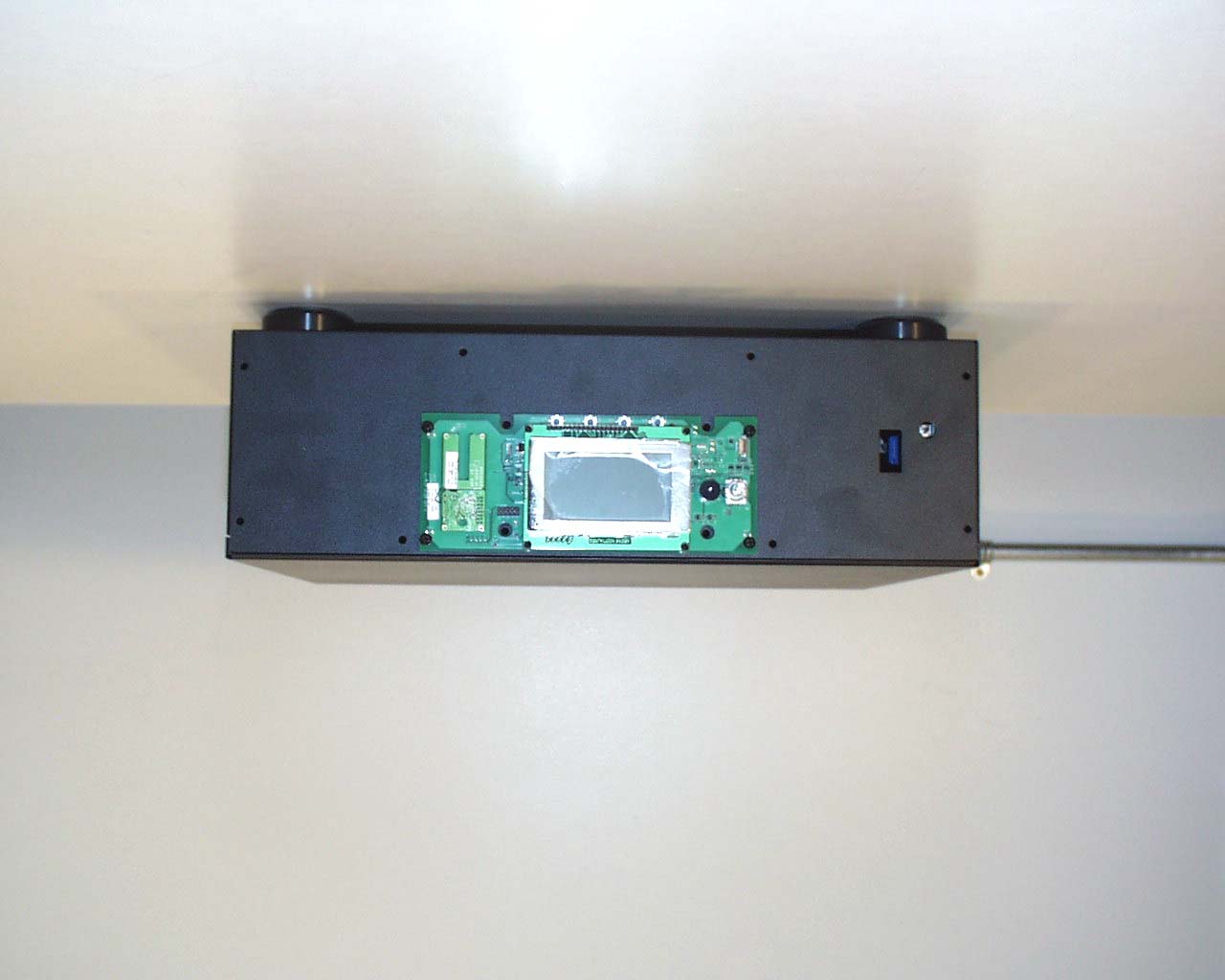

Internal Photos Internal View of the EUT Component Side of the Radio Card Trace Side of the Radio Card

MPE Calculations R33AVM16S11 1 1.0SCOPE_________________________________________________________3 2.0REVISION LEVEL_______________________________________________4 3.0REFERENCE DOCUMENTS______________________________________4 4.0CALCULATIONS________________________________________________5 5.0CONCLUSION___________________________________________________6 2 1.0SCOPE: This Report Demonstrates Evaluation and Compliance for Human Exposure to Radiofrequency Electromagnetic Fields as Outlined by the Federal Communications Commission Office of Engineering and Technology Bulletin 65. 2.0REVISION LEVEL: DATECOMMENTS REVISIO N 04/18/05 Created. 1.0 3.0REFERANCE DOCUMENTS: (A)Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Section 1.1310. (B)Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. 4.0CALCULATIONS: The following worst case emissions are based on a PPt (Peak Power Total) measurement of 10.7 dBm. And the worst case antenna gain on axis is found to be 1.469 dBi. Total radiated power at the Transmitter: A)Pt = 10.7 dBm + 1.469 dBi = 12.2 EIRP 12.2 EIRP = 16.6 mW or .0166 Watts. Power density at a distance of .02 meters is: B)S = EIRP/4π∙R^2 S = Power density (mW/cm^2) EIRP = Equivalent isotropically radiated power (mW) R = Distance to the center of radiation of the antenna (cm) 3 S = 33 mW per meter squared. Power density based on a Per Centimeter Squared is: 3.3 μW per centimeter squared. 5.0 CONCLUSION: Based on the FCC Limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) this device falls under the required limits. 4

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Exhibit 6 Type of Report: Certification TEST OF: AVM-16S1-B FCC ID: R33AVM16S11 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8044 Applicant: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Date of Test: December 29, 2004 Issue Date: January 10, 2005 Equipment Receipt Date: December 29, 2004 Accredited Testing Laboratory By: NVLAPLabCode100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8044 FCC ID#: R33AVM16S11 Page 2 of 50 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: AVM-16S1-B - FCC ID Number: R33AVM16S11 On this 10 th day of January 2005, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8044 FCC ID#: R33AVM16S11 Page 3 of 50 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........9 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................15 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................17 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....18 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................33 APPENDIX 2 PHOTOGRAPHS .........................................42 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8044 FCC ID#: R33AVM16S11 Page 4 of 50 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: Joseph Collier Title: Hardware Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: Joseph Collier Title: Hardware Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8044 FCC ID#: R33AVM16S11 Page 5 of 50 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Name or Number: AVM-16S1-B Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A. 2.2 Description of EUT: The AVM-16S1-B is an audio matrix switch with 16 inputs and 16 outputs. Any input can be switched to any of the outputs to allow multi-area/zone audio coverage. An Ethernet port is provided for connection to the Internet or network. An 802.15.4 Zigbee radio is used for remote programming and control. The 802.15.4 transceiver uses 15 channels in the 2400 to 2483.5 MHz band. The individual channels are shown in the following plots. dBm 11 1 -9 -19 -29 -39 -49 -59 -69 -79 -89 Control4 73-8019 Trace A Start: 2.402500 GHzStop: 2.427500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 11/29/2004 3:57:50 PMHP8566B Trace ALower 5 channels 1 1 2.405075 GHz 3.0000 dBm 2 2 2.410175 GHz 1.3000 dBm 3 3 2.415200 GHz 1.3000 dBm 4 4 2.420200 GHz 1.3000 dBm 5 5 2.425300 GHz 1.6000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8044 FCC ID#: R33AVM16S11 Page 6 of 50 dBm 11 1 -9 -19 -29 -39 -49 -59 -69 -79 -89 Control4 73-8019 Trace A Start: 2.427500 GHzStop: 2.452500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 11/29/2004 3:56:10 PMHP8566B Trace AMiddle 5 channels 1 1 2.430075 GHz 2.8000 dBm 2 2 2.435225 GHz 2.0000 dBm 3 3 2.440325 GHz 1.6000 dBm 4 4 2.445350 GHz 2.6000 dBm 5 5 2.450525 GHz 1.7000 dBm dBm 11 1 -9 -19 -29 -39 -49 -59 -69 -79 -89 Control4 73-8019 Trace A Start: 2.452500 GHzStop: 2.477500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 11/29/2004 3:54:04 PMHP8566B Trace AUpper 5 channels 1 1 2.455150 GHz 2.5000 dBm 2 2 2.460300 GHz 2.3000 dBm 3 3 2.465400 GHz 1.3000 dBm 4 4 2.470550 GHz 2.6000 dBm 5 5 2.475675 GHz 2.1000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8044 FCC ID#: R33AVM16S11 Page 7 of 50 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Control4 MN: AVM-16S1-B (Note 1) R33AVM16S11 Audio Matrix Switch See Section 2.4 BN: TRENDnet MN: TE100-S8P SN: 0243C3A16540 Verification 8 port LAN hub Ethernet 1-8/Cat 5 cable w/RJ45 connectors (Note 2) BN: HP MN: Pavillion DoC Laptop Computer Ethernet/Cat 5 cable Note: (1) EUT. (2) Interface port connected to EUT (See Section 2.4) 2.4 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length Input 16 Shielded cables w/RCA connectors/10 cables @ 1 and 6 cables @ 2 meters Output 16 Shielded cables w/RCA connectors/10 cables @ 1 and 6 cables @ 2 meters Ethernet 1 Cat 5 cable w/RJ45 connectors/8 meters COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8044 FCC ID#: R33AVM16S11 Page 8 of 50 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Signature: Typed Name: Joseph Colli…

Text truncated - open the document above for the full version.

Test Set-up Photos Front View Radiated Disturbance Worst Case Configuration Back View Radiated Disturbance Worst Case Configuration Front View Conducted Disturbance Worst Case Configuration Back View Conducted Disturbance Worst Case Configuration
