R33AVMHTC11Home Theater Controller AVM-HTC1-B AVG-HTC1-B

Disclaimer Control4 ® makes no representations or warranties with respect to this publication, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Control4 reserves the right to make changes to any and all parts of this publication at any time, without any obligation to notify any person or entity of such changes. Trademarks Control4, EZ ID, and the Control4 logo are trademarks or registered trademarks of Control4 Corporation. Other product and company names mentioned in this document may be the trademarks or registered trademarks of their respective owners. Legal Notice Fraunhofer IIS and Thomson. MPEG Layer-3 audio coding technology license from Fraunhofer IIS and Thomson. Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable, and /or other distribution channels), streaming applications (via Internet, intranets, and/or other networks), other content distribution systems (pay-audio or audio-on-demand applications, and the like) or on physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards, and the like). Decisionmark is the service provider of analog and digital TV off-air cable and satellite channel list. Radio Locator is the service provider of AM/FM channel list. © 2005 All Media Guide, LLC provides music and video recognition technology that provides cover art and related text that enriches the Control4 user interfaces. Copyright Copyright © 2005 Control4. All rights reserved. No part of this publication may be reproduced, photocopied, stored on a retrieval system, or transmitted without the express written consent of the publisher. Contact Us Control4 Corporation 11734 S. Election Road Salt Lake City, UT 84020 USA http://www.control4.com Home Theater Controller Installation and User Guide Part Number: 21-0250 Rev B Regulatory Draft 2 Hardware Model Number: AVM-HTC1-B and AVG-HTC1-B iii Contents PrefaceImportant Information .................................... 1 Graphical Symbols on the Device.......... 1 Graphical Symbols in this Guide............ 1 Important Safety Instructions ................. 3 Additional Resources ............................. 4 Chapter 1Introduction to Home Theater Controller ....... 5 Role in a Control4 System ..................... 5 Features and Benefits............................ 6 Space Saving Design ....................... 6 Powerful Automation Controller ........ 6 Easy to Setup and Use ..................... 7 Requirements ........................................ 7 What’s in the Box ................................... 7 Front View......................................... 8 Back View ......................................... 9 Specifications.................................. 10 Control4 Supported Devices ................ 11 Chapter 2Install the System ........................................ 13 Plan the Equipment Layout.................. 13 Meet Home Network Requirements 13 Plan the System Connections......... 14 Connect to the Network ....................... 16 Power Up the Home Theater Controller16 Connect Devices.................................. 17 Use the Pluggable Terminal Block Connector .................................. 17 Connect to the Contact Port ........... 18 Connect to the Relay Port............... 19 Connect the Serial Port................... 20 Set Up IR Emitters .......................... 21 Use Video Sense Loops ................. 21 iv Chapter 3Configure the System .................................. 23 Design and Setup the System ............. 23 Interviewer ...................................... 24 The Main Composer Interface ........ 25 Configure a Wireless Network (WiFi)... 26 Set Up Media and Create Playlists ...... 26 Program the Home Automation System27 Chapter 4Use Home Theater Controller...................... 29 Control Devices and Use the System .. 29 Front Panel .......................................... 30 On-Screen Navigator ...................... 31 System Remote Control with LCD .. 32 Set up and Use External Storage Device 33 Change On-screen Navigator Themes 33 Chapter 5Warranty and Regulatory Compliance Informa- tion35 Warranty .............................................. 35 Limited Hardware Warranty ............ 35 Hardware Warranty Terms ............. 36 Software Agreement ....................... 39 Regulatory Compliance ....................... 40 Federal Communications Commission (FCC)......................................... 40 Industry Canada Statement ............ 41 Underwriters Laboratories Inc. (UL) 41 1 PREFACE Important Information This preface provides the following information: `Graphical Symbols on the Device `Graphical Symbols in this Guide `Important Safety Instructions `Additional Resources Graphical Symbols on the Device The following information has been placed on the device: Graphical Symbols in this Guide The following symbols and their descriptions draw your attention to important safe practices and additional information that can help you avoid injury, death, or loss of material or time. 2 WARNING! This indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury. DO NOT IGNORE A WARNING! CAUTION! This indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. DO NOT IGNORE A CAUTION! IMPORTANT! This indicates information that will help you avoid damage to your equipment, loss of materials, or loss of time. PAY ATTENTION TO THESE IMPORTANT STATEMENTS! 3 NOTE: This indicates a note on related information about the current topic. TIP: This indicates a tip that might save you time or effort. Important Safety Instructions 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Cl…

Text truncated - open the document above for the full version.

11734 South Election Drive Suite 200 Draper, Utah 84020 (801) 523-3100 To: Federal Communications Commission Date: 10/27/05 445 12 th Street, SW Washington, DC 20554 Re: Non disclosure Request for FCC ID: R33AVMHTC11 We are requesting that the following documents be held and treated as confidential and proprietary information. These materials contain technical trade secret information and should be guarded from competitors as stated under the Code of Federal Regulations Title 47 Section 0.459 (3), (4) and (5). 1) Schematic 2) Block Diagrams 3) Operational Description Jon A. Nelson Hardware Engineer Control4 Technologies

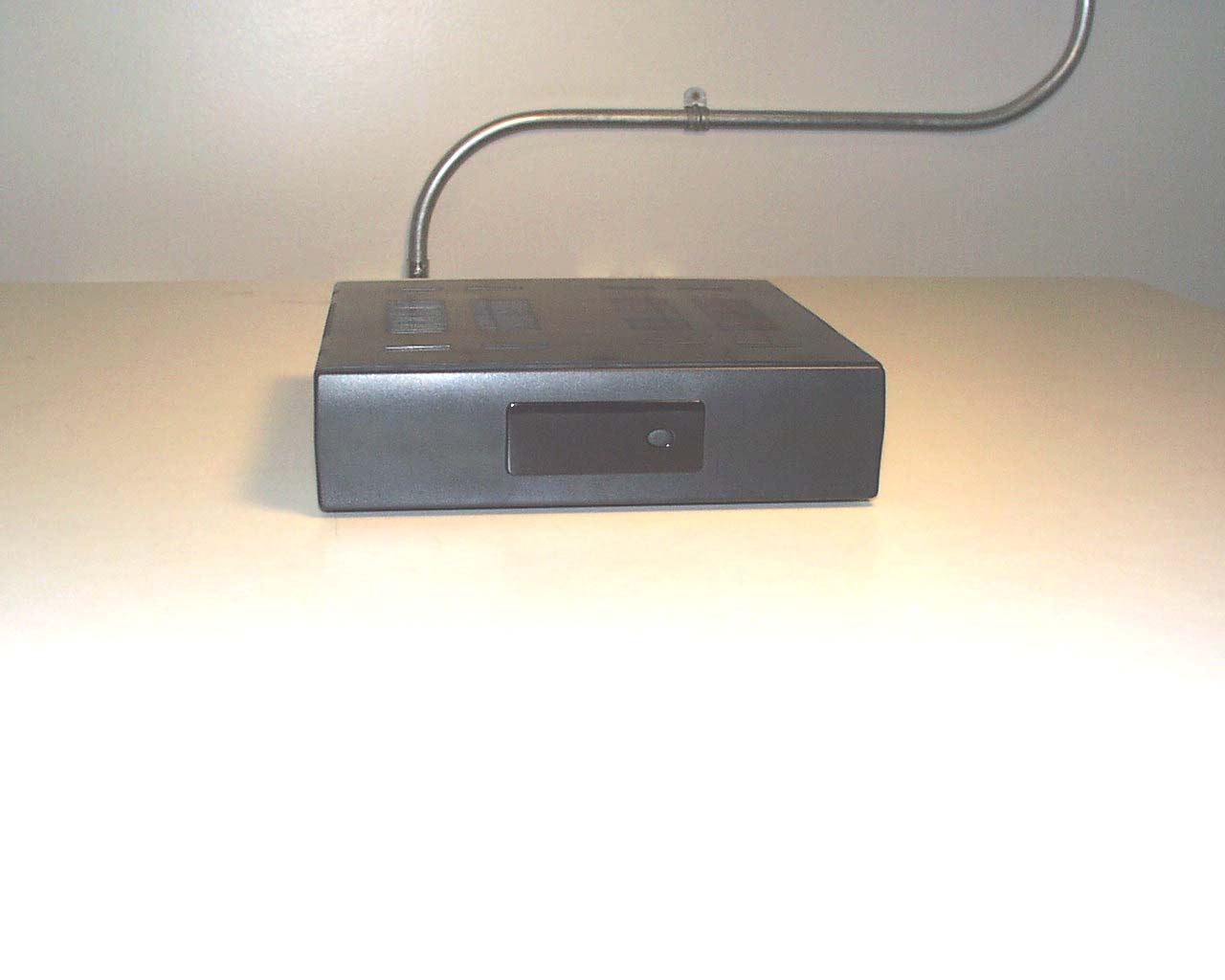

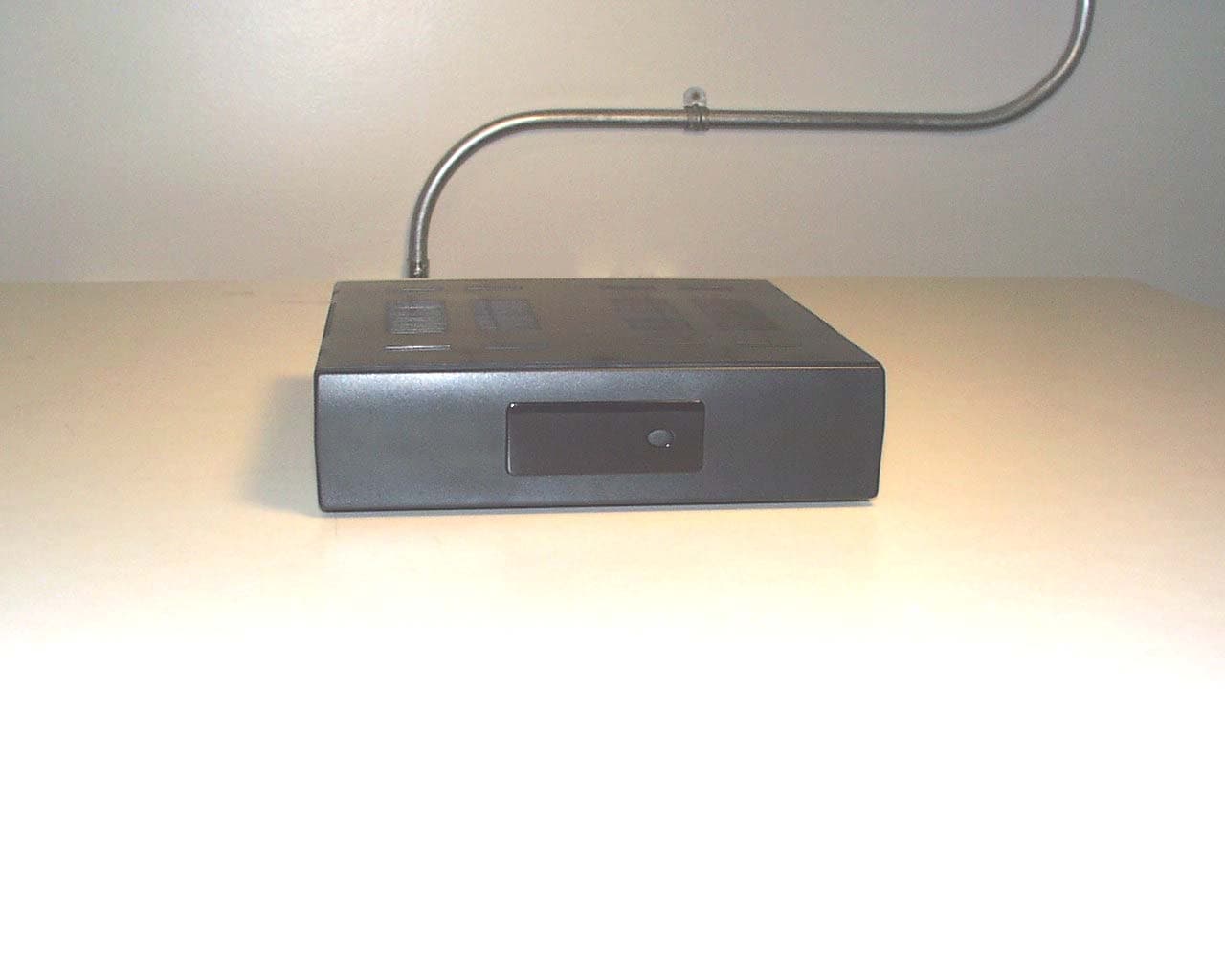

Front View of the EUT Back View of the EUT

Control4 CONFIDENTIAL Label, FCC Compliance, Black w/White Text, H=1.000" x W=1.750" x Rmax=0.125", Polyester, Gloss, Perm Adh, UL Specification Control4 P/N 22-3012 Rev A 1. Size: H=1.000” x W=1.750” label with 0.125” max radius on each corner 2. Base Material: 2.0 mil (0.002”) white polyester, 3M 7871 or equivalent (UL) 3. Laminate Overlay: 2.0 mil (0.002”) clear gloss polyester, 3M 7861 or equivalent (UL) 4. Adhesive: 2.0 mil (0.002”) permanent acrylic, 3M #350 or equivalent (UL) 5. Liner: 50# bleached white kraft paper 6. Printing: Flexopress 7. Ink: Reverse print, black, Akzo Nobel 4000 Series or equivalent (UL) 8. Art: See graphic below 9. Font: Arial 6.5 pt. 10. Wording: See paragraph below This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. REVISION HISTORY Date Rev Description Person 5 Mar 2005 A Initial design specification and production release. Roger Johnsen This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal View of the EUT with the USB Devices Installed View of the Main PCB without the USB Devices Installed View of the Trace Side of the Main PCB Front View of the Front Panel PCB Rear View of the Front Panel PCB

1 MPE Calculations R33AVMHTC11 2 1.0 SCOPE_________________________________________________________3 2.0 REVISION LEVEL_______________________________________________3 3.0 REFERENCE DOCUMENTS______________________________________3 4.0 CALCULATIONS________________________________________________3 5.0 CONCLUSION__________________________________________________4 3 1.0 SCOPE: This Report Demonstrates Evaluation and Compliance for Human Exposure to Electromagnetic Fields as Outlined by the Federal Communications Commission Office of Engineering and Technology Bulletin 65. 2.0 REVISION LEVEL: DATE COMMENTS REVISION 4/25/2005 Created. 1.0 3.0 REFERANCE DOCUMENTS: (A) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Sections 1.1310 (B) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Sections 2.1093 (C) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. 4.0 CALCULATIONS: The following worst case emissions are based on a PPt (Peak Power Total) measurement of 9.10 dBm into the antenna. And the worst case antenna gain on axis is found to be 0.0 dBi. Total power into antenna: A) Pt = 9.10 dBm = 10^(9.10 dBm/10) = 8.12 mW Total effective isotropic radiated power at the Transmitter: B) EIRP = 9.10 dBm + 0.0dBi = 9.10 dBm 10.4 dBm = 8.12 mW Power density at a distance of 20 centimeters is: 4 C) 2 Rπ4 EIRP =S = 1.6 μW/cm 2 Where S = Power density (mW/cm^2), EIRP = Equivalent isotropic radiated power (mW), R = Distance to the center of radiation of the antenna (cm) 5.0 CONCLUSION: Based on the FCC Limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) as 1 mW/cm 2 this device falls under the required limits.

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Certification Test Report TEST OF: AVM-HTC1-B AVG-HTC1-B FCC ID: R33AVMHTC11 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8133 Applicant: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Dates of Test: June 27 & 29, 2005 Issue Date: June 30, 2005 Equipment Receipt Date: June 27, 2005 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8133 FCC ID#: R33AVMHTC11 Page 2 of 54 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: AVM-HTC1-B AVG-HTC1-B - FCC ID Number: R33AVMHTC11 On this 30 th day of June 2005, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8133 FCC ID#: R33AVMHTC11 Page 3 of 54 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ..........10 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................16 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................18 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....19 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................35 APPENDIX 2 PHOTOGRAPHS .........................................44 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8133 FCC ID#: R33AVMHTC11 Page 4 of 54 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: Jon Nelson Title: Hardware Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: Jon Nelson Title: Hardware Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8133 FCC ID#: R33AVMHTC11 Page 5 of 54 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Name or Number: AVM-HTC1-B AVG-HTC1-B Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A., India, China 2.2 Description of EUT: The AVG-HTC1-B is a Home Theater Controller. It is designed to control Audio and Video devices and has the ability to also control other equipment manufactured by Control4 to control lighting and temperature. Six IR out ports, a Composite Video port, S-video port, two left and right audio in ports, a left and right audio out port, and a video sense port are provided for connection to other audio and video equipment. Two internal USB ports are provided, one with a ZCOM Wifi module bearing FCC ID# M4Y-XG703A and one with an iVogue 128 MB memory module installed. An external USB port is also provided. Connection to a network or the Internet is via an Ethernet port. A Contact/Relay/Serial port is provided for sourcing 12 VDC at 750 mA to other devices, serial communications, contact sense, and relay control. A 802.15.4 ZigBee transceiver is included in the device for mesh networking and control purposes. The AVM-HTC1-B is identical to the AVG-HTC1-B except there is no WiFi module installed. This report covers the 802.15.4 ZigBee transceiver and testing was performed to FCC Part 15 Subpart C. The digital and control circuitry subject to FCC Part 15 Subpart B is to be covered in a separate report. The Zcom Wifi USB module carries modular FCC certification under FCC ID# M4Y-XG703A and is not addressed in this report. The 802.15.4 transceiver uses 15 channels in the 2400 to 2483.5 MHz band. The individual channels are shown in the following plots. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8133 FCC ID#: R33AVMHTC11 Page 6 of 54 dBm 13 3 -7 -17 -27 -37 -47 -57 -67 -77 -87 73-8129 Control4 Trace A Start: 2.402500 GHzStop: 2.427500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/29/2005 11:51:23 AMHP8566BL5.SPT Trace A Lower 5 Channels 1 1 2.405125 GHz 1.6000 dBm 2 2 2.410150 GHz 2.4000 dBm 3 3 2.415200 GHz 2.1000 dBm 4 4 2.420175 GHz 3.3000 dBm 5 5 2.425250 GHz 2.9000 dBm dBm 13 3 -7 -17 -27 -37 -47 -57 -67 -77 -87 73-8129 Control4 Trace A Start: 2.427500 GHzStop: 2.452500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/29/2005 11:47:28 AMHP8566BM5.SPT Trace A Middle 5 Channels 1 1 2.430175 GHz 3.0000 dBm 2 2 2.435350 GHz 1.4000 dBm 3 3 2.440400 GHz 2.0000 dBm 4 4 2.445500 GHz 3.1000 dBm 5 5 2.450625 GHz 2.3000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8133 FCC ID#: R33AVMHTC11 Page 7 of 54 dBm 13 3 -7 -17 -27 -37 -47 -57 -67 -77 -87 73-8129 Control4 Trace A Start: 2.452500 GHzStop: 2.477500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/29/2005 11:43:28 AMHP8566BU5.SPT Trace A Upper 5 Channels 1 1 2.455175 GHz 1.5000 dBm 2 2 2.460350 GHz 2.6000 dBm 3 3 2.465400 GHz 2.4000 dBm 4 4 2.470500 GHz 1.3000 dBm 5 5 2.475625 GHz 1.9000 dBm 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including ins…

Text truncated - open the document above for the full version.

Front View Spurious Radiated Emission Worst Case Configuration Back View Spurious Radiated Emission Worst Case Configuration Front View Conducted Disturbance Worst Case Configuration Back View Conducted Disturbance Worst Case Configuration
