R33C4DIM101ZWireless Dimmer

Wireless Dimmer Installation Guide Supported Models C4-DIM101-Z-W Wireless Dimmer (White) C4-DIM101-Z-B Wireless Dimmer (Black) C4-DIM101-Z-A Wireless Dimmer (Almond) Specifications and Supported Fixtures This Control4® Wireless Dimmer operates independently or as part of a Control4® home automation system to enable intelligent lighting control. It installs in a standard wall box using typical wiring standards and communicates with other devices through a wireless RF (radio frequency) connection. Warnings & Considerations WARNING! Install in accordance with all national and local electrical codes. WARNING! Improper use or installation can cause SERIOUS INJURY, DEATH or LOSS/DAMAGE OF PROPERTY. WARNING! If you are unsure about any part of these instructions, consult a qualified electrician. WARNING! To reduce the risk of overheating and possible damage to this device and other equipment, DO NOT install to control a receptacle, a motor, or a transformer-operated appliance. WARNING! Use this device only with copper or copper clad wire. This product has NOT been approved for use with Aluminum wiring. WARNING! This product generates heat during normal operation. IMPORTANT! Use or modification of this product in a manner not expressly approved by Control4 voids your warranty. Further, Control4 is NOT liable for any damage incurred with the misuse of this product. See "Limited 2 Year Warranty." IMPORTANT! The range and performance of the wireless control system is highly dependent on the following: (1) distance between devices; (2) layout of the home; (3) walls separating devices; and (4) electrical equipment located near devices. Installation Instructions 1 TURN OFF POWER by switching off the circuit breaker or removing the fuse and test that power is off before wiring! 2 Ensure Dimmer capacity matches the load requirements. In multi-dimmer installations, a reduction of the dimmer's capacity is required to allow the dimmers to be installed side-by-side in the same wall box. The dimmer capacity depends on the number "ganged" in the wall box as follows: • 1 gang = 1000 W / VA maximum • 2 gang = 800 W / VA maximum per dimmer • 3 or more gang = 600 W / VA maximum per dimmer If installing in multi-gang scenarios, use pliers to remove the inner-side break- away tabs: Bend each one back and forth until it breaks off. Remove the inner- side tabs ONLY on any device side that will be adjacent to another device. DO NOT remove tabs on any side that will become the outer side of a group of devices. 3 Identify your wiring application (refer to the appropriate diagram in “Sample Wiring Configurations” on the back page). • "Single-Pole (with power source at wall box) - see Figure 1 • "Single-Pole (with power source at light fixture) - see Figure 2 • "3-Way (with power source at wall box) - see Figure 3 • "3-Way (with power source at light fixture) - see Figure 4 4 Prepare wires by removing pre-cut insulation from the appropriate dimmer leads. Wire insulation should be stripped back 5/8 of an inch from the wire end (as shown). 5 Connect the dimmer wires to the wall box wires using wire nuts according to the relevant wiring diagram. See “Sample Wiring Configurations.” WARNING! The Blue wire is not a traditional traveler: It cannot directly power a lighting load. It must only be used to provide power to another Control4 keypad. If you do not intend to use this wire, leave it capped. The blue wire is a "switched hot" wire that is connected internally to the dimmer's hot wire through the air-gap switch. Power is applied to the blue wire whenever the air-gap switch is closed. Thus, the blue wire is used to provide power to downstream keypads in 3-way/4-way scenarios in order to ensure that all power to the load has been removed when the air-gap switch is open. Refer to “Sample Wiring Configurations” on the back page. 6 Mount Dimmer into wall box by partially securing the wall box screws attached to the dimmer. Ensure that the word "Top" on the dimmer frame is facing up. Bend wires in a zigzag pattern so that they easily fold into the wall box. WARNING! Ground the Wireless Dimmer in accordance with the National Electric Code (NEC) requirements. Although the dimmer's aluminum yoke plate and green ground wire are directly bonded together inside the dimmer, DO NOT rely solely upon the yoke plate's contact with a metal wall box for adequate grounding. Use the dimmer's ground wire to make a secure connection to the safety ground of the electrical system. IMPORTANT! Not grounding this product according to the preceding Warning! may result in an installation less immune to damage caused by electrical disturbances, such as lightning, and void the warranty. 7 If you are using the Control4 push-on (screw-less) wall plate that shipped with your dimmer: a.For a single-gang scenario, attach the black plastic sub-plate using the provided sub-plate screws. IMPORTANT! Tighten the screws until the back side of the metal yoke plate is even with the wall surface, but no farther. Over-tightening can damage the dimmer and cause mechanical malfunction. Do NOT use a power screw driver to install this device as this may lead to over-tightening. b.If you are installing in a multi-gang scenario, only partially tighten the mounting screws, leaving about 1/8 of an inch gap between the wall and the yoke plates prior to attaching the black plastic sub-plate. This allows each device in a multi-gang scenario to conform to the sub-plate, creating a single assembly. Secure the multi-gang sub-plate to all devices using the provided sub-plate screws. Then secure the assembly by tightening the wall box screws the remaining 1/8 of an inch. Do not over-tighten any of the screws or you will misalign the flat plane of the multi-gang wall plate. c.With the wall plate's removal slot facing down, push the wall plate onto the dimmer's black plastic sub-plate. 8 If you are using a Decora-style screw-on wall plate: a.Do not attach the dimmer's black plastic sub-…

Text truncated - open the document above for the full version.

11734 South Election Drive Suite 200 Draper, Utah 84020 (801) 523-3100 To: Federal Communications Commission Date: 8/9/07 445 12 th Street, SW Washington, DC 20554 Re: Non disclosure Request for FCC ID: R33C4DIM101Z We are requesting that the following documents be held and treated as confidential and proprietary information. These materials contain technical trade secret information and should be guarded from competitors as stated under the Code of Federal Regulations Title 47 Section 0.459 (3), (4) and (5). 1) Schematic 2) Block Diagrams 3) Operational Description 4) MPE Calculations Jon A. Nelson Senior Electrical Engineer Control4 Technologies

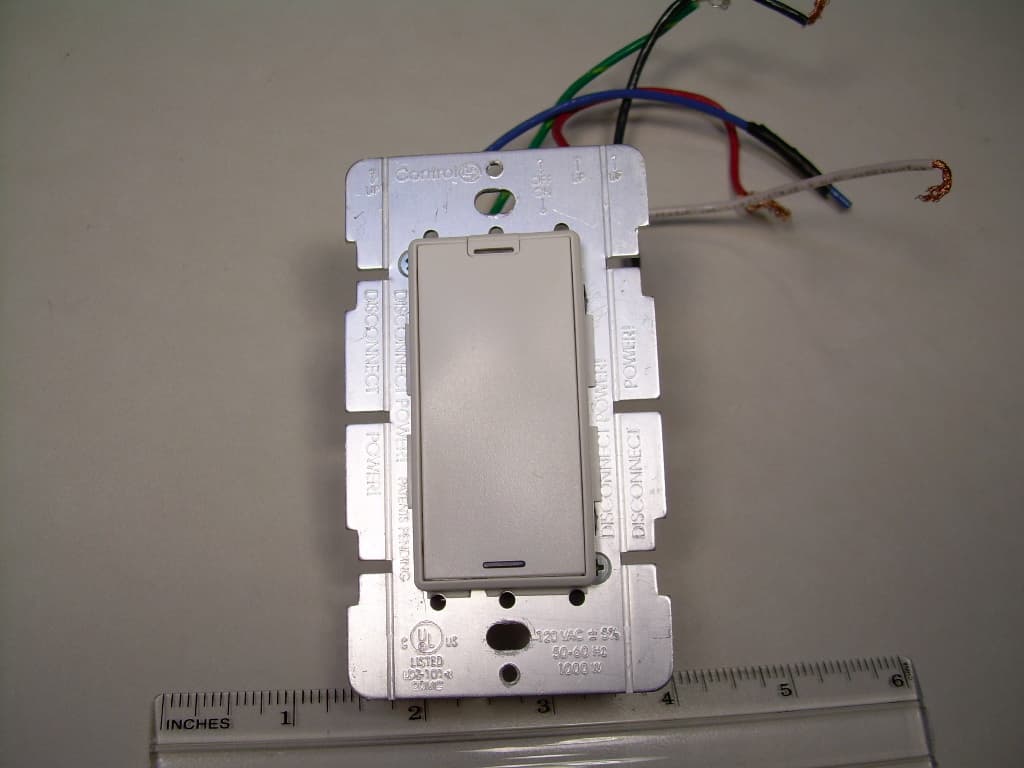

Front View of the EUT Back View of the EUT

Component Side of the Dimmer PCB Trace Side of the Dimmer PCB Front Side of the Transceiver PCB Back Side of the Transceiver PCB

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: C4-DIM101-Z-x FCC ID: R33C4DIM101Z Test Specification: FCC PART 15, Subpart C Test Report Serial No: 938 Applicant: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Date of Test: July 23, 2007 Issue Date: July 30, 2007 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 938 FCC ID#: R33C4DIM101Z Page 2 of 47 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: C4-DIM101-Z-x - FCC ID Number: R33C4DIM101Z On this 30 th day of July 2007, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 938 FCC ID#: R33C4DIM101Z Page 3 of 47 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION.................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........8 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................15 SECTION 5.0 SUMMARY OF TEST RESULTS...........................16 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.....17 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................32 APPENDIX 2 PHOTOGRAPHS.........................................38 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 938 FCC ID#: R33C4DIM101Z Page 4 of 47 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Jon Nelson Title: Sr. Design Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Jon Nelson Title: Sr. Design Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 938 FCC ID#: R33C4DIM101Z Page 5 of 47 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Name or Number: C4-DIM101-Z-x Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A. 2.2 Description of EUT: The C4-DIM101-Z-x is a solid state wireless network able wall box dimmer. The C4-DIM101-Z-x replaces standard mechanical On/Off switches using conventional electrical residential wiring. It fits into all standard plastic or metal electrical wall box sizes. The C4-DIM101-Z-x has a fully programmable dimming curve, ramp rate, maximum on and fade control. The C4-DIM101-Z-x is network able via a standard 2.4 GHz 802.15.4 low power RF transceiver enabling a full range of system control functions including Lighting Scene Control, Security Lighting, Automatic Shut Off, Scheduled Events and more. The “Z” in the model number indicates it is a Zigbee device and the “x” indicates the color of the plastic faceplate. The 802.15.4 transceiver uses 15 channels in the 2400 to 2483.5 MHz band. The individual channels are shown in the following plots. dBm 2 -8 -18 -28 -38 -48 -58 -68 -78 -88 -98 938 Control4 Trace A Start: 2.402500 GHzStop: 2.427500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 07/23/2007 3:06:10 PMHP8566B Trace A Lower channels plot 1 1 2.405000 GHz -8.1000 dBm 2 2 2.410075 GHz -7.2000 dBm 3 3 2.415050 GHz -7.5000 dBm 4 4 2.420100 GHz -7.1000 dBm 5 5 2.425150 GHz -8.0000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 938 FCC ID#: R33C4DIM101Z Page 6 of 47 dBm 2 -8 -18 -28 -38 -48 -58 -68 -78 -88 -98 938 Control4 Trace A Start: 2.427500 GHzStop: 2.452500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 07/23/2007 3:09:42 PMHP8566B Trace A Middle 5 channel plot 1 1 2.430000 GHz -7.8000 dBm 2 2 2.435100 GHz -7.8000 dBm 3 3 2.440175 GHz -6.6000 dBm 4 4 2.445250 GHz -7.4000 dBm 5 5 2.450350 GHz -8.0000 dBm dBm 2 -8 -18 -28 -38 -48 -58 -68 -78 -88 -98 938 Control4 Trace A Start: 2.452500 GHzStop: 2.477500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 07/23/2007 3:12:01 PMHP8566B Trace A Upper 5 channel plot 1 1 2.455000 GHz -7.4000 dBm 2 2 2.460175 GHz -8.6000 dBm 3 3 2.465375 GHz -7.3000 dBm 4 4 2.470425 GHz -7.6000 dBm 5 5 2.475500 GHz -9.5000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 938 FCC ID#: R33C4DIM101Z Page 7 of 47 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Control4 MN: C4-DIM101-Z-x (Note 1) R33C4DIM101Z Wall box mounted dimmer See Section 2.4 Note: (1) EUT 2.4 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length AC Mains 1 3 conductors (line, neutral, ground) in Nema power cord/1.2 meters Load 1 Single conductor to electrical outlet mounted in box beside dimmer/15 cm Traveler 1 Single conductor/15 cm 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Signature: Typed Name: Jon Nelson Title: Sr. Design En…

Text truncated - open the document above for the full version.

Front View Radiated Spurious Emission Test Configuration Back View Radiated Spurious Emission Test Configuration Front View Conducted Disturbance Configuration Back View Conducted Disturbance Configuration
