R33C4DSCINTINTERIOR DOOR STATION

™ Specifications Dimensions (H x W x D) 7.19” (182 mm) x 5.13” (130 mm) x 2.3” (58 mm) Weight3.25 lbs. (1.474 kg) Shipping Weight3.25 lbs. (1.474 kg) Network10/100 BaseT Ethernet (preferred) or WiFi (802.11 b/g/n) VoltagesAC - 100V - 240V DC - 12V - 24V Contacts (2 sets)DC: 48V maximum operation (low voltage) Relays (1)AC: 36V, 2A DC: 24V maximum operation (low voltage) Grounding Requirements The following table indicates which power options require an earth ground. Power TypeEarth Ground? ACYes; required for safety. Power over Ethernet (PoE)No; do not connect. DCRecommended; not required. Front Panel Description Figure 1. Front Faceplate 1 Camera. 640 x 480 wide angle. Used for Video Intercom. 2 Call button. Used to call the person inside the unit or in another room. 3 Speaker. Used for Audio and Video Intercom. 4 Screw holes (2). Used to screw the faceplate into the interior wall. 5 Microphones (2). Used for Audio and Video Intercom. Supported Models • C4-DSC-EN-INT Door Station - Interior AC, DC, POE & WiFi - Satin Black Box Contents Carefully unpack the Control4® Door Station from the box and ensure that the following items are included in the box. Remove the plastic protector from the faceplate. Contact your Control4 Dealer immediately if any parts are missing or if any components are damaged. • Control4 Door Station - Interior faceplate (model C4-DSC-EN-INT) • Two (2) mounting screws • Security screw tool • Warranty Card Accessories • Door Station Metal Back Box (C4-DSBB-M, sold separately) • Antenna Kit—WiFi/ZigBee 2.4 GHz, 26cm (C4-AK-26cm, sold separately) • Antenna Kit—WiFi/ZigBee 2.4 GHz, 3m (C4-AK-3M, sold separately) Door Station - Interior Setup Guide 1 3 5 1 2 4 4 5 ™ Inside Panel Description Figure 2. Door Station, Inside Panel 1 AC connection. Used to connect the wires for AC power. 2 DC connection. Used to connect the wires for DC power. 3 Contacts/Relays. Used to connect the wires for Control4 and third-party devices. NOTE: Use the contacts and relays for non- secure devices only. For example, don’t attach security gate wires to this terminal block. 4 Ethernet connection. Supports PoE. 5 Reset Button. Used to reset or factory restore the Door Station. Press the vertical bar to reset. Door Station - Interior Setup Guide Pre-Installation 1 Find the best location for the Door Station. See “Mounting Tips” below. 2 Install the Door Station Back Box. See the Door Station Back Box Installation Guide for details. 3 Determine which network and power options to use (see “Network Options” and “Power Options”). 4 (WiFi only). Before the Door Station is fully installed, Control4 recommends to test the WiFi signal strength in Composer Pro’s System Manager; a strong, robust signal is required. See the Composer Pro User Guide for details. This device uses an Ethernet or WiFi network connection and can be powered using Power over Ethernet (PoE), AC, or DC. A wired network connection is recommended for the best Video Intercom experience. If it is not possible to use Ethernet, then please follow these guidelines for wireless. NOTES: (1) Video Intercom usage. Although this device supports b/g/n, 802.11 b is not recommended or supported for Video Intercom. (2) Wireless-N is recommended for Video Intercom. See “Wireless Network Limitations” below. Wireless Network Limitations Many WiFi Access Points handle Multicasts (WiFi simultaneously sent to multiple devices, for example, when the Door Station broadcasts video to all stations) by slowing down transmission speed to the 1 Mb basic rate. This can cause overall WiFi congestion in the WiFi network during the broadcast. Video Intercom response times and images may degrade at each device. If a home requires a large number of WiFi Video Intercom devices, ensure that you have a robust WiFi network (possibly consisting of multiple access points). Mounting Tips Follow these tips for the best results. 2 5 2444444444444 3 1 Power Options CAUTION! Do not attempt to use PoE, AC, and DC power at the same time. Choose only one power option. ATTENTION! Ne pas tenter d’utiliser PoE, AC et DC en même temps. Choisir une seule option d’alimentation. The Door Station can be powered using one of these three (3) options: • Power over Ethernet (PoE). The Ethernet network connection for the Door Station is provided through the PoE Injector. No additional wiring is needed. • AC or DC. Used to power the Door Station when using an Ethernet (not PoE) or WiFi network connection. NOTE: Ethernet cable. Install the ferrite clamp on the Ethernet cable inside the back box. Backlit Button Indicator The Door Station button’s light can be turned on or off depending on what is required for the installation. The backlit button may make it easier to see the button if it is dark inside the structure. Normally, the light on the button remains on or off depending on how it is configured in the system, however, it is also used to convey device status during certain times. When the device is first powered on, the button will blink slowly until the device is ready to be used in the system. If the button continues to blink slowly for over three (3) minutes, then the device may be experiencing a problem and should be factory restored. During a factory restore process the button will blink rapidly. Power and Network Installations Choose one of these six (6) options to connect the Door Station’s wiring: • Ethernet with PoE (preferred) • Ethernet with AC • Ethernet with DC 1 Install the Door Station in a place where it will be protected from water. 2 Do not expose the Door Station to direct sunlight. 3 Find the best location for the Door Station. See the Door Station Back Box Installation Guide for back box installation. a Mount the Door Station where the video camera is aimed at an average person’s height so the person inside the building has a good view of the person calling in. b Mount the Door Station so that the caller can comfortably speak into the microphone (about two (2) feet away…

Text truncated - open the document above for the full version.

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax Timco Engineering 849 N.W. State Road 45 PO Box 370 Newberry, FL 32669 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I authorize Tom Jackson, General Manager, or Merry Jackson, Officer Manager, of Nemko-CCL, Inc. Nemko-CCL, Inc. at 1940 W. Alexander Street, Salt Lake City, UT 84119, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communications Commission regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Timco Engineering still resides with Control4 at 11734 South Election Road, Suite 200, Draper UT 84020-6432, USA. Dated this 15 Day of June 20 12 Agency agreement expiration date: December 31, 2012 By: Roger Midgley Signature Printed Title: Sr. Regulatory Compliance Engineer On behalf of : Control4 Telephone: (801) 523-3187

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax July 23, 2012 CONFIDENTIALITY REQUEST LETTER Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: R33C4DSCINT Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics C4-DSC-EN-INT Schem.pdf Block Diagram C4-DSC-EN-INT BlkDia.pdf Operational Description C4-DSC-EN-INT OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Roger Midgley Sr. Regulatory Compliance Engineer

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax ATT-001 Issue 1 March 2012 MANUFACTURER’S STATEMENT/ATTESTATION Applicant: Control4 Address: 11734 South Election Road, Suite 200 Draper, UT 84020 Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer Brand Name: Control4 Model Number: C4-DSC-EN-INT FCC ID/IC ID: R33C4DSCINT/7848A-DSCINT Brand Name: Cisco Model Number: SCH-VDS-I Nemko-CCL Test Reports: 212140-1, 212140-2, 212140-3, 212140-4, 212140-4 and 212140-5 The manufacturer or responsible party for the equipment tested hereby affirms: a) That he/she has reviewed and concurs that the tests shown in this report are reflective of the operational characteristics of the device for which certification is sought; b) That the device in this test report will be representative of production units; c) That the product will have all of the documented modifications incorporated into the product when manufactured and placed on the market; d) That all changes in hardware and software/firmware to the subject device will be reviewed. e) That any changes impacting the attributes, functionality or operational characteristics documented in this report will be communicated to the body responsible for approving or certifying the subject equipment. Roger Midgley July 23, 2012 Authorized Representative (please print) Signature Date

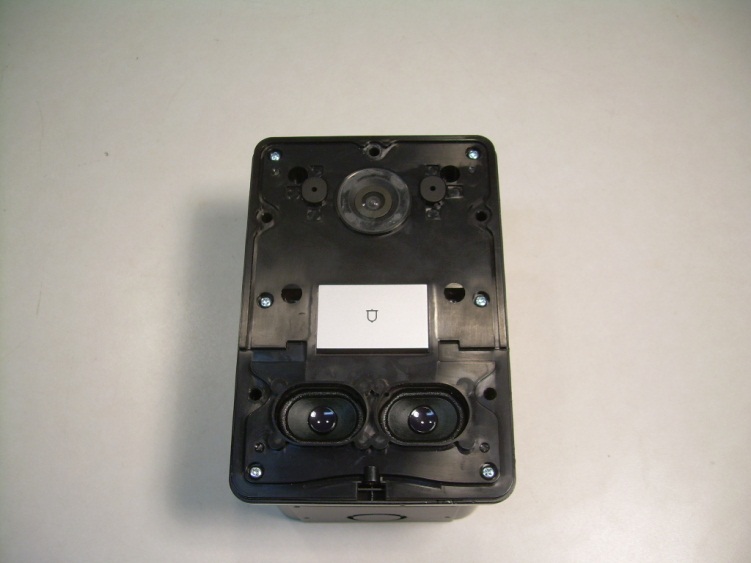

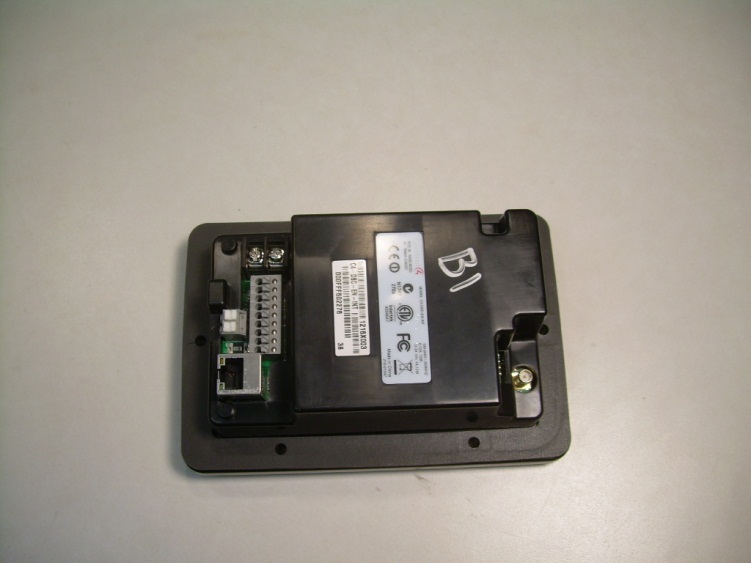

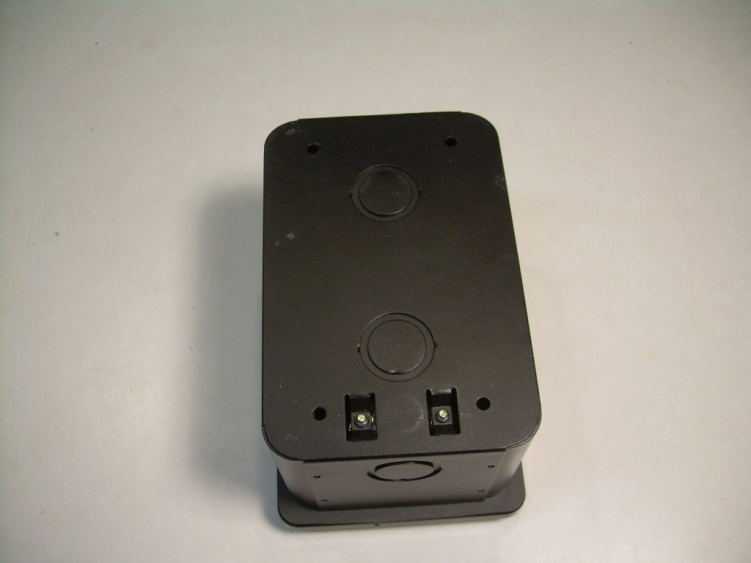

Front View of the EUT Front View of the EUT with Faceplate Removed Back View of the EUT Inside Back Box Back View of the EUT With Back Box Removed

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax C4-DSC-EN-INT & SCH-VDS-I Label Label Example (Control4): Label Example (Cisco):

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax C4-DSC-EN-INT & SCH-VDS-I Label Placement Label is placed on the bottom side of the C4-DSC-EN-INT as shown in the drawing below:

View of the EUT Inside Back Housing Showing the Power PCB Placement View of the Component Side of the Power PCB View of the Trace Side of the Power PCB View of the Front EUT Housing Showing Main/RF PCB and Switch PCB View of the Component Side of the Main/RF PCB View of the Trace Side of the Main/RF PCB View of the Switch Side of the LED/Switch PCB View of the Trace Side of the LED/Switch PCB View of the Imager Side of the Camera PCB View of the Trace Side of the Camera PCB View of the Sleeve Antenna View of the Patch Antenna

Page 1 of 4 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax MPE Calculations Control4 Model: C4-DSC-EN-INT Cisco Model: SCH-VDS-I FCC ID: R33C4DSCINT IC ID: 7848A-C4DSCINT Page 2 of 4 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax 1.0 SCOPE_________________________________________________________3 2.0 REVISION LEVEL_______________________________________________3 3.0 REFERENCE DOCUMENTS______________________________________3 4.0 CALCULATIONS________________________________________________4 5.0 CONCLUSION___________________________________________________4 1.0 SCOPE: This Report Demonstrates Evaluation and Compliance to the following standards: 1. Code of Federal Regulations Title 47, Volume 1, Section 1.1310. 2. Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) - RSS-102 Issue 3 2.0 REVISION LEVEL: DATE COMMENTS REVISION 10/10/08 Created. 1.0 08/16/10 Added RSS-102 references 2.0 3.0 REFERANCE DOCUMENTS: (A) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Section 1.1310. (B) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. (C) Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) - RSS-102 Issue 3 Page 3 of 4 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax 4.0 CALCULATIONS: The C4-DSC-EN contains an 802.11 b/g/n Transceiver. The worst case emissions were with the C4-DSC-EN-INT transmitting on 802.11 n mode. Below is the MPE calculation for this Transceiver. 802.11 n Transceiver The following worst case emissions was calculated by using Method 1 below Method 1: Based on a PPt (Peak Power Total) measurement of the total power into the antenna and the worst case antenna gain. Effective/Equivalent Isotropic Radiated Power [EIRP] dBm = Total power into the antenna [dBm] + antenna gain [dBi] To convert the values from dBm to mW mW = 10 dBm/10 Total power into the antenna (dBm) = 23.11 Antenna gain (dBi) = 1.41 EIRP (dBM) = 24.52 EIRP (mW) = 283.14 worst case while in the Wi-Fi “n” mode Method 2: Based on the radiated field strength measurement at 3 meters [at a calibrated OATS site, maximizing the antenna polarity and height] After obtaining the EIRP, the Power density is calculated and compared against the FCC and IC limits. S FCC = Power density in mW/cm² for FCC S FCC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power 283.14 mW R = Distance to the center of radiation of the antenna 20 cm S FCC = 0.056 mW/cm² S FCC Limit = 1.0 mW/cm² S IC = Power density in W/m² for IC S IC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power in watts 0.28314 W R = Distance to the center of radiation of the antenna 0.2 m S IC = 0.563 W/m² S IC Limit = 10 W/m² for IC Page 4 of 4 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax 5.0 CONCLUSION: 1. Based upon the limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) as 1mW/cm², this device falls under the required limits. 2. Based upon the limits given in section 4.2 of the reference document (C) as 10W/m², this device falls under the required limits.

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: C4-DSC-EN-INT and SCH-VDS-I FCC ID: R33C4DSCINT Test Specifications: FCC PART 15, Subpart C Test Report Serial No: 212140-2.3 Applicant: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Dates of Test: April 23, 24 & 26, 2012 May 10, 2012 June 15 & 18, 2012 July 9, 2012 Report Issue Date: July 18, 2012 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 Nemko-CCL, Inc. TEST REPORT: 212140-2.3 REPORT ISSUE DATE: 07/18/2012 Page 2 of 126 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C. This report may be reproduced in full. Partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Numbers: C4-DSC-EN-INT - Brand Name: CISCO - Model Numbers: SCH-VDS-I - FCC ID Number: R33C4DSCINT On this 18 th day of July 2012, I, individually and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Nemko-CCL, Inc. EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen EMC Technician Reviewed by: Thomas C. Jackson General Manager Nemko-CCL, Inc. TEST REPORT: 212140-2.3 REPORT ISSUE DATE: 07/18/2012 Page 3 of 126 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................9 SECTION 4.0 OPERATION OF EUT DURING TESTING ..................................................15 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................16 SECTION 6.0 802.11b/g/n TRANSCEIVER – MEASUREMENTS AND RESULTS ..........17 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..........................................92 APPENDIX 2 PHOTOGRAPHS ................................................................................................98 Nemko-CCL, Inc. TEST REPORT: 212140-2.3 REPORT ISSUE DATE: 07/18/2012 Page 4 of 126 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer Nemko-CCL, Inc. TEST REPORT: 212140-2.3 REPORT ISSUE DATE: 07/18/2012 Page 5 of 126 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Number: C4-DSC-EN-INT Serial Number: Engineering Unit Brand Name: Cisco Model Number: SCH-VDS-I Dimensions: 18.2 cm x 13.0 cm x 5.8 cm 2.2 Description of EUT: The C4-DSC-EN-INT is an interior door station that provides video and audio to home control system devices. The C4-DSC-EN-INT has an 802.11bgn transceiver and an Ethernet port for interfacing the home control system. The C4-DSC-EN-INT may be powered by AC, POE, or a DC source. For testing using POE, an Ault PW130 POE injector was used to power the EUT. For testing using a DC source, a Delta Electronics 0950-4466 power supply was used. A contact/relay port is provided to interface sensors or contacts of devices such as gates, doors, or doorbells. The C4-DSC-EN-INT transceiver uses either an Aristotle Enterprises RFA-02-D3- 16W-200, 1.41 dBi sleeve antenna or a Cirocomm Technology 03A153040379240, -5.0 dBi patch antenna. The C4-DSC-EN-INT has a metal back box that is placed in a wall and a plastic front faceplate. The Cisco SCH-VDS-I is identical to the C4-DSC-EN-INT except in branding and labeling. This report covers the circuitry of the devices subject to FCC Part 15, Subpart C. The circuitry of the device subject to FCC Subpart B was found to be compliant and is covered in Nemko-CCL, Inc. report #212140-4. The C4-DSC-EN-INT 802.11b/g/n transceiver uses 11 channels in the 2400 to 2483.5 MHz frequency range. Testing was performed at the upper, middle, and lower channels using 802.11b, 802.11g, and 802.11n. The C4-DSC-EN-INT transceiver uses either an Aristotle Enterprises RFA-02-D3-16W-200, 1.41 dBi sleeve antenna or a Cirocomm Technology 03A153040379240, -5.0 dBi patch antenna. The channels and the maximum transmitter power settings to be incorporated in production software are shown below. Nemko-CCL, Inc. TEST REPORT: 212140-2.3 REPORT ISSUE DATE: 07/18/2012 Page 6 of 126 Channel Frequency (MHz) Power Setting 802.11b 802.11g 802.11n 1 2412 +9 +15 +14 2 2417 +9 +17 +17 3 2422 +9 +17 +17 4 2427 +9 +17 +17 5 2432 +9 +17 +17 6 2437 +9 +17 +17 7 2442 +9 +17 +17 8 2447 +9 +17 +17 9 2452 +9 +17 +17 10 2457 +9 +17 +17 11 2462 +9 +15 +14 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test are listed below: Brand Name Model Number Serial Number FCC ID Number or Compliance Description Name of Interface Ports / Interface Cables BN: Control4 MN: C4-DSC-EN-INT (Note 1) SN: R33C4DSCINT Door Station See Section 2.4 BN: Control4 MN: C4-HC250B-BL SN: Engineering Unit R33C4HC250 Controller Ethernet with power/Cat5e cable with RJ-45 connectors BN: Control4 MN: C4-TW7C0-BL SN: R33C4TW7C0 In-wall touchscreen display Ethernet with power/Cat5e cable with RJ-45 connectors BN: Cisco MN: SD208P SN: DNI154410QG DoC POE Switc…

Text truncated - open the document above for the full version.

Front View Radiated Disturbance Worst Case Configuration – DC Powered Back View Radiated Disturbance Worst Case Configuration – DC Powered Front View Radiated Disturbance – AC Powered Back View Radiated Disturbance – AC Powered Back View Radiated Disturbance – POE Powered Front View Showing Worst-Case Patch Antenna Placement Back View Showing Worst-Case Patch Antenna Placement Front View Conducted Disturbance Worst Case Configuration – POE Power Back View Conducted Disturbance Worst Case Configuration – POE Power Front View Conducted Disturbance – AC Power Back View Conducted Disturbance – AC Power Front View Conducted Disturbance – DC Power Back View Conducted Disturbance – DC Power
