R33C4HC800Home Controller

™ (sold separately). Box Contents The following items are included in your Home Controller box: • Home Controller HC-800 • AC to DC power adapter with power cord • Six (6) IR emitters • Three (3) antennae: One (1) for ZigBee and two (2) for WiFi • Warranty card Accessories for Purchase • Rack Ear Kit (C4-1UREK-B) • Antenna Kit (C4-AK-WIFI) Warnings WARNING! To reduce the risk of electrical shock, do not expose this apparatus to rain or moisture. AVERTISSEMENT! Pour réduire le risque de choc électrique, n’exposez pas cet appareil à la pluie ou à l’humidité. WARNUNG! Um das Risiko des elektrischen Schlages zu verringern, setzen Sie diesen Apparat nicht Regen oder Feuchtigkeit aus. WARNING! This CLASS I apparatus must be connected to an AC mains socket outlet that has a protective earthing connection (i.e., third-prong ground conductor). DO NOT DEFEAT THE PROTECTIVE EARTHING CONNECTION! For a more information, refer to the Product pages at http://www.control4.com. Requirements and Specifications Prior to installing this product, ensure that Ethernet network wiring is in place. If you’re using WiFi, see “Antenna Considerations.” Supported Model • C4-HC800-BL – Home Controller HC-800, Black Introduction The Control4® Home Controller HC-800 provides many ways to control lights, home theaters, distributed audio and video systems, and other devices controlled using various protocols, for example, IP, infrared (IR) Serial, Contact, and Relay. This version comes with a faster processor, built-in WiFi, HDMI for audio and video, improved ZigBee radio, and more. The HC-800 also provides extensive media management services for audio and video sources, for example, CDs, DVDs, or BluRays stored in connected devices. It allows you to use an external storage device with USB or eSATA support for media storage, and it supports multi-zone audio capabilities, sending music to rooms throughout the home. The device installs on a rack or shelf, can be stacked, and uses 1 RU rack space. When you install and configure the Controller and other system components (using Control4 Composer software), your users can control the system using one of two user interfaces included in this Controller: On-Screen Navigator or a System Remote Control, or any other Control4-supported user interface device Home Controller HC-800 Installation Guide Draft ™ HC-800 Specifications Model Number C4-HC800-BL Network Ethernet—required WiFi (only supported when the unit is used as a Secondary Controller) Media Recognition Online CD/DVD/BluRay recognition and media information service Audio Playback Formats MP3: 32kbps to 320kbps, CBR, VBR, AAC, and FLAC Display LED indicators Power Requirements 100-240 VAC, 60/50 Hz, 0.26 A MAX Dimensions H x W x D: 2.80” (71 mm) x 11.98” (304 mm) x 7.24” (184 mm) Weight 4.7 pounds (xx kg) Shipping Weight x.xx pounds (xx kg) Additional Resources The following resources are available for more support. • Your Control4 Reseller • Control4 website: http://www.control4.com • Composer documentation in online help or PDF format available on the Dealer portal. Front View Figure 1. Front View Home Controller HC-800 Installation Guide 1 WiFi LED. This LED blinks first Red, then Orange, and finally Blue during the boot process. When the operating system starts running, the WiFi driver changes the LED color depending on the signal strength of its connection to its associated access point. Colors and signal strength are as follows: Orange=Fair to Good, Blue=Excellent, and No Light=No connection. 2 Data LED. The Blue LED indicates that streaming audio is received. 3 Link LED. The Blue LED indicates that the Controller has been identified in a Control4 Composer project. 4 Power LED. The Blue LED indicates that AC power is present. It turns on immediately after power is applied to the Controller. 5 IR Window / IR Blaster—For capturing third- party IR codes from hand-held devices (such as remote controls) or blasting IR codes. Back View Connect all applicable devices to the HC-800 using the connection options described next. Figure 2. Back View 1 ZigBee. Antenna for the ZigBee radio. 2 Power Plug Port. AC power receptacle for the AC to DC power cord. 3 Factory Restore Button. A recessed button that restores the Controller to the factory defaults. 4 Identification Button. Easily-pressed button used when identifying this device in Composer. 5 Serial. DB9 connectors for two (2) serial devices, such as a receiver or disc changer. See “Connect the Serial Ports” for more information. 6 IR Out. 3.5 mm jacks for up to six (6) IR output transmitters. See “Set Up IR Emitters or IR Blaster” for more information. 7 Video Out (HDMI). HDMI port for displaying 1 3 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 2 3 4 5 Draft databases and Control4 system updates. 2 Mount options: The HC-800 is designed to be stackable with other AV equipment or mount in a rack or on a shelf using the options Rack Ear Kit (C4-1UREK-B). 3 Connect the HC-800 to the network: To connect using an Ethernet connection, plug the data cable from the home network connection into the Controller’s RJ-45 port (labeled “Ethernet”) and the network port on the wall or at the network switch. Notes: (1) WiFi can only be used for Secondary Controllers. (2) Only use the power supply included in this box. 4 Power up the Controller: Plug the HC-800 power cord (provided) into the Controller’s power plug port and an electrical outlet. Note: The HC-800 may take several minutes to boot up and become operational. Please allow sufficient time for boot-up. 5 Connect system devices: Attach the devices as described in “Connect the Devices” below. 6 Set up any external storage devices as described in “Set up External Storage Device.” Connect the Devices Note: Use Composer to step through the connection process before or after the physical connections are completed. The following section provides more information about other connection options. Use Pluggable Terminal Block Connectors For the Con…

Text truncated - open the document above for the full version.

Control4 corporation FCC ID.: R33C4HC800 11734 S. Election Drive Suite 200 Draper Utah United States 84020 Tel : (801) 523-3100 Federal Communications Commission Dec. 26, 2011 Authorization and Evaluation Division ATTESTATION FCC ID: R33C4HC800 Product: Home Controller Model: C4-HC800-BL, SCH-CONTROL-800 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------------------------- Mr James Russell / Director of Engineering, Hardware Control4 corporation

Control4 corporation 11734 S. Election Drive Suite 200 Draper Utah United States 84020 TEL No: (801) 523-3100 FAX No.: (801) 523-3199 Attestation for FCC Declaration of Conformity FCC ID: R33C4HC800 Data: Dec. 26, 2011 Please be notified that we, the undersigned, Control4 corporation declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001 (11B334R-ITUSP02V02). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, ------------------------------------------------------------------------------ Mr James Russell / Director of Engineering, Hardware Control4 corporation Tel: (801) 523-3100 Fax: (801) 523-3199 Email: [email protected]

11734 S. Election Drive Suite 200 | Draper Utah United States 84020

RF_160, Issue 02 Control4 corporation Declaration of Authorization We Name: Control4 corporation Address: 11734 S. Election Drive Suite 200 Draper Utah United States 84020 City: Draper  . Country: United States  .  . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Home Controller Type designation: C4-HC800-BL, SCH-CONTROL-800 Trademark: Control4, Cisco.  . on our behalf. Date:  2011/12/26  . City:  Draper  Name:  Mr James Russell  (2) Function:  Director of Engineering, Hardware  Signature:       Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

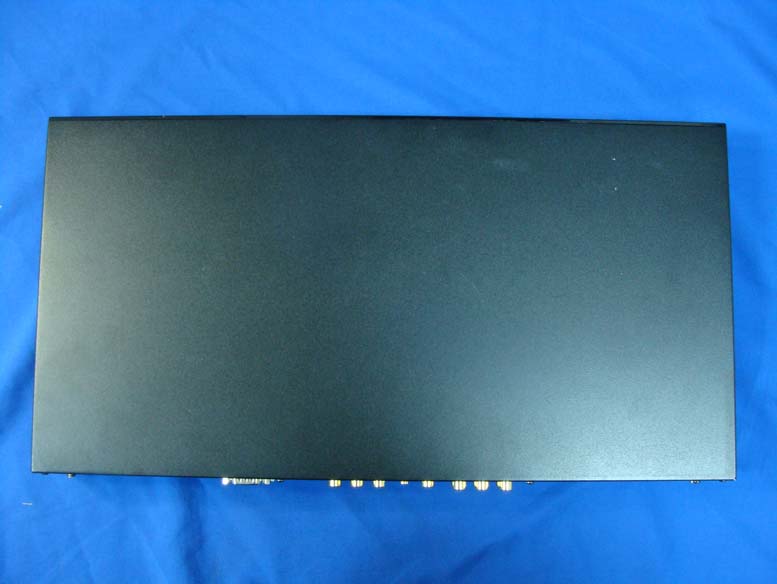

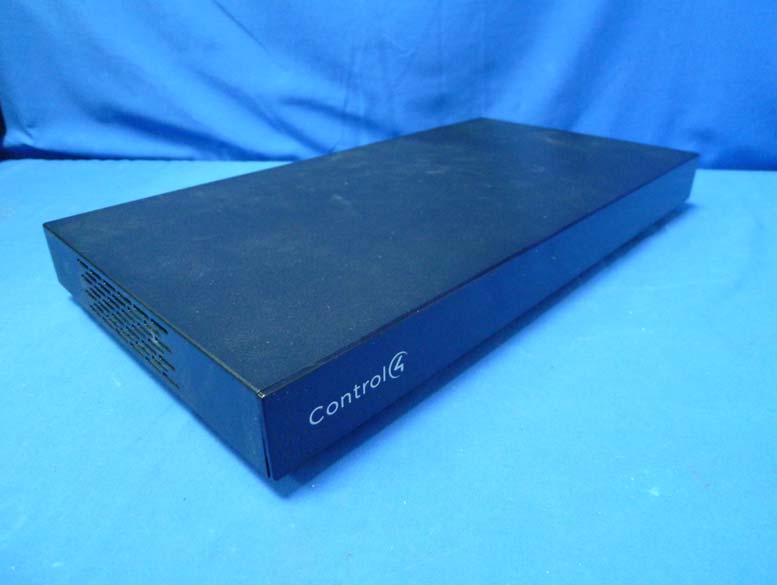

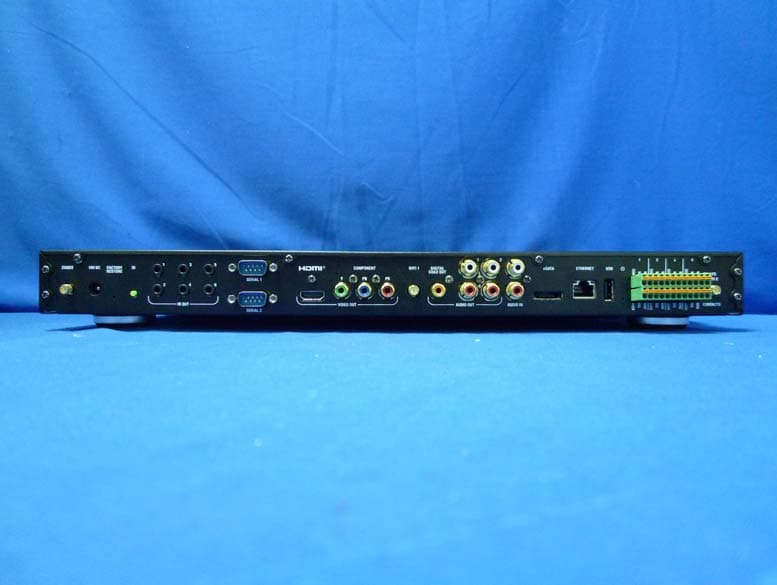

Report No.: 11B334R-RFUSP42V01 Page : 1 of 18 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 2 of 18 (3) EUT Photo (4) EUT Photo

Control4 corporation FCC ID.: R33C4HC800 11734 S. Election Drive Suite 200 Draper Utah United States 84020 Tel : (801) 523-3100 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Control4 corporation FCC ID.: R33C4HC800 11734 S. Election Drive Suite 200 Draper Utah United States 84020 Tel : (801) 523-3100 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 11B334R-RFUSP42V01 Page : 3 of 18 (5) EUT Photo (6) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 4 of 18 (7) EUT Photo (8) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 5 of 18 (9) EUT Photo (10) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 6 of 18 (11) EUT Photo (12) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 7 of 18 (13) EUT Photo (14) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 8 of 18 (15) EUT Photo (16) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 9 of 18 (17) EUT Photo (18) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 10 of 18 (19) EUT Photo (20) EUT Photo (Dipole Antenna (3 PCS)) Report No.: 11B334R-RFUSP42V01 Page : 11 of 18 (21) EUT Photo (Dielectric Patch antenna (3 PCS)) (22) EUT Photo (6 PCS-300cm) Report No.: 11B334R-RFUSP42V01 Page : 12 of 18 (23) EUT Photo (24) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 13 of 18 (25) EUT Photo (26) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 14 of 18 (27) EUT Photo (28) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 15 of 18 (29) EUT Photo (30) EUT Photo Report No.: 11B334R-RFUSP42V01 Page : 16 of 18 (31) EUT Photo (32) EUT Photo Dielectric Patch antenna Report No.: 11B334R-RFUSP42V01 Page : 17 of 18 (33) EUT Photo (34) EUT Photo Dipole Antenna Zigbee TXWiFi TX 215mm Report No.: 11B334R-RFUSP42V01 Page : 18 of 18 (35) EUT Photo WiFi TX WiFi RX 190mm

Report No. 11B334R-RFUSP46V01 Page: 1 of 4 RF Exposure Evaluation declaration Product Name Home Controller Model No. C4-HC800-BL, SCH-CONTROL-800 FCC ID R33C4HC800 Applicant Control4 corporation Address 11734 S. Election Drive Suite 200 Draper Utah United States 84020 Date of Receipt Nov. 14, 2011 Date of Declaration Jan. 03, 2012 Report No. 11B334R-RFUSP46V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 11B334R-RFUSP46V01 Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 11B334R-RFUSP46V01 Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product : Home Controller Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 35.8096 0.011291 6 2437.00 29.0402 0.009157 11 2462.00 38.7258 0.012210 The RF exposure at 20 cm is below limit. 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 90.1571 0.028427 6 2437.00 82.9851 0.026166 11 2462.00 96.1612 0.030320 The RF exposure at 20 cm is below limit. 802.11n-20MHz_14.4Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 89.1251 0.028102 6 2437.00 74.6449 0.023536 11 2462.00 85.3100 0.026899 The RF exposure at 20 cm is below limit. Report No. 11B334R-RFUSP46V01 Page: 4 of 4 802.11n-40MHz_30Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 65.7658 0.020736 06 2437.00 64.7143 0.020405 09 2452.00 68.7068 0.021664 The RF exposure at 20 cm is below limit. Zigbee Output Power Into Antenna & RF Exposure Evaluation Distance (2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2405.00 93.1108 0.029358 8 2440.00 83.3681 0.026286 15 2475.00 70.7946 0.022322 The RF exposure at 20 cm is below limit.

Report No. 11B334R-RFUSP42V01 Page : 1 of 151 Test Report Product Name Home Controller Model No C4-HC800-BL, SCH-CONTROL-800 FCC ID. R33C4HC800 Applicant Control4 corporation Address 11734 S. Election Drive Suite 200 Draper Utah United States 84020 Date of Receipt Nov. 14, 2011 Issue Date Dec. 20, 2011 Report No. 11B334R-RFUSP42V01 Report Version V2.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 11B334R-RFUSP42V01 Page : 2 of 151 Test Report Certification Issue Date: Dec. 20, 2011 Report No.: 11B334R-RFUSP42V01 Product Name Home Controller Applicant Control4 corporation Address 11734 S. Election Drive Suite 200 Draper Utah United States 84020 Manufacturer Lite-On Technology Corp. Model No. C4-HC800-BL, SCH-CONTROL-800 FCC ID. R33C4HC800 EUT Rated Voltage AC 100-240V, 50/60Hz EUT Test Voltage AC 120V/60Hz Trade Name Control4, Cisco Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Assistant Engineer / Henk Huang ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 11B334R-RFUSP42V01 Page : 3 of 151 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................9 1.5. EUT Exercise Software ...............................................................................................................11 1.6. Test Facility .................................................................................................................................12 2. Conducted Emission..................................................................................................................13 2.1. Test Equipment............................................................................................................................13 2.2. Test Setup ....................................................................................................................................13 2.3. Limits ..........................................................................................................................................14 2.4. Test Procedure .............................................................................................................................14 2.5. Uncertainty ..................................................................................................................................14 2.6. Test Result of Conducted Emission.............................................................................................15 3. Peak Power Output ...................................................................................................................19 3.1. Test Equipment............................................................................................................................19 3.2. Test Setup ....................................................................................................................................19 3.3. Limits ..........................................................................................................................................19 3.4. Test Procedure .............................................................................................................................19 3.5. Uncertainty ..................................................................................................................................19 3.6. Test Result of Peak Power Output...............................................................................................20 4. Radiated Emission .....................................................................................................................24 4.1. Test Equipment............................................................................................................................24 4.2. Test Setup ....................................................................................................................................25 4.3. Limits ..........................................................................................................................................26 4.4. Test Procedure .............................................................................................................................27 4.5. Uncertainty ..................................................................................................................................27 4.6. Test Result of Radiated Emission................................................................................................28 5. RF antenna conducted test........................................................................................................62 5.1. Test Equipment....................................................................................…

Text truncated - open the document above for the full version.

Report No. 11B334R-RFUSP42V01 Page : 84 of 151 Channel 04 (2437MHz) Report No. 11B334R-RFUSP42V01 Page : 85 of 151 Report No. 11B334R-RFUSP42V01 Page : 86 of 151 Channel 07 (2452MHz) Report No. 11B334R-RFUSP42V01 Page : 87 of 151 Report No. 11B334R-RFUSP42V01 Page : 88 of 151 6. Band Edge 6.1. Test Equipment RF Conducted Measurement The following test equipments are used during the band edge tests: Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. RF Radiated Measurement: The following test equipments are used during the band edge tests: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2011 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2011 Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2011 X Pre-Amplifier Agilent 8447D/2944A09549 Sep., 2011 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2011 Test Receiver R & S ESCS 30/ 825442/018 Sep., 2011 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2011 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All instruments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. Report No. 11B334R-RFUSP42V01 Page : 89 of 151 6.2. Test Setup RF Conducted Measurement RF Radiated Measurement: 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Amplifier SMA EUT Spectrum Analyzer RF Cable Report No. 11B334R-RFUSP42V01 Page : 90 of 151 6.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003 and tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4:2003 on radiated measurement. 6.5. Uncertainty ± 3.9 dB above 1GHz ± 3.8 dB below 1GHz Report No. 11B334R-RFUSP42V01 Page : 91 of 151 6.6. Test Result of Band Edge Product : Home Controller Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (Dielectric Patch antenna) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 64.37 96.008 Peak Horizontal 2412 31.639 60.02 91.658 Average Vertical 2412 30.95 68.16 99.109 Peak Vertical 2412 30.95 63.84 94.789 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2372.2 96.008 52.26 43.748 74.000 Peak Horizontal 2373 91.658 58.19 33.468 54.000 Average Vertical 2372.2 99.109 52.26 46.849 74.000 Peak Vertical 2373 94.789 58.19 36.599 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 11B334R-RFUSP42V01 Page : 92 of 151 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 11B334R-RFUSP42V01 Page : 93 of 151 Product : Home Controller Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (Dielectric Patch antenna) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 63.73 95.749 Peak Horizontal 2462 32.019 59.65 91.669 Average Vertical 2462 31.29 68.45 99.74 Peak Vertical 2462 31.29 64.41 95.7 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2483.5 95.749 52.61 43.139 74.000 Peak Horizontal 2483.5 91.669 60.34 31.329 54.000 Average Vertical 2483.5 99.74 52.61 47.13 74.000 Peak Vertical 2483.5 95.7 60.34 35.36 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 11B334R-RFUSP42V01 Page : 94 of 151 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 11B334R-RFUSP42V01 Page : 95 of 151 Product : Home Controller Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (Diel…

Text truncated - open the document above for the full version.

Report No. 11B334R-RFUSP42V01 Page : 130 of 151 Product : Home Controller Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 17750 >500 Pass Figure Channel 1: Report No. 11B334R-RFUSP42V01 Page : 131 of 151 Product : Home Controller Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 17750 >500 Pass Figure Channel 6: Report No. 11B334R-RFUSP42V01 Page : 132 of 151 Product : Home Controller Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 17750 >500 Pass Figure Channel 11: Report No. 11B334R-RFUSP42V01 Page : 133 of 151 Product : Home Controller Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 3 2422 36450 >500 Pass Figure Channel 1: Report No. 11B334R-RFUSP42V01 Page : 134 of 151 Product : Home Controller Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 36450 >500 Pass Figure Channel 4: Report No. 11B334R-RFUSP42V01 Page : 135 of 151 Product : Home Controller Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 9 2452 36450 >500 Pass Figure Channel 7: Report No. 11B334R-RFUSP42V01 Page : 136 of 151 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 3 kHz, VBW=10KHz, Sweep time=(SPAN/3KHz), detector=Peak detector 8.5. Uncertainty ± 1.27 dB SMA EUT Spectrum Analyzer RF Cable Report No. 11B334R-RFUSP42V01 Page : 137 of 151 8.6. Test Result of Power Density Product : Home Controller Test Item : Power Density Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measure Level (dBm) Limit (dBm) Result 1 2412 -17.410 < 8dBm Pass Figure Channel 1: Report No. 11B334R-RFUSP42V01 Page : 138 of 151 Product : Home Controller Test Item : Power Density Data Test Site : No.3OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (dBm) Required Limit (dBm) Result 6 2437 -18.570 < 8dBm Pass Figure Channel 6: Report No. 11B334R-RFUSP42V01 Page : 139 of 151 Product : Home Controller Test Item : Power Density Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measur…

Text truncated - open the document above for the full version.
