R33C4TW7C0TOUCH SCREEN INTERFACE DEVICE

™ NOTE: Video Intercom using 802.11b is not recommended or supported for Video Intercom. Control4 recommends Wireless-N for Video Intercom. See “Wireless Network Limitations” and “Power and Network Installation Options.” • Option 1: Ethernet with PoE. The Ethernet network connection is provided through the PoE Injector. No additional wiring is needed. • Option 2: Ethernet with AC. Connect the Touch Screen to one of the RJ-45 LAN ports on the gateway/router using the RJ-45 Ethernet cable. • Option 3: WiFi with AC. The internal WiFi will communicate with the LAN’s WAP. If the LAN has a WAP set up, no additional wiring is needed. Supported Models • C4-TW7C0- BL - 7 Inch Wall Mount Capacitive Touch Screen with Camera, Ethernet/WiFi, PoE/ Universal Voltage, Black • C4-TW7C0- WH - 7 Inch Wall Mount Capacitive Touch Screen with Camera, Ethernet/WiFi, PoE/ Universal Voltage, White Associated SKUs: • C4-TSWMC5-EG-WH – 5” In-Wall Touch Screen, White (no camera) • C4-TSWMC7-EG-WH – 7” In-Wall Touch Screen, White (no camera) • C4-TSWMC5-EG-BL – 5” In-Wall Touch Screen, Black (no camera) • C4-TSWMC7-EG-BL – 7” In-Wall Touch Screen, Black (no camera) Box Contents Carefully unpack the contents of the box, and make sure the following items are included. If any item is missing or damaged, please contact your Control4 Reseller. • 7” In-Wall Touch Screen with Camera • Power box (used to power the Touch Screen) • Two (2) screws to attach the power box • Warranty card Introduction The Control4® 7” In-Wall Touch Screen with Camera offers complete system control in an elegant and compact design. This Touch Screen is equipped with a capacitive Touch Screen and four (4) programmable shortcut buttons plus Audio and Video Intercom (with a built-in camera) using SIP. The available power options are AC power or Power- over-Ethernet (PoE); the network options are WiFi or Ethernet connections. This Touch Screen supports new construction or retrofit installations. • AC. AC power is used to power the Touch Screen when using an Ethernet or WiFi network connection. • PoE. PoE is used to power the Touch Screen when using an Ethernet or WiFi network connection. The following table shows the available network options with power. • Ethernet with PoE • Ethernet with AC • WiFi with AC 7” In-Wall Touch Screen with Camera Installation Guide 1 ™ Accessories • PoE. Control4 Power over Ethernet Injector, sold separately (AC-POE1-B). • Back Box Options. There are four (4) back box options available for this Touch Screen’s installation. Metal and plastic back boxes are available for new construction or retrofit installations. 5” and 7” In-Wall Touch Screen Back Box Kits - New Construction - 5” and 7” In-Wall Touch Screens Wall Box, New Construction, Plastic (C4-NWB57C-P) - 5” and 7” In-Wall Touch Screens Wall Box, New Construction, Metal (C4-NWB57C-M) 5” and 7” In-Wall Touch Screen Back Box Kit - Retrofit - 5” and 7” In-Wall Touch Screens Wall Box, Retrofit, Plastic (C4-RWB57C-P) - 5” and 7” In-Wall Touch Screens Wall Box, Retrofit, Metal (C4-RWB57C-M) See the Control4 5” or 7” In-Wall Touch Screen Wall Box Installation Guide - New Construction or 5” or 7” In-Wall Touch Screen Wall Box Installation Guide - Retrofit for back box installation details. Specifications Screen7” 16:9 wide VGA Color LCD Module Resolution: 800 x 480 Camera: 640 x 480 VGA Brightness: 350 nits WirelessBuilt In IEEE802.11 b/g/n Wireless LAN Integral Antenna (b/g/n supported) Authentication: WEP, WPA, WPA2 7” In-Wall Touch Screen with Camera Installation Guide Dimensions (H x W x D) 4.88” x 7.2” x .60” (124 mm x 183 mm x 15. 24 mm) Weight1.15 lbs. (.52 kg) Shipping Weight1.8 lbs. (.81 kg) NetworkWiFi (802.11 b/g/n) wireless access point (WAP) already configured to communicate with a Control4 Controller (e.g., HC-800). Wireless-N is recommended for Video Intercom. Notes: (1) Intercom usage. 802.11b is not recommended or supported for Video Intercom. (2) Wireless-N is recommended for Video Intercom. Even with Wireless-N, broadcasting to several devices will degrade Video Intercom response time and images. Broadcasting to additional devices will further degrade performance. See “Wireless Network Limitations.” Requirements To install the 7” In-Wall Touch Screen with Camera, Control4 requires the following: • A Home Controller fully installed and configured with a Control4® system. • Control4 7” Touch Screen custom back box installed (OS 2.2.1 or later). See “Accessories.” • If using Ethernet with PoE power: - Ethernet network installed and available that includes a gateway/router/switch - Control4 PoE Injector (model #AC-POE1-B) or another third-party PoE Injector or switch (certified to UL/ANSI standards). - Two (2) Ethernet CAT5 cables: (1) one that runs from the Ethernet gateway/router/switch to the PoE Injector/switch and (2) one that runs from the PoE Injector/switch to the Ethernet connection in the Touch Screen’s back box. • If using Ethernet with AC power: - Ethernet network installed and available that includes a gateway/router/switch - Access to in-wall AC power (a neutral connection is required) - One (1) Ethernet CAT5 cable that runs from the Ethernet gateway/router/switch to the Touch Screen - A 14-gauge electrical wire long enough to pull between the Touch Screen and the power source • If using wireless with AC power: - Wireless network (WiFi 802.11 b/g/n) installed and available with a wireless access point (WAP) - Access to in-wall AC power (a neutral 2 Back View Figure 2. Back View - 7” In-Wall Touch Screen with Camera and Power Box 1 Wire Connection. Hot (H) uses Black wire; Return (R) uses White wire. 2 RJ-45 port for Ethernet Connection. Ethernet port available for either a standard Ethernet source that provides network communication only OR a PoE source that provides power to the device and network communication. Touch Screen Placement Place the Touch Screen in a convenient location at eye level, typically near the entrance of the room, approxima…

Text truncated - open the document above for the full version.

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax Timco Engineering 849 N.W. State Road 45 PO Box 370 Newberry, FL 32669 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I authorize Tom Jackson, General Manager, or Merry Jackson, Officer Manager, of Nemko-CCL, Inc. Nemko-CCL, Inc. at 1940 W. Alexander Street, Salt Lake City, UT 84119, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communications Commission regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Timco Engineering still resides with Control4 at 11734 South Election Road, Suite 200, Draper UT 84020-6432, USA. Dated this 15 Day of June 20 12 Agency agreement expiration date: December 31, 2012 By: Roger Midgley Signature Printed Title: Sr. Regulatory Compliance Engineer On behalf of : Control4 Telephone: (801) 523-3187

June 18, 2012 CONFIDENTIALITY REQUEST LETTER Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: R33C4TW7C0 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics C4-TW7C0 Schem.pdf Block Diagrams C4-TW7C0 BlkDia.pdf Theory of Operation C4-TW7C0 OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Roger Midgley Sr. Regulatory Compliance Engineer 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax

ATT-001 Issue 1 March 2012 MANUFACTURER’S STATEMENT/ATTESTATION Applicant: Control4 Address: 11734 S Election Road, Suite 200 Draper, UT 84020 Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer Brand Name: Control4 Model Number: C4-TW7C0 Brand Name: CISCO Model Number: SCH-7IN-TS FCC ID/IC ID: R33C4TW7C0/7848A-C4TW7C0 Nemko-CCL Test Reports: 190368-12, 190368-13, 190368-13 The manufacturer or responsible party for the equipment tested hereby affirms: a) That he/she has reviewed and concurs that the tests shown in this report are reflective of the operational characteristics of the device for which certification is sought; b) That the device in this test report will be representative of production units; c) That the product will have all of the documented modifications incorporated into the product when manufactured and placed on the market; d) That all changes in hardware and software/firmware to the subject device will be reviewed. e) That any changes impacting the attributes, functionality or operational characteristics documented in this report will be communicated to the body responsible for approving or certifying the subject equipment. Roger Midgley June 18, 2012 Authorized Representative (please print) Signature Date

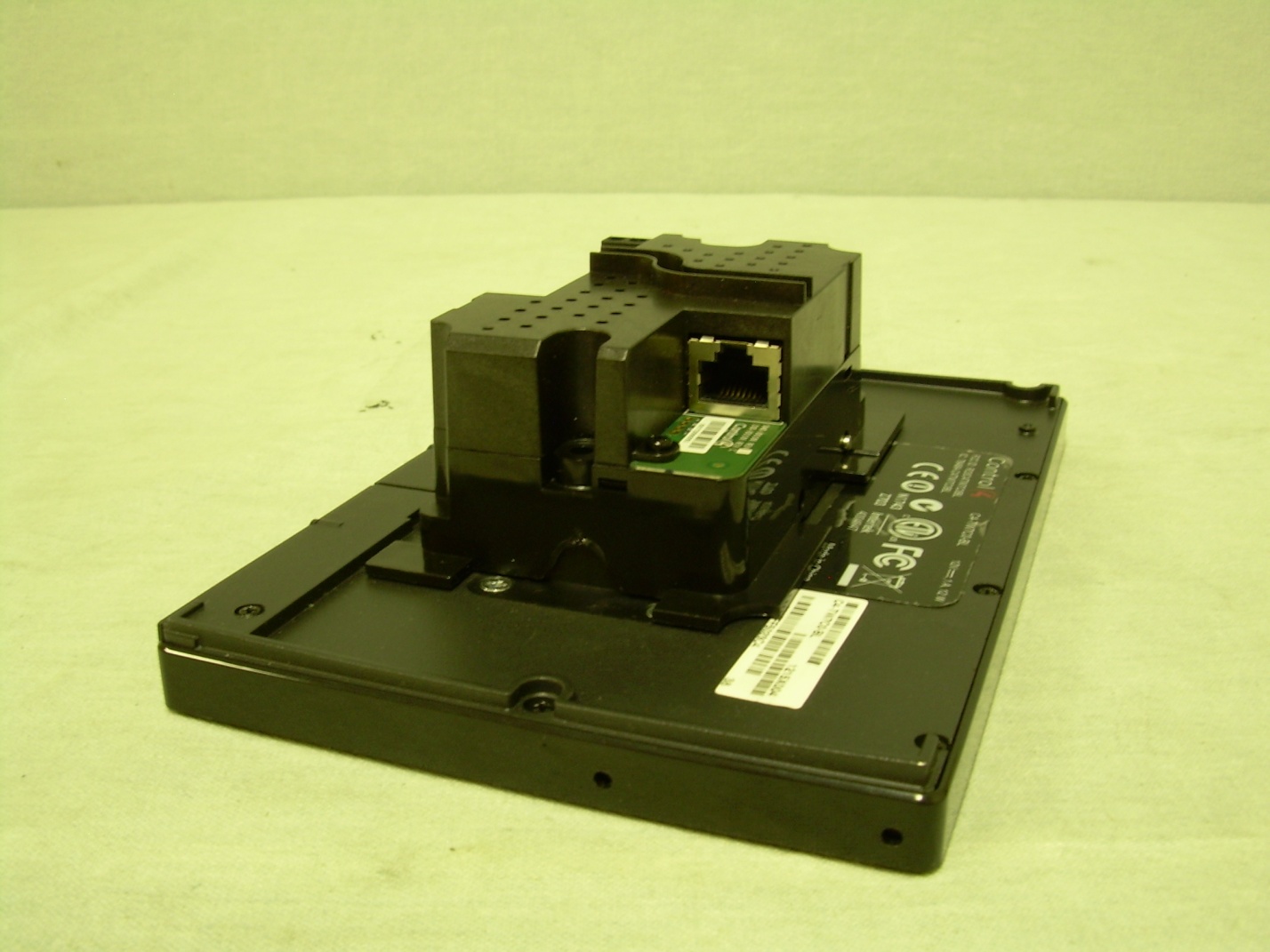

Front View of the EUT Back View of the EUT Right Back Side View of EUT Left Back Side View of EUT View of the EUT with Back Box Removed View of the Back Box to Display Interface

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax C4-TW7C0 & SCH-7IN-TS Label Label Example (Control4): Label Example (Cisco):

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax C4-TW7C0 & SCH-7IN-TS Label Placement Label is placed on the bottom side of the C4-TW7C0 as shown in the drawing below:

View of Component Side of Back Box PCB View of Trace Side of Back Box PCB View of Component Side of Back Box PCB with Heatsink Removed View of Trace Side of Back Box PCB with Heatsink Removed View of Side of Back Box PCB Back View of Display Unit with Cover Removed

Back View of display with Cover Removed View of Back Side of the Display PCB View of the Front Side of the Display PCB View of the Back Side of the Camera/Microphone PCB View of the Front Side of the Camera/Microphone PCB View of the Component Side of the Touch Interface PCB View of the Trace Side of the Touch Interface PCB

Page 1 of 4 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax MPE Calculations Control4 Model: C4-TW7C0 Cisco Model: SCH-7IN-TS FCC ID: R33C4TW7C0 IC ID: 7848A-C4TW7C0 Page 2 of 4 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax 1.0 SCOPE_________________________________________________________3 2.0 REVISION LEVEL_______________________________________________3 3.0 REFERENCE DOCUMENTS______________________________________3 4.0 CALCULATIONS________________________________________________4 5.0 CONCLUSION___________________________________________________4 1.0 SCOPE: This Report Demonstrates Evaluation and Compliance to the following standards: 1. Code of Federal Regulations Title 47, Volume 1, Section 1.1310. 2. Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) - RSS-102 Issue 3 2.0 REVISION LEVEL: DATE COMMENTS REVISION 10/10/08 Created. 1.0 08/16/10 Added RSS-102 references 2.0 3.0 REFERANCE DOCUMENTS: (A) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Section 1.1310. (B) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. (C) Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) - RSS-102 Issue 3 Page 3 of 4 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax 4.0 CALCULATIONS: The C4-TW7C0 contains an 802.11 b/g/n Transceiver. Below is the MPE calculation for this Transceiver. 802.11 b/g/n Transceiver The following worst case emissions was calculated by using Method 1 below Method 1: Based on a PPt (Peak Power Total) measurement of the total power into the antenna and the worst case antenna gain. Effective/Equivalent Isotropic Radiated Power [EIRP] dBm = Total power into the antenna [dBm] + antenna gain [dBi] To convert the values from dBm to mW mW = 10 dBm/10 Total power into the antenna (dBm) = 25.0 Antenna gain (dBi) = 1.0 EIRP (dBM) = 26.0 EIRP (mW) = 398.11 worst case while in the Wi-Fi “G” mode Method 2: Based on the radiated field strength measurement at 3 meters [at a calibrated OATS site, maximizing the antenna polarity and height] After obtaining the EIRP, the Power density is calculated and compared against the FCC and IC limits. S FCC = Power density in mW/cm² for FCC S FCC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power 83.95 mW R = Distance to the center of radiation of the antenna 20 cm S FCC = 0.079 mW/cm² S FCC Limit = 1.0 mW/cm² S IC = Power density in W/m² for IC S IC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power in watts 0.0839 W R = Distance to the center of radiation of the antenna 0.2 m S IC = 0.792 W/m² S IC Limit = 10 W/m² for IC Page 4 of 4 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax 5.0 CONCLUSION: 1. Based upon the limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) as 1mW/cm², this device falls under the required limits. 2. Based upon the limits given in section 4.2 of the reference document (C) as 10W/m², this device falls under the required limits.

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: C4-TW7C0 and SCH-7IN-TS FCC ID: R33C4TW7C0 Test Specifications: FCC PART 15, Subpart C Test Report Serial No: 190368-13.5 Applicant: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Dates of Test: May 9 and 23-24, 2012 Report Issue Date: June 7, 2012 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 Nemko-CCL, Inc. TEST REPORT: 190368-13.5 REPORT ISSUE DATE: 06/07/2012 Page 2 of 103 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Numbers: C4-TW7C0 - Brand Name: CISCO - Model Numbers: SCH-7IN-TS - FCC ID Number: R33C4TW7C0 On this 7 th day of June 2012, I, individually and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Nemko-CCL, Inc. EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen EMC Technician Nemko-CCL, Inc. TEST REPORT: 190368-13.5 REPORT ISSUE DATE: 06/07/2012 Page 3 of 103 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................8 SECTION 4.0 OPERATION OF EUT DURING TESTING ..................................................14 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................15 SECTION 6.0 802.11b/g/n TRANSCEIVER – MEASUREMENTS AND RESULTS ..........16 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..........................................74 APPENDIX 2 PHOTOGRAPHS ................................................................................................80 Nemko-CCL, Inc. TEST REPORT: 190368-13.5 REPORT ISSUE DATE: 06/07/2012 Page 4 of 103 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer Nemko-CCL, Inc. TEST REPORT: 190368-13.5 REPORT ISSUE DATE: 06/07/2012 Page 5 of 103 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Number: C4-TW7C0 Serial Number: 5023C4 Dimensions: Display – 12.7 x 17.78 x 1.27 cm Back Box – 5.715 x 9.25 x 3.81 cm 2.2 Description of EUT: The C4-TW7C0 is a 7” display with capacitive touchscreen for use in Control4 home automation and security systems. The C4-TW7C0 may be powered by the AC mains or by power over the Ethernet port. Configurations using both power options were tested. For POE power, an Ault PW130 power supply/injector was used to power the C4-TSWMC7. The C4- TW7C0 has an 802.11b/g/n transceiver and an Ethernet port for interfacing the Control4 system. This report also covers the SCH-7IN-TS. This device is exactly the same as the C4- TW7CO except in branding. The SCH model numbers are branded for Cisco. Both models can be housed in a black or white plastic casing. The C4-TW7C0 802.11b/g/n transceiver uses 11 channels in the 2400 to 2483.5 MHz frequency range. The antenna is an inverted F trace antenna on the PCB. The channels and the maximum transmitter power settings to be incorporated in production software are shown below. Channel Frequency (MHz) Power Setting 802.11b 802.11g 802.11n 1 2412 +15 +16 +15 2 2417 +15 +20 +19 3 2422 +15 +20 +19 4 2427 +15 +20 +19 5 2432 +15 +20 +19 6 2437 +15 +20 +19 7 2442 +15 +20 +19 8 2447 +15 +20 +19 9 2452 +15 +20 +19 10 2457 +15 +20 +19 11 2462 +15 +16 +15 Testing was performed at the upper, middle, and lower channels using 802.11b, 802.11g, and 802.11n. This report covers the circuitry of the devices subject to FCC Part 15, Subpart C. The Nemko-CCL, Inc. TEST REPORT: 190368-13.5 REPORT ISSUE DATE: 06/07/2012 Page 6 of 103 circuitry of the device subject to FCC Subpart B was found to be compliant and is covered in Nemko-CCL, Inc. report #190368-12 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test are listed below: Brand Name Model Number Serial Number FCC ID Number or Compliance Description Name of Interface Ports / Interface Cables BN: Control4 MN: C4-TW7C0 (Note 1 ) SN: 5023C4 R33C4TW7C0 In-wall touchscreen display See Section 2.4 BN: Dell MN: Latitude SN: None DoC Computer Ethernet/Cat 5e cable BN: TRENDnet MN: TEG-S50TXE SN: 0243C3A16540 DoC 5 port LAN switch Ethernet/Cat 5 cable w/RJ45 connectors (Note 2) BN: Control4 MN: C4-HC250-BL SN: F83 R33C4HC250 Home Controller Ethernet/Cat 5e cable Note: (1) EUT (2) Interface port connected to EUT (See Section 2.4) The support equipment listed above was not modified in order to achieve compliance with this standard. Nemko-CCL, Inc. TEST REPORT: 190368-13.5 REPORT ISSUE DATE: 06/07/2012 Page 7 of 103 2.4 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length Ethernet 1 Cat 5e cable with Steward 28A2025-0A2 ferrite/7 meters AC 1 2 unshielded conductors in power cord/1.2 meters (Not connected when operating over POE) …

Text truncated - open the document above for the full version.

Front View Radiated Spurious Emissions – POE Configuration Back View Radiated Spurious Emissions – POE Configuration Front View Radiated Spurious Emissions – AC Powered Configuration Back View Radiated Spurious Emissions – AC Powered Configuration Front View Conducted Disturbance – POE Configuration Back View Conducted Disturbance – POE Configuration Front View Conducted Disturbance – AC Powered Configuration Back View Conducted Disturbance – AC Powered Configuration
