R33EC100Energy Controller

EC-100 Energy Controller User Guide Supported Models • C4-EC100 Energy Controller • C4-EC100EXT Energy Controller with External Antenna Associated SKUs: • C4-EC100-BL — EC-100 Energy Controller, Black • C4-EC100-WH — EC-100 Energy Controller, White • C4-EC100EXT-BL – EC-100 Energy Controller with External Antenna, Black Introducing the EC-100 Energy Controller The EC-100 Energy Controller (EC-100) wirelessly connects to your home’s smart meter and gathers information about how much electricity you are using and how much that electricity use is costing you. With this information, you will be able to make smart choices about how and when to conserve electricity and save money. The EC-100 comes with a colorful touch screen on which you can view current and past data about your home’s energy use in a clean, graphical format. Beyond that, the EC-100 provides an easy way to program and control your WT-100 Wireless Thermostat (provided separately), check your weather forecast, review your power bills, view messages about utility-driven energy savings events, and more! Congratulations on receiving your new EC-100 Energy Controller! Key Features: • Empowers You With Information: The EC-100 wirelessly communicates with your home’s smart meter to gather information about your electricity use. The display lets you see your energy use over time with enough storage for up to five (5) years of data, and it shows you breakdowns of your electricity use by major categories such as heating, cooling, refrigerator, and pool. • Intuitive Color Touch Screen: The Energy Controller’s 4.7” capacitive touch screen puts your home’s energy management at your fingertips by allowing you to interact with the data from your smart meter. • Better Communication With Your Utility: Using smart meters, your utility can send you important messages regarding incentive programs, conservation requests during periods of high demand and changes in pricing. Working together, utilities and their customers can improve energy efficiency and lower costs. • Broadband-Connected (optional): The EC-100 connects to your home’s WiFi network to provide additional information including utility bills, messages from your utility company and your local weather forecast. By enabling the home area network- ing wireless network functionality, your utility can enable you to get better control over your electrical usage. • Easy Thermostat Programming and Control: The EC-100 makes it easy to program your WT-100 Wireless Thermostat (provided separately), turn your heat or air conditioner on or off, or change the temperature in your home. Also, you can easily set your wireless thermostat into a special energy-saving ‘Vacation’ mode when you leave town. All of this control allows you to reduce your electricity consumption. Ultimately, the EC-100 can become a gateway for controlling all your appliances to reduce the money spent on electricity. Battery Installation and Replacement Safety Rules • Use typical AA alkaline batteries only. • Do not mix battery types, such as alkaline and rechargeable NiMH batteries. • Do not mix used batteries with fresh batteries. • Do not attempt to recharge a battery unless the battery is specifically marked “rechargeable.” • Never dispose of batteries in a fire. WARNING! To prevent a battery short, leakage or rupture: • Utilisez les accumulateurs alcalins typiques d’AA seulement. • Ne mélangez pas les types de batterie, tels que les batteries alkalines et rechargeables de NiMH. • Ne mélangez pas des batterie frais avec des batterie ancien. • N’essayez pas de recharger une batterie à moins que la batterie soit spécifiquement marqué « rechargeable ». • Ne vous débarassez jamais des batteries dans un feu. ATTENTION! Pour empêcher court-circuiter, fuite ou rupture de batterie: Battery Use and Care Tips • Keep the battery contacts and compartment clean. • Remove the batteries from the product if it is not going to be used for several months. • Extreme temperatures reduce battery performance. Avoid putting the EC-100 in very warm places. Terms Once the EC-100 has been completely set up per the EC-100 Energy Controller Setup Guide, the first screen to appear is the Main Menu. From this menu, you can access the following applications: Thermostat, My Energy, Utility Bills, Messages, Energy Events, Set- tings, Weather, and more. The Home Screen was designed to be “at-a-glance” useful and you can view all types of information about your home’s electricity use, current electricity cost, messages and energy events from the utility, current time, and current indoor temperature and weather (if available). This screen is the one most likely to be commonly displayed. Specific areas of the screen are selectable to enable you to navigate quickly into more details regarding available information. Note: The Home Screen layout can vary depending on the configu- ration supported by the utility and the connectivity and devices used by the EC-100. The following is a more detailed description of these screens. Main Menu and Home Screen Figure A. Insert Batteries Figure B. Battery Cover Use a small Phillips screwdriver to remove the screws and cover. Insert the three (3) AA alkaline batteries (included with the product) into the bottom of the product (see figures next). Note: The batteries are for temporary backup power only. The power cord should be plugged into a wall outlet at all times during use of the product. Ensure that you insert the batteries according to the diagram provided in the battery compartment (with the + and - terminals aligned correctly). Install Batteries TermDefinition EC-100The EC-100 Energy Controller is a tabletop or counter top display that lets you view your home’s energy usage data. WT-100The WT-100 Wireless Thermostat controls the heating and air-condition- ing (HVAC) systems in your home. Current TempThe current temperature indicated on the thermostat inside your home. Set TempThe set temperature is your desired t…

Text truncated - open the document above for the full version.

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax November 1, 2011 CONFIDENTIALITY REQUEST LETTER Federal Communications Commission 445 12 th Street, SW Washington, DC 20554 Subject: Request for Confidentiality FCC ID: R33EC100 To Whom It May Concern: In accordance with Code of Federal Regulations Title 47 Section 0.459 (3), (4) and (5) Disclosure of Information, it is hereby requested that the following items be held as confidential: 1. Schematic 2. Block Diagrams 3. Theory of Operation These items contain detailed systems and equipment description and related information about the product which the Grantee considers proprietary, confidential and a custom design which otherwise would not be released to the general public. The public disclosure of these matters might be harmful to the Grantee and provide unjustified benefits to its competitors in the market Sincerely, Roger Midgley Sr. Regulatory Compliance Engineer

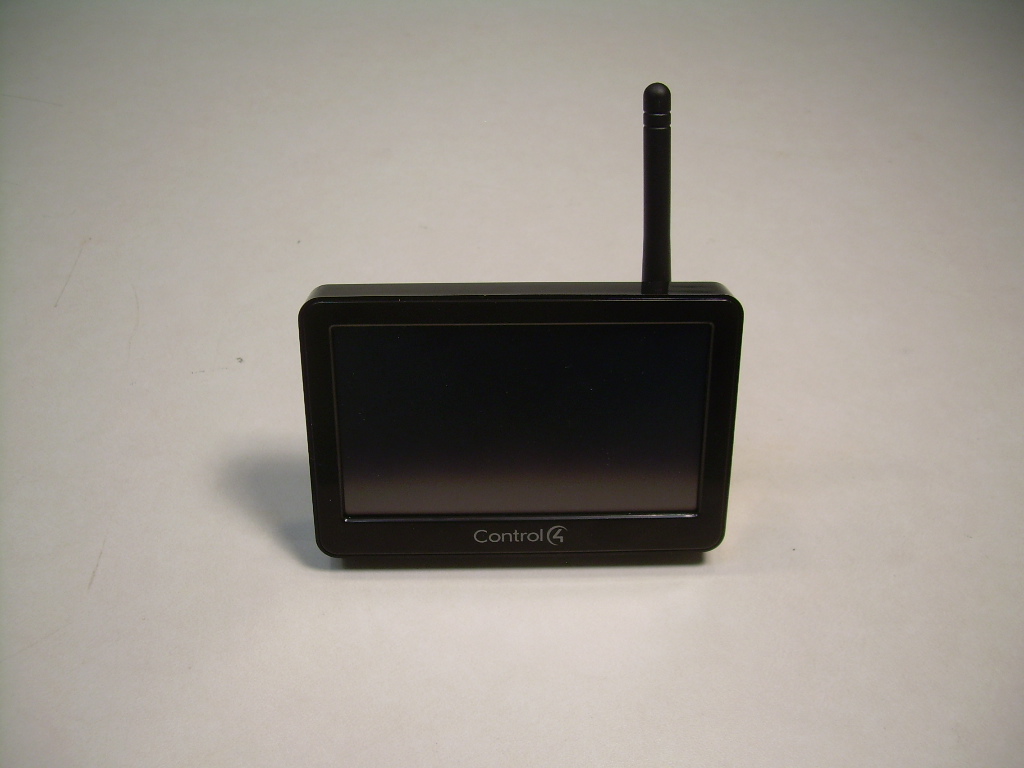

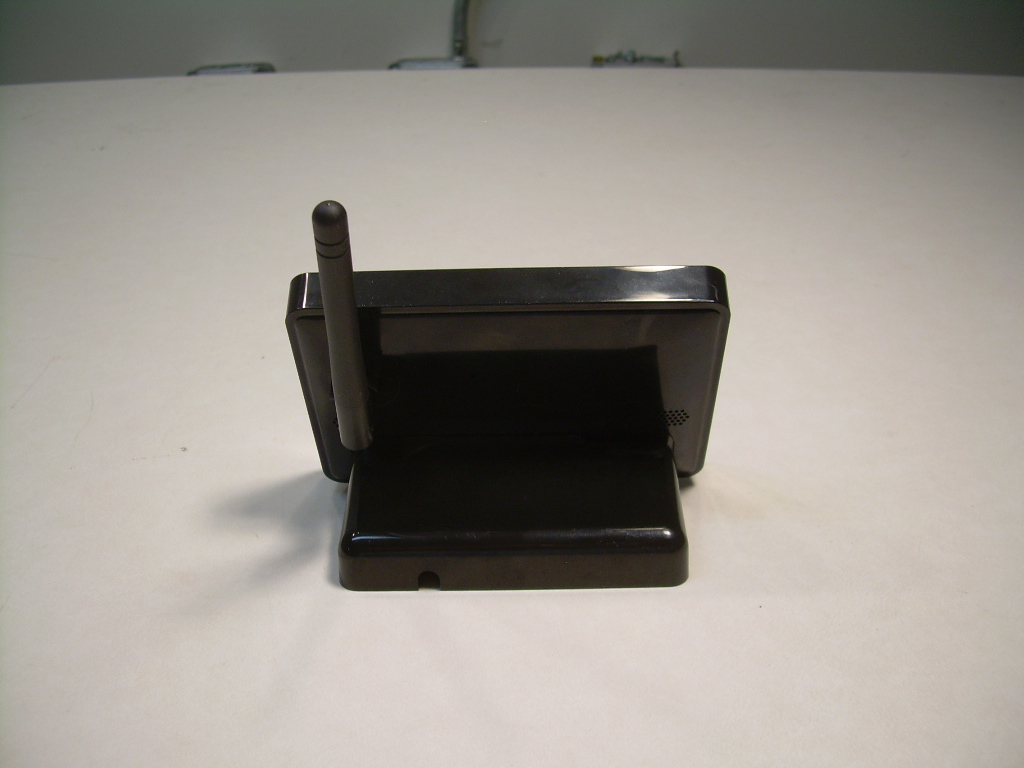

Front View of the EUT Back View of the EUT View of the EUT with the Bottom/Battery Cover Removed

11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax C4-EC100EXT Label and Label Placement Label Example: Label is 1.5 x 0.5 Inches Label Placement Label is placed on the bottom side of the stand as shown in the photograph below:

View of the Back of the Touch Screen Assembly View of the Front Side of the PCB View of the Circuitry Under the RF Shield View of the Back Side of the PCB

Page 1 of 5 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax MPE Calculations Control4 Model: C4-EC100EXT FCC ID: R33EC100 IC ID: 7848A-EC100 Page 2 of 5 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax 1.0 SCOPE_________________________________________________________3 2.0 REVISION LEVEL_______________________________________________3 3.0 REFERENCE DOCUMENTS______________________________________3 4.0 CALCULATIONS________________________________________________4 5.0 CONCLUSION___________________________________________________4 1.0 SCOPE: This Report Demonstrates Evaluation and Compliance to the following standards: 1. Code of Federal Regulations Title 47, Volume 1, Section 1.1310. 2. Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) - RSS-102 Issue 3 2.0 REVISION LEVEL: DATE COMMENTS REVISION 10/10/08 Created. 1.0 08/16/10 Added RSS-102 references 2.0 3.0 REFERANCE DOCUMENTS: (A) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Section 1.1310. (B) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. (C) Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) - RSS-102 Issue 3 Page 3 of 5 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax 4.0 CALCULATIONS: The C4-EC100EXT contains 3 Transceiver’s (802.11 b/g, Zigbee #1 & Zigbee #2). Below are the MPE calculations for all 3 Transceiver’s. 802.11 b/g Transceiver The following worst case emissions was calculated by using Method 1 below Method 1: Based on a PPt (Peak Power Total) measurement of the total power into the antenna and the worst case antenna gain. Effective/Equivalent Isotropic Radiated Power [EIRP] dBm = Total power into the antenna [dBm] + antenna gain [dBi] To convert the values from dBm to mW mW = 10 dBm/10 Total power into the antenna (dBm) = 18.1 Antenna gain (dBi) = 0.33 EIRP (dBM) = 18.43 EIRP (mW) = 69.6 worst case while in the Wi-Fi “G” mode – power level at 15 Method 2: Based on the radiated field strength measurement at 3 meters [at a calibrated OATS site, maximizing the antenna polarity and height] After obtaining the EIRP, the Power density is calculated and compared against the FCC and IC limits. S FCC = Power density in mW/cm² for FCC S FCC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power 69.6 mW R = Distance to the center of radiation of the antenna 20 cm S FCC = 0.014 mW/cm² S FCC Limit = 1.0 mW/cm² S IC = Power density in W/m² for IC S IC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power in watts 0.0696 W R = Distance to the center of radiation of the antenna 0.2 m S IC = 0.14 W/m² S IC Limit = 10 W/m² for IC Page 4 of 5 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax Zigbee #1 Transceiver The following worst case emissions was calculated by using Method 1 below Method 1: Based on a PPt (Peak Power Total) measurement of the total power into the antenna and the worst case antenna gain. Effective/Equivalent Isotropic Radiated Power [EIRP] dBm = Total power into the antenna [dBm] + antenna gain [dBi] To convert the values from dBm to mW mW = 10 dBm/10 Total power into the antenna (dBm) = 17.9 Antenna gain (dBi) = 0.67 EIRP (dBM) = 18.57 EIRP (mW) = 71.9 worst case power level at 3 and amplifier gain to 10 Method 2: Based on the radiated field strength measurement at 3 meters [at a calibrated OATS site, maximizing the antenna polarity and height] After obtaining the EIRP, the Power density is calculated and compared against the FCC and IC limits. S FCC = Power density in mW/cm² for FCC S FCC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power 71.9 mW R = Distance to the center of radiation of the antenna 20 cm S FCC = 0.014 mW/cm² S FCC Limit = 1.0 mW/cm² S IC = Power density in W/m² for IC S IC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power in watts 0.0719 W R = Distance to the center of radiation of the antenna 0.2 m S IC = 0.14 W/m² S IC Limit = 10 W/m² for IC Zigbee #2 Transceiver The following worst case emissions was calculated by using Method 1 below Page 5 of 5 11734 South Election Road, Ste. 200 | Salt Lake City, Utah 84020 | www.control4.com | 801.523.3100 phone | 801.523.3199 fax Method 1: Based on a PPt (Peak Power Total) measurement of the total power into the antenna and the worst case antenna gain. Effective/Equivalent Isotropic Radiated Power [EIRP] dBm = Total power into the antenna [dBm] + antenna gain [dBi] To convert the values from dBm to mW mW = 10 dBm/10 Total power into the antenna (dBm) = 18.2 Antenna gain (dBi) = 2.0 EIRP (dBM) = 20.2 EIRP (mW) = 104.7 worst case power level at -3 and amplifier gain to 20 Method 2: Based on the radiated field strength measurement at 3 meters [at a calibrated OATS site, maximizing the antenna polarity and height] After obtaining the EIRP, the Power density is calculated and compared against the FCC and IC limits. S FCC = Power density in mW/cm² for FCC S FCC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power 104.7 mW R = Distance to the center of radiation of the antenna 20 cm S FCC = 0.021 mW/cm² S FCC Limit = 1.0 mW/cm² S IC = Power density in W/m² for IC S IC = EIRP/4π·R² EIRP = Equivalent isotropically radiated power in watts 0.1047 W R = Distance to the center of radiation of the antenna 0.2 m S IC = 0.21 W/m² S IC Limit = 10 W/m² for IC 5.0 CONCLUSION: 1. Based upon the limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) as 1mW/cm², this device falls under the required limits. 2. Based upon the limits given in section 4.2 of the reference document (C) as 10W/m², this device …

Text truncated - open the document above for the full version.

Nemko-CCL, Inc. 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification Test Of: C4-EC100EXT FCC ID: R33EC100 Test Specifications: FCC PART 15, Subpart C Test Report Serial No: 194767-3.1 Applicant: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Dates of Test: October 1, 3, 4 & 20, 2011 and February 1, 2012 Issue Date: February 7, 2012 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 Nemko-CCL, Inc. TEST REPORT: 194767-3.1 FCC ID#: R33EC100 Page 2 of 94 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Nemko-CCL, Inc. to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: C4-EC100EXT - FCC ID Number: R33EC100 On this 7 th day of February 2012, I, individually, and for Nemko-CCL, Inc., certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Nemko-CCL, Inc. EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Nemko-CCL, Inc. Tested by: Norman P. Hansen EMC Technician Nemko-CCL, Inc. TEST REPORT: 194767-3.1 FCC ID#: R33EC100 Page 3 of 94 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES .............................8 SECTION 4.0 OPERATION OF EUT DURING TESTING ..................................................14 SECTION 5.0 SUMMARY OF TEST RESULTS ...................................................................15 SECTION 6.0 802.11b/g TRANSCEIVER – MEASUREMENTS AND RESULTS .............16 SECTION 7.0 ZIGBEE #1 TRANSCEIVER – MEASUREMENTS AND RESULTS .........46 SECTION 8.0 ZIGBEE #2 TRANSCEIVER – MEASUREMENTS AND RESULTS .........59 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..........................................72 APPENDIX 2 PHOTOGRAPHS ................................................................................................80 APPENDIX 3 MANUFACTURER’S STATEMENT/ATTESTATION .................................93 APPENDIX 4 TRANSMITTER DUTY CYCLE CALCULATIONS .....................................94 Nemko-CCL, Inc. TEST REPORT: 194767-3.1 FCC ID#: R33EC100 Page 4 of 94 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Roger Midgley Title: Sr. Regulatory Compliance Engineer Nemko-CCL, Inc. TEST REPORT: 194767-3.1 FCC ID#: R33EC100 Page 5 of 94 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Number: C4-EC100EXT Serial Number: None 2.2 Description of EUT: The C4-EC100EXT is a home energy interface device in a 5” x 3.5” x 2.5” plastic enclosure. The C4-EC100EXT provides a touch screen interface from the user to the smart meter on his home for energy usage related information. When the C4-EC100EXT is used with the C4-WT100 Thermostat, it allows for remote control of the thermostat. The C4-EC100EXT contains a WiFi transceiver and two Zigbee transceivers. The WiFi transceiver and one of the Zigbee transceivers use traces on the PCB as antennas. . The second Zigbee transceiver has an external antenna connected to the PCB via a coaxial cable and mounts on the back of the C4- EC100EXT. The C4-EC100EXT was tested using 2 power supplies that supply power to the USB port of the C4-EC100EXT. The power supplies used in testing were the FranMar DSC- 6PFA-05 and the Sparkle FSP010-DWDA1. 3 AA batteries supply power in the event of a power outage. The C4-EC100EXT 802.11b/g transceiver uses 11 channels in the 2400 to 2483.5 MHz frequency range. The antenna is a trace on the PCB. See the table below. Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2412 5 2432 9 2452 2 2417 6 2437 10 2457 3 2422 7 2442 11 2462 4 2427 8 2447 Testing was performed at the upper, middle, and lower channels using both 802.11b and 802.11g and data rates of 5.5, 11, and 48 mbps were used for the test results shown in this report. The antenna for Zigbee Radio #1 is a trace on the PCB. Two antennas may be used for the Zigbee Radio #2. The first is a Pulse W1049B050, 2.0 dBi ¼ wave dipole and the second is a Socaa FI-03-01.13*21.6CM-M, a 2.5 dBi, ¼ wave dipole. Testing was performed with the Socaa antenna. The C4-EC100EXT Zigbee transceivers use 15 channels in the 2400 to 2483.5 MHz frequency range. See the table of frequencies below. Nemko-CCL, Inc. TEST REPORT: 194767-3.1 FCC ID#: R33EC100 Page 6 of 94 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequenc y (MHz) 11 2405 15 2425 19 2445 23 2465 12 2410 16 2430 20 2450 24 2470 13 2415 17 2435 21 2455 25 2475 14 2420 18 2440 22 2460 The transmitter power settings that are incorporated in production software and were used in testing are shown below. Radio Channels Transmit Power Setting Amplifier Setting Zigbee #1 11 – 25 +3 10 Zigbee #2 11 – 25 -3 20 802.11b 1 – 11 +12 N/A 802.11g 1 - 11 +15 N/A This report covers the circuitry of the devices subject to FCC Part 15, Subpart C. The circuitry of the device subject to FCC Subpart B was found to be compliant and is covered in Nemko-CCL, Inc. report #194767-2.1 2.…

Text truncated - open the document above for the full version.

Front View Radiated Disturbance Worst Case Configuration Back View Radiated Disturbance Worst Case Configuration Front View Conducted Disturbance Worst Case Configuration Back View Conducted Disturbance Worst Case Configuration
