R33KPZ6B1Wireless Keypad Model KPZ-6B1

Control4 Wireless 6-Button Keypad Installation and User Guide 1 Wireless 6-Button Keypad Installation and User Guide Supported Models, Features, and Fixtures This installation guide covers these 6-button keypad models: The Control4 Wireless 6-Button Keypad can be configured as a peer- to-peer device or as part of the Control4 network. It can be programmed to do any supported network event (such as controlling a group of lights, a music zone, or a security system) or can simply be used to replace 3 light switches. It installs in a standard wall box using typical wiring standards and gets power from a nearby power outlet or light switch. It communicates to the system using a wireless connection and features a tri-color LED for system feedback. It supports lighting fixtures with the following load requirements: •120 Volt incandescent (all types) •120 Volt halogen (all types) •120 Volt magnetic low voltage (all types with 70 percent or greater load factor) •120 Volt electronic low voltage (dimmable only) •120 Volt fluorescent light fixtures (dimmable only) Installation Instructions Ensure that the location and intended use meet the following criteria: To avoid injury or death, turn OFF local electrical power. To turn off the power, either flip the circuit breaker or remove fuse from fuse box. To ensure the wires do NOT have power running to them, use an inductive voltage detector. Prepare and identify all wires. Identify the wires in your wall box. Straighten the wire ends. With a wire cutter, cut off the bare wire just below the plastic insulation on all wires. Use a wire stripper to strip off about 3/8-inch of the insulation. LDZ-101-WWireless 6-Button Keypad (802.15.4) LDZ-101-BWireless 6-Button Keypad (802.15.4) LDZ-101-AWireless 6-Button Keypad (802.15.4) WARNING! To reduce the risk of serious injury or death, turn all power OFF before installing this product. Using this product in a manner other than outlined in this document voids your warranty. Further, Control4 is NOT liable for any damage incurred with the misuse of this product. See “Limited 1 Year Warranty” on page 4. This product generates heat. The room must have adequate ventilation or heat dissipation ability. Do NOT use this device to control a device with a non- dimmable load. You should only use it with devices that have dimmable feature support. DO (OK, Normal)DON’T •Install in accordance with all national and local electrical codes. •Wall box size required depends on your wiring. The 6-button key- pad alone needs a depth of 2.5 inches. To calculate the total depth required, add 2.5 inches to the amount of space recom- mended in the NCC Code for your configuration. •The range and performance of the control system is highly dependent on the following: • Distance between devices • Layout of the home • Walls separating devices • Electrical equipment located near devices •If installing a multi-unit 6-but- ton keypad, Do NOT continue until you have read “Multi-Unit Installations” on page 2. •Do NOT use where total watt- age is under 25 watts. •Do NOT exceed maximum load rating of dimmer (which is 1000W for a single unit, if both side tabs are in tact). IMPORTANT: The National Electric Code (NEC) requires 6 inches of extended wire from the wall box. If your wiring does not meet this requirement, you will not meet code. Do NOT cut wire shorter than 6 inches. IMPORTANT: When installing this product in a commercial application or metal wall box, you might need to ground it to the wall box. 1 2 3 Control4 Wireless 6-Button Keypad Installation and User Guide 2 Connect the 6- button keypad wires to the wall box wires using wire nuts. The wall box wires can differ depending upon how it was wired by your electrician. To wire the 6-button keypad for a Control4 single-switch environment with the power coming from a nearby power outlet or light switch, connect and cap with a wire nut the wires indicated in the table. . Fit wires back into the wall box. Bend the wires in a zigzag pattern so that they easily fold into the wall box. Push the 6-button keypad into place. Adjust the 6-button keypad so that it is perpendicular to the floor. Tighten the two screws that hold it in position in the wall box. Align 6-button keypad to wall box and fasten with screws, unless you are using a Decora screw-on-style wall plate. If you are using a screw-on-style wall plate, before fastening with screws, you must first align the wall plate with the 6-button keypad and the wall box. If you are using the Control4 snap-on- style wall plate, snap it over the 6-button keypad now. Turn ON power at circuit breaker or replace fuse from fuse box. Test the see if it is working properly. To operate and configure this 6-button keypad as a stand- alone device, refer to the documentation that shipped with your Control4 controller. Refer to information on configuring or setting up lighting. Troubleshooting If light does not turn on: •Ensure light bulb is not burned out. •Ensure light bulb is screwed in tightly. •Ensure circuit breaker is not turned OFF or tripped. •Check for proper wiring. Multi-Unit Installations Multi-unit installations allow you to install one stand-alone 6-button keypad next to another in the same wall box. Multi-unit keypads ship pre-connected. DO NOT remove side tabs from outer sides.They help to regulate the capacity. •With both sides intact (single unit), the capacity is 1000W maximum. •If you remove one side, the capacity is reduced to 800W maximum. •If you remove two sides, the capacity is reduced to 600W maximum. Included Accessories •Wall Plate •J-Box Bolts •Plate Bolts •A/V/C Keycap Kit Optional Accessories •Audio Keycaps •Video Keycaps •System Keycaps Wires from 6-Button Keypad Power Outlet or Light Switch White (neutral) White (neutral) Black (hot) Black (hot) Green (ground)Green (ground) 4 5 6 7 8 9 Control4 Wireless 6-Button Keypad Installation and User Guide 3 Operation and Configuration Peer to Peer Mode Instructions The 6-Button Keypad …

Text truncated - open the document above for the full version.

11734 South Election Drive Suite 200 Draper, Utah 84020 (801) 523-3100 To: Federal Communications Commission Date: 4/29/04 445 12 th Street, SW Washington, DC 20554 Re: Non disclosure Request for FCC ID: R33KPZ6B1 We are requesting that the following documents be held and treated as confidential and proprietary information. These materials contain technical trade secret information and should be guarded from competitors as stated under the Code of Federal Regulations Title 47 Section 0.459 (3), (4) and (5). 1) Schematic 2) Block Diagrams 3) Operational Description James K. Russell Senior Electrical Engineer Control4 Technologies

Exhibit 3 (External Photographs) Photograph 1 – Front View of the EUT Photograph 2 – Back View of the EUT

1 MPE Calculations R33KPZ6B1 2 1.0 SCOPE_________________________________________________________3 2.0 REVISION LEVEL_______________________________________________4 3.0 REFERENCE DOCUMENTS______________________________________4 4.0 CALCULATIONS________________________________________________5 5.0 CONCLUSION___________________________________________________6 3 1.0 SCOPE: This Report Demonstrates Evaluation and Compliance for Human Exposure to Radiofrequency Electromagnetic Fields as Outlined by the Federal Communications Commission Office of Engineering and Technology Bulletin 65. 2.0 REVISION LEVEL: DATE COMMENTS REVISION 11/3/2004 Created. 1.0 3.0 REFERANCE DOCUMENTS: (A) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Section 1.1310. (B) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. 4.0 CALCULATIONS: The following worst case emissions are based on a PPt (Peak Power Total) measurement of 2.2 dBm. And the worst case antenna gain on axis is found to be 1.469 dBi. Total radiated power at the Transmitter: A) Pt = 2.2 dBm + 1.469 dBi = 3.669 EIRP 2.2 EIRP = 2.33 mW or .00233 Watts. Power density at a distance of .02 meters is: B) S = EIRP/4π·R^2 S = Power density (mW/cm^2) EIRP = Equivalent isotropically radiated power (mW) R = Distance to the center of radiation of the antenna (cm) 4 S = 9.2 mW per meter squared. Power density based on a Per Centimeter Squared is: 2.315 μW per centimeter squared. 5.0 CONCLUSION: Based on the FCC Limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) this device falls under the required limits.

Exhibit 6 TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY TEST OF: KPZ-6B1, KPZ-3B1, & LSZ-3W1 FCC ID: R33KPZ6B1 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8016 TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: KPZ-6B1, KPZ-3B1, & LSZ-3W1 FCC ID: R33KPZ6B1 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8016 Applicant: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Date of Test: October 26, 2004 Issue Date: November 2, 2004 Equipment Receipt Date: October 25, 2004 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8016 FCC ID#: R33KPZ6B1 Page 2 of 49 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: KPZ-6B1, KPZ-3B1, & LSZ-3W1 - FCC ID Number: R33KPZ6B1 On this 2 nd day of November 2004, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8016 FCC ID#: R33KPZ6B1 Page 3 of 49 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........8 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................14 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................16 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....17 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................33 APPENDIX 2 PHOTOGRAPHS .........................................42 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8016 FCC ID#: R33KPZ6B1 Page 4 of 49 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: James Russell Title: Senior Design Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: James Russell Title: Senior Design Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8016 FCC ID#: R33KPZ6B1 Page 5 of 49 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Name or Number: KPZ-6B1 Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A. 2.2 Description of EUT: The KPZ-6B1 is a solid state wireless network able wall box decora™ style Keypad. It fits into all standard plastic or metal electrical wall box sizes. The KPZ-6B1 has 6 fully programmable keys or switches. It is network able via a standard 2.4 GHz 802.15.4 low power RF transceiver enabling a full range of system control functions including Lighting Scene Control, Security Lighting, Automatic Shut Off, Scheduled Events and more. This report also covers models KPZ-3B1 and LSZ-3W1. Models KPZ-3B1 and LSZ-3W1 use the same PCB and transceiver, the difference being that the KPZ-3B1 uses 3 keys and the LSZ-3W1 uses 2 keys. The 802.15.4 transceiver uses 15 channels in the 2400 to 2483.5 MHz band. The individual channels are shown in the following plots. dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 73-8016 Trace A Start: 2.402500 GHzStop: 2.427500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 10/26/2004 3:43:52 PMHP8566B Trace A Lower 5 channels 1 1 2.405550 GHz -2.9000 dBm 2 2 2.409925 GHz -3.0000 dBm 3 3 2.415625 GHz -3.9000 dBm 4 4 2.419950 GHz -3.4000 dBm 5 5 2.425525 GHz -3.0000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8016 FCC ID#: R33KPZ6B1 Page 6 of 49 dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 73-8016 Trace A Start: 2.427500 GHzStop: 2.452500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 10/26/2004 3:49:17 PMHP8566B Trace A Middle 5 channels 1 1 2.430350 GHz -4.4000 dBm 2 2 2.434950 GHz -3.3000 dBm 3 3 2.440575 GHz -3.7000 dBm 4 4 2.444975 GHz -3.7000 dBm 5 5 2.450275 GHz -3.9000 dBm dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 73-8016 Trace A Start: 2.452500 GHzStop: 2.477500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 10/26/2004 3:52:43 PMHP8566B Trace A Upper 5 channels 1 1 2.455450 GHz -3.2000 dBm 2 2 2.460600 GHz -2.7000 dBm 3 3 2.465675 GHz -3.1000 dBm 4 4 2.470125 GHz -3.7000 dBm 5 5 2.475725 GHz -3.6000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8016 FCC ID#: R33KPZ6B1 Page 7 of 49 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Control4 MN: KPZ-6B1 (1) R33KPZ6B1 6 button wireless keypad See Section 2.4 Note: (1) EUT. 2.4 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length AC power 1 1½ meter power cord attached to the EUT 3 conductor pigtail 2.5 Modification Incorporated/Special Accessories on EUT: The following modifications were made to the KPZ-6B1 by the Client during testing to comply with the speci…

Text truncated - open the document above for the full version.

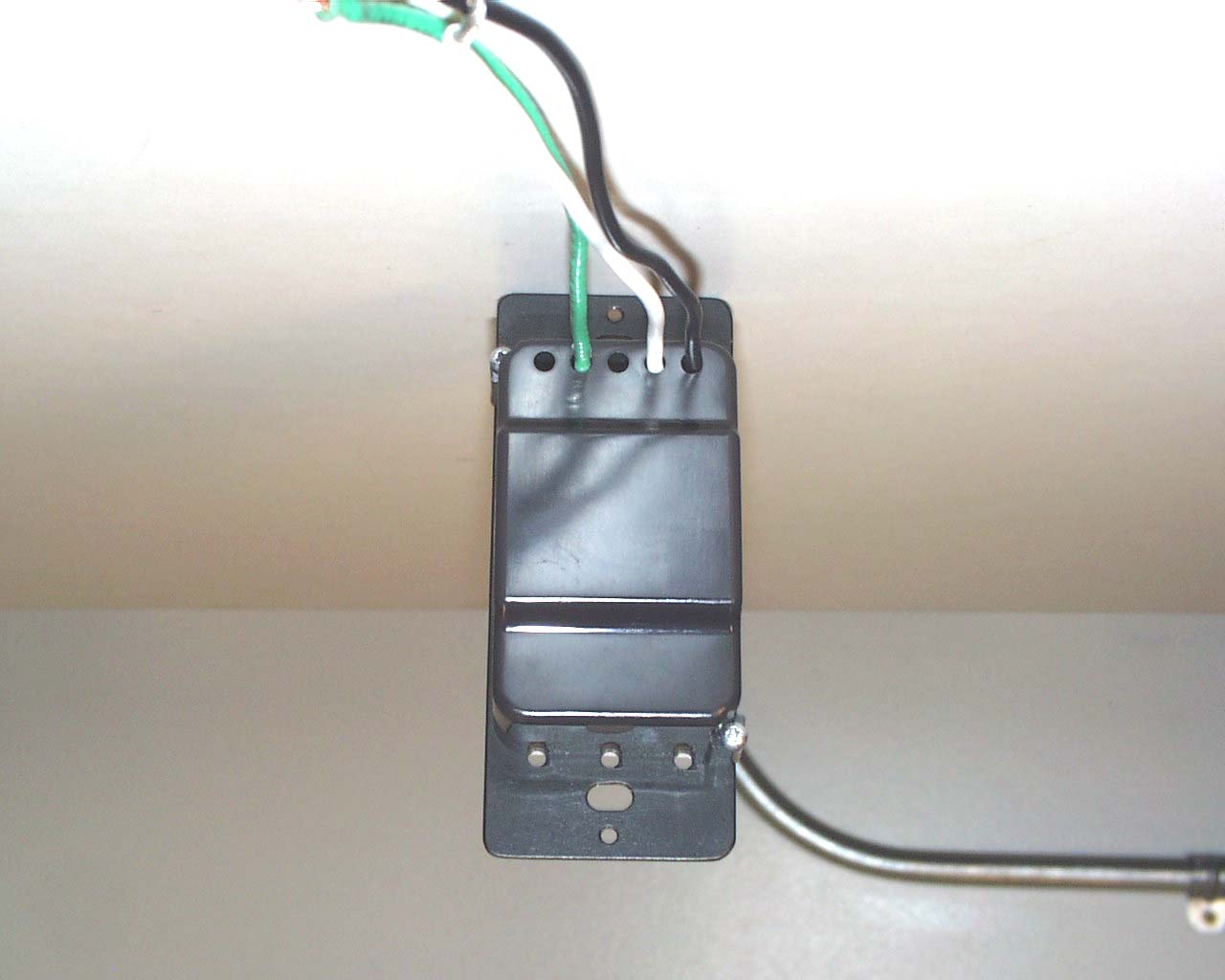

Exhibit 7 (Setup Photographs) Photograph 1 – Front View Radiated Disturbance Worst Case Configuration Photograph 2 – Back View Radiated Disturbance Worst Case Configuration Photograph 3 – Front View Conducted Disturbance Worst Case Configuration Photograph 4 – Back View Conducted Disturbance Worst Case Configuration
