R33LOZ5D11Wireless Outlet Dimmer Model LOZ-5D1-x

Wireless Outlet Dimmer Installation Guide Supported Models and Requirements LOZ-5D1-W Wireless Outlet Dimmer Graphical Symbols in this Guide The following symbols and their descriptions draw your attention to important safe practices and additional information that can help you avoid injury, death, or loss of material or time. WARNING! This indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury. DO NOT IGNORE A WARNING! CAUTION! This indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. DO NOT IGNORE A CAUTION! IMPORTANT! This indicates information that will help you avoid damage to your equipment, loss of materials, or loss of time. PAY ATTENTION TO THESE IMPORTANT STATEMENTS! Specifications and Supported Fixtures The Wireless Outlet Dimmer plugs into a standard, earth-grounded (3-prong) electrical wall outlet and communicates with the Control4 ® system using a ZigBee (802.15.4) 2.4 GHz wireless connection through its built-in antenna. It has two outlets that you can use it to control dimmable electrical devices, such as incandescent lamps. This is a 800 watt dimmable surface outlet that plugs directly into any standard receptacle similar to a 24VAC transformer. The Wireless Outlet Dimmer features: •Two individually controllable 120 VAC dimmable electrical outlets. •Two multi-color LEDs indicate outlet activity and system feedback. •An external button used during initial Wireless Outlet Dimmer setup to identify it on the Control4 system. •A security screw tab that attaches to the wall outlet’s center screw. Specifications Important Warnings and Information WARNING! The Wireless Outlet Dimmer is rated for a combined load as listed in the Specifications table; do not plug in devices that exceed these ratings, either alone or in combination. WARNING! Improper use or installation can cause SERIOUS INJURY, DEATH, or LOSS/DAMAGE OF PROPERTY. WARNING! Install in accordance with all national, state, and local electrical codes. WARNING! This product generates heat. The room must have adequate ventilation or the ability to dissipate heat effectively. WARNING! This product must be grounded in accordance with the National Electrical Code (NEC) requirements. WARNING! Do not use this device to control a non-dimmable load. WARNING! Not for use with Aluminum wiring. WARNING! Use this product only in dry locations. CAUTION! This product is for residential use only. IMPORTANT! Using this product in a manner other than outlined in this document voids your warranty. Further, Control4 is not liable for any damage incurred because of the misuse of this product. See “Limited 1 Year Warranty” on page 2. Install and Configure a Wireless Outlet Dimmer The Wireless Outlet Dimmer allows you full use of the Control4 system features. For example, if you have a dimmable light plugged into the outlet dimmer, the light can be dimmed in concert with other lights when added to a lighting scene in the system. To install and configure a Wireless Outlet Dimmer: 1 Choose a location where the ZigBee wireless communication will be most efficient: (1) place closely enough to receive a strong signal and (2); the Dimmer should not be placed too close to devices that cause interference, such as a 2.4 GHz portable phone. 2 Plug the Wireless Outlet Dimmer into a wall outlet. Optionally, you can secure it to a wall outlet (to protect against accidental unplugging) as described in the following steps: a.At the wall outlet where you plan to plug in the Wireless Outlet Dimmer, remove the outlet faceplate screw. b.With the outlet faceplate still in place, but without the outlet faceplate screw, plug the Wireless Outlet Dimmer into the bottom receptacle of the wall outlet. c.Insert the outlet faceplate screw through the Wireless Outlet Dimmer’s security screw tab hole and then screw it back in place. 3 Plug the desired device(s) into the outlet(s) on the Wireless Outlet Dimmer. 4 Within the Composer software, add and configure the Wireless Outlet Dimmer to control the device(s) you plugged into the Wireless Outlet Dimmer. See the Composer online help topic: “Add and Configure a Wireless Outlet Dimmer.” Power Requirements: 120 VAC 60/50 Hz, 1.7 W Load Types and Ratings: (Total of Both Outlets) 120 VAC 800 W total incandescent (all types) 120 VAC 800 W total halogen (all types) Operating Temperature: All load ratings are based on an ambient tem- perature of 25 degrees Celsius. LEDs Button Security Screw Tab Operation and Configuration Operate the lamps and other devices you have attached to the Wireless Outlet Dimmer through one of the Control4 navigation devices, including the Wireless Touch Screen, the On-Screen Navigator (television), the Mini Touch Screen, and the LCD Keypad. Simply turn On, Off, or ramp the light up or down to the level you prefer. As you control the device attached to the Dimmer, the LED’s will display as follows: Troubleshooting If the Wireless Outlet Dimmer does not power its attached device: •Check that the plugs for plugged-in devices are fully inserted into the Wireless Outlet Dimmer and that the Outlet Dimmer’s plugs are fully inserted into the wall outlet. •Ensure the device(s) you plugged into the Wireless Outlet Dimmer work(s) when plugged into a conventional AC outlet. •Ensure the wall outlet power source is not turned Off or tripped. •Verify that the Wireless Outlet Dimmer is attached and communicat- ing with Composer (as specified in the Composer online help). •Check Composer setting (“LED-Enabled/Disabled”) if at least one LED is not lit. Care and Cleaning: WARNING! Unplug device before cleaning. Do NOT use any chemical cleaners to clean the switch. Clean surface with a soft damp cloth as needed. Control4 Technical Support For help on the installation or operation of this product, email or call the Control4 Technical Support Center. Please provide your exact model number. Contact [email protected] or se…

Text truncated - open the document above for the full version.

11734 South Election Drive Suite 200 Draper, Utah 84020 (801) 523-3100 To: Federal Communications Commission Date: 3/20/06 445 12 th Street, SW Washington, DC 20554 Re: Non disclosure Request for FCC ID: R33LOZ5D11 We are requesting that the following documents be held and treated as confidential and proprietary information. These materials contain technical trade secret information and should be guarded from competitors as stated under the Code of Federal Regulations Title 47 Section 0.459 (3), (4) and (5). 1) Schematic 2) Block Diagrams 3) Operational Description James K. Russell Senior Electrical Engineer Control4 Technologies

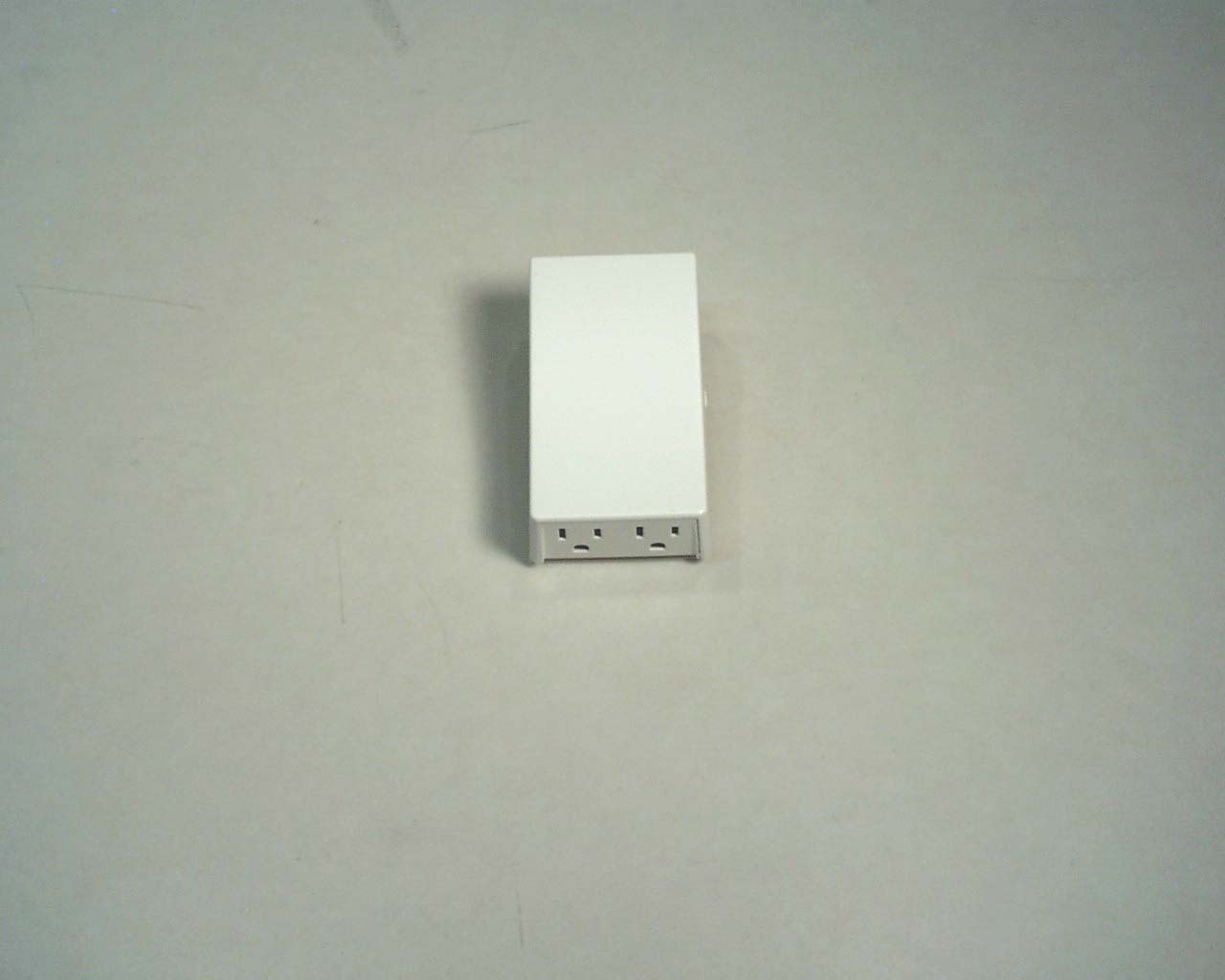

Front View of the EUT Back View of the EUT

FCC ID: R33LOZ5D11 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. WIRELESS OUTLET DIMMER MODEL NO. LOZ-5D1-x U.S. PATENT NO. D515,031 21-3100 (White label with black lettering) POWER: 120 VAC, 50/60 Hz, 1.7 W RATINGS: 120 VAC, 800 W INCANDESCENT TOTAL For Residential Use Only 22-3100 ENCLOSURE MADE IN CHINA ASSEMBLED IN USA

Internal View of the EUT Top Side of the PCB with Heatsink Top Side of the PCB Under Heatsink

1 MPE Calculations R33LOZ5D11 2 1.0 SCOPE_________________________________________________________3 2.0 REVISION LEVEL_______________________________________________4 3.0 REFERENCE DOCUMENTS______________________________________4 4.0 CALCULATIONS________________________________________________5 5.0 CONCLUSION___________________________________________________6 3 1.0 SCOPE: This Report Demonstrates Evaluation and Compliance for Human Exposure to Radiofrequency Electromagnetic Fields as Outlined by the Federal Communications Commission Office of Engineering and Technology Bulletin 65. 2.0 REVISION LEVEL: DATE COMMENTS REVISION 7/18/2006 Created. 1.0 3.0 REFERANCE DOCUMENTS: (A) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Section 1.1310. (B) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. 4.0 CALCULATIONS: The following worst case emissions are based on a PPt (Peak Power Total) measurement of 9.3 dBm. And the worst case antenna gain on axis is found to be 2.83 dBi. Total radiated power at the Transmitter: A) Pt = 9.3 dBm + 2.83 dBi = -17.875 dBW EIRP -17.875 EIRP = 10 mW or .010 Watts. Power density at a distance of .02 meters is: B) S = EIRP/4π·R^2 S = Power density (mW/cm^2) EIRP = Equivalent isotropically radiated power (mW) R = Distance to the center of radiation of the antenna (cm) 4 Power density based on a Per Centimeter Squared is: S = .3355 mW per Centimeter squared. 5.0 CONCLUSION: Based on the FCC Limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) this device falls under the required limits.

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification TEST OF: LOZ-5D1-x FCC ID: R33LOZ5D11 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8195 Applicant: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Dates of Test: September 28, 2005 Issue Date: October 4, 2005 Equipment Receipt Date: September 28, 2005 Accredited Testing Laboratory By: NVLAP Lab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8195 FCC ID#: R33LOZ5D11 Page 2 of 50 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: LOZ-5D1-x - FCC ID Number: R33LOZ5D11 On this 4 th day of October 2005, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8195 FCC ID#: R33LOZ5D11 Page 3 of 50 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........8 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................14 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................16 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....17 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................33 APPENDIX 2 PHOTOGRAPHS .........................................42 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8195 FCC ID#: R33LOZ5D11 Page 4 of 50 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Jim Russell Title: Sr. Hardware Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Jim Russell Title: Sr. Hardware Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8195 FCC ID#: R33LOZ5D11 Page 5 of 50 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Name or Number: LOZ-5D1-x Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A., India, China 2.2 Description of EUT: The LOZ-5D1-x is a wireless outlet dimmer appliance. The LOZ-5D1-x has 2 outlets capable of handling 500 watts each and individually controlled in the configuration tested. An 802.15.4 (Zigbee) transceiver is incorporated in the device for control of the dimmer as well as meshing with the Zigbee home network. This report covers the 802.15.4 ZigBee transceiver and testing was performed to FCC Part 15 Subpart C. The digital and control circuitry subject to FCC Part 15 Subpart B is to be covered in a separate report. The 802.15.4 transceiver uses 15 channels in the 2400 to 2483.5 MHz band. The individual channels are shown in the following plots. dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 Trace A Start: 2.402500 GHzStop: 2.427500 GHz 9/28/2005 1:38:56 PMHP8566BLOW5.SPT Trace A lower 5 channels 1 1 2.405100 GHz 3.300000 dBm 2 2 2.410175 GHz 1.700000 dBm 3 3 2.415250 GHz 2.100000 dBm 4 4 2.420200 GHz 2.800000 dBm 5 5 2.425225 GHz 3.700000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8195 FCC ID#: R33LOZ5D11 Page 6 of 50 dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 Trace A Start: 2.427500 GHzStop: 2.452500 GHz 9/28/2005 1:36:38 PMHP8566BMID5.SPT Trace A middle 5 channels 1 1 2.430150 GHz 2.500000 dBm 2 2 2.435300 GHz 2.100000 dBm 3 3 2.440375 GHz 1.800000 dBm 4 4 2.445375 GHz 2.800000 dBm 5 5 2.450575 GHz 1.700000 dBm dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 Trace A Start: 2.452500 GHzStop: 2.477500 GHz 9/28/2005 1:31:25 PMHP8566BUP5.SPT Trace A upper 5 channels 1 1 2.455200 GHz 2.800000 dBm 2 2 2.460300 GHz 2.400000 dBm 3 3 2.465425 GHz 3.000000 dBm 4 4 2.470550 GHz 2.100000 dBm 5 5 2.475550 GHz 2.500000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8195 FCC ID#: R33LOZ5D11 Page 7 of 50 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Control4 MN: LOZ-5D1-x (Note 1) R33LOZ5D11 Wireless Outlet Dimmer See Section 2.4 Note 1: EUT The support equipment listed above was not modified in order to achieve compliance with this standard. 2.4 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length AC In 1 3-prong plug with 2 meter AC extension cord connected Dimmed AC Out 1 of 2 100 watt light bulb directly connected to the port through a light socket 2.5 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Signature: Typed Name: Jim Russell Title: Sr. Hardware Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8195 FCC ID#: R33LOZ5D11 Page 8 of 50 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Sp…
