R33LOZ5S11Wireless Outlet Switch Model LOZ-5S1-X

Wireless Outlet Switch Installation Guide Supported Models and Requirements LOZ-5S1-W Wireless Outlet Switch Graphical Symbols in this Guide The following symbols and their descriptions draw your attention to important safe practices and additional information that can help you avoid injury, death, or loss of material or time. WARNING! This indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury. DO NOT IGNORE A WARNING! CAUTION! This indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. DO NOT IGNORE A CAUTION! IMPORTANT! This indicates information that will help you avoid damage to your equipment, loss of materials, or loss of time. PAY ATTENTION TO THESE IMPORTANT STATEMENTS! Specifications and Supported Fixtures This Wireless Outlet Switch plugs into a standard, earth-grounded (3-prong) electrical outlet and communicates with the Control4 system using a wireless ZigBee connection through its built-in antenna. Use the Wireless Outlet Switch to control electrical devices such as pumps, Christmas lights, fans, and fluorescent lights, individually or within a lighting scene. The Wireless Outlet Switch can sense the power state of the devices attached to it (On, Off, or Stand-by). WARNING! The Wireless Outlet Switch is rated for a combined load of 1150 Watts; do not plug in devices that require more than 1150 Watts, either alone or in combination. The Control4 Wireless Outlet Switch offers these features: •Power sensors allow the Control4 system to detect the power state of the devices you have plugged into each outlet. •Two tri-color LEDs to indicate outlet activity and system feedback. •A security screw tab that attaches to the outlet’s center screw. •An external button for manual operation and to automatically identify the device to the Control4 system. Specifications Important Warnings and Information WARNING! Improper use or installation can cause SERIOUS INJURY, DEATH, or LOSS/DAMAGE OF PROPERTY. WARNING! Install in accordance with all national, state, and local electrical codes. WARNING! This product generates heat. The room must have adequate ventilation or the ability to dissipate heat effectively. WARNING! This product must be grounded in accordance with the National Electrical Code (NEC) requirements. WARNING! Use only in dry locations. CAUTION! For residential use only. IMPORTANT! Using this product in a manner other than outlined in this document voids your warranty. Further, Control4 is not liable for any damage incurred because of the misuse of this product. See “Limited 1 Year Warranty” on page 2. Install and Configure a Wireless Outlet Switch To enable full use of the Control4 system’s features, configure your Wireless Outlet Switch to read the power state of the devices that you plug into it. For example, if your switch can read the power state of the DVD player, your DVD player can then participate in concert with the lights and the other devices in your home theater in a lighting scene. 1 Choose a location where the ZigBee wireless communication will be most efficient: (1) Place the Outlet Switch near enough to the next ZigBee device to facilitate communication (2); Keep the Outlet Switch from being continually too close to devices that can cause interference, such as microwave ovens or cordless telephones with a 2.4 GHz frequency. 2 Remove the screw that holds the faceplate onto the AC outlet to which you will plug the Wireless Outlet Switch. 3 Plug the Wireless Outlet Switch into the receptacle of the outlet, keeping the faceplate between the Wireless Outlet Switch and the wall. 4 Through the Wireless Outlet Switch’s security screw tab, insert the screw that you removed in Step 2 and then screw it back in place. 5 Within Composer software, add the outlet to the project and make necessary connections. See “Configure an Outlet Switch or Dimmer” in Composer online help. To identify the Wireless Outlet Switch as part of the Composer software configuration, press the button on the top panel of the Wireless Outlet Switch. 6 Plug in the device you would like to control, such as a DVD player, into one of the Wireless Outlet Switch’s receptacles (on the bottom panel). 7 Push and hold the button on the top panel of the Wireless Outlet Switch until the two LED lights flash orange, On and Off, from one to the next. 8 When the LED lights up on the side that corresponds to the outlet in which your device is plugged, release the button. For example, if the device you have plugged in is on the right side of the Wireless Outlet Switch, release the button when the LED lights on the right side. The LED on that side of the switch alone flashes orange, indicating that it is in the first phase of learning the state (Off) of the device. When it has completed this learning phase, the LED then shines solid orange. 9 When the LED shines solid orange, turn On the device that you have plugged into the Wireless Outlet Switch. The LED light again flashes orange while the Wireless Outlet Switch completes the first phase of Power Requirements: 120 VAC, 50/60 Hz, 1.7 W Load Ratings: (Total of Both Outlets) 120 VAC, 1150 VA, Inductive, Total 120 VAC, 1/3 HP (7.2 FLA), Total 120 VAC, 7.2 A, Ballast, Total Operating Temperature: All load ratings are based on an ambient temperature of 25 degrees Celsius. learning the electrical currents associated with this state (On) of the device. When the Wireless Outlet Switch has competed the first phase of learning the On state, it shines solid orange again. 10 When the LED shines solid orange again, turn the device Off. The LED flashes orange until it completes the second phase of learning the Off state. When the Wireless Outlet Switch has completed this phase of learning, the LED turns red, indicating that it has successfully learned the Off state. 11 When the LED shines red, turn the device On once again. The LED flashes orange. When the Wireless Outlet Switch ha…

Text truncated - open the document above for the full version.

11734 South Election Drive Suite 200 Draper, Utah 84020 (801) 523-3100 To: Federal Communications Commission Date: 3/20/06 445 12 th Street, SW Washington, DC 20554 Re: Non disclosure Request for FCC ID: R33LOZ5S11 We are requesting that the following documents be held and treated as confidential and proprietary information. These materials contain technical trade secret information and should be guarded from competitors as stated under the Code of Federal Regulations Title 47 Section 0.459 (3), (4) and (5). 1) Schematic 2) Block Diagrams 3) Operational Description James K. Russell Senior Electrical Engineer Control4 Technologies

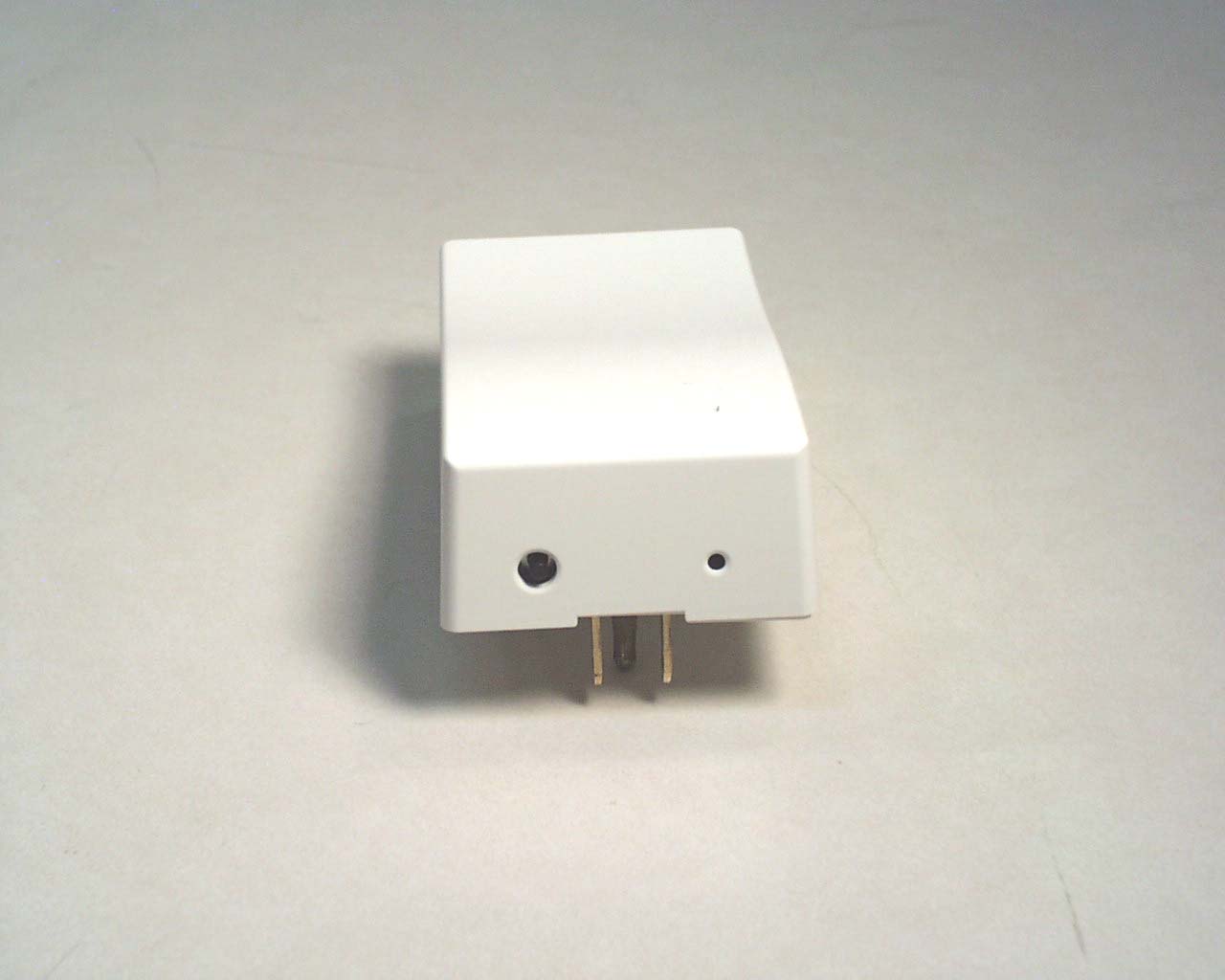

Front View of the EUT Back View of the EUT

Control4 CONFIDENTIAL Page 1 of 2 Label, Product Markings, Wireless Outlet Switch, White w/Black Text, H=1.750" x W=1.750" x R=0.125", Polyester, Gloss, Perm Adh, UL Specification Control4 P/N 22-3101 Rev C 1. Size: H=1.750” x W=1.750” label with 0.125” radius on each corner 2. Base Material: 2.0 mil (0.002”) white polyester, 3M 7871 or equivalent (UL) 3. Laminate Overlay: 2.0 mil (0.002”) clear polyester, 3M 7861 or equivalent (UL) 4. Adhesive: 2.0 mil (0.002”) permanent acrylic, 3M #350 or equivalent (UL) 5. Liner: 50# bleached white kraft paper 6. Printing: Flexopress 7. Black Ink: Akzo Nobel 4000 Series (or equivalent) Black 8. Artwork Files: “22-3101 Rev C.jpg”, “22-3101 Rev C.eps”, “22-3101 Rev C.ai” Actual Size Control4 CONFIDENTIAL Page 2 of 2 Enlarged REVISION HISTORY Date Rev ECO # Description Person 13 Mar 2006 A 0180 Initial design specification and production release. Roger Johnsen 15 Mar 2006 B 0201 Changed die size, and compacted artwork accordingly. Roger Johnsen 20 Mar 2006 C 0201 Added “For Residential Use Only” wording. Roger Johnsen

View Component Side of the EUT PCB View of the Trace Side of the EUT PCB

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Test Report Certification TEST OF: LOZ-5S1-W FCC ID: R33LOZ5S11 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8276 Applicant: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Dates of Test: June 21, 2005 Issue Date: March 15, 2006 Equipment Receipt Date: June 21, 2005 Accredited Testing Laboratory By: NVLAPLab Code 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8276 FCC ID#: R33LOZ5S11 Page 2 of 48 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: LOZ-5S1-W - FCC ID Number: R33LOZ5S11 On this 15 th day of March 2006, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8276 FCC ID#: R33LOZ5S11 Page 3 of 48 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........9 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................15 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................17 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....18 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................34 APPENDIX 2 PHOTOGRAPHS .........................................43 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8276 FCC ID#: R33LOZ5S11 Page 4 of 48 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Jim Russell Title: Sr. Hardware Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Road, Suite 200 Draper, UT 84020 Contact Name: Jim Russell Title: Sr. Hardware Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8276 FCC ID#: R33LOZ5S11 Page 5 of 48 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Name or Number: LOZ-5S1-W Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A., India, China 2.2 Description of EUT: The LOZ-5S1-W is a wireless controlled outlet switch that connects any plug-in device to the Control4 home automation system. The LOZ-5S1-W has two outlets and power sense circuitry. The LOZ-5S1-W receives control signals by other Control4 devices using an 802.15.4 (Zigbee) transceiver. This report covers the 802.15.4 ZigBee transceiver and testing was performed to FCC Part 15 Subpart C. The digital and control circuitry subject to FCC Part 15 Subpart B is to be covered in a separate report. The 802.15.4 transceiver uses 15 channels in the 2400 to 2483.5 MHz band. The individual channels are shown in the following plots. dBm 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 -100 LOZ-5S1-W Trace A Start: 2.402500 GHzStop: 2.427500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/21/2005 3:08:56 PMHP8566BL5.SPT Trace A Lower 5 channel plot 1 1 2.405200 GHz -9.4000 dBm 2 2 2.410175 GHz -9.3000 dBm 3 3 2.415225 GHz -8.6000 dBm 4 4 2.420200 GHz -6.3000 dBm 5 5 2.425225 GHz -7.8000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8276 FCC ID#: R33LOZ5S11 Page 6 of 48 dBm 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 -100 LOZ-5S1-W Trace A Start: 2.427500 GHzStop: 2.452500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/21/2005 3:04:48 PMHP8566BM5.SPT Trace A Middle 5 channel plot 1 1 2.430075 GHz -7.9000 dBm 2 2 2.435200 GHz -6.9000 dBm 3 3 2.440300 GHz -7.2000 dBm 4 4 2.445475 GHz -6.3000 dBm 5 5 2.450525 GHz -5.8000 dBm dBm 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 -100 LOZ-5S1-W Trace A Start: 2.452500 GHzStop: 2.477500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/21/2005 3:01:54 PMHP8566BU5.SPT Trace A Upper 5 channel plot 1 1 2.455100 GHz -6.2000 dBm 2 2 2.460300 GHz -6.5000 dBm 3 3 2.465450 GHz -6.1000 dBm 4 4 2.470525 GHz -5.6000 dBm 5 5 2.475625 GHz -6.0000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8276 FCC ID#: R33LOZ5S11 Page 7 of 48 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Control4 MN: LOZ-5S1-W (Note 1) R33LOZ5S11 Wireless Controlled Outlet Switch See Section 2.4 Note: (1) EUT. The support equipment listed above was not modified in order to achieve compliance with this standard. 2.4 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length AC Power In 1 Direct connection to the AC mains supply AC Out 1 of 2 Direct connection to light bulb socket with 100 watt bulb. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8276 FCC ID#: R33LOZ5S11 Page 8 of 48 2.5 Modification Incorporated/Special Accessories on EUT: The following modifications were made to the LOZ-5S1-W by the Client during testing to comply with the specification. These modifications w…

Text truncated - open the document above for the full version.

Front View Radiated Disturbance Worst Case Configuration Front View Conducted Disturbance Worst Case Configuration
