R33TSG38C11WiFi MiniTouch Screen Model TSG-3.8C1-(Color)

Mini Touch Screen Installation Guide Supported ModelsGraphical Symbols in this GuideThe following symbols and their description s draw your attention to important safe practices and additional information that can help you avoid injury, death, or loss of material or time. WARNING! This indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury. DO NOT IGNORE A WARNING! CAUTION! This indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. DO NOT IGNORE A CAUTION! IMPORTANT! This indicates information that will help you avoid damage to your equipment, loss of materials, or loss of time. PAY ATTENTION TO THESE IMPORTANT STATEMENTS! NOTE: This indicates a note on related information about the current topic. TIP: This indicates a tip that might save you time or effort. Important Safety Instructions1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Protect the power cords, if applicable, from being walked on or pinched particularly at plugs, convenience rec eptacles, and the point where they exit from the apparatus. 10. Only use attachments/accessories specified by the manufacturer.11. If applicable, unplug this apparatus during lightning storms or when unused for long periods of time. 12. Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appara-tus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. WARNING! To reduce the risk of fire or elec trical shock, do not expose this apparatus to rain or moisture. WARNING! To avoid bodily harm, always contact a Control4-authorized reseller for assistance if any repair or adjustment is required. CAUTION! Do not place unit near sources of heat or expose to direct sunlight for an extended period of time. IMPORTANT! Do not use pens or sharp objects to navigate or make selections on the screen. To select an item or scroll through a list, use either your fingertip or the Select Dial. IMPORTANT! Improper use or installati on can cause LOSS/DAMAGE OF PROPERTY. General DescriptionAn essential component in every Control4 system is a user interface and navigation method that allows users to communicate with the system. Along with the Mini Touch Screen, Control4 offers a variety of other navigation options for every room, including the System Re mote Control, On-Screen (television), 10.5” Wireless Touch Screen, etc.The Control4 Mini Touch Screen offers complete system control in an elegant and compact design. The Mini Touch Sc reen is equipped with the touch screen, an intuitive Select Dial, and a unique programmable shortcut button. The Mini Touch Screen comes in two models: Ethernet and WiFi . These two options are described in the following sections. Mini Touch Screen Placement for both models: Place the Mini Touch Screen in a convenient location at eye le vel, typically near the entrace of the room, approximately 57 to 61 inches from the floor. Note that for the Wireless model, you need to place it near a power source, such as at an outlet, or be able to route AC power to it. Option 1: Ethernet Model The Ethernet Mini Touch Screen require s a Power over Ethernet (PoE) device that injects electrical current into the Ethernet cable in order to provide the Ethernet Mini Touch Screen with both power and a network connection. See Figure 1. The Ethernet Mini Touch Screen works with the Control4 Power Over Ethernet Injector (model # AC-POE1-B) or a third-party PoE injector or switch. If you plan to use a third-party Po E solution or a non-standard connection cable, refer to “Power Interface R equirements” for the specifications. Ethernet Placement: Place the PoE Injector near your gateway/router/switch. Pull the Ethernet cable from that location to the location of where you want to place your Mini Touch Screen. FIGURE 1. Ethernet Model - Requires Ethernet Wiring to Mini Touch Screen. Option 2: WiFi Model The WiFi Mini Touch Screen differs fr om the Ethernet model in two ways: • It uses a WiFi antenna that communicates via WiFi to a Wireless Access Point to the Control4 Controller, such as the Home Theater Controller. • It gets its power from an AC power source close to the Mini Touch Screen. This power connection r equires both neutral and hot connec- tions. See Figure 2. WiFi Placement: Place the WiFi Model above a power source, such as at an outlet. Ensure you have WiFi in the home. FIGURE 2. WiFi Model - Requires AC power to Mini Touch Screen. IMPORTANT! If you already have a network setup distributing DHCP, manually disable any DHCP service on any devic e you add prior to putting it on the network, such as a wireless router. You cannot have two devices running DHCP or this may result in devices malfunctioning. For information about setting up a home network, see Composer online help topic: “Guidelines for Setting up a Wired or Wireless Network.” Wall Box Kit Options There are four wall box options to install the Mini Touch Screen. Metal and plastic wall boxes are ava ilable for new or retrofit versions. The following diagrams show the available wall mounting kits. FIGURE 3. Mini Touch Screen/LCD Keypad Wall Box Kits - New Construction FIGURE 4. Mini Touch Screen/LCD Keypad Wall Box Kit - Retrofit (includes wall box template) What’s in the BoxCarefully unpack the contents from the box and make sure the following items are included in the box. If any item is missing or damaged, please contact your Control4-authorized rese…

Text truncated - open the document above for the full version.

11734 South Election Road Suite 200 Draper, Utah 84020 (801) 523-3100 To: Federal Communications Commission Date: 6/22/05 445 12 th Street, SW Washington, DC 20554 Re: Non disclosure Request for FCC ID: R33TSG38C11 We are requesting that the following documents be held and treated as confidential and proprietary information. These materials contain technical trade secret information and should be guarded from competitors as stated under the Code of Federal Regulations Title 47 Section 0.459 (3), (4) and (5). 1) Schematic 2) Block Diagrams 3) Operational Description Joseph S. Collier Hardware Engineer Control4 Technologies

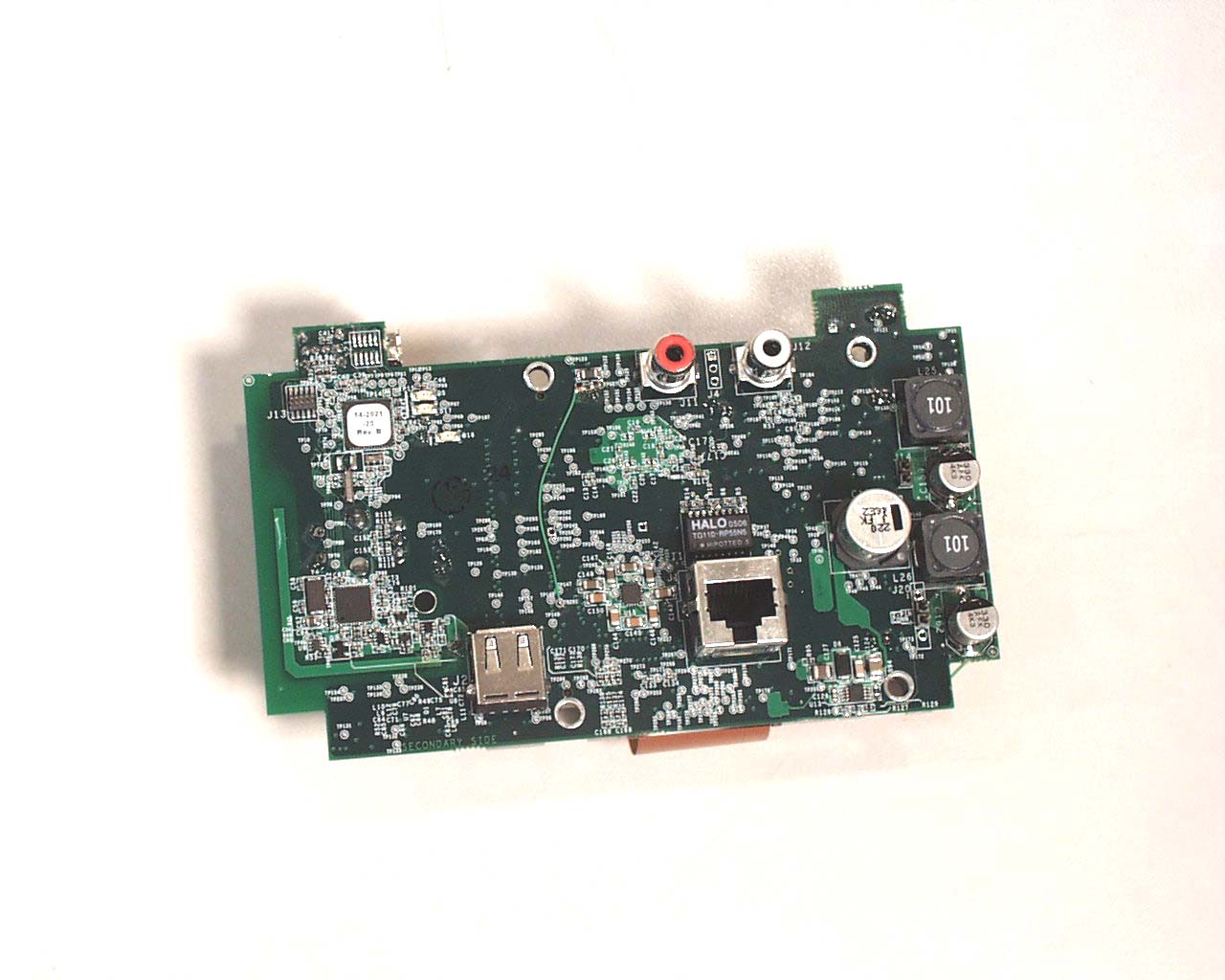

Front View of the EUT with the USB Devices Installed Back View of the EUT with the USB Devices Installed Front View of the EUT without the USB Devices Installed Rear View of the EUT without the USB Devices Installed Top View of the Main PCB of the EUT and Back Side of the Display Module

Control4 CONFIDENTIAL Page 1 of 1 Label, Temporary, "Contains Transceiver Module FCC ID: NDD9573170406", Edimax EW-7317Ug, Silver w/Black Text, 0.750" x 0.750", Metallized Polyester, Matte Silver, Perm Acrylic Adh Specification Control4 P/N 22-0300-53 Rev A 26 Oct 2005 1. Label Type: 8 ½” x 11” laser-printable sheet 2. Manufacturer: Brady (www.bradyid.com ) or equivalent 3. Mfr. P/N: LAT-20-773 4. Label Size: 1.500” x 0.750” before cutting; 0.750” x 0.750” after cutting 5. # per Sheet: 60 (120 after cutting) 6. Material: B-773 Matte Silver Metallized Polyester or equivalent 7. Adhesive: Permanent Acrylic Adhesive 8. Temp Range: -65C to 120C 9. Approvals: UL Recognized / CSA Approved materials 10. Printer/Toner: CSA : Refer to bradyid.com, Support/Knowledge Base, document # JM173350 (titled CSA Accepted Materials) for approved types. Or refer to Brady’s Acceptance Record (LS41833) with CSA. UL : Refer to bradyid.com, Support/Knowledge Base, document # JM134823 (titled UL Recognized Components) for approved types. 11. Artwork: Inherent in source file number “22-0300-53 Rev A.lab” provided by Control4 12. File Type: “.lab” (Wasp Barcode Labeler v5) 13. Software: “Wasp Barcode Labeler v5” (www.waspbarcode.com) 14. Cutting: Cut on lines to create two labels (0.750” x 0.750” ea) from each stock label Label Example – Actual Size REVISION HISTORY Date Rev Description Person 26 Oct 2005 A Initial design specification and production release. Roger Johnsen

Top View of the Daughter Card Bottom View of the Daughter Card View of the Component Side of the Power Supply Module View of the Trace Side of the Power Supply Module

1 MPE Calculations R33TSG38C11 2 1.0 SCOPE_________________________________________________________3 2.0 REVISION LEVEL_______________________________________________4 3.0 REFERENCE DOCUMENTS______________________________________4 4.0 CALCULATIONS________________________________________________5 5.0 CONCLUSION___________________________________________________6 3 1.0 SCOPE: This Report Demonstrates Evaluation and Compliance for Human Exposure to Electromagnetic Fields as Outlined by the Federal Communications Commission Office of Engineering and Technology Bulletin 65. 2.0 REVISION LEVEL: DATE COMMENTS REVISION 6/22/2005 Created. 1.0 3.0 REFERANCE DOCUMENTS: (A) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Sections 1.1310 (B) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Sections 2.1093 (C) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. 4.0 CALCULATIONS: The following worst case emissions are based on a PPt (Peak Power Total) measurement of 10.40 dBm into the antenna. And the worst case antenna gain on axis is found to be 0.0 dBi. Total power into antenna: A) Pt = 10.40 dBm = 10^(10.40 dBm/10) = 10.96 mW Total effective isotropic radiated power at the Transmitter: B) EIRP = 10.40 dBm + 0.0dBi = 10.4 dBm 10.4 dBm = 11.0 mW Power density at a distance of 20 centimeters is: 4 C) 2 R
4 EIRP =S = 2.2 W/cm 2 Where S = Power density (mW/cm^2), EIRP = Equivalent isotropic radiated power (mW), R = Distance to the center of radiation of the antenna (cm) 5.0 CONCLUSION: Based on the FCC Limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) as 1 mW/cm 2 this device falls under the required limits.

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Certification Test Report TEST OF: TSG-3.8C1-x FCC ID: R33TSG38C11 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8125 Applicant: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Date of Test: June 8, 2005 Issue Date: June 9, 2005 Equipment Receipt Date: June 8, 2005 Accredited Testing Laboratory By: NVLAP LabCode 100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8125 FCC ID#: R33TSG38C11 Page 2 of 56 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: TSG-3.8C1-x - FCC ID Number: R33TSG38C11 On this 9 th day of June 2005, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8125 FCC ID#: R33TSG38C11 Page 3 of 56 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........9 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................15 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................17 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....18 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................35 APPENDIX 2 PHOTOGRAPHS .........................................44 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8125 FCC ID#: R33TSG38C11 Page 4 of 56 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: Joseph Collier Title: Hardware Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: Joseph Collier Title: Hardware Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8125 FCC ID#: R33TSG38C11 Page 5 of 56 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Name or Number: TSG-3.8C1-x Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A. 2.2 Description of EUT: The TSG-3.8C1-x is a touch panel designed to communicate and control home automation systems from Control4. The TSG-3.8C1-x has a color touch screen and the processor operates at 200 MHz. An 802.15.4 Zigbee radio is used for remote programming and control. There are 2 internal USB ports. An Ethernet port is provided but is not supported or functional in this configuration. Power is supplied by an internal switching power supply PCB. The unit is to be housed in plastic. The “x” in the model number will designate the color of the plastic housing. The 802.15.4 transceiver uses 15 channels in the 2400 to 2483.5 MHz band. The individual channels are shown in the following plots. dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 Trace A Start: 2.402500 GHzStop: 2.427500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/08/2005 2:27:00 PMHP8566BL_5.SPT 1 1 2.405100 GHz -2.7000 dBm 2 2 2.410125 GHz -1.8000 dBm 3 3 2.415225 GHz -1.5000 dBm 4 4 2.420225 GHz -2.0000 dBm 5 5 2.425225 GHz -0.8000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8125 FCC ID#: R33TSG38C11 Page 6 of 56 dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 Trace A Start: 2.427500 GHzStop: 2.452500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/08/2005 2:22:47 PMHP8566BM_5.SPT 1 1 2.430050 GHz -0.1000 dBm 2 2 2.435225 GHz -1.4000 dBm 3 3 2.440300 GHz -0.4000 dBm 4 4 2.445350 GHz -0.6000 dBm 5 5 2.450500 GHz -1.5000 dBm dBm 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 Control4 Trace A Start: 2.452500 GHzStop: 2.477500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 06/08/2005 2:17:44 PMHP8566BU_5.SPT 1 1 2.455175 GHz -1.2000 dBm 2 2 2.460325 GHz -1.0000 dBm 3 3 2.465400 GHz -1.2000 dBm 4 4 2.470525 GHz -2.0000 dBm 5 5 2.475600 GHz -1.9000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8125 FCC ID#: R33TSG38C11 Page 7 of 56 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Control4 MN: TSG-3.8C1-x (Note 1) R33TSG38C11 Touch Screen Controller See Section 2.4 BN: Intelligent Stick MN: 128 MB None 128 MB USB memory module Direct connection to internal USB port of EUT (Note 2) BN: D-Link MN: DWL-G122 KA2DWLG122B1 802.11.g USB tranceiver module Direct connection to internal USB port of EUT (Note 2) Note: (1) EUT. (2) Interface port connected to EUT (See Section 2.4) The support equipment listed above was not modified in order to achieve compliance with this standard. 2.4 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length Audio 2 Shielded cables w/RCA connectors/2 cables @ 1.5 meters USB 2 USB modules directly plugged into the port COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8125 FCC I…

Text truncated - open the document above for the full version.

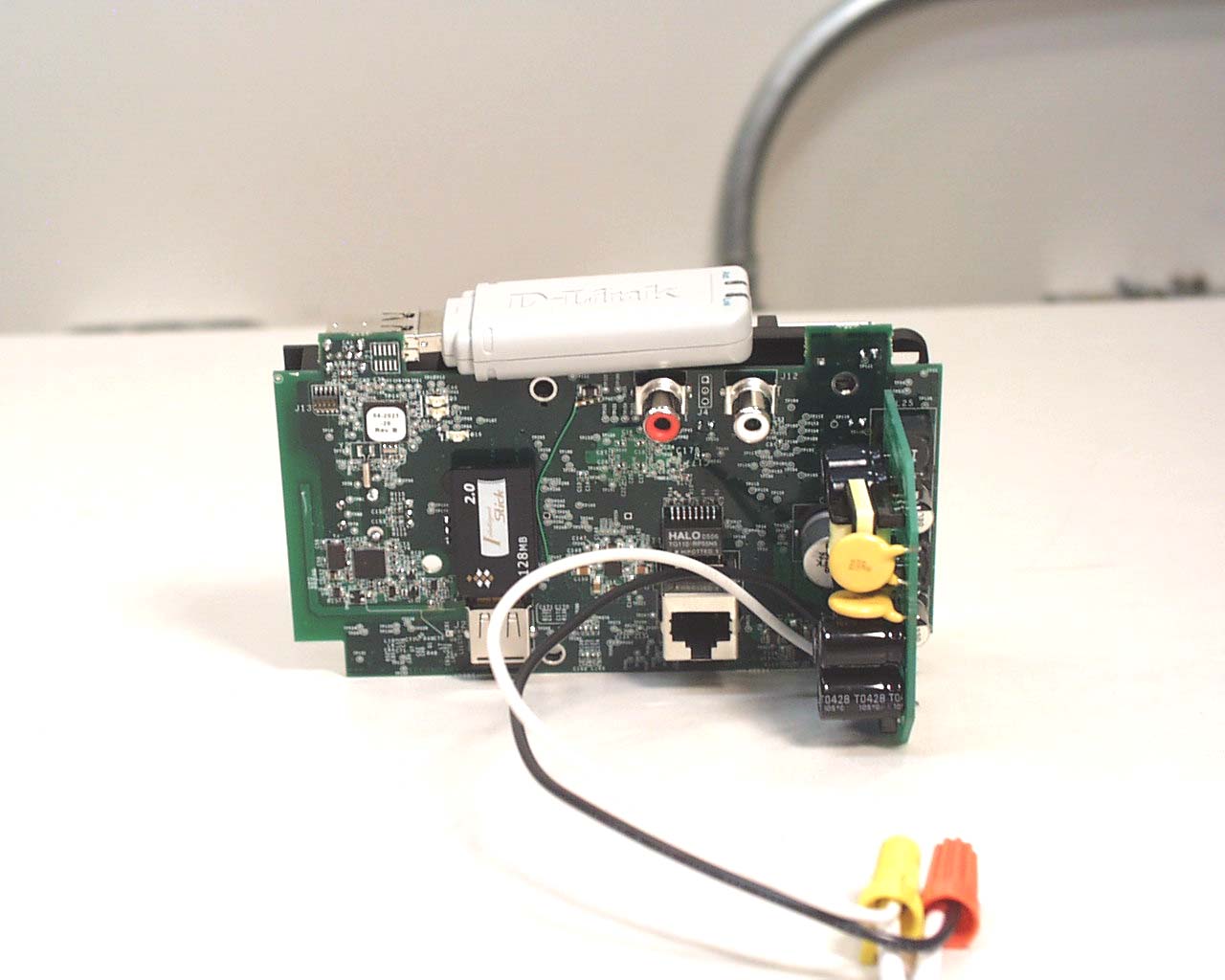

Front View Radiated Disturbance Worst Case Configuration Back View Radiated Disturbance Worst Case Configuration Front View Conducted Disturbance Worst Case Configuration Back View Conducted Disturbance Worst Case Configuration
