RFLACW-1XP800CDMA Wireless Local Loop Desktop Telephone

UBISTAR CO.,LTD.
CDMA Wireless Local Loop Desktop Telephone - FCC ID RFLACW-1XP800 - UBISTAR CO.,LTD.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Oct 11, 2004
Application Purpose
Original Equipment
Date of Application
Oct 11, 2004
Equipment Note
CDMA Wireless Local Loop Desktop Telephone
Frequency Range
824.70000000 - 848.31000000
Company
UBISTAR CO.,LTD.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT M: USER’S MANUAL --- Additional page --- RF EXPOSURE INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT ’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)energy set by the Federal Communications Commission of the U.S.Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluate on of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.*Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when worn on the body, as described in this user guide, is 1.140 W/kg. (Body worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov / oet / fcc id after searching on FCC ID : RFLACW1XP800. Additional information on Specific Absorption Rates (SAR)can be found on the Cellular Telecommunications &Internet Association (CTIA) web-site at http://phonefacts.net.*In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6watts/kg (W/kg)averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any agitations in measurements. In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. For more information about RF exposure, please visit the FCC website at www.fcc.gov Near-Body Operation To maintain compliance with FCC RF exposure requirements, maintain a 2.5cm(0.98 inch), separation distance between the user's body and the phone, including the antenna, whether extended or retracted. WARNING! Read this information before use Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ tv technician for help.

Cover Letter(s)

7F, Seongdo Building, 587-23, Sinsa-Dong, Gangnam-Gu, Seoul 135-747, KOREA September 24, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd ., to act on our behalf in all manners relating to application for equipment authorization for model RFLACW-1XP800. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Axess Telecom Co., Ltd. Sincerely, Harry Jung Project Manager

Cover Letter(s)

7F, Seongdo Building, 587-23, Sinsa-Dong, Gangnam-Gu, Seoul 135-747, KOREA September 24, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Axess Telecom Co., Ltd. FCC ID : RFLACW-1XP800 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Axess Telecom Co., Ltd.. hereby requests confidentiality of the Schematics, Parts list, Turn-Up Procedure and Operational Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Axess Telecom Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Axess Telecom Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Harry Jung Project Manager

Cover Letter(s)

Close From: Chris Harvey [SMTP:[email protected]] To: 'Kyung-Taek LEE' Cc: 'Marianne Bosley' Subject: Additional Information needed Axess Telecom FCC ID: RFLACW1XP800 MT#16279 Sent: 10/7/2004 12:27 PM Importance: Normal KT, I have reviewed the documentation submitted for the application referenced above and find the the following items need to be addressed before this review can be completed. 1. The FCC ID number is not allowed to contain lower case letters. The FCC ID label exhibit, the Users Manual (includes the FCC ID number in the RF Exposure section) and the FCC Compliance Ceports provided must be updated to use an upper case ‘X’ in place of the lower case ‘x’. 2. This device is capable of operating from either an internal battery or from an AC power supply. Since it is capable of operating from just a battery, the battery end-point Frequency Stability test is applicable. Please provide the Frequency Stability test compliance data for the battery end-point (the note on page 7 of 22 states that this test was performed). 3. The Users Manual has an RF Exposure stating Body-worn information. This device is a desk/wall mount device and therefore body-worn operation is not appropriate. Please adjust this information in the manual to indicate near-body operation and specify the 2.5cm separation requirement as documented in the SAR measurements. (This similar situation was resolved in application for FCC ID: RFLACW1XT800.) Please let me know if you have any questions. Best regards, Chris Harvey [email protected] 443-622-3300

Cover Letter(s)

Close From: Kyung-Taek LEE [SMTP:[email protected]] To: Chris Harvey Cc: 'Marianne Bosley' Subject: RE: Additional Information needed Axess Telecom FCC ID: RFLACW1XP800 MT#16279 Sent: 10/7/2004 10:32 PM Importance: Normal Hello, Thanks for your help. 1. all files are updated and I send them to your MET mail box. 2. Attached the revised RF report. 3. Attached the revised Users manual. Best Regards, K.T. LEE -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Friday, October 08, 2004 1:27 AM To: 'Kyung-Taek LEE' Cc: 'Marianne Bosley' Subject: Additional Information needed Axess Telecom FCC ID: RFLACW1XP800 MT#16279 KT, I have reviewed the documentation submitted for the application referenced above and find the the following items need to be addressed before this review can be completed. 1. The FCC ID number is not allowed to contain lower case letters. The FCC ID label exhibit, the Users Manual (includes the FCC ID number in the RF Exposure section) and the FCC Compliance Ceports provided must be updated to use an upper case ‘X’ in place of the lower case ‘x’. 2. This device is capable of operating from either an internal battery or from an AC power supply. Since it is capable of operating from just a battery, the battery end-point Frequency Stability test is applicable. Please provide the Frequency Stability test compliance data for the battery end-point (the note on page 7 of 22 states that this test was performed). 3. The Users Manual has an RF Exposure stating Body-worn information. This device is a desk/wall mount device and therefore body-worn operation is not appropriate. Please adjust this information in the manual to indicate near-body operation and specify the 2.5cm separation requirement as documented in the SAR measurements. (This similar situation was resolved in application for FCC ID: RFLACW1XT800.) Please let me know if you have any questions. Best regards, Chris Harvey [email protected] 443-622-3300

ID Label/Location Info

FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT E: FCC ID LABEL & LOCATION FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC IDENTIFICATION (NAME PLATE) INFORMATION CDMA FIXED WIRELESS PHONE FCC ID: RLFACW-1XP800 MODEL: AX380 Serial Number: ESN: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN KOREA

Internal Photos

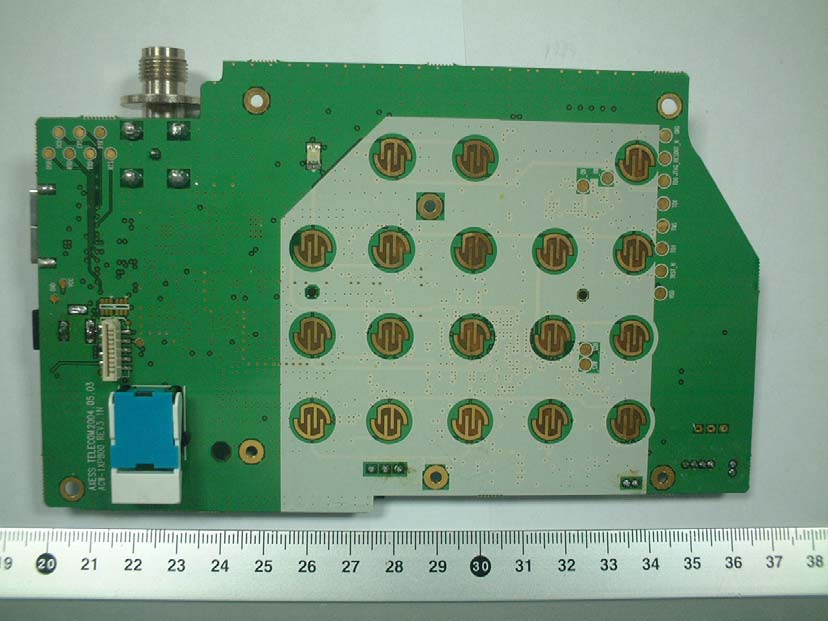

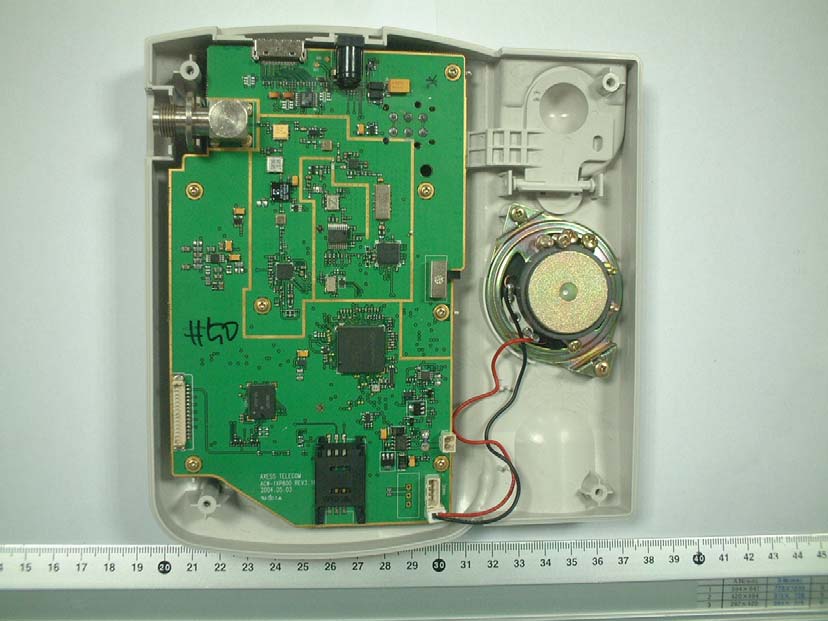

FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT H: INTERNAL PHOTOGRAPHS FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 1 FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 2 FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 3 FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 4

RF Exposure Info

Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT S: PROBE & DIPOLE CALIBRATION

Test Report

DEMC#DR50110410A Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Dates of Tests: September 16 ~ 24, 2004 Test Report S/N:DR50110410A Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s) : §22(H), §15, §2 EUT Type : CDMA 1x WLL Phone Model name : AX380 Serial number : Identical prototype TX Frequency Range : 824.70 ~ 848.31 MHz (CDMA) RX Frequency Range : 869.70 ~ 893.31 MHz (CDMA) Max. RF Output Power : 0.535W ERP CDMA (27.28 dBm) - With Battery 0.582W ERP CDMA (27.65dBm) - With Charger Max. SAR Measurement : 0.632W/kg CDMA Body SAR - With the Battery 1.140W/kg CDMA Body SAR - With Charger Emission Designators: : 1M25F9W Date of Issue : September 25, 2004 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RFLACW-1XP800 Axess Telecom Co., Ltd DEMC#DR50110410A Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9-10 6.1 RADIATED MEASUREMENTS 11-13 7.1 FREQUENCY STABILITY 14-15 8.1 EMISSION TEST DATA 16-17 9.1 PLOTS OF EMISSIONS 18 10.1 LIST OF TEST EQUIPMENT 19-20 11.1 SAMPLE CALCULATIONS 21 12.1 CONCLUSION 22 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I : BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT O: SAR MEASUREMENTS REPORT ATTACHMENT P: SAR TEST PLOTS ATTACHMENT Q: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT R: DIPOLE VALIDATION (S) ATTACHMENT S: PROBE CALIBRATION DEMC#DR50110410A Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 3 of 22 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Emission Designators: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: RFLACW-1XP800 Quantity production is planned 1M25F9W (CDMA) 824.70 ~848.31 MHz (CDMA) 869.70 - 893.31 MHz (CDMA) 0.535W ERP CDMA (27.28 dBm) - With Battery 0.582W ERP CDMA (27.65dBm) - With Charger Licensed Non-Broadcast Station Transmitter (TNB) CDMA 1x WLL Phone CDMA ± 0.00025 % (2.5ppm) §22(H), §15, §2 September 16 ~ 24, 2004 DIGITAL EMC DR50110410A Applicant: AXESS TELECOM CO., LTD. Address: 7F, SEONGDO BUILDING, 587-23, SINSA-DONG, GANGNAM-GU, SEOUL, KOREA Attention: Kyung Suk Jung (Project Manager) DEMC#DR50110410A Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 4 of 22 2.1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer September 30, 2004 Kyung-Taek LEE Data Name Signature Report Reviewed By: manager September 30, 2004 Dong –Min JUNG Data Name Signature Ordering party: Company name : AXESS TELECOM CO., LTD. Address : 7F, SEONGDO BUILDING, 587-23, SINSA-DONG, GANGNAM-GU, Zipcode : 135-747 City/town : SEOUL Country : KOREA Date of order : September 09, 2004 DEMC#DR50110410A Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 5 of 22 3.1 INSERTS Function of Active Devices (Confidential) The Function of active devices are shown in Attachment K. Block & Schematic Diagrams (Confidential) The block diagrams are shown in Attachment I, and the schematic diagrams are shown in Attachment J. Operating Instructions The instruction manual is shown in Attachment M. Parts List & Tune-Up Procedure (Confidential) The parts list & tune-up procedure is shown in Attachment L. Description of Freq. Stabilization Circuit (Confidential) The description of frequency stabilization circuit is shown in Attachment K. Description for Suppression of Spurious Radiation, for Limiting Modulation, and Harmonic Suppresion Circuits (Confidential) The description of suppression stabilization circuits is shown in Attachment K. DEMC#DR50110410A Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 6 of 22 4.1 DESCRIPTION OF TESTS 4.2 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 4.3 Occupied Bandwidth The 99% power bandwidth was measured with a calibrated spectrum analyzer. 4.4 S…

Text truncated - open the document above for the full version.

Test Report

FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT D: TEST PLOTS FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious CDMA Ch. 1013 FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious CDMA Ch. 0384 FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious CDMA Ch. 0777 FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Power Out. CDMA Ch. 1013 Power Out. CDMA Ch. 0777 FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Power Out. CDMA Ch. 0384 Channel Power. CDMA Ch. 0384 FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Occupied Bandwidth. CDMA Ch. 0384 FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Band Edge. CDMA Ch. 1013 Band Edge. CDMA Ch. 0777 FCC ID: RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID: Manufacturer: Channel: Test Mode: RFLACW-1XP800 AXESS TELECOM 869.0 ~ 894.0 MHz CDMA Receiving Band DIGITAL EMC TOKIN 23 September,2004 18:27 CDMA_RX.dat <<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: AXESS TELECOM Model: AX380 Operator: W.J.LEE AC Power: 120V 60Hz Temp,Humidity: 20 52 Remark1: RX Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <CDMA_RX> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 23 September,2004 18:27 CDMA_RX.dat <<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: AXESS TELECOM Model: AX380 Operator: W.J.LEE AC Power: 120V 60Hz Temp,Humidity: 20 52 Remark1: RX Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <CDMA_RX> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 23 September,2004 18:27 CDMA_RX.dat Standard : FCC PART.15 Manufacturer : AXESS TELECOM Model : AX380 Operator : W.J.LEE AC Power : 120V 60Hz Temp,Humidity : 20 52 Remark1 : RX Remark2 : Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.150 33.4 19.5 1.8 35.2 21.3 66.0 56.0 30.8 34.7 2 0.197 49.1 41.1 1.2 50.3 42.3 63.7 53.7 13.4 11.4 3 0.262 44.3 38.1 0.9 45.2 39.0 61.4 51.4 16.2 12.4 4 0.393 36.6 33.8 0.4 37.0 34.2 58.0 48.0 21.0 13.8 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.197 49.6 40.5 1.1 50.7 41.6 63.8 53.8 13.1 12.2 2 0.263 43.1 36.6 0.9 44.0 37.5 61.3 51.3 17.3 13.8 3 0.393 35.4 33.1 0.5 35.9 33.6 58.0 48.0 22.1 14.4

Test Report

DEMC#DR50110410B Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: September 10, 2004 Test Report S/N:DR50110410B Test Site : DIGITAL EMC CO., LTD. MODEL NO. APPLICANT EUT Type: CDMA 1X WLL Phone TX Frequency Range: 824.70 ~848.31 MHz (CDMA) RX Frequency Range: 869.70 ~893.31 MHz (CDMA) RF Output Power: 0.535W ERP CDMA (27.28 dBm) - With Battery 0.582W ERP CDMA (27.65dBm) - With Charger Max. SAR Measurement: 0.632W/kg CDMA Body SAR - With the Battery 1.140W/kg CDMA Body SAR - With Charger Model(s): AX380 Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Application Type: Certification Test Device Serial No.: Identical prototype Data of issue September 10, 2004 D.M.JUNG (Manager) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528- 200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RFLACW-1XP800 Axess Telecom Co., Ltd DEMC#DR50110410B Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 22 1. INTRODUCTION .................................................................................................................... 3 SAR DEFINITION .................................................................................................................. 3 2. SAR MEASUREMENT SETUP.................................................................................................. 4 Robotic System............................................................................................................................. 4 System Hardware ......................................................................................................................... 4 System Electronics........................................................................................................................ 4 3. DASY3 E-FIELD PROBE SYSTEM........................................................................................... 5 Probe Measurement System.......................................................................................................... 5 Probe Specifications ..................................................................................................................... 5 4. Probe Calibration Process............................................................................................................. 6 Dosimetric Assessment Procedure................................................................................................ 6 Free Space Assessment ................................................................................................................ 6 Temperature Assessment ............................................................................................................. 6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................... 7 SAM Phantom ............................................................................................................................. 7 Brain & Muscle Simulating Mixture Characterization ................................................................ 7 Device Holder for Transmitters.................................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS............................................................................................ 8 Automated Test System Specifications......................................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ............................................................. 9 Measurement Procedure................................................................................................................ 9 Specific Anthropomorphic Mannequin (SAM) Specifications..................................................... 9 8. DEFINITION OF REFERENCE POINTS .................................................................................. 10 EAR Reference Point.................................................................................................................... 10 Handset Reference Points............................................................................................................. 10 9. TEST CONFIGURATION POSITIONS ..................................................................................... 11 Positioning for Cheek/Touch ....................................................................................................... 11 Positioning for Ear /15° Tilt ......................................................................................................... 12 Body Holster /Belt Clip Configurations ....................................................................................... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS..................................................................... 14 Uncontrolled Environment ........................................................................................................... 14 Controlled Environment................................................................................................................ 14 11. MEASUREMENT UNCERTAINTIES...................................................................................... 15 SAR Measurement Uncertainties ..…

Text truncated - open the document above for the full version.

Test Report

FCC ID : RFLACW-1XP800 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT P: SAR TEST PLOTS FCC ID: RFLACW - 1XP800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 1.00 mho/m ε r = 54.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.703 mW/g, SAR (10g): 0.493 mW/g; Powerdrift: -0.11 dB AXESS TELECOM CDMA Mode, Ch.1013[824.7MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Charger; Spacing = 2.5c m From antenna to flat phantom; Antenna Fixed Test Date -- September 10, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 7.21E-21.44E-12.16E-12.88E-13.60E-14.33E-15.05E-15.77E-16.49E-17.21E-1 <DIGITAL EMC> FCC ID: RFLACW - 1XP800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 1.00 mho/m ε r = 54.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 1.14 mW/g, SAR (10g): 0.789 mW/g; Powerdrift: -0.18 dB AXESS TELECOM CDMA Mode, Ch.384[8836.52MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Charger; Spacing = 2.5c m From antenna to flat phantom; Antenna Fixed Test Date -- September 10, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 1.19E-12.37E-13.56E-14.75E-15.94E-17.12E-18.31E-19.50E-11.07E+01.19E+0 <DIGITAL EMC> FCC ID: RFLACW - 1XP800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 1.00 mho/m ε r = 54.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.621 mW/g, SAR (10g): 0.435 mW/g; Powerdrift: -0.10 dB AXESS TELECOM CDMA Mode, Ch.777[848.31MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Charger; Spacing = 2.5c m From antenna to flat phantom; Antenna Fixed Test Date -- September 10, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 6.59E-21.32E-11.98E-12.64E-13.30E-13.95E-14.61E-15.27E-15.93E-16.59E-1 <DIGITAL EMC> FCC ID: RFLACW - 1XP800 SAM(835MHz) Phantom; Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 1.00 mho/m ε r = 54.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; ; AXESS TELECOM CDMA Mode, Ch.384[8836.52MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Charger; Spacing = 2.5c m From antenna to flat phantom; Antenna Fixed Test Date -- September 10, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] <DIGITAL EMC> 0.00.20.40.60.81.01.21.41.6 0 1020304050 SAR tot [mW/g] [mm] FCC ID: RFLACW - 1XP800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 1.00 mho/m ε r = 54.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.615 mW/g, SAR (10g): 0.436 mW/g; Powerdrift: -0.33 dB AXESS TELECOM CD…
