RFLACW1XT1900CDMA Wireless Local Loop Terminal

Cautions Modifications not expressly approv ed by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that ma y cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursua nt to part 15 of the FCC Rules. These limits are designed to provid e reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi sion reception, which can be determined by turning the equi pment off and on, the user is encouraged to try to correct the in terference by one or more of the following measures: ▪ Reorient or relocate the receiving antenna. ▪ Increase the separation betw een the equipment and receiver ▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 31 1 USER’S MANUAL

7F, Seongdo Building, 587-23, Sinsa-Dong, Gangnam-Gu, Seoul 135-747, KOREA June 14, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd ., to act on our behalf in all manners relating to application for equipment authorization for model RFLACW1XT1900. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Axess Telecom Co., Ltd. Sincerely, Harry Jung Project Manager

7F, Seongdo Building, 587-23, Sinsa-Dong, Gangnam-Gu, Seoul 135-747, KOREA June 14, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Axess Telecom Co., Ltd. FCC ID : RFLACW1XT1900 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Axess Telecom Co., Ltd.. hereby requests confidentiality of the Schematics, Parts list, Turn-Up Procedure and Operational Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Axess Telecom Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Axess Telecom Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Harry Jung Project Manager

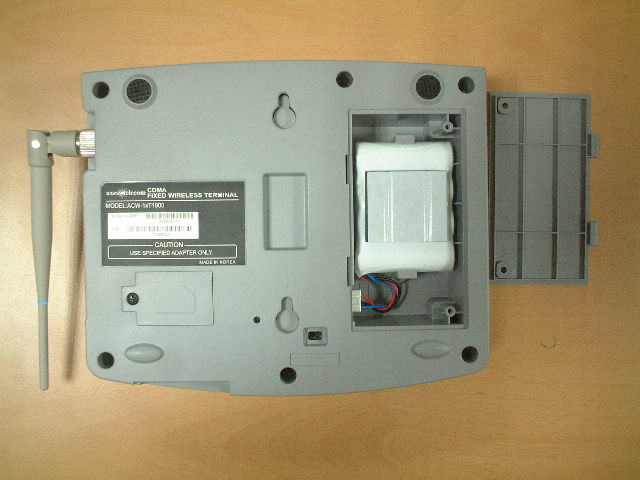

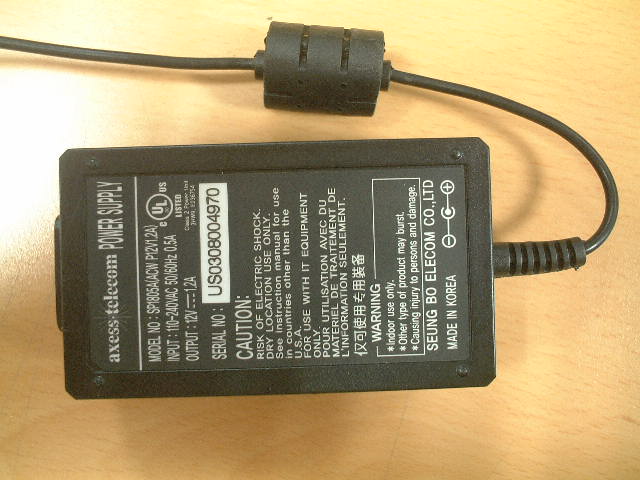

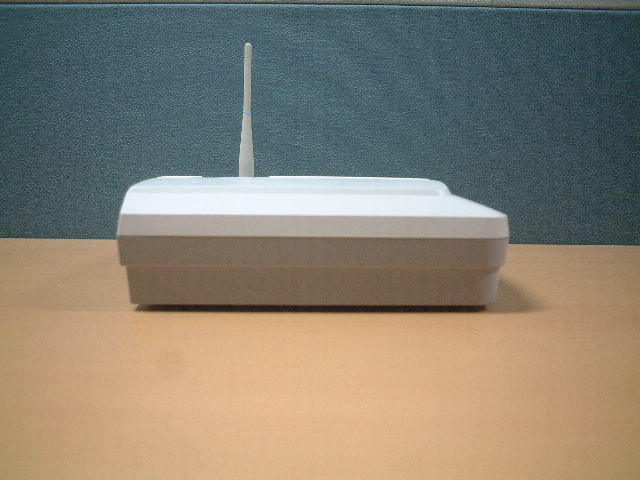

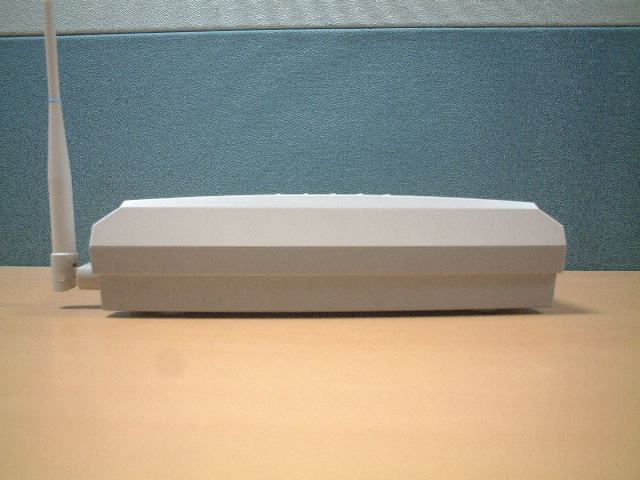

External Photograph FCC ID : RFLACW1XT1900 External Photograph FCC ID : RFLACW1XT1900 External Photograph FCC ID : RFLACW1XT1900 External Photograph FCC ID : RFLACW1XT1900 External Photograph FCC ID : RFLACW1XT1900

FCC ID : RFLACW1XT1900 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : RFLACW1XT1900 FCC IDENTIFICATION (NAME PLATE) INFORMATION CDMA FIXED WIRELESS TERMINAL FCC ID: RLFACW1XT1900 MODEL: ACW-1XT1900 Serial Number: ESN: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN KOREA

Internal Photograph FCC ID : RFLACW1XT1900 Internal Photograph FCC ID : RFLACW1XT1900 Internal Photograph FCC ID : RFLACW1XT1900 Internal Photograph FCC ID : RFLACW1XT1900

PROBE CALIBRATION DIGITAL EMC

DEMC#DR50110406K Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: June 18, 2004 Test Report S/N:DR50110406K Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) EUT Type: CDMA FIXED WIRELESS TERMINAL Brand name / Model name: AXESSTEL / ACW-1xT1900 Buyer Name / Model Name Brightstar Corporation / STARTEL 1900xt Frequency Range: Tx: 1851.25 ~1908.75 MHz (PCS CDMA) / Rx: 1931.25~1988.75MHz (PCS CDMA) Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] RF Output Power: 0. 881W EIRP PCS CDMA (29.45 dBm) - With the Battery 0.923W EIRP PCS CDMA (29.65dBm) - With Charger Max. SAR Measurement: 1.080W/kg PCS CDMA Body SAR - With the Battery 1.070W/kg PCS CDMA Body SAR - With Charger Application Type: Certification Test Device Serial No.: 1879663171 Data of issue June 18, 2004 D.M.JUNG (Manager) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RFLACW1XT1900 Axess Telecom Co., Ltd DEMC#DR50110406K Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 22 1. INTRODUCTION .................................................................................................................... 3 SAR DEFINITION .................................................................................................................. 3 2. SAR MEASUREMENT SETUP.................................................................................................. 4 Robotic System............................................................................................................................. 4 System Hardware ......................................................................................................................... 4 System Electronics........................................................................................................................ 4 3. DASY3 E-FIELD PROBE SYSTEM........................................................................................... 5 Probe Measurement System.......................................................................................................... 5 Probe Specifications ..................................................................................................................... 5 4. Probe Calibration Process............................................................................................................. 6 Dosimetric Assessment Procedure................................................................................................ 6 Free Space Assessment ................................................................................................................ 6 Temperature Assessment ............................................................................................................. 6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................... 7 SAM Phantom ............................................................................................................................. 7 Brain & Muscle Simulating Mixture Characterization ................................................................ 7 Device Holder for Transmitters.................................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS............................................................................................ 8 Automated Test System Specifications......................................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ............................................................. 9 Measurement Procedure................................................................................................................ 9 Specific Anthropomorphic Mannequin (SAM) Specifications..................................................... 9 8. DEFINITION OF REFERENCE POINTS .................................................................................. 10 EAR Reference Point.................................................................................................................... 10 Handset Reference Points............................................................................................................. 10 9. TEST CONFIGURATION POSITIONS ..................................................................................... 11 Positioning for Cheek/Touch ....................................................................................................... 11 Positioning for Ear /15° Tilt ......................................................................................................... 12 Body Holster /Belt Clip Configurations ....................................................................................... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS..................................................................... 14 Uncontrolled Environment ........................................................................................................... 14 Controlled Environment...............................................................................................…

Text truncated - open the document above for the full version.

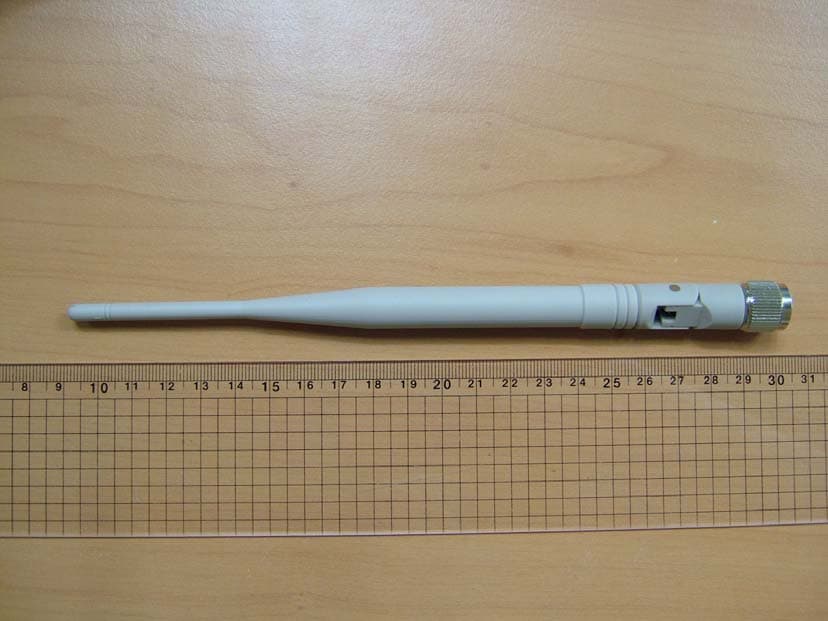

등록 번호 A104060701 개정 번호 0 등록 일자 2004-06-07 제품 규격서 (ANTENNA SPECIFICATION) PAGE 1/7 제품명 : 1900 MHZ 대 λ/2 Sleeve Dipole Antenna MODEL : TB6-1900T CODE : 납입선 : 엑세스텔레콤 관리부서 : 연구1팀 배포처 작성 확인 검토 승인 결재 강 대 봉 결재일자 2004-06-04 HAF-L-003(R0) MODEL TB6-1900T 등록번호 A104060701 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 2/7 1. 적 용 본 사양서는 1900MHz帶 무선기기(WLL)에 사용되는 λ/2 DIPOLE ANTENNA 에 대해 규정한다. 2. ANTENNA 형상 도면참조. 3. 전기적 특성 및 성능 실 사용조건 또는 그에 상응하는 적합한 상태에서 다음을 만족할 것. 항목 특성/성능 비 고 사용주파수대 1850 ~ 1990 MHz 공칭IMPEDANCE 50 Ω V. S . W. R 1 : 1.8 이하 RADIATION OMNI-DIRECTION POLARIZATION VERTICAL 0 dBd min Peak gain GAIN -1.5 dBd min Average gain 4. 기구적 사양 및 특성 항목 사양/특성 비 고 RADIATOR RG-316 CABLE SLEEVE URETHANE IVORY BASE NYLON66 IVORY CONNECTOR TNC-MALE NI- PLATE TOTAL LENGTH 167.5±3mm HAF-L-004(R0) MODEL TB6-1900T 등록번호 A104060701 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 3/7 5. 기타 성능 및 특성 5.1 내온성(耐溫性) 항목 성능 및 특성 비고 동작온도범위 -30°C~+70°C 온도CYCLE -40°C(1hr)→ -40°C~85°C(1hr) →85°C(1hr) 10 CYCLES 각 항목의 조건에서 눈에 띄는 변형이나, 고정부와 사출물 등에 기구적 변화가 없고, 4.3항을 만족 할 것. 5.2 내습성(耐濕性) Antenna를 주위온도 40°C, 상대습도 95％에 24시간 방치한 후, 상온상습 상태에서 24시간 방치 후 측정하여 외관, 각부의 구조에 이상이 없고, 4.3항을 만족 할 것. 5.3 내 낙하 Antenna를 2Kg의 Set(또는 JIG)에 사용 상태로 고정 시키고 0.75m 높이에서 사각 철판( 1000X1000X10mm 3 )에 1회 자유 낙하 시켰을 때, 외관, 각부의 구조에 이상이 없고, 4.3항을 만족 할 것. 5.4 내 진동 Antenna를 Set(또는 JIG)에 고정 시켜 세우고, Antenna를 완전히 뺀 상태로 하여, 주파수 8→25→8 Hz (1 CYCLE), 진폭 1.5mm, 가속도 2G, 1 Octave/min(Logarithmic)의 Sine파 진동을 X, Z 각 2방향으로 1 시간씩 인가한 후, 외관, 각부의 구조에 이상이 없고, 4.3항을 만족 할 것. 5.5 틸트 테스트 Antenna 커버와 베이스 사이인 틸트 부분을 0°~ 45°~ 90°씩 100회 구부린 후 커버와 베이스 접속 강도가 50gf ~ 400gf의 힘을 가질 것. 5.6 회전 테스트 Antenna 콘넥터 부분을 토르크 게이지가 연결된 지그에 연결하고 360°, 100회 회전 테스트 후 회전 강도가 1.0 ~ 2.5 kgf.cm 를 만족할 것. 6. 측정 및 검사 본 사양서에 정해진 사항 및 승인원상의 요구사항에 따르고, 당사 품질관리규정에 적합 할 것. 단 6항의 사항은 발주자와의 협의에 의해 생략할 수 있음. HAF-L-004(R0) MODEL TB6-1900T 등록번호 A104060701 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 4/7 7. 포 장 제품의 포장은 지정된 포장 사양에 따를 것. 8. 보 증 본 제품은 납입 후 1년 이내에, 설계 또는 제작상의 불량이라고 판단되는 결함이 발생 하였을 경우, 즉시 무상 수리 또는 교환해 줄 의무가 있다. HAF-L-004(R0) MODEL TB6-1900T 등록번호 A104060701 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 5/7 [ 첨부 1] Antenna 작업 공정도 TNCCABLETILT BASE4 ATILT BASE3 BJOINT PINGUIDE RINGPIPESPRING HOLDERSLEEVE 납땜 탈피 결합 (압착) 결합(punching) 결합 E/L부cable탈피 납땜 측정 검사 세척 포장 결합 (접착) HAF-L-004(R0) MODEL TB6-1900T 등록번호 A104060701 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 6/7 [ 첨부 2] Antenna VSWR MODEL TB6-1900T 등록번호 A104060701 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 7/7 [ 첨부 3] Antenna pattern

Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Conducted Spurious PCS CDMA Ch. 0025 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Conducted Spurious PCS CDMA Ch. 0600 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Conducted Spurious PCS CDMA Ch. 1175 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Power Out. PCS CDMA Ch. 0025 Power Out. PCS CDMA Ch. 0600 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Power Out. PCS CDMA Ch. 1175 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 0025 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 0025 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 0025 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 1175 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 1175 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 1175 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 0275 Band Edge. PCS CDMA Ch. 0325 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 0375 Band Edge. PCS CDMA Ch. 0425 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 0675 Band Edge. PCS CDMA Ch. 0725 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 0775 Band Edge. PCS CDMA Ch. 0825 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Band Edge. PCS CDMA Ch. 0875 Band Edge. PCS CDMA Ch. 0925 Spectrum Analyzer Presentation FCC ID: RFLACW1XT1900 Channel Power. PCS CDMA Ch. 0600 Occupied Bandwidth. PCS CDMA Ch. 0600 DIGITAL EMC TOKIN 11 June,2004 14:39 ACW-1XT1900_Tx.dat <<CONDUCTED EMISSION>> Standard: FCC P15Manufacturer: Axess Telecom Model: ACW-1XT1900 Operator: K.T.LEE AC Power: 120V 60Hz Temp,Humidity: 27 52 Remark1: Traffix mode Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACW-1XT1900_Tx> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 11 June,2004 14:39 ACW-1XT1900_Tx.dat <<CONDUCTED EMISSION>> Standard: FCC P15Manufacturer: Axess Telecom Model: ACW-1XT1900 Operator: K.T.LEE AC Power: 120V 60Hz Temp,Humidity: 27 52 Remark1: Traffix mode Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACW-1XT1900_Tx> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 11 June,2004 14:39 ACW-1XT1900_Tx.dat Standard : FCC P15 Manufacturer : Axess Telecom Model : ACW-1XT1900 Operator : K.T.LEE AC Power : 120V 60Hz Temp,Humidity : 27 52 Remark1 : Traffix mode Remark2 : Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.194 49.0 38.6 1.2 50.2 39.8 63.9 53.9 13.7 14.1 2 0.259 44.1 36.6 0.9 45.0 37.5 61.5 51.5 16.5 14.0 3 0.325 32.9 21.3 0.7 33.6 22.0 59.6 49.6 26.0 27.6 4 0.454 37.3 36.6 0.3 37.6 36.9 56.8 46.8 19.2 9.9 5 0.519 35.0 34.2 0.3 35.3 34.5 56.0 46.0 20.7 11.5 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.196 48.8 40.0 1.1 49.9 41.1 63.8 53.8 13.9 12.7 2 0.259 44.6 38.6 0.9 45.5 39.5 61.5 51.5 16.0 12.0 3 0.453 40.0 39.8 0.4 40.4 40.2 56.8 46.8 16.4 6.6 4 0.517 35.4 35.1 0.3 35.7 35.4 56.0 46.0 20.3 10.6 5 0.325 34.0 25.3 0.7 34.7 26.0 59.6 49.6 24.9 23.6 DIGITAL EMC TOKIN 11 June,2004 14:58 ACW-1XT1900_Rx.dat <<CONDUCTED EMISSION>> Standard: FCC P15Manufacturer: Axess Telecom Model: ACW-1XT1900 Operator: K.T.LEE AC Power: 120V 60Hz Temp,Humidity: 27 52 Remark1: Idle mode Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACW-1XT1900_Rx> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 11 June,2004 14:58 ACW-1XT1900_Rx.dat <<CONDUCTED EMISSION>> Standard: FCC P15Manufacturer: Axess Telecom Model: ACW-1XT1900 Operator: K.T.LEE AC Power: 120V 60Hz Temp,Humidity: 27 52 Remark1: Idle mode Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACW-1XT1900_Rx> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 11 June,2004 14:58 ACW-1XT1900_Rx.dat Standard : FCC P15 Manufacturer : Axess Telecom Model : ACW-1XT1900 Operator : K.T.LEE AC Power : 120V 60Hz Temp,Humidity : 27 52 Remark1 : Idle mode Remark2 : Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.194 46.9 39.4 1.2 48.1 40.6 63.9 53.9 15.8 13.3 2 0.258 40.5 34.7 0.9 41.4 35.6 61.5 51.5 20.1 15.9 3 0.453 40.0 39.5 0.3 40.3 39.8 56.8 46.8 16.5 7.0 4 0.518 34.8 34.1 0.3 35.1 34.4 56.0 46.0 20.9 11.6 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.193 46.2…

Text truncated - open the document above for the full version.

ACW-1xT1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 1.08 mW/g, SAR (10g): 0.657 mW/g; FCC ID: RFLACW1XT1900 PCS Mode, Ch.25[1851.25MHz] ; Standard Battery ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = Always Up(24dBm) ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 1.07E-12.13E-13.20E-14.26E-15.32E-16.39E-17.46E-18.52E-19.58E-11.06E+0 <DIGITAL EMC> ACW-1xT1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.670 mW/g, SAR (10g): 0.411 mW/g; FCC ID: RFLACW1XT1900 PCS Mode, Ch.600[1880MHz] ; Standard Battery ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = Always Up(24dBm) ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 6.97E-21.39E-12.09E-12.79E-13.49E-14.18E-14.88E-15.58E-16.27E-16.97E-1 <DIGITAL EMC> ACW-1xT1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.959 mW/g, SAR (10g): 0.580 mW/g; FCC ID: RFLACW1XT1900 PCS Mode, Ch.1175[1908.75MHz] ; Standard Battery ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = Always Up(24dBm) ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 9.65E-21.93E-12.89E-13.86E-14.83E-15.79E-16.75E-17.72E-18.69E-19.65E-1 <DIGITAL EMC> ACW-1xT1900 SAM(1800MHz) Phantom; Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; ; FCC ID: RFLACW1XT1900 PCS Mode, Ch.25[1851.25MHz] ; Standard Battery ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = Always Up(24dBm) ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] <DIGITAL EMC> 0.00.20.40.60.81.01.21.41.61.8 0 1020304050 SAR tot [mW/g] [mm] ACW-1xT1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 1.07 mW/g, SAR (10g): 0.656 mW/g; FCC ID: RFLACW1XT1900 PCS Mode, Ch.25[1851.25MHz] ; Charger ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = Always Up(24dBm) ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 1.08E-12.17E-13.25E-14.33E-15.41E-16.50E-17.58E-18.66E-19.75E-11.08E+0 <DIGITAL EMC> ACW-1xT1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.678 mW/g, SAR (10g): 0.411 mW/g; FCC ID: RFLACW1XT1900 PCS Mode, Ch.600[1880MHz] ; Charger ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = Always Up(24dBm) ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 6.83E-21.37E-12.05E-12.73E-13.42E-14.10E-14.78E-15.46E-16.15E-16.83E-1 <DIGITAL EMC> ACW-1xT1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.963 mW/g, SAR (10g): 0.580 mW/g; FCC ID: RFLACW1XT1900 PCS Mode, Ch.1175[1908.75MHz] ; Charger ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = Always Up(24dBm) ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 9.82E-21.96E-12.95E-13.93E-14.91E-15.89E-16.87E-17.86E-18.84E-19.82E-1 <DIGITAL EMC> ACW-1xT1900 SAM(1800MHz) Phantom; Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; ; FCC ID: RFLACW1XT1900 PCS Mode, Ch.25[1851.25MHz] ; Charger ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = Always Up(24dBm) ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] <DIGITAL EMC> 0.00.20.40.60.81.01.21.41.61.82.0 0 1020304050 SAR tot [mW/g] [mm]

Dipole 1900MHz SAM(1900M) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Muscle: σ = 1.56 mho/m ε r = 53.7 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 10.4 mW/g, SAR (10g): 5.11 mW/g; Dipole validation: for f < 1 GHz, distance to the liquid d = 15 mm for f > 1 GHz, distance to the liquid d=10 mm SAR Tot [mW/g] 1.48E+02.96E+04.43E+05.91E+07.39E+08.87E+01.03E+11.18E+11.33E+11.48E+1 <DIGITAL EMC>

Close From: Kyung-Taek LEE [SMTP:[email protected]] To: Chris Harvey Cc: Chris Harvey; 'Marianne Bosley' Subject: RE: Additional Information needed MT#15714 FCC ID: RFLACW1XT1900 --- 1/2 Sent: 6/29/2004 3:18 AM Importance: Normal Mail : 1/2 Dear Mr. Chris Harvey, Thanks for your mail. 1. Thank you. 2. refer to the attached file. 3. refer to the corrected RF Test report. 4. That's right. 0.2W RF Power is conducted and 0.923W RF power is Radiated. I could not understand too it. so we tested our reference PCS phone. and I confirmed our measurement is right. I can not explain no more about this EIRP data. please let me know how must I do? 5. -- We received the tune-up procedure indicates control by DTMF codes from our customer. but this method is wrong. because the declination of the power is so extreme during the test. so we tested it by Base Station simulator control. --> please refer to the SAR report. -- refer to the attached file(SAR Test report) 6. refer to the attached file(SAR Test report) Best regards. K.T. LEE -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Tuesday, June 29, 2004 5:26 AM To: 'Kyung-Taek LEE' Cc: 'Marianne Bosley' Subject: Additional Information needed MT#15714 FCC ID: RFLACW1XT1900 KT, I have completed the review for the above referenced application and find that I need the following items addressed so I can continue: 1. The Block Diagram submitted represents the 824-849MHz Pt. 22 version of this device. This Block Diagram exhibit is not required and therefore this document will not be uploaded to the FCC with this application review is completed. There is no need to replace this exhibit with a corrected Page 1 of 3RE: Additional Information needed MT#15714 FCC ID: RFLACW1XT1900 --- 1/2 6/30/2004https://www.metlabs.com/exchange/forms/IPM/NOTE/read.asp?command=open&obj=0000000... version. Please note that Block Diagrams are required for FCC Pt. 15 devices (per FCC 2.1033(b)) but not required for the Licensed service devices per 2.1033(c)) 2. Please provide the Validation Dipole calibration information. 3. The Occupied Bandwidth section of the RF Test report seems to be addressing the requirements for a Standard Analog Cellular (Pt. 22) mobile device. Please review this section, ensure that the testing was performed correctly in accordance with the FCC Pt. 24 and the operation of this EUT and revise the report accordingly. 4. The RF test report indicates a measured EIRP or 0.923 Watts maximum, however the Operational Description specification indicates a 0.20W maximum RF power (assumed to be conducted) and a maximum antenna gain of 1 +/- 1dBi. Please explain this. 5. The SAR report indicates that the EUT was operated by Base Station simulator control; however there is no Base Station simulator listed in the test equipment list. Additionally, the tune-up procedure indicates control by DTMF codes. Please explain this discrepancy. 6. The SAR dielectric property measurement table indicates measurements were performed on April 23, 2004, and the Validation was performed on June 16, 2004 however the SAR test was performed on June 18, 2004. The dielectric properties and system check measurements must be performed on each day the SAR measurements are performed. Additionally, please note that the E-911 requirements of 22.921 (not applicable to FCC Pt. 24 devices) only apply to the Analog operation and the ESN requirements of 22.919 have been removed from the FCC Pt 22 Rules (also do not apply to Pt. 24 devices). Please let me know if you have any questions: Best regards, Chris Harvey Page 2 of 3RE: Additional Information needed MT#15714 FCC ID: RFLACW1XT1900 --- 1/2 6/30/2004https://www.metlabs.com/exchange/forms/IPM/NOTE/read.asp?command=open&obj=0000000... RFLACW1XT1900_User manua-revised.pdf RFLACW1XT1900_RF TEST REPORT.pdf Page 3 of 3RE: Additional Information needed MT#15714 FCC ID: RFLACW1XT1900 --- 1/2 6/30/2004https://www.metlabs.com/exchange/forms/IPM/NOTE/read.asp?command=open&obj=0000000...

TCBF009-2 rev 10 July 2003 Page 1 of 1 FCC GRANT OF EQUIPMENT AUTHORIZATION APPLICATION ALL RULE PARTS OTHER THAN 11, 15, AND 18 (PLEASE COMPLETE QUESTIONAIRE) 1. Type or types of emissions: _____ Licensed Portable Transmitter Held to Ear (PCE) 2. Frequency Range ______ 1851.25 ~ 1908.75 MHz (PCS CDMA) 3. Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power _____EIRP 28.5 - 29.65 ________________ 4. Maximum power rating as defined in the applicable rule part(s) ______________________________________ ____EIRP Max level 29.65 dBm(Conducted level 24.0dBm)______________________________ 5. dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range _____________________________________________________________ _________Normal voltage:120V ac ___________________________________________

DEMC#DR50110406J Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 23 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification Dates of Tests: June 12 ~ 17, 2004 Test Report S/N:DR50110406J Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s) : §24(E), §15, §2 EUT Type : CDMA WIRELESS LOCAL LOOP TERMINAL Brand name / Model name : AXESSTELECOM / ACW-1xT1900 Serial number : 1879663171 Buyer Name / Model Name : Brightstar Corporation / STARTEL 1900xt TX Frequency Range : 1851.25 ~1908.75 MHz (PCS CDMA) RX Frequency Range : 1931.25~1988.75MHz (PCS CDMA) Max. RF Output Power : 0. 881W EIRP PCS CDMA (29.45 dBm) - With the Battery 0.923W EIRP PCS CDMA (29.65dBm) - With Charger Max. SAR M…
