FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT M: USER’S MANUAL --- Additional page --- RF EXPOSURE INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT ’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)energy set by the Federal Communications Commission of the U.S.Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluate on of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.*Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when worn on the body, as described in this user guide, is 1.150 W/kg. (Body worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov / oet / fcc id after searching on FCC ID : RFLACW1XP1900. Additional information on Specific Absorption Rates (SAR)can be found on the Cellular Telecommunications &Internet Association (CTIA) web-site at http://phonefacts.net.*In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6watts/kg (W/kg)averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any agitations in measurements. In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. For more information about RF exposure, please visit the FCC website at www.fcc.gov Near-Body Operation To maintain compliance with FCC RF exposure requirements, maintain a 2.5cm(0.98 inch), separation distance between the user's body and the phone, including the antenna, whether extended or retracted. WARNING! Read this information before use Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ tv technician for help.

7F, Seongdo Building, 587-23, Sinsa-Dong, Gangnam-Gu, Seoul 135-747, KOREA September 24, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd ., to act on our behalf in all manners relating to application for equipment authorization for model RFLACW1XP1900. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Axess Telecom Co., Ltd. Sincerely, Harry Jung Project Manager

7F, Seongdo Building, 587-23, Sinsa-Dong, Gangnam-Gu, Seoul 135-747, KOREA September 24, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Axess Telecom Co., Ltd. FCC ID : RFLACW1XP1900 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Axess Telecom Co., Ltd.. hereby requests confidentiality of the Schematics, Parts list, Turn-Up Procedure and Operational Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Axess Telecom Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Axess Telecom Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Harry Jung Project Manager

Chris Harvey From: Kyung-Taek LEE [[email protected]] Sent: Sunday, October 10, 2004 9:17 PM To: Chris Harvey Cc: 'Marianne Bosley' Subject: RE: Clarification needed Axess FCC ID: RFLACW1XP1900 MT#16307 Page 1 of 1 10/11/2004 Hello, Thanks for your help. I'm sorry. I attached the revised Test report. Best Regards, K.T. LEE -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Monday, October 11, 2004 2:46 AM To: 'Kyung-Taek LEE' Cc: 'Marianne Bosley' Subject: Clarification needed Axess FCC ID: RFLACW1XP1900 MT#16307 KT, I have reviewed the above referenced application and find that the following item needs to be addressed before the review can be completed: The tissue conductivity measured on 9/22/04 was recorded as 1.5872. According to your test report the target value is 1.44. This is a difference of 9.27%. This exceeds the recommended tolerance of 5%. OET 65 Supplement C 2001 provides a target value for Head Conductivity in the 1800-2000MHz band as 1.52 (and Dielectric Constant of 53.3). Please resolve this discrepancy. Please let me know if you have any questions regarding this issue. Best regards, Chris Harvey

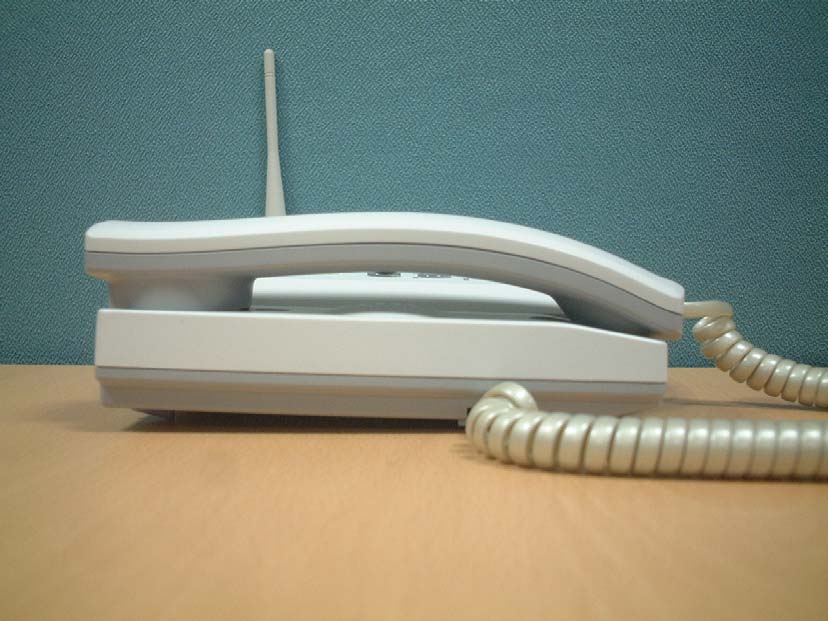

FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT G: EXTERNAL PHOTOGRAPHS FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 1 FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 2 FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 3 FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 4 FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 5

FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT E: FCC ID LABEL & LOCATION FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC IDENTIFICATION (NAME PLATE) INFORMATION CDMA FIXED WIRELESS PHONE FCC ID: RLFACW1XP1900 MODEL: AX320 Serial Number: ESN: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN KOREA

FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT H: INTERNAL PHOTOGRAPHS FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 1 FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 2 FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 3 FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. View 4

FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT P: SAR TEST PLOTS FCC ID: RFLACW1XP1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 1.15 mW/g, SAR (10g): 0.687 mW/g; Powerdrift: -0.09 dB AXESS TELECOM CDMA Mode, Ch.25[1851.25MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Charger; Spacing = 2.5c m From antenna to flat phantom; Antenna Fixed Test Date -- September 22, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 1.12E-12.23E-13.35E-14.46E-15.58E-16.70E-17.81E-18.93E-11.00E+01.12E+0 <DIGITAL EMC> FCC ID: RFLACW1XP1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 1.15 mW/g, SAR (10g): 0.681 mW/g; Powerdrift: -0.17 dB AXESS TELECOM CDMA Mode, Ch.600[1880.0MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Charger; Spacing = 2.5c m From antenna to flat phantom; Antenna Fixed Test Date -- September 22, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 1.20E-12.40E-13.59E-14.79E-15.99E-17.19E-18.39E-19.58E-11.08E+01.20E+0 <DIGITAL EMC> FCC ID: RFLACW1XP1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.982 mW/g, SAR (10g): 0.587 mW/g; Powerdrift: -0.18 dB AXESS TELECOM CDMA Mode, Ch.1175[1908.75MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Charger; Spacing = 2.5c m From antenna to flat phantom; Antenna Fixed Test Date -- September 22, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 1.07E-12.15E-13.22E-14.29E-15.36E-16.44E-17.51E-18.58E-19.66E-11.07E+0 <DIGITAL EMC> FCC ID: RFLACW1XP1900 SAM(1800MHz) Phantom; Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; ; AXESS TELECOM CDMA Mode, Ch.25[1851.25MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Charger; Spacing = 2.5c m From antenna to flat phantom; Antenna Fixed Test Date -- September 22, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] <DIGITAL EMC> 0.00.20.40.60.81.01.21.41.61.82.0 0 1020304050 SAR tot [mW/g] [mm] FCC ID: RFLACW1XP1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 1.07 mW/g, SAR (10g): 0.638 mW/g; Powerdrift: -0.16 dB AXESS TELECOM CDMA Mode, Ch.25[1851.25MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Battery; Spacing = 2.5cm From antenna to flat phantom; Antenna Fixed Test Date -- September 22, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 1.10E-12.21E-13.31E-14.42E-15.52E-16.62E-17.73E-18.83E-19.94E-11.10E+0 <DIGITAL EMC> FCC ID: RFLACW1XP1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.965 mW/g, SAR (10g): 0.574 mW/g; Powerdrift: -0.19 dB AXESS TELECOM CDMA Mode, Ch.600[1880.0MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Battery; Spacing = 2.5cm From antenna to flat phantom; Antenna Fixed Test Date -- September 22, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 9.70E-21.94E-12.91E-13.88E-14.85E-15.82E-16.79E-17.76E-18.73E-19.70E-1 <DIGITAL EMC> FCC ID: RFLACW1XP1900 SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.794 mW/g, SAR (10g): 0.476 mW/g; Powerdrift: -0.12 dB AXESS TELECOM CDMA Mode, Ch.1175[1908.75MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Battery; Spacing = 2.5cm From antenna to flat phantom; Antenna Fixed Test Date -- September 22, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 8.44E-21.69E-12.53E-13.38E-14.22E-15.06E-15.91E-16.75E-17.60E-18.44E-1 <DIGITAL EMC> FCC ID: RFLACW1XP1900 SAM(1800MHz) Phantom; Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60); 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; ; AXESS TELECOM CDMA Mode, Ch.25[1851.25MHz]; Ambient Temp = 21 °C /Meas. Tissue Temp. = 22 °C Conducted Power=24.5dBm; With Battery; Spacing = 2.5cm From antenna to flat phantom; Antenna Fixed Test Date -- September 22, 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] <DIGITAL EMC> 0.00.20.40.60.81.01.21.41.61.82.0 0 1020304050 SAR tot [mW/g] [mm]

FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT Q: SAR TEST SETUP PHOTOGRAPHS FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Charger mode Battery mode FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd.

FCC ID : RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT R: DIPOLE VALIDATION(S) 1900 Dipole Validation SAM(1800MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(4.60,4.60,4.60) Med. parameter 1900 MHz Body: σ = 1.59 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0 SAR (1g): 10.4 mW/g, SAR (10g): 5.25 mW/g Powerdrift: -0.01 dB for f < 1 GHz, distance to the liquid d = 15 mm for f > 1 GHz, distance to the liquid d=10 mm Test Date: September 22, 2004 SAR Tot [mW/g] 1.01E+02.03E+03.04E+04.06E+05.07E+06.09E+07.10E+08.12E+09.13E+01.01E+1 <DIGITAL EMC>

Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT S: PROBE & DIPOLE CALIBRATION

FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT D: TEST PLOTS FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious PCS CDMA Ch. 25 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious PCS CDMA Ch. 600 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious PCS CDMA Ch. 1175 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Power Out. PCS CDMA Ch. 25 Power Out. PCS CDMA Ch. 1175 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Power Out. PCS CDMA Ch. 600 Channel Power. PCS CDMA Ch. 600 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Occupied Bandwidth. PCS CDMA Ch. 600 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Band Edge. PCS CDMA Ch. 25-1 Band Edge. PCS CDMA Ch. 25-2 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Band Edge. PCS CDMA Ch. 25-3 Band Edge. PCS CDMA Ch. 25-4 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Band Edge. PCS CDMA Ch. 25-5 Band Edge. PCS CDMA Ch. 25-6 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Band Edge. PCS CDMA Ch. 1175-1 Band Edge. PCS CDMA Ch. 1175-2 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Band Edge. PCS CDMA Ch. 1175-3 Band Edge. PCS CDMA Ch. 1175-4 FCC ID: RFLACW1XP1900 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Band Edge. PCS CDMA Ch. 1175-5 Band Edge. PCS CDMA Ch. 1175-6 DIGITAL EMC TOKIN 23 September,2004 17:55 PCS_RX.dat <<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: AXESS TELECOM Model: AX320 Operator: W.J.LEE AC Power: 120V 60Hz Temp,Humidity: 20 52 Remark1: RX Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <PCS_RX> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 23 September,2004 17:55 PCS_RX.dat <<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: AXESS TELECOM Model: AX320 Operator: W.J.LEE AC Power: 120V 60Hz Temp,Humidity: 20 52 Remark1: RX Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <PCS_RX> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 23 September,2004 17:55 PCS_RX.dat Standard : FCC PART.15 Manufacturer : AXESS TELECOM Model : AX320 Operator : W.J.LEE AC Power : 120V 60Hz Temp,Humidity : 20 52 Remark1 : RX Remark2 : Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.197 47.6 41.5 1.2 48.8 42.7 63.7 53.7 14.9 11.0 2 0.261 40.5 32.6 0.9 41.4 33.5 61.4 51.4 20.0 17.9 3 0.329 39.4 37.0 0.7 40.1 37.7 59.5 49.5 19.4 11.8 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.197 48.3 42.1 1.1 49.4 43.2 63.7 53.7 14.3 10.5 2 0.262 39.5 33.6 0.9 40.4 34.5 61.4 51.4 21.0 16.9 3 0.328 41.1 37.9 0.7 41.8 38.6 59.5 49.5 17.7 10.9

DEMC#DR50110410C Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 23 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification Dates of Tests: September 16 ~ 30, 2004 Test Report S/N:DR50110410C Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s) : §24(E), §15, §2 EUT Type : CDMA 1x WLL Phone Model name : AX320 Serial number : Identical prototype TX Frequency Range : 1851.25 ~1908.75 MHz (PCS CDMA) RX Frequency Range : 1931.25~1988.75MHz (PCS CDMA) Max. RF Output Power : 0.748W EIRP PCS CDMA (28.74 dBm) - With Battery 0.914W EIRP PCS CDMA (29.61dBm) - With Charger Max. SAR Measurement : 1.070W/kg PCS CDMA Body SAR - With the Battery 1.150W/kg PCS CDMA Body SAR - With Charger Emission Designators: : 1M25F9W Date of Issue : October 01, 2004 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RFLACW1XP1900 Axess Telecom Co., Ltd DEMC#DR50110410C Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 23 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10-11 6.1 RADIATED MEASUREMENTS 12-14 7.1 FREQUENCY STABILITY 15-16 8.1 EMISSION TEST DATA 17-18 9.1 PLOTS OF EMISSIONS 19 10.1 LIST OF TEST EQUIPMENT 20-21 11.1 SAMPLE CALCULATIONS 22 12.1 CONCLUSION 23 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I : BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT O: SAR MEASUREMENTS REPORT ATTACHMENT P: SAR TEST PLOTS ATTACHMENT Q: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT R: DIPOLE VALIDATION (S) ATTACHMENT S: PROBE CALIBRATION DEMC#DR50110410C Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 3 of 23 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Emission Designators: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: RFLACW1XP1900 Quantity production is planned 1M25F9W (CDMA) 1851.25 ~1908.75 MHz (PCS CDMA) 1931.25~1988.75MHz (PCS CDMA) 0.748W EIRP PCS CDMA (28.74 dBm) - With Battery 0.914W EIRP PCS CDMA (29.61dBm) - With Charger Licensed Portable Transmitter Held to Ear (PCE) CDMA 1x WLL Phone CDMA ± 0.00025 % (2.5ppm) §24(E), §15, §2 September 16 ~ 30, 2004 DIGITAL EMC DR50110410C Applicant: AXESS TELECOM CO., LTD. Address: 7F, SEONGDO BUILDING, 587-23, SINSA-DONG, GANGNAM-GU, SEOUL, KOREA Attention: Kyung Suk Jung (Project Manager) DEMC#DR50110410C Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 4 of 23 2.1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer October 01, 2004 Kyung-Taek LEE Data Name Signature Report Reviewed By: manager October 01, 2004 Dong –Min JUNG Data Name Signature Ordering party: Company name : AXESS TELECOM CO., LTD. Address : 7F, SEONGDO BUILDING, 587-23, SINSA-DONG, GANGNAM-GU, Zipcode : 135-747 City/town : SEOUL Country : KOREA Date of order : September 13, 2004 DEMC#DR50110410C Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 5 of 23 3.1 INSERTS Function of Active Devices (Confidential) The Function of active devices are shown in Attachment K. Block & Schematic Diagrams (Confidential) The block diagrams are shown in Attachment I, and the schematic diagrams are shown in Attachment J. Operating Instructions The instruction manual is shown in Attachment M. Parts List & Tune-Up Procedure (Confidential) The parts list & tune-up procedure is shown in Attachment L. Description of Freq. Stabilization Circuit (Confidential) The description of frequency stabilization circuit is shown in Attachment K. Description for Suppression of Spurious Radiation, for Limiting Modulation, and Harmonic Suppresion Circuits (Confidential) The description of suppression stabilization circuits is shown in Attachment K. DEMC#DR50110410C Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 6 of 23 4.1 DESCRIPTION OF TESTS 4.2 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43+10log(P) dB. (b) Compliance with these provisions is based on the use of measurement instrumentation employing a resolution bandwidth of 1㎒ or greater. However, in the 1㎒ bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. The emission bandwidth is defined as the width of th…

Text truncated - open the document above for the full version.

TCBF009-2 rev 10 July 2003 Page 1 of 1 FCC GRANT OF EQUIPMENT AUTHORIZATION APPLICATION ALL RULE PARTS OTHER THAN 11, 15, AND 18 (PLEASE COMPLETE QUESTIONAIRE) 1. Type or types of emissions: _____ Licensed Portable Transmitter Held to Ear (PCE) 2. Frequency Range ______1851.25 ~ 1908.75 MHz (PCS CDMA) 3. Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power _____EIRP 27.38 - 29.61 dBm________________ 4. Maximum power rating as defined in the applicable rule part(s) ______________________________________ ____EIRP Max level 29.61 dBm(Conducted level 24.5dBm)______________________________ 5. dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range _____________________________________________________________ _________Normal voltage:120V ac ___________________________________________

DEMC#DR50110410D Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: September 22, 2004 Test Report S/N:DR50110410D Test Site : DIGITAL EMC CO., LTD. MODEL NO. APPLICANT EUT Type: CDMA 1x WLL Phone TX Frequency Range: 1851.25 ~1908.75 MHz (PCS CDMA) RX Frequency Range: 1931.25~1988.75MHz (PCS CDMA) RF Output Power: 0.748W EIRP PCS CDMA (28.74 dBm) - With Battery 0.914W EIRP PCS CDMA (29.61dBm) - With Charger Max. SAR Measurement: 1.070W/kg PCS CDMA Body SAR - With the Battery 1.150W/kg PCS CDMA Body SAR - With Charger Model(s): AX320 Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Application Type: Certification Test Device Serial No.: Identical prototype Data of issue September 22, 2004 D.M.JUNG (Manager) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RFLACW1XP1900 Axess Telecom Co., Ltd DEMC#DR50110410D Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 22 1. INTRODUCTION .................................................................................................................... 3 SAR DEFINITION .................................................................................................................. 3 2. SAR MEASUREMENT SETUP.................................................................................................. 4 Robotic System............................................................................................................................. 4 System Hardware ......................................................................................................................... 4 System Electronics........................................................................................................................ 4 3. DASY3 E-FIELD PROBE SYSTEM........................................................................................... 5 Probe Measurement System.......................................................................................................... 5 Probe Specifications ..................................................................................................................... 5 4. Probe Calibration Process............................................................................................................. 6 Dosimetric Assessment Procedure................................................................................................ 6 Free Space Assessment ................................................................................................................ 6 Temperature Assessment ............................................................................................................. 6 5. PHANTOM & EQUIVA…
