RFLACW1XT800CDMA Wireless Local Loop Terminal

Cautions Modifications not expressly approv ed by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that ma y cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursua nt to part 15 of the FCC Rules. These limits are designed to provid e reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi sion reception, which can be determined by turning the equi pment off and on, the user is encouraged to try to correct the in terference by one or more of the following measures: ▪ Reorient or relocate the receiving antenna. ▪ Increase the separation betw een the equipment and receiver ▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 31 1 USER’S MANUAL

7F, Seongdo Building, 587-23, Sinsa-Dong, Gangnam-Gu, Seoul 135-747, KOREA June 14, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd ., to act on our behalf in all manners relating to application for equipment authorization for model RFLACW1XT800. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Axess Telecom Co., Ltd. Sincerely, Harry Jung Project Manager

7F, Seongdo Building, 587-23, Sinsa-Dong, Gangnam-Gu, Seoul 135-747, KOREA June 14, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Axess Telecom Co., Ltd. FCC ID : RFLACW1XT800 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Axess Telecom Co., Ltd.. hereby requests confidentiality of the Schematics, Parts list, Turn-Up Procedure and Operational Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Axess Telecom Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Axess Telecom Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Harry Jung Project Manager

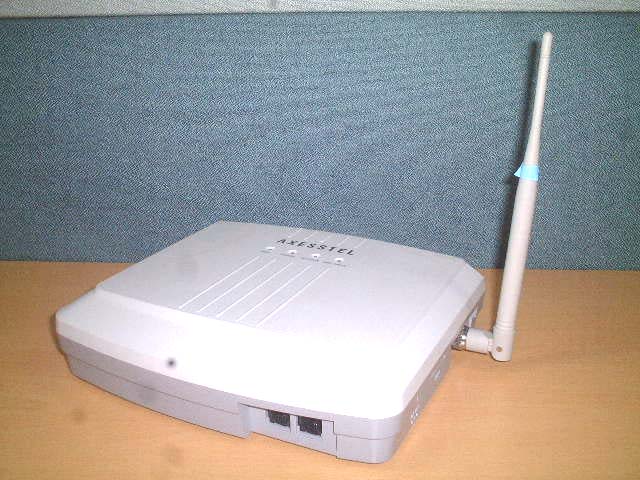

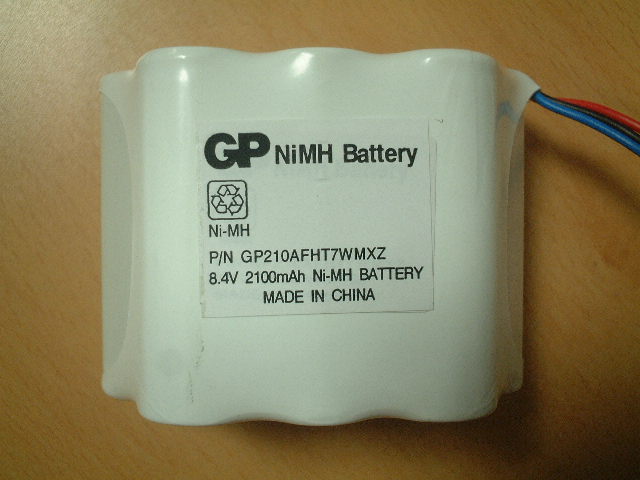

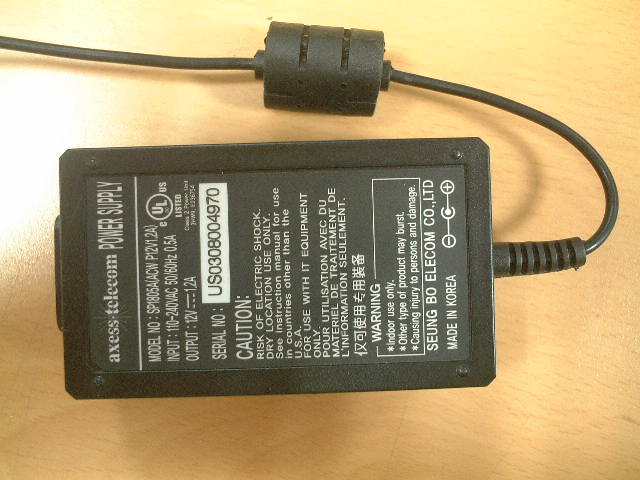

External Photograph FCC ID : RFLACW1XT800 External Photograph FCC ID : RFLACW1XT800 External Photograph FCC ID : RFLACW1XT800 External Photograph FCC ID : RFLACW1XT800 External Photograph FCC ID : RFLACW1XT800 External Photograph FCC ID : RFLACW1XT800

FCC ID : RFLACW1XT800 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : RFLACW1XT800 FCC IDENTIFICATION (NAME PLATE) INFORMATION CDMA FIXED WIRELESS TERMINAL FCC ID: RLFACW1XT800 MODEL: ACW-1XT800 Serial Number: ESN: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN KOREA

Internal Photograph FCC ID : RFLACW1XT800 Internal Photograph FCC ID : RFLACW1XT800 Internal Photograph FCC ID : RFLACW1XT800 Internal Photograph FCC ID : RFLACW1XT800

PROBE CALIBRATION DIGITAL EMC

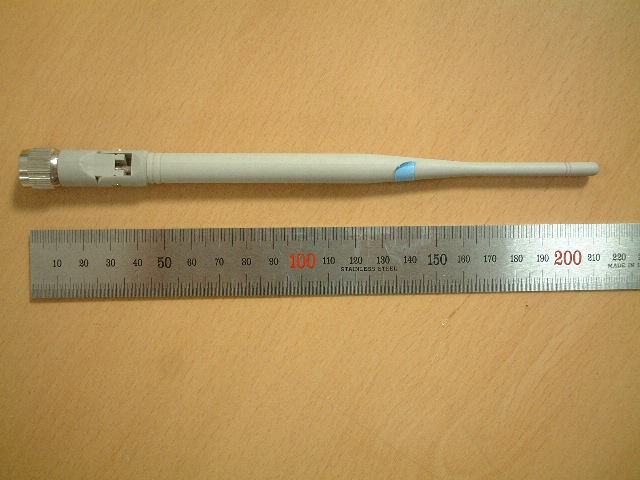

등록 번호 A104060702 개정 번호 0 등록 일자 2004-06-07 제품 규격서 (ANTENNA SPECIFICATION) PAGE 1/7 제품명 : 800 MHZ 대 λ/2 Sleeve Dipole Antenna MODEL : TB6-800T CODE : 납입선 : 엑세스텔레콤 관리부서 : 연구1팀 배포처 작성 확인 검토 승인 결재 강 대 봉 결재일자 2004-06-07 2004-06-07 HAF-L-003(R0) MODEL TB6-800T 등록번호 A104060702 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 2/7 1. 적 용 본 사양서는 800MHz帶 무선기기(WLL)에 사용되는 λ/2 DIPOLE ANTENNA 에 대해 규정한다. 2. ANTENNA 형상 도면참조. 3. 전기적 특성 및 성능 실 사용조건 또는 그에 상응하는 적합한 상태에서 다음을 만족할 것. 항목 특성/성능 비 고 사용주파수대 824 ~ 894 MHz 공칭IMPEDANCE 50 Ω V. S . W. R 1 : 1.8 이하 RADIATION OMNI-DIRECTION POLARIZATION VERTICAL 0 dBd min Peak gain GAIN -1.5 dBd min Average gain 4. 기구적 사양 및 특성 항목 사양/특성 비 고 RADIATOR RG-316 CABLE SLEEVE URETHANE IVORY BASE NYLON66 IVORY CONNECTOR TNC-MALE NI- PLATE TOTAL LENGTH 211±3mm HAF-L-004(R0) MODEL TB6-800T 등록번호 A104060702 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 3/7 5. 기타 성능 및 특성 5.1 내온성(耐溫性) 항목 성능 및 특성 비고 동작온도범위 -30°C~+70°C 온도CYCLE -40°C(1hr)→ -40°C~85°C(1hr) →85°C(1hr) 10 CYCLES 각 항목의 조건에서 눈에 띄는 변형이나, 고정부와 사출물 등에 기구적 변화가 없고, 4.3항을 만족 할 것. 5.2 내습성(耐濕性) Antenna를 주위온도 40°C, 상대습도 95％에 24시간 방치한 후, 상온상습 상태에서 24시간 방치 후 측정하여 외관, 각부의 구조에 이상이 없고, 4.3항을 만족 할 것. 5.3 내 낙하 Antenna를 2Kg의 Set(또는 JIG)에 사용 상태로 고정 시키고 0.75m 높이에서 사각 철판( 1000X1000X10mm 3 )에 1회 자유 낙하 시켰을 때, 외관, 각부의 구조에 이상이 없고, 4.3항을 만족 할 것. 5.4 내 진동 Antenna를 Set(또는 JIG)에 고정 시켜 세우고, Antenna를 완전히 뺀 상태로 하여, 주파수 8→25→8 Hz (1 CYCLE), 진폭 1.5mm, 가속도 2G, 1 Octave/min(Logarithmic)의 Sine파 진동을 X, Z 각 2방향으로 1 시간씩 인가한 후, 외관, 각부의 구조에 이상이 없고, 4.3항을 만족 할 것. 5.5 틸트 테스트 Antenna 커버와 베이스 사이인 틸트 부분을 0°~ 45°~ 90°씩 100회 구부린 후 커버와 베이스 접속 강도가 50gf ~ 400gf의 힘을 가질 것. 5.6 회전 테스트 Antenna 콘넥터 부분을 토르크 게이지가 연결된 지그에 연결하고 360°, 100회 회전 테스트 후 회전 강도가 1.0 ~ 2.5 kgf.cm 를 만족할 것. 6. 측정 및 검사 본 사양서에 정해진 사항 및 승인원상의 요구사항에 따르고, 당사 품질관리규정에 적합 할 것. 단 6항의 사항은 발주자와의 협의에 의해 생략할 수 있음. HAF-L-004(R0) MODEL TB6-800T 등록번호 A104060702 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 4/7 7. 포 장 제품의 포장은 지정된 포장 사양에 따를 것. 8. 보 증 본 제품은 납입 후 1년 이내에, 설계 또는 제작상의 불량이라고 판단되는 결함이 발생 하였을 경우, 즉시 무상 수리 또는 교환해 줄 의무가 있다. HAF-L-004(R0) MODEL TB4-800T 등록번호 S203080902 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 5/7 [ 첨부 1] Antenna 작업 공정도 TNCCABLETILT BASE4 ATILT BASE3 BJOINT PINPIPEGUIDE RINGSPRING HOLDERSPRINGSLEEVE 납땜 탈피 결합 (압착) 결합(punching) 결합 E/L부cable탈피 납땜 결합 측정 결합 (접착) 검사 세척 포장 HAF-L-004(R0) MODEL TB6-800T 등록번호 A104060702 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 6/7 [ 첨부 2] Antenna VSWR MODEL TB6-800T 등록번호 A104060702 CODE 개정번호 0 납입선 엑세스텔레콤 제품 규격서 (ANTENNA SPECIFICATION) PAGE 7/7 [ 첨부 3] Antenna pattern

PROBE CALIBRATION DIGITAL EMC

Dipole 835 MHz SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 2.57 mW/g, SAR (10g): 1.65 mW/g; Dipole validation: for f < 1 GHz, distance to the liquid d = 15 mm for f > 1 GHz, distance to the liquid d=10 mm Test Date -- June 18 / 2004 SAR Tot [mW/g] 2.72E-15.44E-18.15E-11.09E+01.36E+01.63E+01.90E+02.17E+02.45E+02.72E+0 <DIGITAL EMC>

Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Conducted Spurious CDMA Ch. 1013 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Conducted Spurious CDMA Ch. 0384 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Conducted Spurious CDMA Ch. 0777 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Power Out. CDMA Ch. 1013 Power Out. CDMA Ch. 0777 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Power Out. CDMA Ch. 0384 Channel Power. CDMA Ch. 0384 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Occupied Bandwidth. CDMA Ch. 0384 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Band Edge. CDMA Ch. 1013 Band Edge. CDMA Ch. 0777 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Band Edge - Block a. CDMA Ch. 0310 Band Edge - Block b. CDMA Ch. 0357 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Band Edge - Block a. CDMA Ch. 0643. Band Edge - Block b. CDMA Ch. 0690 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 Band Edge - Block a. CDMA Ch. 0693 Band Edge - Block b. CDMA Ch. 0740 Spectrum Analyzer Presentation FCC ID: RFLACW1XT800 FCC ID: Manufacturer: CDMA 1x WLL Phone Channel: Test Mode: RFLACW1XT800 AXESS TELECOM CO., LTD. 869.0 ~ 894.0 MHz CDMA Receiving Band DIGITAL EMC TOKIN 11 June,2004 15:31 ACW-1XT800_Tx.dat <<CONDUCTED EMISSION>> Standard: FCC P15Manufacturer: Axess Telecom Model: ACW-1XT800 Operator: K.T.LEE AC Power: 120V 60Hz Temp,Humidity: 27 52 Remark1: Traffix mode Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACW-1XT800_Tx> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 11 June,2004 15:31 ACW-1XT800_Tx.dat <<CONDUCTED EMISSION>> Standard: FCC P15Manufacturer: Axess Telecom Model: ACW-1XT800 Operator: K.T.LEE AC Power: 120V 60Hz Temp,Humidity: 27 52 Remark1: Traffix mode Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACW-1XT800_Tx> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 11 June,2004 15:31 ACW-1XT800_Tx.dat Standard : FCC P15 Manufacturer : Axess Telecom Model : ACW-1XT800 Operator : K.T.LEE AC Power : 120V 60Hz Temp,Humidity : 27 52 Remark1 : Traffix mode Remark2 : Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.194 49.1 38.9 1.2 50.3 40.1 63.9 53.9 13.6 13.8 2 0.259 44.1 36.2 0.9 45.0 37.1 61.5 51.5 16.5 14.4 3 0.453 37.1 37.0 0.3 37.4 37.3 56.8 46.8 19.4 9.5 4 0.518 37.4 36.6 0.3 37.7 36.9 56.0 46.0 18.3 9.1 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.194 49.0 40.0 1.1 50.1 41.1 63.9 53.9 13.8 12.8 2 0.259 44.4 38.1 0.9 45.3 39.0 61.5 51.5 16.2 12.5 3 0.454 40.0 39.5 0.4 40.4 39.9 56.8 46.8 16.4 6.9 4 0.518 39.3 38.7 0.3 39.6 39.0 56.0 46.0 16.4 7.0 DIGITAL EMC TOKIN 11 June,2004 15:44 ACW-1XT800_Rx.dat <<CONDUCTED EMISSION>> Standard: FCC P15Manufacturer: Axess Telecom Model: ACW-1XT800 Operator: K.T.LEE AC Power: 120V 60Hz Temp,Humidity: 27 52 Remark1: Idle mode Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACW-1XT800_Rx> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 11 June,2004 15:44 ACW-1XT800_Rx.dat <<CONDUCTED EMISSION>> Standard: FCC P15Manufacturer: Axess Telecom Model: ACW-1XT800 Operator: K.T.LEE AC Power: 120V 60Hz Temp,Humidity: 27 52 Remark1: Idle mode Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 100 10 20 30 40 50 60 70 80 90 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACW-1XT800_Rx> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 11 June,2004 15:44 ACW-1XT800_Rx.dat Standard : FCC P15 Manufacturer : Axess Telecom Model : ACW-1XT800 Operator : K.T.LEE AC Power : 120V 60Hz Temp,Humidity : 27 52 Remark1 : Idle mode Remark2 : Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.194 46.9 39.5 1.2 48.1 40.7 63.9 53.9 15.8 13.2 2 0.259 40.5 34.9 0.9 41.4 35.8 61.5 51.5 20.1 15.7 3 0.453 40.5 40.0 0.3 40.8 40.3 56.8 46.8 16.0 6.5 4 0.517 35.3 34.8 0.3 35.6 35.1 56.0 46.0 20.4 10.9 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.193 46.6 41.3 1.1 47.7 42.4 63.9 53.9 16.2 11.5 2 0.258 41.1 37.7 0.9 42.0 38.6 61.5 51.5 19.5 12.9 3 0.453 42.1 41.8 0.4 42.5 42.2 56.8 46.8 14.3 4.6 4 0.518 35.9 35.1 0.3 36.2 35.4 56.0 46.0 19.8 10.6 5 0.323 35.1 31.5 0.7 35.8 32.2 59.6 49.6 23.8 17.4

TCBF009-2 rev 10 July 2003 Page 1 of 1 FCC GRANT OF EQUIPMENT AUTHORIZATION APPLICATION ALL RULE PARTS OTHER THAN 11, 15, AND 18 (PLEASE COMPLETE QUESTIONAIRE) 1. Type or types of emissions: _____ Licensed Non-Broadcast Station Transmitter (TNB)_______________ 2. Frequency Range ______824.7-848.31MHz_____________________________________________________ 3. Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power _____________________________________________________________________ _________________ ERP 27.69 ~ 28.34dBm ______________________________ 4. Maximum power rating as defined in the applicable rule part(s) ______________________________________ __________________ERP Max level 28.34 dBm(Conducted level 24.0dBm)______________________________ 5. dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range _____________________________________________________________ _________Normal voltage: 120Vac ___________________________________________

Close From: Kyung-Taek LEE [SMTP:[email protected]] To: Chris Harvey Cc: Chris Harvey; MET Lab (Mrs. Marianne Bosley) Subject: RE: Additional Information needed for MT#15711 FCC ID: RFLACW1XT800 --- 1/2 Sent: 6/29/2004 2:26 AM Importance: Normal mail: 1/2 Dear Mr. Chris Harvey, I resend the corrected documents. thank you. Best Regards, K.T. LEE -----Original Message----- From: Kyung-Taek LEE [mailto:[email protected]] Sent: Saturday, June 26, 2004 1:55 PM To: Chris Harvey Subject: RE: Additional Information needed for MT#15711 FCC ID: RFLACW1XT800 Hello, Thank you very much for your help. 1. That's right. 0.2W RF Power is conducted and 0.682W RF power is Radiated. I could not understand too it. so we tested our reference CDMA phone. and I confirmed our measurement is right. I can not explain no more about this ERP data. please let me know how must I do? 2. I will record power drift of DAGY 3. -> please refer to the SAR report. 3.We received the tune-up procedure indicates control by DTMF codes from our customer. but this method is wrong. because the declination of the power is so extreme during the test. so we tested it by Base Station simulator control. --> please refer to the SAR report. 4 please refer to the corrected SAR test report. 5. We make a blunder. we recalculated the SAR data by ConvF(6.3). very sorry. 6. refer to the corrected user's manual. 7. refer to the Validation data. Best regards, K.T. LEE -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Friday, June 25, 2004 12:14 AM Page 1 of 3RE: Additional Information needed for MT#15711 FCC ID: RFLACW1XT800 --- 1/2 6/30/2004https://www.metlabs.com/exchange/forms/IPM/NOTE/read.asp?command=open&obj=0000000... To: 'Kyung-Taek LEE' Cc: Marianne Bosley Subject: Additional Information needed for MT#15711 FCC ID: RFLACW1XT800 KT, I have performed the review of the above referenced application and find that the following items need to be addressed before review can continue: 1. The RF test report indicates a measured ERP or 0.682 Watts maximum, however the Operational Description specification indicates a 0.20W maximum RF power (assumed to be conducted) and a maximum antenna gain of 1 +/- 1dBi. Please explain this. 2. The SAR report RF Power Measurement column has a note stating ‘always up’, but does not explain what this means. Please provide the RF power measurements before and after the SAR test to be sure there is no Power Drift. The power measurements should be consistent through the SAR and RF reports and the specifications provided. 3. The SAR report indicates that the EUT was operated by Base Station simulator control, however there is no Base Station simulator listed in the test equipment list. Additionally, the tune-up procedure indicates control by DTMF codes. Please explain this discrepancy. 4. The SAR dielectric property measurement table indicates measurements were performed on April 23, 2004, and the Validation was performed on June 16, 2004 however the SAR test was performed on June 18, 2004. The dielectric properties and system check measurements must be performed on each day the SAR measurements are performed. 5. The SAR probe calibration (s/n: 1702) has ConvF factors for body 900MHz of 6.3, however the SAR plots show factors of 6.6. Please explain. 6. The Users Manual has an RF Exposure stating Body-worn information. This device is a desk/wall mount device and therefore body-worn operation is not appropriate. Please adjust this information in the manual to indicate near-body operation and specify the 2.5cm separation requirement as documented in the SAR measurements. 7. Please provide the Validation Dipole calibration information. Page 2 of 3RE: Additional Information needed for MT#15711 FCC ID: RFLACW1XT800 --- 1/2 6/30/2004https://www.metlabs.com/exchange/forms/IPM/NOTE/read.asp?command=open&obj=0000000... Additionally, please note that the E-911 requirements of 22.921 only apply to the Analog operation. Additionally the ESN requirements of 22.919 have been removed from the FCC rules. Also, 22.901 (d) does not exist any more and has been replaced with the 22-H (Pt. 22 Subpart H) designation. Please contact me if you have any questions. Best regards, Chris Harvey [email protected] RFLACW1XT800_SAR Plots.pdf RFLACW1XT800_RF Test Report.pdf ACW-1XT800_User manua- revised.pdf Page 3 of 3RE: Additional Information needed for MT#15711 FCC ID: RFLACW1XT800 --- 1/2 6/30/2004https://www.metlabs.com/exchange/forms/IPM/NOTE/read.asp?command=open&obj=0000000...

DEMC#DR50110406I Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: June 18, 2004 Test Report S/N:DR50110406I Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) EUT Type: CDMA FIXED WIRELESS TERMINAL Brand name / Model name: AXESSTEL / ACW-1xT800 Test Device Serial No.: 1879663146 Buyer Name / Model Name Brightstar Corporation / STARTEL 800xt TX Frequency Range: Tx: 824.70 ~848.31 MHz (CDMA) / Rx: 869.70 ~893.31 MHz (CDMA) Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] RF Output Power: 0.640W ERP CDMA (28.06 dBm) - With Battery 0.682 ERP CDMA (28.34 dBm) - With Charger Max. SAR Measurement: 0.778W/kg CDMA Body SAR - With Battery 0.783W/kg CDMA Body SAR - With Charger Application Type: Certification Data of issue June 18, 2004 D.M.JUNG (Manager) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RFLACW1XT800 Axess Telecom Co., Ltd DEMC#DR50110406I Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 22 1. INTRODUCTION .................................................................................................................... 3 SAR DEFINITION .................................................................................................................. 3 2. SAR MEASUREMENT SETUP.................................................................................................. 4 Robotic System............................................................................................................................. 4 System Hardware ......................................................................................................................... 4 System Electronics........................................................................................................................ 4 3. DASY3 E-FIELD PROBE SYSTEM........................................................................................... 5 Probe Measurement System.......................................................................................................... 5 Probe Specifications ..................................................................................................................... 5 4. Probe Calibration Process............................................................................................................. 6 Dosimetric Assessment Procedure................................................................................................ 6 Free Space Assessment ................................................................................................................ 6 Temperature Assessment ............................................................................................................. 6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................... 7 SAM Phantom ............................................................................................................................. 7 Brain & Muscle Simulating Mixture Characterization ................................................................ 7 Device Holder for Transmitters.................................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS............................................................................................ 8 Automated Test System Specifications......................................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ............................................................. 9 Measurement Procedure................................................................................................................ 9 Specific Anthropomorphic Mannequin (SAM) Specifications..................................................... 9 8. DEFINITION OF REFERENCE POINTS .................................................................................. 10 EAR Reference Point.................................................................................................................... 10 Handset Reference Points............................................................................................................. 10 9. TEST CONFIGURATION POSITIONS ..................................................................................... 11 Positioning for Cheek/Touch ....................................................................................................... 11 Positioning for Ear /15° Tilt ......................................................................................................... 12 Body Holster /Belt Clip Configurations ....................................................................................... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS..................................................................... 14 Uncontrolled Environment ........................................................................................................... 14 Controlled Environment................................................................................................................ 14 11. MEASUREMENT…

Text truncated - open the document above for the full version.

ACW-1xT800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.699 mW/g, SAR (10g): 0.488 mW/g; FCC ID: RFLACW1XT800 CDMA Mode, Ch.1013[824.7MHz] ; Charger ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = 24dBm ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 6.97E-21.39E-12.09E-12.79E-13.49E-14.18E-14.88E-15.58E-16.27E-16.97E-1 <DIGITAL EMC> ACW-1xT800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.783 mW/g, SAR (10g): 0.549 mW/g; FCC ID: RFLACW1XT800 CDMA Mode, Ch.384[836.52MHz] ; Charger ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = 24dBm ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 7.91E-21.58E-12.37E-13.16E-13.96E-14.75E-15.54E-16.33E-17.12E-17.91E-1 <DIGITAL EMC> ACW-1xT800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.652 mW/g, SAR (10g): 0.456 mW/g; FCC ID: RFLACW1XT800 CDMA Mode, Ch.777[848.13MHz] ; Charger ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = 24dBm ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 6.71E-21.34E-12.01E-12.68E-13.36E-14.03E-14.70E-15.37E-16.04E-16.71E-1 <DIGITAL EMC> ACW-1xT800 SAM(835MHz) Phantom; Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; ; FCC ID: RFLACW1XT800 CDMA Mode, Ch.384[836.52MHz] ; Charger ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = 24dBm ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] <DIGITAL EMC> 0.00.10.20.30.40.50.60.70.80.91.01.11.2 0 1020304050 SAR tot [mW/g] [mm] ACW-1xT800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.709 mW/g, SAR (10g): 0.492 mW/g; FCC ID: RFLACW1XT800 CDMA Mode, Ch.1013[824.7MHz] ; Standard Battery ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = 24dBm ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 7.02E-21.40E-12.11E-12.81E-13.51E-14.21E-14.91E-15.62E-16.32E-17.02E-1 <DIGITAL EMC> ACW-1xT800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.778 mW/g, SAR (10g): 0.544 mW/g; FCC ID: RFLACW1XT800 CDMA Mode, Ch.384[836.52MHz] ; Standard Battery ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = 24dBm ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 7.82E-21.56E-12.35E-13.13E-13.91E-14.69E-15.47E-16.26E-17.04E-17.82E-1 <DIGITAL EMC> ACW-1xT800 SAM(835MHz) Phantom; Flat Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.651 mW/g, SAR (10g): 0.459 mW/g; FCC ID: RFLACW1XT800 CDMA Mode, Ch.777[848.13MHz] ; Standard Battery ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = 24dBm ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 6.78E-21.36E-12.03E-12.71E-13.39E-14.07E-14.75E-15.42E-16.10E-16.78E-1 <DIGITAL EMC> ACW-1xT800 SAM(835MHz) Phantom; Section; Probe: ET3DV6 - SN1702; ConvF(6.30,6.30,6.30); 835 MHz Body: σ = 0.96 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; ; FCC ID: RFLACW1XT800 CDMA Mode, Ch.384[836.52MHz] ; Standard Battery ; Ambient Temp = 21 °C /Meas. Tissue Temp. = 21 °C Power = 24dBm ; Spacing = 2.5cm From antenna to flat phantom ; Antenna Fixed Test Date -- June 18 / 2004 [FCC/OET Bulletin65 - Supplement C, July 2001] <DIGITAL EMC> 0.00.10.20.30.40.50.60.70.80.91.01.11.2 0 1020304050 SAR tot [mW/g] [mm]

DEMC#DR50110406H Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Dates of Tests: June 12 ~ 17, 2004 Test Report S/N:DR50110406H Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s) : §22(H), §15, §2 EUT Type : CDMA WIRELESS LOCAL LOOP TERMINAL Brand name…
