RFLACW1XP800800MHz CDMA WLL Phone

UBISTAR CO.,LTD.
800MHz CDMA WLL Phone - FCC ID RFLACW1XP800 - UBISTAR CO.,LTD.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Sep 04, 2003
Application Purpose
Original Equipment
Date of Application
Sep 04, 2003
Equipment Note
800MHz CDMA WLL Phone
Frequency Range
824.64000000 - 848.37000000
Company
UBISTAR CO.,LTD.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

ID Label/Location Info

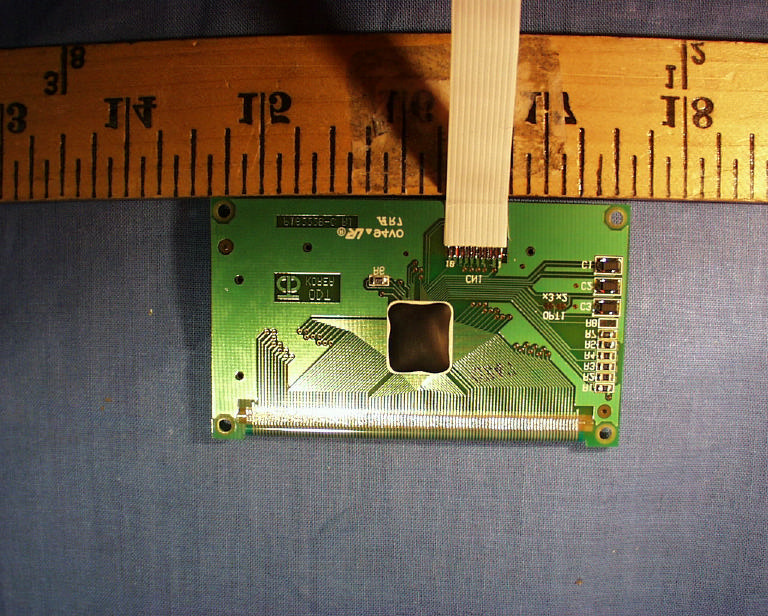

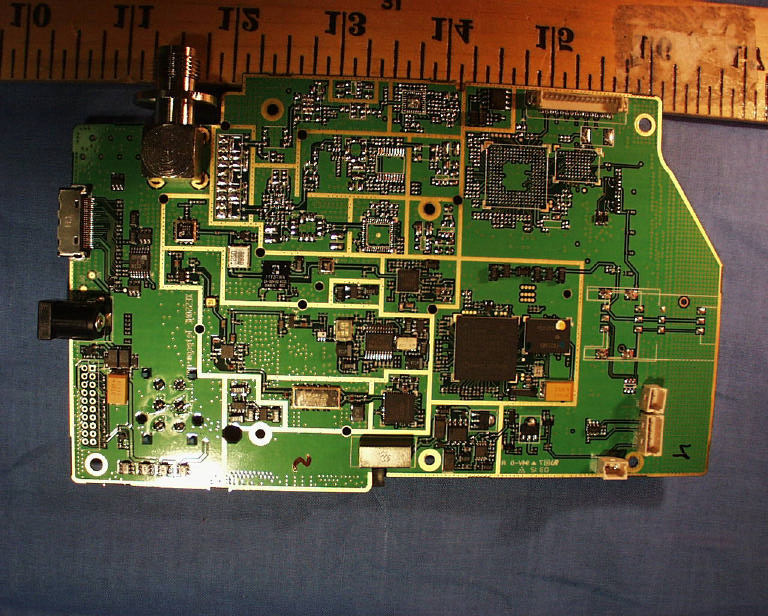

Internal Photos

↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗
↗
↗
↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

RF Exposure Information THIS MODEL PHONE MEETS THE GOVERNMENT ’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Near-by Person Operation This device was tested for typical operations with the antenna of the phone kept 1.5 cm from the body. To maintain compliance with FCC RF exposure requirements, maintain a 1.5 cm separation distance between the user’s body and the phone, including the antenna. WARNING! Read this information before using your phone

Cover Letter(s)

7/ 42 AXESSTELECOM Confidential Proprietary CDMA Wireless Local Loop ACW-1XP800 1-4 ANT Specification This Antenna Data is a Frequency band 800MHz and λ/2 sleeve dipole Item Specification Remark Band 824 ~ 894 MHz IMPEDANCE 50 Ω V.S.W.R Less than 1 : 2.0 RADIATION OMNI-DIRECTIONAL POLARIZATION VERTICAL GAIN 2 ±1.0dBi RADIATOR RG-316 CABLE SLEEVE URETHANE BASE PA 90° Tilt CONNECTOR TNC-MALE 45°Clicking snap TOTAL LENGTH - Refer to Diagram Operation Temperature -30°C~+70°C

Parts List/Tune Up Info

Adjusting Procedures 1. Setting of Test Frequencies By using XXXXX Programmer application, test frequencies and other parameters are to be set as below. CH01 Tx 150.025Mhz For adjustment ID000 Rx 150.025MHz CH02 Tx 173.975MHz For adjustment ID000 Rx 173.975MHz CH03 Tx 162.000MHz For adjustment ID000 Rx 162.000MHz CH04 Tx 161.550MHz For Tx test ID123 Rx 161.550MHz Other parameters SW8 BA172 TB136 LC9 LT10 HP0 RE1 Parameters not being shown on this table are to be set with default value. 2. VCO Adjustment 2.1. Contact the probe of digital voltmeter at the test point TP(PCV). 2.2. Select CH01 and turn T10 for obtaining 0.3V at TP(PCV). 2.3. Select CH02 and check the voltage below 5V. 2.4. Select CH03 and read the voltage. 2.5. Press PTT and turn T9 for obtaining the same voltage above. (If, by turning the T9, the voltage obtained cannot reach to the one above, take the closest value.) 2.6. Contact the probe of digital voltmeter at the test point TP(AF). 2.7. Turn the T8 for obtaining 1.5V. 2.8. Turn the RV5 counterclockwise until it stops. 3. DSP Adjustment 3.1. Input the AF signal of 1KHz / 10mV (-38dBm) to the MIC IN port. 3.2. Turn the RV1 on the DSP PCB to max. 3.3. Contact the probe of digital voltmeter at TP1, and turn to adjust the RV2 to obtain 0.53V (1.5Vp-p). 3.4. Contact the probe of digital voltmeter at CN2.4TP on DSP PCB, and turn to adjust the RV3 to obtain 0.25V (0.7Vp-p). 3.5. Contact the probe of digital voltmeter at T-AF on CPU PCB, and turn to adjust the RV4 to obtain 0.42V (1.2Vp-p). 4. Tx Adjustment 4.1. Set the TCX1 at 160.000MHz. 4.2. Select CH03, and turn the RF output power to “H” by the H/L Switch. 4.3. Turn the H-PW(RV2) counterclockwise to max. for inactivating the APC. 4.4. Connect a Dummy Load and Watt Meter to the Antenna. 4.5. Press PTT button, and adjust to obtain the peak value at T1 and T2. 4.6. Turn the RV1 to obtain approx. 1.4W, and adjust the TC1 to get the peak value and TC2 to get the lowest current. <Notes> ?? By turning the RV1, the RF output power will be saturated and make the current tend to be increased. Stop turning the RV1 just before the point where the saturation occurs. ?? If the RF output power cannot reach to 1.4W, the adjustment can be done with the lower power, i.e. 1.3W. 4.7. Check the RF output power to get approx. 1.4W on CH01 and CH02. If the power is low, readjust the T1 and T2. 4.8. Turn the H-PW to obtain 1W. 4.9. Turn the H/L Switch to “L” and adjust the L-PW(RV3) to obtain 0.1W. <Notes> ?? The current at the High Power should be 0.6 – 0.7V. 4.10. Check the RF output power to be over 1W on both CH01 and CH02. 4.11. Input the AF signal at 10mV from MIC IN. 4.12. Select CH03 and adjust the DEV(RV4) to obtain 4.5KHz DEV. 4.13. Check the Tx spurious by spectrum analyzer. 5. Rx Adjustment 5.1. Select the CH01. 5.2. Contact the probe of TG at the TR and obtain the peak value at T3 and T7. <Notes> ?? Set the spectrum analyzer with CENTER 160MHz, SPAN 50MHz, and TG output –30dBm. ?? Peak level should be over –10dBm. 5.3. Select CH02 and CH03, and check the wave shape to show the peak at 172MHz and 160MHz. 5.4. Connect 16 ohm Dummy Load at AF output port, and connect the SINAD Meter. 5.5. Measure the sensitivity on each CH01, CH02, and CH03 to meet the specs. <Notes> ?? To obtain 12dB SINAD at –120dBm. 5.6. Set the SG at –117dBm, and turn to adjust the SQ(RV5) at the point where the squelch is completely opened. 5.7. Should proper adjustment be done, no less than 140mW is obtained at the maximum position of VR.

RF Exposure Info

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Wireless Local Loop Phone (CDMA) Model: ACW-1xP800 FCC ID: RFLACW1XP800 August 19, 2003 REPORT NO: 03I2101-2 Prepared for Axess Telecom Co., Ltd. 3F, Sin Young B/D, 689-47, Kumjeong-Dong Kunpo-Si, Kyunggi-Do, 435-862, Korea Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03I2101-2 DATE: August 19, 2003 FCC ID: RFLACW1XP800 COMPLIANCE CERTIFICATION SERVICES Page 2 of 20 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: August 19, 2003 APPLICANT: Axess Telecom Co., Ltd. 3F, Sin Young B/D, 689-47, Kumjeong-Dong Kunpo-Si, Kyunggi-Do, 435-862, Korea MODEL: ACW-1xP800 FCC ID: RFLACW1XP800 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: CDMA Operating mode: Maximum continuous output Tx Frequency: 824.64MHz to 848.37MHz Max. O/P Power: 25.0 dBm (Conducted/AVE) Max. SAR (1g): 1.26 mW/g Application type: Certification FCC Rule part(s): §2.1093 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03I2101-2 DATE: August 19, 2003 FCC ID: RFLACW1XP800 COMPLIANCE CERTIFICATION SERVICES Page 3 of 20 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EUT DESCRIPTIONS...........................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC...............5 3. DOSIMETRIC ASSESSMENT SYSTEM.................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM............................................................................................6 3.2. SYSTEM COMPONENTS................................................................................................................7 4. EVALUATION PROCEDURES..............................................................................9 5. MEASUREMENT UNCERTAINTY.......................................................................11 6. EXPOSURE LIMIT..............................................................................................12 7. MEASUREMENT RESULTS...............................................................................13 7.1. SYSTEM PERFORMANCE CHECK..............................................................................................13 7.2. MEASUREMENT THE DIELECTRIC PARAMETERS OF SIMULATING LIQUIDS.......................14 7.3. EUT TUNE-UP PROCEDURES.....................................................................................................14 7.4. EUT SETUP PHOTOS...................................................................................................................15 7.5. SAR MEASUREMENT RESULTS.................................................................................................16 8. EUT PHOTOS....................................................................................................17 9. EQUIPMENT LIST & CALIBRATION STATUS.....................................................18 10. REFERENCES...................................................................................................19 11. ATTACHMENTS................................................................................................20 REPORT NO: 03I2101-2 DATE: August 19, 2003 FCC ID: RFLACW1XP800 COMPLIANCE CERTIFICATION SERVICES Page 4 of 20 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTIONS APPLICANT: Axess Telecom Co., Ltd. 3F, Sin Young B/D, 689-47, Kumjeong-Dong Kunpo-Si, Kyunggi-Do, 435-862, Korea MODEL: ACW-1xP800 FCC ID: RFLACW1XP800 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: CDMA Operating mode: Maximum continuous output Tx Frequency: 824.64MHz to 848.37MHz Max. O/P Power: 25.0 dBm (Conducted/AVE) Max. SAR (1g): 1.26 mW/g Application type: Certification FCC Rule part(s): §2.1093 Antenna: Dimensions: Approx.: 180 mm x 5 ~10.5 mm diameter. 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. REPORT NO: 03I2101-2 DATE: August 19, 2003 FCC ID: RFLACW1XP800 COMPLIANCE CERTIFICATION SERVICES Page 5 of 20 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision …

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 08/19/03 11:59:58 Test Laboratory: Compliance Certification Services File Name: ACW-1X P800_BodySection.da4 DUT: Access Telecom Co., Ltd; Type: ACW-1XP800; Serial: N/A Program: Body Section Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CDMA; Frequency: 824.64 MHz;Duty Cycle: 1:1 Medium: Body 835 MHz (σ = 0.9528 mho/m, ε r = 55.4766, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 z Sensor-Surface: 3.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body - Low/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 34 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.41 mW/g Body - Low/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.75 W/kg SAR(1 g) = 1.26 mW/g ; SAR(10 g) = 0.867 mW/g Reference Value = 34 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.39 mW/g Date/Time: 08/19/03 11:59:58 Test Laboratory: Compliance Certification Services File Name: ACW-1X P800_BodySection.da4 DUT: Access Telecom Co., Ltd; Type: ACW-1XP800; Serial: N/A Program: Body Section Communication System: CDMA; Frequency: 824.64 MHz;Duty Cycle: 1:1 Medium: Body 835 MHz (σ = 0.9528 mho/m, ε r = 55.4766, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body - Low/Z Scan (1x1x22): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 34 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.08 mW/g Date/Time: 08/19/03 12:31:08 Test Laboratory: Compliance Certification Services File Name: ACW-1X P800_BodySection.da4 DUT: Access Telecom Co., Ltd; Type: ACW-1XP800; Serial: N/A Program: Body Section Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium: Body 835 MHz (σ = 0.9528 mho/m, ε r = 55.4766, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 z Sensor-Surface: 3.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body - Middle/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 29.4 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.968 mW/g Body - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.875 mW/g ; SAR(10 g) = 0.6 mW/g Reference Value = 29.4 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.962 mW/g Date/Time: 08/19/03 13:03:48 Test Laboratory: Compliance Certification Services File Name: ACW-1X P800_BodySection.da4 DUT: Access Telecom Co., Ltd; Type: ACW-1XP800; Serial: N/A Program: Body Section Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CDMA; Frequency: 848.37 MHz;Duty Cycle: 1:1 Medium: Body 835 MHz (σ = 0.9528 mho/m, ε r = 55.4766, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 z Sensor-Surface: 3.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body - High/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 36.1 V/m Power Drift = -0.08 dB Maximum value of SAR = 1.4 mW/g Body - High/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.73 W/kg SAR(1 g) = 1.26 mW/g ; SAR(10 g) = 0.863 mW/g Reference Value = 36.1 V/m Power Drift = -0.08 dB Maximum value of SAR = 1.38 mW/g Date/Time: 08/19/03 14:02:26 Test Laboratory: Compliance Certification Services File Name: ACW-1X P800_BodySection-C2.da4 DUT: Access Telecom Co., Ltd; Type: ACW-1XP800; Serial: N/A Program: Body Section_EUT Set up Configuration 2 Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CDMA; Frequency: 824.64 MHz;Duty Cycle: 1:1 Medium: Body 835 MHz (σ = 0.9528 mho/m, ε r = 55.4766, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 z Sensor-Surface: 3.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body - Low/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 23.9 V/m Power Drift = -0.14 dB Maximum value of SAR = 0.663 mW/g Body - Low/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.794 W/kg SAR(1 g) = 0.597 mW/g ; SAR(10 g) = 0.427 mW/g Reference Value = 23.9 V/m Power Drift = -0.14 dB Maximum value of SAR = 0.647 mW/g Date/Time: 08/19/03 14:02:26 Test Laboratory: Compliance Certification Services File Name: ACW-1X P800_BodySection-C2.da4 DUT: Access Telecom Co., Ltd; Type: ACW-1XP800; Serial: N/A Program: Body Section_EUT Set up Configuration 2 Communication System: CDMA; Frequency: 824.64 MHz;Duty Cycle: 1:1 Medium: Body 835 MHz (σ = 0.9528 mho/m, ε r = 55.4766, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.3, 6.3, 6.3); Calibrated: 7/29/2003 z Sensor-Surf…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 08/19/03 10:50:46 Test Laboratory: Compliance Certification Services File Name: D900V2SN108_081803.da4 DUT: Dipole 900 MHz; Type: D900V2; Serial: 108 Program: System Performance Check at 900 MHz Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.9347 mho/m, ε r = 41.049, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=15mm, Pin=250mW/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 55.4 V/m Power Drift = -0.02 dB Maximum value of SAR = 2.79 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 3.96 W/kg SAR(1 g) = 2.62 mW/g ; SAR(10 g) = 1.67 mW/g Reference Value = 55.4 V/m Power Drift = -0.02 dB Maximum value of SAR = 2.81 mW/g Date/Time: 08/18/03 16:57:46 Test Laboratory: Compliance Certification Services File Name: D900V2SN108_081803.da4 DUT: Dipole 900 MHz; Type: D900V2; Serial: 108 Program: System Performance Check at 900 MHz Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.9347 mho/m, ε r = 41.049, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=15mm, Pin=250mW/Z Scan (1x1x23): Measurement grid: dx=20mm, dy=20mm, dz=5mm Reference Value = 55.4 V/m Power Drift = -0.03 dB Maximum value of SAR = 2.08 mW/g

Test Report

FCC CFR47 CERTIFICATION PART 22H TEST REPORT FOR 800 MHZ CDMA WLL PHONE MODEL: ACW-1XP800 FCC ID: RFLACW1XP800 REPORT NUMBER: 03I2101-1 ISSUE DATE: Aug. 24, 2003 Prepared for AXESS TELECOM CO., LTD 3F, SIN YOUNG B/D, 689-47, KUMJEONG-DONG, KUNPO-SI KYUNGGI-DO, 435-862 KOREA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 2 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION..........................................................................................3 2. EUT DESCRIPTION...............................................................................................................4 3. TEST METHODOLOGY.........................................................................................................4 4. TEST FACILITY.....................................................................................................................4 5. ACCREDITATION AND LISTING.........................................................................................4 6. MEASURING INSTRUMENT CALIBRATION......................................................................4 7. TEST SETUP, PROCEDURE AND RESULT..........................................................................5 7.1. SECTION 2.1046: RF POWER OUTPUT.............................................................................5 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS.................................................14 7.3. SECTION 2.1049: EMISSION MASK & OCCUPIED BANDWIDTH.................................14 7.4. SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL............................18 7.5. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION................................31 7.6. SECTION 2.1055: FREQUENCY STABILITY...................................................................35 7.7. RADIATED EMISSION....................................................................................................39 7.8. POWERLINE CONDUCTED EMISSION..........................................................................52 REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 3 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: AXESS TELECOM CO., LTD 3F, SIN YOUNG B/D, 689-47, KUMJEONG-DONG, KUNPO-SI KYUNGGI-DO, 435-862 KOREA EUT DESCRIPTION: 800 MHZ CDMA WLL PHONE MODEM NAME: ACW-1XP800 DATE TESTED: AUGUST 11, 2003 TO AUGUST 15, 2003 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE LICENSED TX MODULE IN MOBILE APPLICATION MEASUREMENT PROCEDURE ANSI 63.4 / 2001, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 22 Subpart H Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 22 Subpart H-Cellular Radiotelephone Service. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Tested By: Released For CCS By: VIEN TRAN THU CHAN EMC ENGINEER EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 4 of 58 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The WLL Phone has an output power 29.1dBm (CDMA, ERP). It has a PIFA type antenna, 2dBi gain which is designed for the bands transmitting of frequency range 824 ~ 849MHz. 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures documented on chapter 13 of ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 5. ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions tests are accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code: 200065-0 to perform Electromagnetic Interference tests according to FCC PART 15 AND CISPR 22 requirements. No part of this report may be used t…

Text truncated - open the document above for the full version.

Test Setup Photos

REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 10 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emissions X-Position REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 11 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Y-Position REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 12 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Z-Position REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 14 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS Not Applicable. 7.3. SECTION 2.1049: EMISSION MASK & OCCUPIED BANDWIDTH PROVISIONS APPLICABLE According to CFR 47 section 22.917. TEST SETUP Set-up Configuration EUT (WLL PHONE) 10dB ANTENUATION SPECTRUM ANALYZER REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 48 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission photos Configuration 1, front view: REPORT NO: 03I2101-1 DATE: AUGUST 24,2003 EUT: 800 MHZ CDMA WLL PHONE FCC ID: RFLACW1XP800 Page 49 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Configuration 1, rear view:

Contact Information

Applicant

Jin-Sik Min(Director)
[email protected]82-2-549-8402Fax: 82-2-543-8265

Test Firm

Compliance Certification Services IncSteve Cheng
[email protected]408-463-0885Fax: 408-463-0888

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
122.901(d)824.64 MHz - 848.37 MHz813.00 mW1M25F9W2.5000000000 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is ERP. RF Exposure compliance is based on body SAR testing with a separation distance of 1.5 cm between the antenna and body of the user in the configuration tested. The highest reported SAR value is 1.26 W/kg (body).
