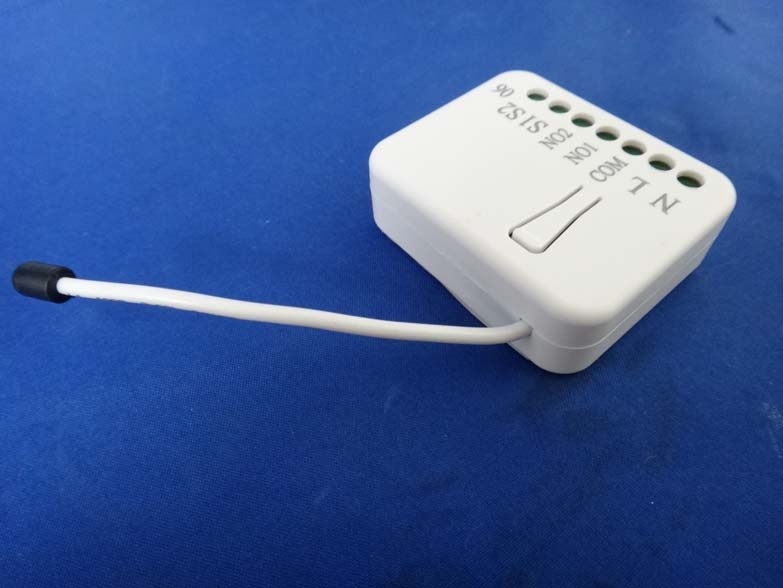

PAN04-1/-2/-3 In Wall Dual relay(1 way) switch module P Fig 1. Assembling This in-wall dual relay switch module is a transceiver which is a Z-WaveTM enabled device and is fully compatible with any Z-WaveTM enabled network. Mini size design let the module can easily hide itself into the wall box and that will be good for the house decoration. There are many kind of application by using the module to switch AC power On and Off , one main application is the light control. The new smart relay calibration technology can reduce the inrush current caused by the load and let the module work perfectly with many kind of light like incandescent, fluorescent and LED light. This in-wall switch module is able to detect Instant power wattage (5~1500W) and overload wattage (1600~1700W) of connected light or appliances. When detecting overload state, the Module will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, disconnect and re-connect the Module will reset its overload condition to normal status. Adding to Z-Wave TM Network In the front casing, there is an on/off button with LED indicator below which is used to toggle switch on and off or carry out inclusion, exclusion, reset or association. When first power is applied, its LED flashes on and off alternately and repeatedly at 2- second intervals. It implies that it has not been assigned a node ID and cannot work with Z-Wave enabled devices. Auto Inclusion The function of auto inclusion will be executed as long as the in wall switch does not have Node ID and just connect the switch to main power. Note: Auto inclusion timeout is 4 minute during which the node information of explorer frame will be emitted once every 5 seconds. Unlike “inclusion” function as 1 shown in the table below, the execution of auto inclusion is free from pressing the On/Off button on the Switch. The table below lists an operation summary of basic Z-Wave functions. Please refer to the instructions for your Z-WaveTM Certificated Primary Controller to access the Setup function, and to include/exclude/associate devices FunctionDescriptionLED Indication No node IDThe Z-Wave Controller does not allocate a node ID to the Switch. 2-second on, 2-second off Inclusion1.Have Z-Wave Controller entered inclusion mode. One press one flash 2. Pressing INCLUDE_BUTTON three times within 1.5 seconds will enter inclusion mode. Exclusion1.Have Z-Wave Controller entered exclusion mode. One press one flash 2. Pressing INCLUDE_BUTTON three times within 1.5 seconds will enter exclusion mode. Node ID has been excluded.2-second on, 2-second off Reset1.Pressing INCLUDE_BUTTON three times within 1.5 seconds will enter inclusion mode. One press one flash 2.Within 1 second, press On/Off button again for 5 seconds until LED is off. 3.IDs are excluded.2-second on, 2-second off Association 1. Have Z-Wave Controller entered association mode. Or Pressing INCLUDE_BUTTON three times within 1.5 seconds will enter association mode One press one flash 2. There are 3 groups for the switch ※ Including a node ID allocated by Z-Wave Controller means inclusion. Excluding a node ID allocated by Z-Wave Controller means exclusion. ※ Failed or success in including/excluding the node ID can be viewed from the Z-Wave Controller. LED Indication To distinguish what mode the switch is in, view from the LED for identification. State TypeLED Indication NormalWhatever we switch On and off of the PAN04 by S1 S2 or On/Off button or RF command , the LED will lights up 1 second and then off. No node IDUnder normal operation, when the Switch has not been allocated a 2 node ID, the LED flashes on and off alternately at 2-second intervals. By pressing S1 S2 or On/Off button, it will stop flashing temporarily. However, after disconnect and reconnect the Switch, the LED will flash on and off alternately at 2-second intervals. OverloadWhen overload state occurs, the Switch is disabled of which LED flashes on and off alternately at 0.5 second intervals. Overload state can be cleared by disconnect and reconnect the Switch to the main power Choosing a Suitable Location 1.Do not locate the Switch facing direct sunlight, humid or dusty place. 2.The suitable ambient temperature for the Switch is 0°C~40°C. 3.Do not locate the Switch where exists combustible substances or any source of heat, e.g. fires, radiators, boiler etc. 4.After putting it into use, the body of Switch will become a little bit hot of which phenomenon is normal. Installation 1.put the in wall switch into a wall box and connect the AC power wire L,N to PAN04 connector L, N. 2.Connect the wall switch to the PAN04 as Fig1 . 3.To manually turn ON the Switch, press and release the On/Off button. The LED will light ON for 1 second, and the load plugged into the Switch will also turn ON. 4.To manually turn OFF the Switch, simply press and release the On/Off button. The LED will light ON for 1 second and the load plugged into the Switch will turn 3 OFF. Programming 1. Basic Command Class / Binary Switch Command Class The Switch will respond to BASIC and BINARY commands that are part of the Z- Wave system. 1-1 BASIC_GET / BINARY_SWITCH_GET Since the switch have two relay, the Switch will report its On/Off state to the Controller by setting Configuration parameter 3. Configuration parameter 3=1(default) Report ON either relay 1 ON or relay 2 ON Report OFF when both relay 1 and relay 2 OFF Configuration parameter 3=2 Report ON when relay 1 ON Report OFF when relay 1 OFF Configuration parameter 3=3 Report ON when relay 2 ON Report OFF when relay 2 OFF Basic Get Command: [Command Class Basic, Basic Get] Basic Report Command: Report OFF: [Command Class Basic, Basic Report, Value = 0(0x00)] Report ON:[Command Class Basic, Basic Report, Value = (255)0xFF] Binary Switch Get Command:[Command Class Switch Binary, Switch Binary Get] Binary Switch Report Command: Report OFF:[Command Class Switch Binary, Switch Binary Report, Value =0(0x00)] Report ON:[Command C…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Philio Technology Corporation Declaration of Authorization We Name: Philio Technology Corporation  .   Address: 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C)  City: New Taipei  .  .... Country: Taiwan(R.O.C)  . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: In wall Switch FCC ID: RHHPAN04 Trademark: on our behalf. Date:  2013/07/19  ..  .. City:  New Taipei  .. Name:  JAMES HUANG  .. (2) Function:  CEO  Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Report No.: 136340R-RFUSP25V01 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Philio Technology Corporation FCC ID.: RHHPAN04 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) Tel : 886-229088952 FCC ID Label

Philio Technology Corporation FCC ID.: RHHPAN04 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) Tel : 886-229088952 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 136340R-RFUSP25V01 Page : 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 136340R-RFUSP25V01 Page : 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 136340R-RFUSP25V01 Page : 4 of 8 (7) EUT Photo (8) EUT Photo Antenna Report No.: 136340R-RFUSP25V01 Page : 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 136340R-RFUSP25V01 Page : 6 of 8 (11) EUT Photo (RF module) (12) EUT Photo Report No.: 136340R-RFUSP25V01 Page : 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 136340R-RFUSP25V01 Page : 8 of 8 (15) EUT Photo (16) EUT Photo

Report No. 136340R-RFUSP25V01 Page : 1 of 27 FCC Test Report Product Name In wall Switch Model No. PAN04-2 FCC ID. RHHPAN04 Applicant Philio Technology Corporation Address 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257, Taiwan(R.O.C) Date of Receipt June 20, 2013 Issued Date July 05, 2013 Report No. 136340R-RFUSP25V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Report No. 136340R-RFUSP25V01 Page : 2 of 27 Test Report Certification Issued Date: July 05, 2013 Report No. : 136340R-RFUSP25V01 Product Name In wall Switch Applicant Philio Technology Corporation Address 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257, Taiwan(R.O.C) Manufacturer Philio Technology Corporation Model No. PAN04-2 FCC ID. RHHPAN04 EUT Rated Voltage AC 90~240V, 47~63Hz EUT Test Voltage AC 120V/60Hz Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Report No. 136340R-RFUSP25V01 Page : 3 of 27 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION................................................................................................................4 1.1. EUT Description ......................................................................................................................................4 1.2. Operation Description ..............................................................................................................................5 1.3. Tested System Details ..............................................................................................................................6 1.4. Configuration of Test System...................................................................................................................6 1.5. EUT Exercise Software............................................................................................................................6 1.6. Test Facility..............................................................................................................................................7 2. Conducted Emission ..............................................................................................................................8 2.1. Test Equipment ........................................................................................................................................8 2.2. Test Setup .................................................................................................................................................8 2.3. Limits .......................................................................................................................................................9 2.4. Test Procedure..........................................................................................................................................9 2.5. Uncertainty...............................................................................................................................................9 2.6. Test Result of Conducted Emission .......................................................................................................10 3. Radiated Emission ...............................................................................................................................12 3.1. Test Equipment ......................................................................................................................................12 3.2. Test Setup ...............................................................................................................................................13 3.3. Limits .....................................................................................................................................................14 3.4. Test Procedure........................................................................................................................................15 3.5. Uncertainty.............................................................................................................................................15 3.6. Test Result of Radiated Emission ..........................................................................................................16 4. Band Edge.............................................................................................................................................22 4.1. Test Equipment ......................................................................................................................................22 4.2. Test Setup ...............................................................................................................................................23 4.3. Limit.......................................................................................................................................................23 4.4. Test Procedure........................................................................................................................................24 4.5. Uncertainty.............................................................................................................................................24 4.6. Test Result of Band Edge...................................................................…
