RHHPAN11smart energy plug

PAN11-4/-5 Smart energy plug in switch P This plug-in ON/OFF switch PAN11 is a wireless switch, based on Z-Wave technology. Z-Wave TM enabled devices displaying the Z-Wave TM logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-Wave TM enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s wireless Controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. This plug-in ON/OFF switch is able to detect current wattage (5~1500W) and overload wattage (1550~1700W) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch will reset its overload condition to normal status. Adding to Z-Wave TM Network In the front casing, there is an On/Off button with LED indicator which is used to toggle switch on and off or carry out inclusion, exclusion, reset or association. When first power is applied, its LED flashes on and off alternately and repeatedly at 2- second intervals. It implies that it has not been assigned a node ID and cannot work with Z-Wave enabled devices. Auto Inclusion The function of auto inclusion will be executed as long as the switch does not have Node ID and just plug the switch into a wall outlet. Note: Auto inclusion timeout is 4 minute during which the node information of explorer frame will be emitted once every 5 seconds. Unlike “inclusion” function as shown in the table below, the execution of auto inclusion is free from pressing the On/Off button on the Switch. The table below lists an operation summary of basic Z-Wave functions. Please refer to the instructions for your Z-WaveTM Certificated Primary Controller to access the Setup function, and to include/exclude/associate devices 1 FunctionDescriptionLED Indication No node IDThe Z-Wave Controller does not allocate a node ID to the Switch. 2-second on, 2-second off Inclusion1. Have Z-Wave Controller entered inclusion mode. Press On, for on Press Off, for off 2. Pressing On/Off button three times within 1.5 seconds will enter inclusion mode. Exclusion1. Have Z-Wave Controller entered exclusion mode. Press On, for on Press Off, for off 2. Pressing On/Off button three times within 1.5 seconds will enter exclusion mode. Node ID has been excluded.2-second on, 2-second off Reset1. Pressing On/Off button three times within 1.5 seconds will enter inclusion mode. Press On, for on Press Off, for off 2. Within 1 second, press On/Off button again for 5 seconds until LED is off. 3. IDs are excluded.2-second on, 2-second off Association1. Have Z-Wave Controller entered association mode. Or Pressing On/Off button three times within 1.5 seconds will enter Press On, for on Press Off, for off association mode 2. There are only one group for the switch ※ Including a node ID allocated by Z-Wave Controller means inclusion. Excluding a node ID allocated by Z-Wave Controller means exclusion. ※ Failed or success in including/excluding the node ID can be viewed from the Z-Wave Controller. LED Indication To distinguish what mode the switch is in, view from the LED for identification. State Type LED Indication NormalUnder normal operation, toggle On/Off button between On and Off. When pressing On, LED lights up, whereas Off, LED is off. No node IDUnder normal operation, when the Switch has not been allocated a node ID, the LED flashes on and off alternately at 2-second intervals. By pressing On/Off button, it will stop flashing temporarily. However, after unplugging and reconnecting the Switch, the LED will flash on and off alternately at 2-second intervals. OverloadWhen overload state occurs, the Switch is disabled of which LED flashes on and off alternately at 0.5 second intervals. Overload 2 state can be cleared by unplugging and reconnecting the Switch to the wall outlet. Choosing a Suitable Location 1.Do not locate the Switch facing direct sunlight, humid or dusty place. 2.The suitable ambient temperature for the Switch is 0°C~40°C. 3.Do not locate the Switch where exists combustible substances or any source of heat, e.g. fires, radiators, boiler etc. 4.After putting it into use, the body of Switch will become a little bit hot of which phenomenon is normal. Installation 1. Plug this On/Off Switch into a wall outlet near the load to be controlled. 2. Plug the load into the Switch. Make sure the load to be controlled cannot exceed 1500 watts. 3. Press the button or switch on the load to the ON position. 4. To manually turn ON the Switch, press and release the On/Off button. The LED will turn ON, and the load plugged into the Switch will also turn ON. 5. To manually turn OFF the Switch, simply press and release the On/Off button. The LED will turn OFF and the load plugged into the Switch will also turn OFF. Programming 1. Basic Command Class / Binary Switch Command Class The Switch will respond to BASIC and BINARY commands that are part of the Z- Wave system. 1-1 BASIC_GET / BINARY_SWITCH_GET Upon receipt of the following commands from a Z-Wave Controller, the Switch will report its On/Off state to the Controller. Basic Get Command: [Command Class Basic, Basic Get] Basic Report Command: Report OFF: [Command Class Basic, Basic Report, Value = 0(0x00)] Report ON:[Command Class Basic, Basic Report, Value = (255)0xFF] Binary Switch Get Command:[Command Class Switch Binary, Switch Binary Get] Binary Switch Report Command: Report OFF:[Command Class Switch Binary, Switch Binary Report, Value =0(0x00)] Report ON:[Command Class Switch Binary, Switch Binary Report, Value = (255)0xFF] 3 1-2 BASIC_SET / SWITCH_BINARY_SET Upon receipt of the following commands from a Z-Wave Controller, the load attached to the Switch will turn on or off. [Command Class …

Text truncated - open the document above for the full version.

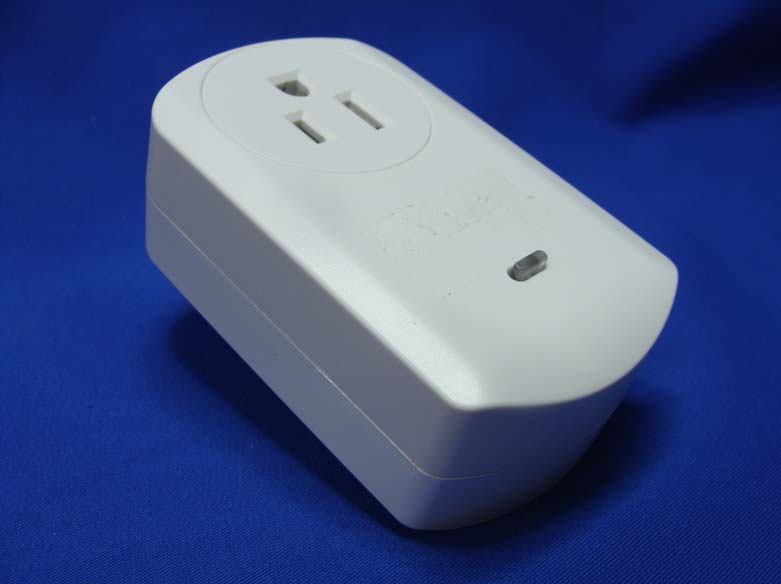

Report No.: 137109R-RFUSP25V01 Page : 1 of 6 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Philio Technology Corporation FCC ID.: RHHPAN11 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) Tel : 886-229088952 FCC ID Label

Philio Technology Corporation FCC ID.: RHHPAN11 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) Tel : 886-229088952 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 137109R-RFUSP25V01 Page : 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 137109R-RFUSP25V01 Page : 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 137109R-RFUSP25V01 Page : 4 of 6 (7) EUT Photo (8) EUT Photo RF Chip Antenna Report No.: 137109R-RFUSP25V01 Page : 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 137109R-RFUSP25V01 Page : 6 of 6 (11) EUT Photo (12) EUT Photo

Report No. 137109R-RFUSP25V01 Page : 1 of 27 FCC Test Report Product Name smart energy plug Model No. PAN11-4 FCC ID. RHHPAN11 Applicant Philio Technology Corporation Address 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257, Taiwan(R.O.C) Date of Receipt June 20, 2013 Issued Date July 11, 2013 Report No. 137109R-RFUSP25V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Report No. 137109R-RFUSP25V01 Page : 2 of 27 Test Report Certification Issued Date: July 11, 2013 Report No. : 137109R-RFUSP25V01 Product Name smart energy plug Applicant Philio Technology Corporation Address 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257, Taiwan(R.O.C) Manufacturer Philio Technology Corporation Model No. PAN11-4 FCC ID. RHHPAN11 EUT Rated Voltage AC 90~240V, 47~63Hz EUT Test Voltage AC 120V/60Hz Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Report No. 137109R-RFUSP25V01 Page : 3 of 27 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION................................................................................................................4 1.1. EUT Description ......................................................................................................................................4 1.2. Operation Description ..............................................................................................................................5 1.3. Tested System Details ..............................................................................................................................6 1.4. Configuration of Test System...................................................................................................................6 1.5. EUT Exercise Software............................................................................................................................6 1.6. Test Facility..............................................................................................................................................7 2. Conducted Emission ..............................................................................................................................8 2.1. Test Equipment ........................................................................................................................................8 2.2. Test Setup .................................................................................................................................................8 2.3. Limits .......................................................................................................................................................9 2.4. Test Procedure..........................................................................................................................................9 2.5. Uncertainty...............................................................................................................................................9 2.6. Test Result of Conducted Emission .......................................................................................................10 3. Radiated Emission ...............................................................................................................................12 3.1. Test Equipment ......................................................................................................................................12 3.2. Test Setup ...............................................................................................................................................13 3.3. Limits .....................................................................................................................................................14 3.4. Test Procedure........................................................................................................................................15 3.5. Uncertainty.............................................................................................................................................15 3.6. Test Result of Radiated Emission ..........................................................................................................16 4. Band Edge.............................................................................................................................................22 4.1. Test Equipment ......................................................................................................................................22 4.2. Test Setup ...............................................................................................................................................23 4.3. Limit.......................................................................................................................................................23 4.4. Test Procedure........................................................................................................................................24 4.5. Uncertainty.............................................................................................................................................24 4.6. Test Result of Band Edge.............................................................…

Text truncated - open the document above for the full version.

Report No.: 137109R-RFUSP25V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 137109R-RFUSP25V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 137109R-RFUSP25V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
