RHHPSC02Gateway

Philio-Tech corporation User Manual PSC01 Gateway Series PSC02 Gateway Series 3.Connect to the the internet. • Go to Settings -> Wi-Fi, choose your own Wi-Fi SSID, and connect it. • Once you connect to Wi-Fi, open the app. 4.Go to Settings -> Gateway Address -> UID, and press QR Code. • Use the camera of your mobile device to scan the QR Code to set up the gateway address. 5.Add your devices • In the Sensor page, press Blue Gear -> Include Device to add Z-wave devices. (Remember to activate the include mode of your device by flipping three times the trigger on it.) 6.Add IPCam • In the Sensor page, press Blue Gear -> Add IPCam -> QR Code to add IPCam by scanning the QR Code with camera 7.Add a room • Press Add new in the Room page to add a new room, enter the name of the room as you like. 8.You can use the picture as your room cover which the IPCam is monitoring. • Drag the sensor icon into your room card for easy management. 9.Scene • Scene can set the room ambiance quickly. It can help you to have a better experience at the special moment. 10.Macro • Still worry about your flat security? Macro is just like your 24-7 personal home guard. It secures your flat. Just set the reactives you wishes, it obeys your orders faithfully. 11.Schedule • Schedule is your loyalty housekeeper. It do everything accurately you asked. • Drag event icon into Schedule, set date, and time , just that easy. 11 www.philio-tech.com Philio Technology Corporation 8F., No.653-2, Zhongzheng Rd., Xinzhuang District, New Taipei City, Taiwan 242 TEL: +886 2 2908 8952 FAX: +886 2 2908 8652 [email protected] [email protected] FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Warning Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

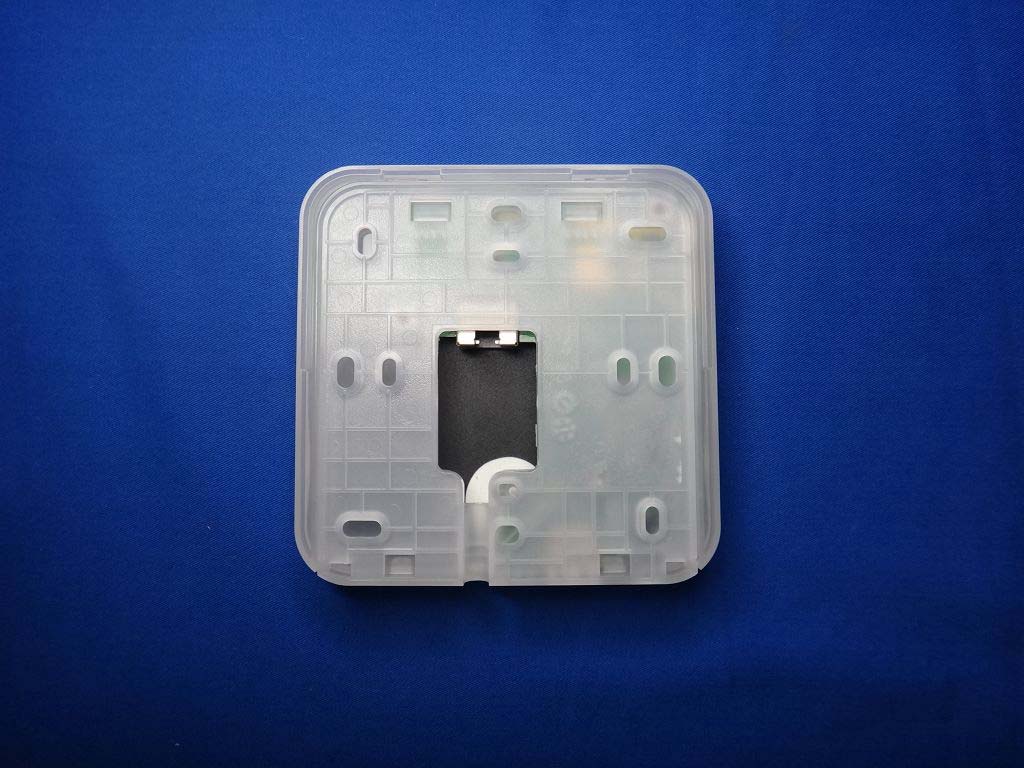

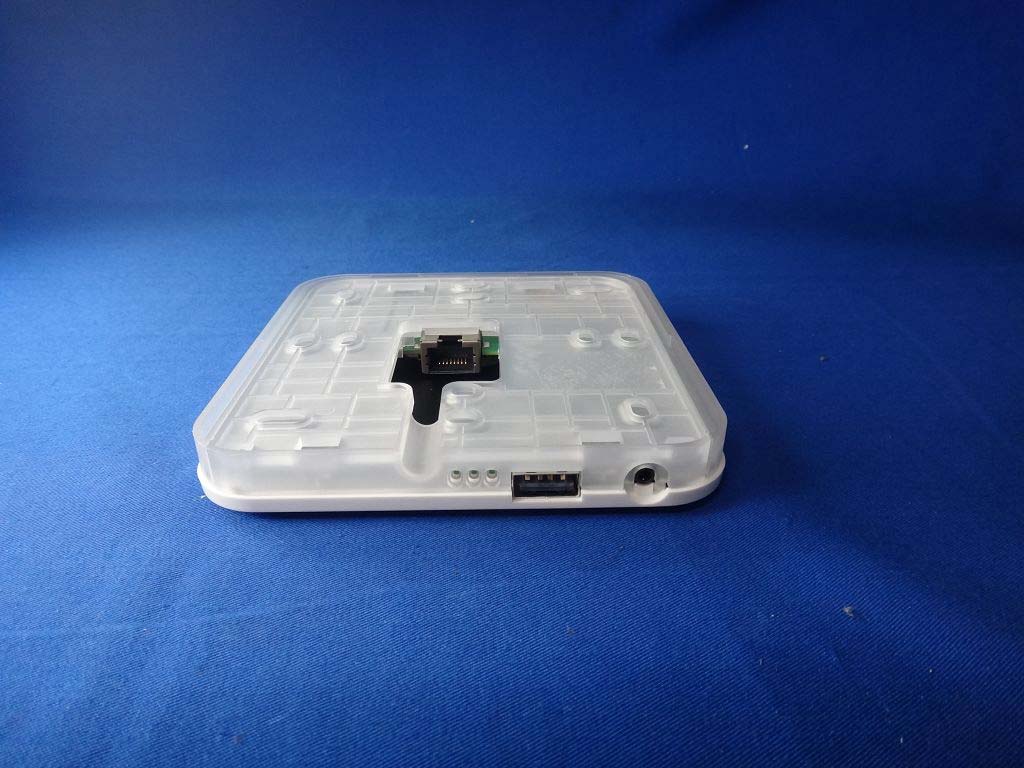

Report No.: 1450472R-RFUSP26V00 Page : 1 of 11 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1450472R-RFUSP26V00 Page : 2 of 11 (3) EUT Photo (4) EUT Photo Report No.: 1450472R-RFUSP26V00 Page : 3 of 11 (5) EUT Photo

Philio Technology Corporation FCC ID.: RHHPSC02 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C)Tel : 886-229088952 The FCC ID will be placed on the equipment as shown in the photograph below.

Philio Technology Corporation FCC ID.: RHHPSC02 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C)Tel : 886-229088952 FCC ID Label

Report No.: 1450472R-RFUSP26V00 Page : 4 of 11 (6) EUT Photo (7) EUT Photo Report No.: 1450472R-RFUSP26V00 Page : 5 of 11 (8) EUT Photo (9) EUT Photo WLAN Antenna Z-Wave Antenna Report No.: 1450472R-RFUSP26V00 Page : 6 of 11 (10) EUT Photo (11) EUT Photo Report No.: 1450472R-RFUSP26V00 Page : 7 of 11 (12) EUT Photo (13) EUT Photo Report No.: 1450472R-RFUSP26V00 Page : 8 of 11 (14) EUT Photo (15) EUT Photo Report No.: 1450472R-RFUSP26V00 Page : 9 of 11 (16) EUT Photo (17) EUT Photo Report No.: 1450472R-RFUSP26V00 Page : 10 of 11 (18) EUT Photo (19) EUT Photo Report No.: 1450472R-RFUSP26V00 Page : 11 of 11 (20) EUT Photo

Report No.: 1450472R-RFUSP26V00-A Page: 1 of 3 RF Exposure Evaluation declaration Product Name : Gateway Model No. : PSC02-2/PSC01-2 FCC ID : RHHPSC02 Applicant : Philio Technology Corporation Address : 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) Date of Receipt : May 20, 2014 Date of Declaration: Jul. 10, 2014 Report No. : 1450472R-RFUSP26V00-A The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No.: 1450472R-RFUSP26V00-A Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No.: 1450472R-RFUSP26V00-A Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Gateway Test Item : RF Exposure Evaluation Test Site : No.3 OATS (802.11b) Output Power Into Antenna & RF Exposure Evaluation Distance (0.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 3.4514 0.000743 06 2437.00 3.1915 0.000687 11 2462.00 3.5727 0.000769 Power density in column 4 is much lower than the limit (1 mW/cm2). (802.11g) Output Power Into Antenna & RF Exposure Evaluation Distance (0.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 14.5211 0.003124 06 2437.00 13.9316 0.002997 11 2462.00 14.0605 0.003025 Power density in column 4 is much lower than the limit (1 mW/cm2). (802.11n-20) Output Power Into Antenna & RF Exposure Evaluation Distance (0.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 10.0231 0.002156 06 2437.00 12.2744 0.002641 11 2462.00 12.9122 0.002778 Power density in column 4 is much lower than the limit (1 mW/cm2).

Report No.: 1450472R-RFUSP26V00 Page : 1 of 79 FCC Test Report Product Name Gateway Model No PSC02-2/PSC01-2 FCC ID. RHHPSC02 Applicant Philio Technology Corporation Address 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) Date of Receipt May 20, 2014 Issue Date Jul. 02, 2014 Report No. 1450472R-RFUSP26V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1450472R-RFUSP26V00 Page : 2 of 79 Test Report Issue Date: Jul. 02, 2014 Report No.: 1450472R-RFUSP26V00 Product Name Gateway Applicant Philio Technology Corporation Address 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) Manufacturer Philio Technology Corporation Model No. PSC02-2/PSC01-2 FCC ID. RHHPSC02 EUT Rated Voltage DC 5V(Power by Adapter) EUT Test Voltage DC 5V(Power by Adapter) Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2014 ANSI C63.10: 2009, KDB 558074 Test Result Complied Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Director / Vincent Lin ) Report No.: 1450472R-RFUSP26V00 Page : 3 of 79 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................18 4.3. Limits ..........................................................................................................................................19 4.4. Test Procedure .............................................................................................................................20 4.5. Uncertainty ..................................................................................................................................20 4.6. Test Result of Radiated Emission................................................................................................21 5. RF antenna conducted test........................................................................................................33 5.1. Test Equipment............................................................................................................................33 5.2. Test Setup ...........................................................................…

Text truncated - open the document above for the full version.

Report No.: 1450472R-RFUSP26V00 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 1450472R-RFUSP26V00 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 1450472R-RFUSP26V00 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
