RHHPST024 in 1 Multi-Sensor

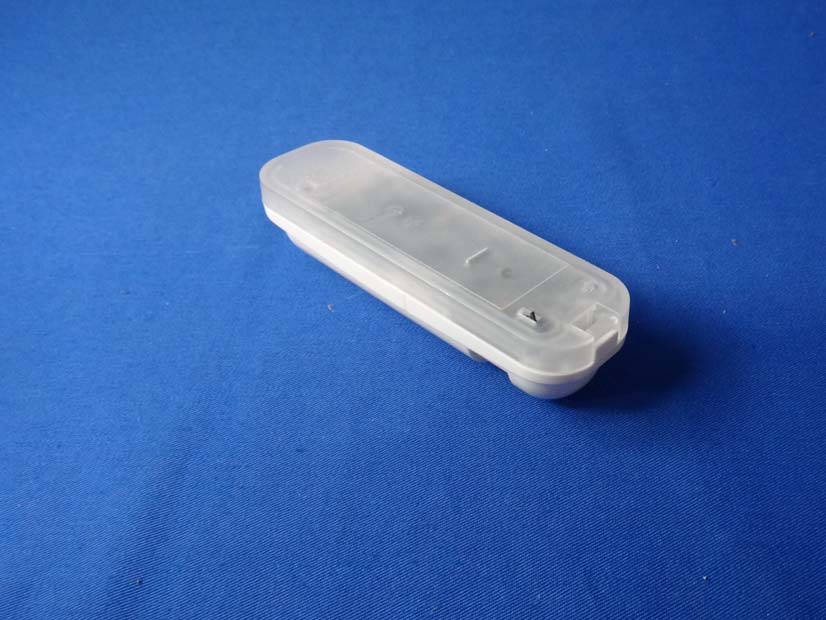

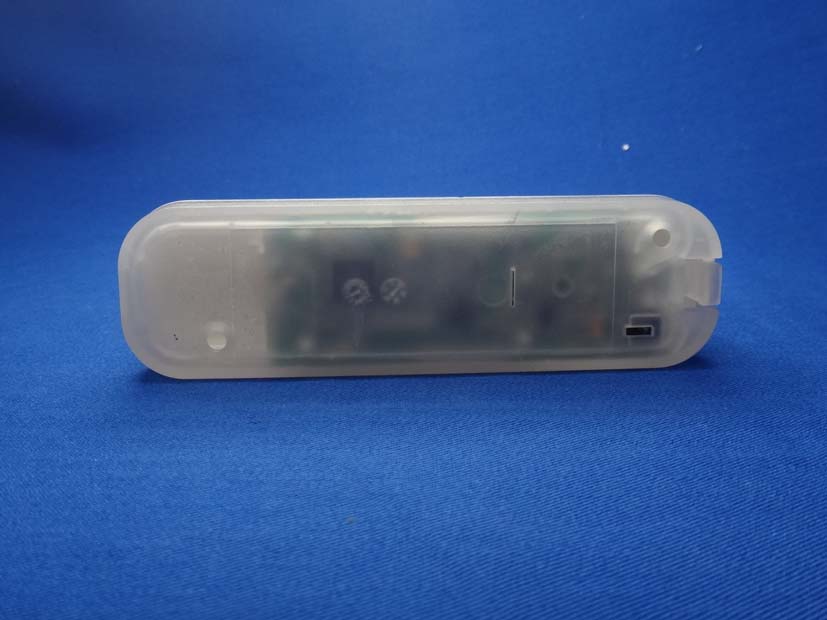

4 in 1 Multi-Sensor PST02 The 4 in 1 multi-sensor PST02 has PIR, door/window, temperature and illumination, 4 sensors function in one, based on Z-Wave TM technology. Z-Wave TM is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances. This device is one component of the Z-Wave TM sensor system and is designed to work with all other Z-Wave TM enabled devices in a home control network. The device adopt the Z-Wave TM 400 series chip, when your Z-Wave TM network system is all made by Z-Wave TM 400 series devices. The network system will have the advantages as below. •Concurrent multi-channel support reduces external interference. •Better RF range, improve about 10 meters in indoor. •Support 100 Kbps transmit speed, speed up communication. Adding to Z-Wave TM Network There are two tamper keys in the device, one is in the back side, another is in the front side. They have the same function. Both of them can inclusion, exclusion, reset or association from Z-Wave TM network. In the first time, add the device into the Z-Wave TM network. First, make sure the primary controller is in the inclusion mode. And then power on the device, just take out the insulation Mylar in the back side of the device. The device will auto start the NWI (Network Wide Inclusion) mode. And it should be included in 5 seconds. You will see the LED light ON one second. Function Description Inclusion 1.Have Z-Wave TM Controller entered inclusion mode. 2.Pressing tamper key three times within 1.5 seconds will enter inclusion mode. 3.After inclusion successful, the device will wake to receive the setting command from Z-Wave TM Controller about 20 seconds. Exclusion 1.Have Z-Wave TM Controller entered exclusion mode. 2.Pressing tamper key three times within 1.5 seconds will enter exclusion mode. Node ID has been excluded. Reset 1.Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4 th pressed, and the LED will turn ON. 2.After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3.IDs are excluded and all settings will reset to factory default. 1 Association 1.Have Z-Wave TM Controller entered association mode. 2.Pressing tamper key three times within 1.5 seconds will enter association mode. Note: The device support 2 groups. The group 1 is for receiving the report message, like triggered event, temperature, illumination etc. The group 2 is for light control, the device will send the “Basic Set” command to this group. •Including a node ID allocated by Z-Wave TM Controller means inclusion. Excluding a node ID allocated by Z-Wave TM Controller means exclusion. •Failed or success in including/excluding the node ID can be viewed from Z-Wave TM Controller. Notice 1: Always RESET a Z-Wave TM device before trying to add it to a Z-Wave TM network. Notice 2: When the device into NWI mode, any tamper key and sensor functionality will useless. The NWI will timeout after 30 seconds. Z-Wave TM Notification After the device adding to the network, it will wake-up once per day in default. When it wake-up it will broadcast the “Wake Up Notification” message to the network, and wake-up 10 seconds for receive the setting commands. The wake-up interval minimum setting is 30 minutes, and maximum setting is 120 hours. And the interval step is 30 minutes. If the user want to wake-up the device immediately, please remove the front cover, and press the tamper key once. The device will wake-up 10 seconds. Z-Wave TM Message Report * Motion Report: When the PIR motion detected, the device will unsolicited to send the “Sensor Binary Report” to the nodes in the group 1. Sensor Type: Motion (0x0C) Sensor Value: 0xFF * Door/Window Report: When the Door/Window state changed, the device will unsolicited to send the “Sensor Binary Report” to the nodes in the group 1. Sensor Type: Door/Window (0x0A) Sensor Value: 0x00 is closed, 0xFF is opened. * Tamper Report: When the 2 tamper keys in the device are pressed over 5 seconds. The device will into the alarm state. In that state, if any one of the tamper keys be released, the device will unsolicited to send the “Sensor Binary Report” to the nodes in the group 1. Sensor Type: Tamper (0x08) Sensor Value: 0xFF * Temperature Report: When the PIR motion detected or the door/window state changed, the device will unsolicited to send the “Sensor Multilevel Report” to the nodes in the group 1. Sensor Type: Temperature (0x01) Note: To disable this functionality by setting the configuration setting N0.5, the bit5 of the value to 1. *** Temperature differential report *** This function default is disabled, to enable by setting the configuration setting NO.6 bit6 to 1. When the temperature plus or minus three degree Fahrenheit (1.67 degree Celsius), the device will report temperature information to the 2 nodes in the group 1. The device will measure the temperature in every 64 seconds. And if the temperature is over 140 degree Fahrenheit (60 degree Celsius), the device also report in each measurement. * Illumination Report: When the PIR motion detected or the door/window state changed, the device will unsolicited to send the “Sensor Multilevel Report” to the nodes in the group 1. Sensor Type: Luminance (0x03) Note: To disable this functionality by setting the configuration setting N0.5, the bit4 of the value to 1. * Timing Report: Beside the event triggered could report message, the device also support the timing unsolicited report of the status. •Battery level report: Every 6 hours report once in default. It could be changed by configuration setting NO. 10. •Low battery report: W…
