RIYEL2620Security Keypad

EL-2620 The EL-2620 is a wireless keypad for use with the infiniti control panel. This keypad is primarily designed as an additional arming station, including three arming keys that enable Full, Part or Perimeter arming modes. Pressing the Full and Perimeter buttons simultaneously generates an SOS panic alarm. Additionally, the keypad may be used to control Home Automation modules. The Cancel key, , clears the keypad in the event that a key is pressed by mistake while entering a code, for example. This key causes the keypad to disregard what was previously entered enabling the user to start again. A slide-out reference card on the rear of the keypad can be used for writing down essential information such as Home Automation module allocation. Note: Do not write user codes on the reference card! Registration To register the EL-2620 to the receiver: 1. Set the receiver to Registration mode. 2. Press a button on the keypad making sure that one of the Battery LEDs lights up when the button is pressed. 3. Wait for five seconds and press the same button again. Wall Mounting After registration, test the EL-2620 from the required mounting location before permanently mounting to the wall. To mount the EL-2620 to the wall: 1. Remove the back cover by inserting a small screwdriver into the pry-off slots at the bottom of the unit and twisting. 2. Secure the back cover to the wall using four screws. Battery Replacement Every time a key is pressed, one of the battery status LEDs is lit. When the battery needs to be replaced, the red Low Battery LED is lit. To replace the battery: 1. Remove the back cover as explained above. 2. Observing correct polarity, replace the battery (9V alkaline). 3. Replace the back cover making sure that the two covers click shut. Technical Specifications Antenna: Built-in whip Frequency: 418MHz FM Current Consumption: 26mA (transmission), 2μA (standby) Power: 9V Alkaline Battery (Eveready 522) RFI Immunity: 40V/m Operating Temperature: 32-140°F (0 to 60°C) Dimensions: 4.3”H X 5.1”W X 1.1”D (130 x 110 x 28mm) FCC ID: RIYEL2620 Figure 1: EL-2620 (front view) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequenc y energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna, 2. Increase the separation between the equipment and the receiver, 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, 4. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Electronics Line 3000 Ltd.) could void the user’s authority to operate the equipment. Electronics Line 3000 Ltd.: 2 Granit Street, Kiryat Arieh, POB 3253, Petah Tikvah 49130 Israel. Tel: (972-3) 918-1333, Fax: (972-3) 922-0831 USA: 5637 Arapahoe Avenue, Boulder, Colorado 80303. Tel: (800) 683-6835, Fax: (303) 938-8062 UK: Unit 7, Leviss Trading Estate, Station Road, Stechford, Birmingham B33 9AE. Tel: (44-121) 789-8111, Fax: (44-121) 789-8055 France: ZI-61, rue du Marché Rollay, 94500 Champigny-Sur-Marne. Tel: (33-1) 45.16.19.20, Fax: (33-1) 45.16.19.29 ZI0312A (11/03) All data is subject to change without prior notice. In no event shall Electronics Line 3000 Ltd. (EL3K) be liable for an amount in excess of EL3K.’s original selling price of this product, for any loss or damage whether direct, indirect, incidental, consequential or otherwise arising out of any failure of the product. Figure 2: EL-2620 (back cover off) Tamper Switch Battery Transmitter Buzzer

EL 2620 Wireless Keypad Logic & MCU RF TX Tamper Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on Pu sh Bu t t on 418 MHz Voltage Conditioner Voltage regulator Battery Buzzer

February 25, 2004 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality for wireless keypad, model number EL2620, FCC ID:RIYEL2620 Dear Gentlemen, We apply to you with request to withhold Electronics Line 3000 Ltd. trade secrets in Application for Certification for wireless keypad, model number EL2620, FCC ID:RIYEL2620. These trade secrets can be found in the schematic_EL2620_15673 diagram (1 page of this Application). Many thanks in advance. Shaul Aviezer Q.A & Approvals manager Electronics Line 3000 Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 9, 2004 RE: Electronics Line 3000 Ltd. FCC ID: RIYEL2620 I have a few comments on the above referenced Application. EMC Report 1) The device appears to contain a daughter board. Please provide additional photographs of both sides of the daughter board and also the area underneath the daughter board located on the main board. 2) The operational description provided is simply a TX attestation. Please provide an exhibit for the operational description. 3) It is uncertain how this device transmits. Does it transmit for each key pressed (for example when each number is pressed)? Note that for each key pressed, this is actually considered sending data. Please explain what types of control signals are being sent to meet the expected requirements of 15.231(a). Note that it appears that maybe a control signal is not necessary to be sent with each button press. Please explain. Note that it may be best to place this device under 15.231(e) as it does appear to meet these limits. Please review. 4) Please provide information to show/support compliance to 15.231(a)(1), ie .- test data. Please note that historically the FCC always request test data to show the device shuts off properly, regardless of an attestation. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 23, 2004 RE: Electronics Line 3000 Ltd. FCC ID: RIYEL2620 I have a few comments on the above referenced Application. EMC Report 1) It appears that the devices intent may be to only send data (keys entered) to a receiver. Note that devices intended strictly for data transmission only must be approved under 15.231(e). Note that device does appear to meet the limits of 15.231(e) as given in the test report. Approval to 15.231(a)(1) or 15.231(a)(2) may only be done if the RF packet includes control signals (see next page for a description from recent FCC Report and Order). It is uncertain what is contained in the RF interface transmission for this device. For instance, does it transmit a packet with data only for the entered code, or send data each time a key is pressed or wait and send data with a control signal (arm/disarm), etc. Note that a control code must be sent with every transmission for use under 15.231(a)(1) or 15.231(a)(2). If data only is sent for certain types of transmissions, then compliance must be shown under 15.231(e). Please confirm if the device is being approved under 15.231(e) or alternatively, please explain what types of control signals are being sent to meet the expected requirements of 15.231(a). A theory of operation describing the information contained in each type of packet may be necessary to adequately show compliance to 15.231(a). 2) We have not received the plots referenced to show/support compliance to 15.231(a)(1). This information should support the information in #3 below. Please provide. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender. z Page 2March 23, 2004 American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 Taken from Commission’s Rules Amendment of Parts 2 and 15 of the Commission’s Rules to Deregulate the Equipment ET Docket NO. 01-278 RM-9375 RM-10051 ET Docket NO. 95-19 12. We find that the restriction on data transmissions by remote control devices in Section 15.231(a) should be removed. As noted by the commenting parties, this change will allow manufacturers to make more flexible, imaginative and useful remote control devices. It is not practical to prohibit all data transmissions as NTIA requested. Virtually all modern remote control devices transmit a string of bits, and bits representing identification codes are indistinguishable from bits representing information. Maintaining the prohibition on data transmission inhibits the development of improved devices that pose no significant risk of harmful interference. We note that the interference potential of a device is a function of the field strength and duration of the transmission, rather than the type of information being sent; and, we are not changing the field strength or transmission timing limits. We decline to remove the prohibition on voice, video and continuous transmissions and on the operation of radio control toys as the Commission proposed in the Notice. There are already a number of provisions in Part 15 of the rules that permit voice, video, radio control toys, and continuous transmissions in other frequency bands, so there is no need to establish additional provisions for them under Section 15.231(a). 54 On further review, allowing such operation would in fact significantly and unnecessarily expand the goal of the Notice, which was to allow manufacturers to develop devices that transmit identification codes, supplemented with the transmission of some additional data. 55 The net result of the changes we are adopting is that operation under Section 15.231(a) will continue to be limited to devices that transmit a control signal, but such devices will be permitted to transmit data with the control signal. They will have to meet the same field strength, timing and other operational limits that currently exist. We believe that these changes adequately address NTIA’s concerns about harmful interference from devices transmitting continuously because the rules will continue to explicitly prohibit continuous transmissions. Furthermore, the transmission timing and other restrictions in Section 15.231(a), which limit operation to devices that transmit a control signal and prohibit voice, video and the radio control of toys, will preclude continuous data transmissions in any case. No changes are being made to Section 15.231(e) because data transmissions are already permitted under this section.

Dear Mr. Johnson, Please delete the previous message. March 25, 2004 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated March 23, 2004; Electronics Line Ltd. FCC ID:RIYEL2620 Dear Mr. Johnson, Please find below the answer to your question. 2) a) The test data, file "Test data_15673_EL2620" , were uploaded on March 25, 2004 via "Additional information" folder. b) The test report ELERAD_FCC.15673_EL2620_rev1 was uploaded on March 25, 2004 via "Test report" folder. Please send your comments to the following e-mail address: [email protected]. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories To: "'Timothy R. Johnson'" <[email protected]> Subject: RE: FCC ID: RIYEL2620 3/25/2004file://C:\DOCUME~1\TIMOTH~1.JOH\LOCALS~1\Temp\eud4B.htm

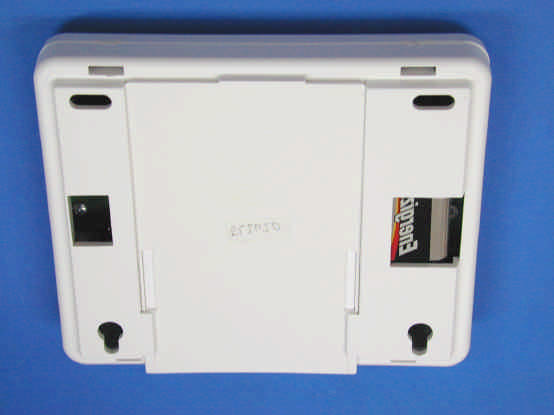

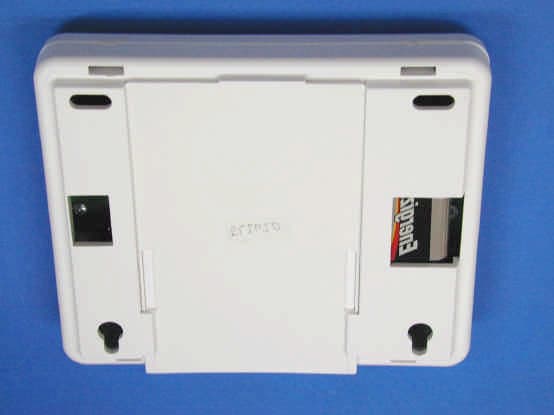

FCC ID:RIYEL2620 Date: February 2004 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs FCC ID:RIYEL2620 Date: February 2004 Page 2 of 3 Photograph No.1 Wireless keypad Front view FCC ID:RIYEL2620 Date: February 2004 Page 3 of 3 Photograph No.2 Wireless keypad Rear side view

FCC ID:RIYEL2620 LABEL LABEL LOCATION Label FCC ID:RIYEL2620

FCC ID:RIYEL2620 Date: March 2004 Page 1 of 8 INTERNAL PHOTOGRAPHS This document contains 7 photographs FCC ID:RIYEL2620 Date: March 2004 Page 2 of 8 Photograph No.1 Wireless keypad Internal view FCC ID:RIYEL2620 Date: March 2004 Page 3 of 8 Photograph No.2 Wireless keypad PCB front view FCC ID:RIYEL2620 Date: March 2004 Page 4 of 8 Photograph No.3 Wireless keypad PCB rear side view FCC ID:RIYEL2620 Date: March 2004 Page 5 of 8 Photograph No.4 Wireless keypad Internal view FCC ID:RIYEL2620 Date: March 2004 Page 6 of 8 Photograph No.5 Wireless keypad Internal view FCC ID:RIYEL2620 Date: March 2004 Page 7 of 8 Photograph No.6 Wireless keypad Daughter board view FCC ID:RIYEL2620 Date: March 2004 Page 8 of 8 Photograph No.7 Wireless keypad Daughter board second side view

Hi Timoti The attached is corrected statement EL2611 MANUALY TX (15231(A)(1) ACTIVATE BY A BUTTON DIACTIVATE AFTER 0.8 SEC AUTOMATICALY BY SOFTWARE NO SUPERVISION SIGNAL FOR EL2611 (SEE NEW STATEMENT) EL2611 TRANSMITE 1 BURST OF 800msec El2614 Same as el2611 EL2620 MANUALY TX (15231(A)(1) ACTIVATE BY A BUTTON DIACTIVATE AFTER 0.8 SEC AUTOMATICALY BY SOFTWARE NO SUPERVISION SIGNAL FOR EL2620 (SEE NEW STATEMENT) EL2640 Same as EL2620 El2600 See statement EL2600 send supervision data once in 67 min’ Burst of twice 500msec with 1sec between ELECTRONICS LINE 3000 LTD Security & Beyond Shaul Aviezer. Q.A & Approvals Web: http://www.electronics-line.com/ Email: mailto:[email protected] Tel: +972 3 9211117 Ext': 151 Fax: +972 3 7256107 Subject: RE: Urgent!!! Your products... To: Elly Gazal <[email protected]>, [email protected], [email protected] 3/23/2004file://C:\DOCUME~1\TIMOTH~1.JOH\LOCALS~1\Temp\eudF3.htm

EL2620/2640 EL2620: 16-button W/L keypad used for activating/deactivating security system and various auxiliary functions. Includes tx that transmits CONTROL CODES in a frequency of 418MHZ modulated FSK EL2640: Same as EL2620 (same tx, same CONTRO CODES) but comprises 15 buttons. Each press on any button send a Control codes of 800msec burst Control code is a burst of pulses include indentification of the device and control command to the receiver For 15.231 (a)(2) compliant refer to test plot

STATEMENT Electronics Line herby state that the following products: EL-2600/2600PI W/L Motion Sensor EL-2645/2645PI W/L Motion Sensor EL-2620 W/l Keypad EL-2611 W/L EL-2614 W/L EL-2601 W/L Magnetic Switch EL-2602 Universal Transmitter EL-2640W/L Incorporate the TX-FM 418MHZ transmitter. All the above mention transmit data pulses for 1sec than automatically stop transmitting by software control. EL-2600/2600PI W/L Motion Sensor EL-2645/2645PI W/L Motion Sensor EL-2601 W/L Magnetic Switch EL-2602 Universal Transmitter once in 67min each of the above transmit a supervision data pulses pattern (same pattern as for the alarm messages) for 1sec (supervision signal) than stop transmitting by software control. Shaul Aviezer Q.A Manager

FCC ID:RIYEL2620 Date: March 2004 Page 1 of 12 EL2620 TEST DATA according to FCC part 15 §15.231 (a)(1) FCC ID:RIYEL2620 Date: March 2004 Page 2 of 12 EL2620 wireless keypad buttons The 16 buttons of the remote control transmitter, model EL2620, are as follows: 1) Full 2) Part 3) Perimeter 4) Cancel 5) Light ON 6) Light OFF 7) Numbers (0 – 9) Tamper switch: 1) “Open” – In the moment of opening a back cover 2) “Close’ – In the moment of closing a back cover Please see the attached operational description. The transmission duration data attached below in plots No.1 to No.10. FCC ID:RIYEL2620 Date: March 2004 Page 3 of 12 Plot No.1 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd. Humidity 35% Temperature 21°C Air pressure 1018 hPa Notes Full Button Duration = 880 ms Test equipment: HL 0521, 1562 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 0521 Spectrum analyzer with RF filter section (EMI receiver 9 kHz - 6.5 GHz) Hewlett Packard 8546A 0319 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 FCC ID:RIYEL2620 Date: March 2004 Page 4 of 12 Plot No.2 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd. Humidity 35% Temperature 21°C Air pressure 1018 hPa Notes Part Button Duration = 880 ms Test equipment: HL 0521, 1562 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 0521 Spectrum analyzer with RF filter section (EMI receiver 9 kHz - 6.5 GHz) Hewlett Packard 8546A 0319 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 FCC ID:RIYEL2620 Date: March 2004 Page 5 of 12 Plot No.3 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd. Humidity 35% Temperature 21°C Air pressure 018 hPa Notes Perimeter Button Duration = 880 ms Test equipment: HL 0521, 1562 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 0521 Spectrum analyzer with RF filter section (EMI receiver 9 kHz - 6.5 GHz) Hewlett Packard 8546A 0319 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 FCC ID:RIYEL2620 Date: March 2004 Page 6 of 12 Plot No.4 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd. Humidity 35% Temperature 21°C Air pressure 1018 hPa Notes Cancel Button Duration = 880 ms Test equipment: HL 0521, 1562 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 0521 Spectrum analyzer with RF filter section (EMI receiver 9 kHz - 6.5 GHz) Hewlett Packard 8546A 0319 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 FCC ID:RIYEL2620 Date: March 2004 Page 7 of 12 Plot No.5 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd. Humidity 35% Temperature 21°C Air pressure 1018 hPa Notes Light ON Button Duration = 880 ms Test equipment: HL 0521, 1562 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 0521 Spectrum analyzer with RF filter section (EMI receiver 9 kHz - 6.5 GHz) Hewlett Packard 8546A 0319 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 FCC ID:RIYEL2620 Date: March 2004 Page 8 of 12 Plot No.6 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd. Humidity 35% Temperature 21°C Air pressure 1018 hPa Notes Light OFF Button Duration = 880 ms Test equipment: HL 0521, 1562 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 0521 Spectrum analyzer with RF filter section (EMI receiver 9 kHz - 6.5 GHz) Hewlett Packard 8546A 0319 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 FCC ID:RIYEL2620 Date: March 2004 Page 9 of 12 Plot No.7 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd. Humidity 35% Temperature 21°C Air pressure 1018 hPa Notes Number 1 Button Duration = 880 ms The transmission duration of all number buttons is the same. Test equipment: HL 0521, 1562 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 0521 Spectrum analyzer with RF filter section (EMI receiver 9 kHz - 6.5 GHz) Hewlett Packard 8546A 0319 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 FCC ID:RIYEL2620 Date: March 2004 Page 10 of 12 Plot No.8 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd. Humidity 35% Temperature 21°C Air pressure 1018 hPa Notes Number 9 Button Duration = 880 ms The transmission duration of all number buttons is the same. Test equipment: HL 0521, 1562 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 0521 Spectrum analyzer with RF filter section (EMI receiver 9 kHz - 6.5 GHz) Hewlett Packard 8546A 0319 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 FCC ID:RIYEL2620 Date: March 2004 Page 11 of 12 Plot No.9 Date/Time 3/16/2004 Title Periodic operation requirements EUT Model Number EL2620 Site Description Anechoic chamber Operator Name A. Troupiansky Customer Name Electronics Line 3000 Ltd…

Text truncated - open the document above for the full version.

This report is in conformity with ISO/IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report must not be reproduced in any form except in full with the approval of Hermon Laboratories Ltd. Page 1 of 30 Document ID: ELERAD_FCC.15673_EL2620_rev1.doc Date of issue: March 2004 HERMON LABORATORIES Electrical Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30500, Israel Tel.+972 4628 8001 Fax.+972 4628 8277 e-mail: [email protected] RADIO TEST REPORT according to 47 CFR Part 15 subpart C §15.231 and subpart B for Electronics Line 3000 Ltd. EQUIPMENT UNDER TEST: Wireless keypad Model: EL2620 Page 2 of 30 Document ID: ELERAD_FCC.15673_EL2620_rev1.doc Date of Issue: March 2004 HERMON LABORATORIES Contents Contents .................................................................................................................................................................2 1 Project information ........................................................................................................................................3 2 Summary and signatures ..............................................................................................................................4 3 EUT description..............................................................................................................................................5 3.1 G ENERAL....................................................................................................................................................5 4 Test results .....................................................................................................................................................6 4.1 B ANDWIDTH OF EMISSION ACCORDING TO ß 15.231 (C) .................................................................................6 4.2 F IELD STRENGTH OF FUNDAMENTAL, ß 15.231(B)(2) .....................................................................................7 4.3 F IELD STRENGTH OF SPURIOUS RADIATION, ß 15.231(B)(3) ...........................................................................8 4.4 U NINTENTIONAL RADIATED EMISSIONS TEST ACCORDING TO ß15.109...........................................................10 Appendix A - Plots...............................................................................................................................................11 Appendix B - Test equipment used for tests ....................................................................................................21 Appendix C – Antenna factors and cable loss .................................................................................................22 Appendix C - General information .....................................................................................................................30 T EST FACILITY DESCRIPTION.................................................................................................................................30 A BBREVIATIONS AND ACRONYMS...........................................................................................................................30 S PECIFICATION REFERENCES................................................................................................................................30 Page 3 of 30 Document ID: ELERAD_FCC.15673_EL2620_rev1.doc Date of Issue: March 2004 HERMON LABORATORIES 1 Project information Description of equipment under test Test items Wireless keypad Manufacturer Electronics Line 3000 Ltd. Brand name Infinite Types (Models) EL2620 Equipment FCC code DSR Applicant information Applicantís responsible person Mr. Shaul Aviezer, Quality and Approvals Manager Company Electronics Line 3000 Ltd. Address 58, Amal street P.O.Box 3253 City Petah Tikva Postal code 49130 Country Israel Telephone number +972 3921 1117 Telefax number +972 3921 2224 Test performance Project number: 15673 Location Hermon Laboratories Receipt date September 4, 2003 Test completed September 21, 2003 Purpose of test Apparatus compliance verification in accordance with emission requirements Test specification(s) 47CFR Part 15, subpart C, ß15.231, ß15.209, ß15.205 and subpart B ß15.109 Page 4 of 30 Document ID: ELERAD_FCC.15673_EL2620_rev1.doc Date of Issue: March 2004 HERMON LABORATORIES 2 Summary and signatures The EUT, wireless keypad, was tested according to FCC part 15 subpart C, ßß15.231, 15.209, part 15 ß15.109 and found to comply with the standard requirements. Test description Specification reference Tested by Date tested Test report paragraph Verdict Bandwidth of emission 15.231(c) Mr. M. Nikishin, test engineer October 26, 2003 4.1 Pass Field strength of fundamental 15.231(b)(2) Mr. Y. Neuman, test engineer September 8, 2003 4.2 Pass Field strength of spurious radiation 15.231(b)(3) Mr. I. Fershtater, test engineer September 14, 21, 2003 4.3 Pass Radiated emissions 15.109 Mr. I. Fershtater, test engineer September 11, 2003 4.4 Pass Test report prepared by: Mrs. M. Cherniavsky, MScEE, certification engineer ________________ Test report approved by: Mr. Michael Nikishin, MScEE, group leader ________________ Mr. Edward Usoskin, PhD, C.E.O. _______________ Page 5 of 30 Document ID: ELERAD_FCC.15673_EL2620_rev1.doc Date of Issue: March 2004 HERMON LABORATORIES 3 EUT description 3.1 General The EUT, model number EL2620, is a wireless keypad transmitter operating at 418 MHz and designed for use with Electronics Lineís ìInfiniteî control panel. The device utilizes integral, printed on PCB antenna and is powered by 9 V alkaline battery; its controller clock generates 4 MHz. The EL2620 general view is shown in Photograph 3.1.1. 3.1.1 EUT compliance with §15.231(a)(1) requirements The EUT is manually activated transmitter, which sends data for 880 ms and stops automatically. No periodic supervisory…

Text truncated - open the document above for the full version.

FCC ID:RIYEL2620 Date: February 2004 Page 1 of 7 SETUP PHOTOGRAPHS This document contains 6 photographs FCC ID:RIYEL2620 Date: February 2004 Page 2 of 7 Photograph No.1 Spurious radiated emissions measurement setup in the anechoic chamber with loop antenna FCC ID:RIYEL2620 Date: February 2004 Page 3 of 7 Photograph No.2 Radiated emissions measurement setup in the anechoic chamber with biconical antenna FCC ID:RIYEL2620 Date: February 2004 Page 4 of 7 Photograph No.3 Radiated emissions measurement setup in the anechoic chamber with log periodic antenna FCC ID:RIYEL2620 Date: February 2004 Page 5 of 7 Photograph No.4 Radiated emissions measurement setup in the anechoic chamber with double ridged guide antenna FCC ID:RIYEL2620 Date: February 2004 Page 6 of 7 Photograph No.5 Radiated emissions measurement setup at the OATS with log periodic antenna FCC ID:RIYEL2620 Date: February 2004 Page 7 of 7 Photograph No.6 Radiated emissions measurement setup at the OATS with double ridged guide antenna
