RIYEL2645-PIPIR Motion Detector

EL-2645PI The EL-2645PI is a wireless PIR sensor designed for use with Electronics Line 3000’s supervised wireless range of receivers. The detector is designed for pet installations and provides good immunity to nuisance alarms caused by pets weighing up to 100lbs (45kg). The EL-2645PI implements a feature to combat the problem of multiple transmissions that drastically reduce the life of the batteries. After each detection, the EL-2645PI initiates a three- minute delay during which transmissions will not be sent. Location of Detector Consider the following before mounting the detector: • Select a location from which the pattern of the sensor is most likely to be crossed by a burglar, should there be a break in. • Do not place bulky objects in front of the sensor. • Avoid a location which comes in direct contact with radiators, heating/cooling ducts and air conditioners. Pet Immunity Guidelines It is expected that the detector will eliminate false alarms caused by animals up to 100lbs/45kg, several small rodents and random flying birds. Note: The weight of the animal should only be used as a guide, other factors such as the length and color of fur also affect the level of immunity. For maximum pet immunity the following guidelines are recommended: • Mount the center of the detector at a height of 6.5’ (2m) with the PCB vertical setting at -4. • Set the pulse counter to 2. • Do not aim the detector at stairways that can be climbed by an animal. • Avoid a location where an animal can come within 6’ (1.8m) of the detector by climbing on furniture, boxes or other objects. Installation 1. Open the housing by removing the front cover. To do so, insert a screwdriver in the release slot (located at the bottom of the detector between the front and back cover). Turn the screwdriver 90º to release the cover. 2. Remove the PCB by turning counter-clockwise and removing the "Easy Lock". Note: Do not touch the face of the PYRO sensor. 3. Apply battery power by removing the insulator that separates the battery from the contacts on the battery holder. 4. Place the Mode jumper over pins 2 & 3 (Radio Mode); the LED flashes. Note: Install the Mode jumper only after applying battery power. Due to the occurrence of voltage delay in lithium batteries that have been in storage, the batteries may initially appear to be dead. In this case, leave the unit in Radio mode for a few minutes until the battery voltage level is stabilized. 5. Set the receiver to Registration mode and wait for the receiver to indicate that the transmitter has been registered successfully. Write the number of the zone and the transmitter number (if applicable) on the sticker provided. Affix the sticker inside the front cover for future reference. 6. Remove the jumper and place it over one pin for storage - see Mode Jumper Safeguard. 7. Choose an appropriate mounting height (6.5’/2m recommended for maximum pet immunity) and test the transmitter from the exact mounting position before permanently mounting the unit. 8. Knock out the mounting holes and attach the base to the wall. 9. Mount the PCB at the required vertical adjustment and replace the PCB screw. 10. Replace the front cover. Note: The Vertical adjustment scale relates to the top edge of the adjacent plastic stud (A) Figure 1: EL-2645PI (Cover Off) LED Indicator Easy Lock Mode Jumper Pyro Sensor Antenna Battery Holder Mounting Hole Tamper Switch Vertical Adjustment Scale DIP- Switch Operation and Adjustment Warm-Up Time: The detector will need to warm up for the first 90 seconds after applying power. Setting the pulse counter: The pulse counter determines the amount of beams that need to be crossed before the detector will produce an alarm. The available options are 1, 2 or Adaptive pulse count. Using the Adaptive pulse count feature, the detector chooses between 1 or 2 pulses based on its analysis of the received signal. To set the pulse counter, refer to Table 1 for the appropriate DIP-switch setting. Vertical Adjustment: To position the PCB, turn the Easy Lock counter-clockwise and slide the PCB up or down to the required setting using the vertical adjustment scale. The sensor’s coverage area is 40’ x 40’ (12m x 12m) when the PCB is positioned at -4. This is also the setting for maximum pet immunity. Slide the PCB up towards the -8 position to decrease the coverage area bringing the beams closer to the mounting wall. Walk Test Mode: A walk test is performed in order to determine the lens coverage pattern of the detector– see Figure 2. Placing the Mode jumper over pins 1 & 2 cancels the delay time between detections, enabling you to perform an efficient walk test. To walk test the sensor: 1. Place the Mode jumper over pins 1 & 2. 2. Walk across the coverage area of the detector according to the detection pattern selected. 3. Confirm that the LED activates and deactivates accordingly. Wait five seconds after each detection before continuing the test. 4. After completing the walk test, remove the jumper and place it over one pin for storage - see Mode Jumper Safeguard. LED indication: The LED indicator is lit every time a transmission is made. To enable/disable LED indication, refer to Table 2 for the appropriate DIP-switch setting. Note: The LED should only be disabled after successfully walk testing the detector. Mode Jumper Safeguard: During normal operation, the Mode jumper should be placed over one pin for storage. When the mode jumper is placed over two pins, the detector is either in Radio or Walk Test Mode. As a precaution, these modes are limited to four minutes. After the four minutes have expired, the detector switches back to normal operation. If this happens, you can reset a mode by removing and replacing the mode jumper. Technical Specifications Antenna: Built-in Internal Whip Frequency: 418MHz FM Power: 3.6V ½ AA Lithium Battery (Part No. BT5055) Caution: Fire, explosion and severe burn hazard! Do not recharge, disassemble or heat above 212°F (100°C). Current Consump…

Text truncated - open the document above for the full version.

EL 26 45 Wirless PIR Logic & MCU RF TX Tamper PIR Detector 418 MHz Voltage Conditioning Voltage Doubler Battery

April 14, 2004 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Application for certification of passive infrared detector, model number EL2645PI, FCC ID:RIYEL2645-PI Dear Gentlemen, Please find attached our application for certification of passive infrared detector, model number EL2645PI, FCC ID:RIYEL2645-PI, prepared in accordance with FCC Rules, parts 15 and 2. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC. Hermon Labs responsible person is Mr. Edward Usoskin, tel: 011 972 4628 8001, fax:011 972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. Shaul Aviezer Q.A & Approvals manager Electronics Line 3000 Ltd.

April 14, 2004 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality for passive infrared detector, model number EL2645PI, FCC ID:RIYEL2645-PI Dear Gentlemen, We apply to you with request to withhold Electronics Line 3000 Ltd. trade secrets in Application for Certification for passive infrared detector, model number EL2645PI, FCC ID:RIYEL2645-PI. These trade secrets can be found in the Schematic_15840 diagram (1 page of this Application). Many thanks in advance. Shaul Aviezer Q.A & Approvals manager Electronics Line 3000 Ltd.

FCC ID:RIYEL2645-PI Date: April 2004 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs FCC ID:RIYEL2645-PI Date: April 2004 Page 2 of 3 Photograph No.1 Passive infrared detector, model EL-2645PI Front view FCC ID:RIYEL2645-PI Date: April 2004 Page 3 of 3 Photograph No.2 Passive infrared detector Rear side view

FCC ID:RIYEL2645-PI PASSIVE INFRARED DETECTOR LABEL LABEL LOCATION Label FCC ID:RIYEL2645-PI

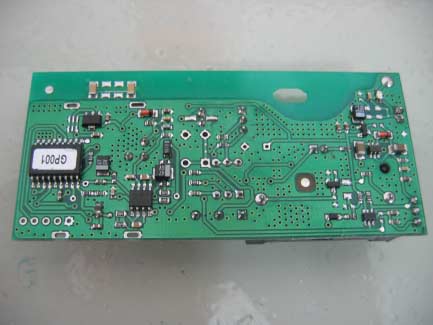

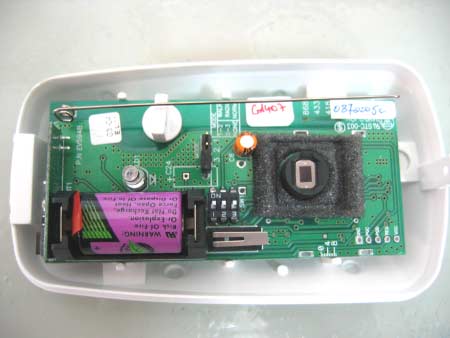

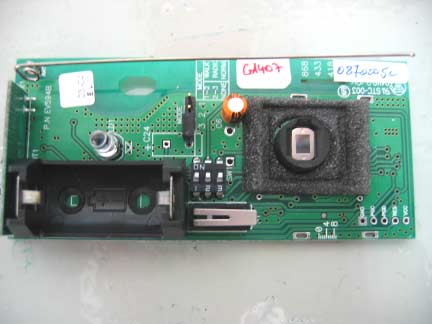

FCC ID:RIYEL2645-PI Date: April 2004 Page 1 of 8 INTERNAL PHOTOGRAPHS This document contains 7 photographs FCC ID:RIYEL2645-PI Date: April 2004 Page 2 of 8 Photograph No.1 Passive infrared detector Internal view FCC ID:RIYEL2645-PI Date: April 2004 Page 3 of 8 Photograph No.2 Passive infrared detector Internal view FCC ID:RIYEL2645-PI Date: April 2004 Page 4 of 8 Photograph No.3 Passive infrared detector PCB front view FCC ID:RIYEL2645-PI Date: April 2004 Page 5 of 8 Photograph No.4 Passive infrared detector PCB rear side view FCC ID:RIYEL2645-PI Date: April 2004 Page 6 of 8 Photograph No.5 Passive infrared detector Daughter board front view FCC ID:RIYEL2645-PI Date: April 2004 Page 7 of 8 Photograph No.6 Passive infrared detector Daughter board front view FCC ID:RIYEL2645-PI Date: April 2004 Page 8 of 8 Photograph No.7 Passive infrared detector Daughter board second side view

EL2645 / 2645PI EL2645: W/L motion detector based on infrared sensor include tx that transmit data in a frequency of 418 MHz, modulated FSK. Each event caused 2 transmission of approx’ 0.6 sec with random pause of 0.5-1.5 sec between. Then 2.9 min of sleep time EL2645PI: same as EL2645 same tx, but it has a function of pet-immune.

This report is in conformity with ISO/IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report must not be reproduced in any form except in full with the approval of Hermon Laboratories Ltd. Page 1 of 28 Document ID: ELERAD_FCC.15840.doc Date of issue: March 04 HERMON LABORATORIES Electrical Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30500, Israel Tel.+972 4628 8001 Fax.+972 4628 8277 e-mail: [email protected] RADIO TEST REPORT according to 47 CFR Part 15 subpart C §15.231 and subpart B for Electronics Line 3000 Ltd. EQUIPMENT UNDER TEST: Passive infrared detector Model: EL2645PI Page 2 of 28 Document ID: ELERAD_FCC.15840.doc Date of Issue: March 04 HERMON LABORATORIES Contents Contents .................................................................................................................................................................................. 2 1 Project information......................................................................................................................................................... 3 2 Summary and signatures............................................................................................................................................... 4 3 EUT description .............................................................................................................................................................. 5 3.1 GENERAL.................................................................................................................................................................... 5 4 Test results ..................................................................................................................................................................... 6 4.1 FIELD STRENGTH OF FUNDAMENTAL, § 15.231(B)(2) ....................................................................................................... 6 4.2 FIELD STRENGTH OF SPURIOUS RADIATION, § 15.231(B)(3) ............................................................................................. 7 4.3 BANDWIDTH OF EMISSION ACCORDING TO § 15.231 (C) ................................................................................................... 9 4.4 PERIODIC OPERATION REQUIREMENTS, § 15.231(A)(2) ................................................................................................. 10 4.5 UNINTENTIONAL RADIATED EMISSIONS TEST ACCORDING TO §15.109.............................................................................. 11 Appendix A - Plots................................................................................................................................................................ 12 Appendix B - Test equipment used for tests...................................................................................................................... 23 Appendix C – Antenna factors and cable loss................................................................................................................... 24 Appendix C - General information ...................................................................................................................................... 28 TEST FACILITY DESCRIPTION................................................................................................................................................... 28 ABBREVIATIONS AND ACRONYMS............................................................................................................................................. 28 SPECIFICATION REFERENCES.................................................................................................................................................. 28 Page 3 of 28 Document ID: ELERAD_FCC.15840.doc Date of Issue: March 04 HERMON LABORATORIES 1 Project information Description of equipment under test Test items Passive infrared (PIR) detector Manufacturer Electronics Line 3000 Ltd. Type (Model) EL2645PI Equipment FCC code DSR Applicant information Applicant’s responsible person Mr. Shaul Aviezer, Quality and Approvals Manager Company Electronics Line 3000 Ltd. Address 58, Amal street P.O.Box 3253 City Petah Tikva Postal code 49130 Country Israel Telephone number +972 3921 1117 Telefax number +972 3921 2224 Test performance Project number: 15840 Location Hermon Laboratories Test performed on March 2, 16, 2004 Purpose of test Apparatus compliance verification in accordance with emission requirements Test specification(s) 47CFR Part 15, subpart C, §15.231, §15.209, §15.205 and subpart B §15.109 Page 4 of 28 Document ID: ELERAD_FCC.15840.doc Date of Issue: March 04 HERMON LABORATORIES 2 Summary and signatures The EUT, wireless PIR detector, was tested according to FCC part 15 subpart C, §§15.231, 15.209, part 15 §15.109 and found to comply with the standard requirements. Test description Specification reference Tested by Date tested Test report paragraph Verdict Field strength of fundamental 15.231(b)(2) Mr. A.Troupiansky, test engineer March 2, 2004 4.1 Pass Field strength of spurious radiation 15.231(b)(3) Mr. A.Troupiansky, test engineer March 2, 2004 4.2 Pass Bandwidth of emission 15.231(c) Mr. Y. Neuman, test engineer October 26, 2003 4.3 Pass Periodic operation requirements 15. 231(a)(2) Mr. A.Troupiansky, test engineer March 16, 2004 4.4 Pass Radiated emissions 15.109 Mr. A.Troupiansky, test engineer March 2, 2004 4.5 Pass Test report prepared by: Mrs. M. Cherniavsky, MScEE, certification engineer ________________ Test report approved by: Mr. Michael Nikishin, MScEE, group leader ________________ Mr. Edward Usoskin, PhD, C.E.O. _______________ Page 5 of 28 Document ID: ELERAD_FCC.15840.doc Date of Issue: March 04 HERMON LABORATORIES 3 EUT description 3.1 General The EUT, model number EL2645PI, is a wireless PIR detec…

Text truncated - open the document above for the full version.

FCC ID:RIYEL2645-PI Date: April 2004 Page 1 of 5 SETUP PHOTOGRAPHS This document contains 4 photographs FCC ID:RIYEL2645-PI Date: April 2004 Page 2 of 5 Photograph No.1 Spurious radiated emissions measurement setup in the anechoic chamber with loop antenna FCC ID:RIYEL2645-PI Date: April 2004 Page 3 of 5 Photograph No.2 Radiated emissions measurement setup in the anechoic chamber with biconilog antenna FCC ID:RIYEL2645-PI Date: April 2004 Page 4 of 5 Photograph No.3 Radiated emissions measurement setup in the anechoic chamber with double ridged guide antenna FCC ID:RIYEL2645-PI Date: April 2004 Page 5 of 5 Photograph No.4 Radiated emissions measurement setup in the anechoic chamber, close view
