RNT-ASH2200USTemperatur Sensor - Transmitter

1 Radio temperature and humidity sensor ASH 2200US Operating instructions ELV Electronics Ltd.
Hong Kong 2 1 st English edition January 2004 Documentation © 2004 ELV Electronics Limited All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher. This handbook may contain mistakes and printing errors. The infor- mation in this handbook is regularly checked and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their consequences. All trademarks and patents are acknowledged. Printed in Hong Kong Modifications due to technical improvements may be made without prior notification. 00056979Y2004 V1.0 3 Contents 1.General, functional features .......................... 4 Intended use ................................................. 4 2.Safety and maintenance information ............ 5 3.Commissioning ............................................. 6 3.1.Inserting the batteries ................................... 6 3.2.Sensor addressing ........................................ 7 3.3.Installation and dismounting ......................... 8 4.Range and reception interference .............. 10 5.Changing the batteries ............................... 11 6.Technical data ............................................. 11 7.FCC Information ......................................... 12 4 1. General The ASH 2200US radio climate sensors make it possible to determine values for temperature and humidity at the location of the sensor and to transmit the data by radio to a reception station suitable for this purpose, for example to the ELV BA 1010US. The sensors can be flexibly mounted at different locations: outdoors, in the green house, in the cellar, garage, storage room and many other places. This permits you to install a complete monitoring system consisting of diverse locations. Functional features: ASH 2200US - Freely addressable, battery operated, radio universal temperature and humidity sensor for the temperature range -30.0 ̊C to +70 ̊C and the humidity range 5 % to 95 % relative humidity. Please read these instructions fully and thoroughly before initial commissioning; they contain informa- tion for the correct use of this device. Intended use The external sensing device ASH 2200US can be used outdoors in a temperature range of -30 ̊C to +70 ̊C and a maximum humidity of 95 %. Please observe the instructions regarding the choice of installation location. The manufacturer does not accept any liability for the consequences of improper use; all rights under the warranty will be forfeited. 5 2. Safety and maintenance information - The device has no user-serviceable parts. - Avoid extreme moisture (e.g. it should not be directly splashed with or immersed in water), direct sunlight, and extremely dusty environments. - Clean the display device and the external sensor using a dry linen cloth, which may be slightly dampened to remove obstinate soiling. Do not use solvents for cleaning - The device should be kept out of reach of children. It is not a toy! 6 3. Commissioning 3.1. Inserting the batteries Remove the protective cap on the external sensor and open the battery compartment as shown in the picture below. Insert two 1.5 V Mignon batteries (LR 6 / Mignon / AA alkaline) into the battery compartment, ensuring that the polarity is correct (see illustration), and then close the battery compartment. Place the protective cap back on to the stop. CAUTION! Observe regulations for the disposal of 1 2 batteries! Used batteries and rechargeable accumulators must not be thrown away with household rubbish! Please take exhausted batteries and recharge- ables to your local dealer or to a collection point for hazardous waste or batteries. 7 3.2. Sensor addressing Each sensor in the weather monitoring system is assigned an address which enables the receiver to integrate the sensor trouble-free into the system. The factory setting for each sensor is address 1. Eight addresses are available (1 to 8, corresponding to the display). You can carry out addressing yourself using the jumpers on the sensor circuit board. To do that, the protective cap must first be taken off of the sensor housing and the batteries removed. You then remove the two screws on the back which are on the left and right of the wall holder, remove the screw above the battery compartment, and take off the front half of the housing. Undo screw Undo screw Undo screw 8 The jumpers can now be placed according to the address table. The black areas represent a jumper inserted at one of the points (1, 2, 3). 3 2 1 Adresse 8 7 6 5 4 3 2 1 3.3. Installation and dismounting of the external sensor The external sensor can be very easily installed on a vertical surface using the supplied mounting base. CAUTION! Choose an installation location that is not exposed to direct precipitation, direct sunlight, or is extremely dusty! Outdoor installation under a roof overhang, for example, would be a suitable location. 9 The mounting base is fastened onto a vertical surface with a screw as shown in the following figure. Make sure that the notch in the housing points up as in the drawing. Notch points upward Screw hole Now the external sensor can be inserted vertically to the stop in the mounting base. If the external sensor needs to be dismounted (e.g. to change batteries), it is pulled out to the front. 10 4. Range and reception interference The free field range (i.e. the range of the line of sight contact between the transmitter and the receiver) is 100 m under optimum conditions. Walls and even reinforced concrete can be penetrated, which does, however, reduce the range. In the event of interference, turn the display unit slightly until it is again receiving data from the required sensor. A reduced range can have the following causes:
High frequency interference of al…

Text truncated - open the document above for the full version.

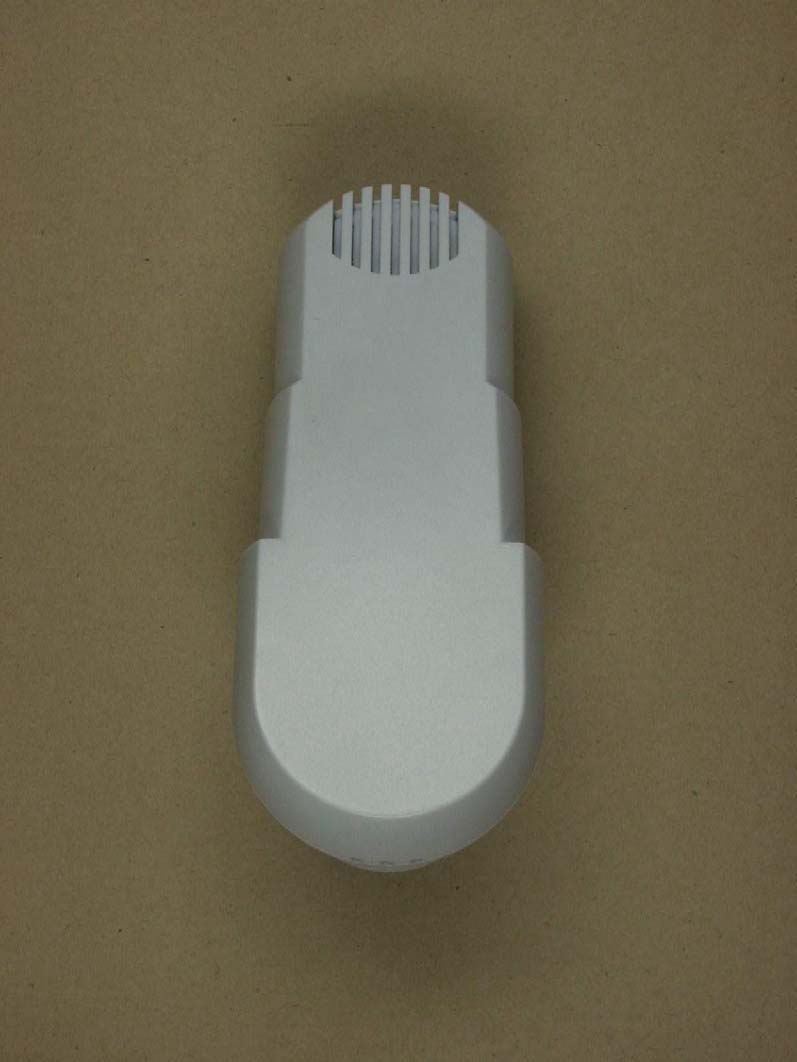

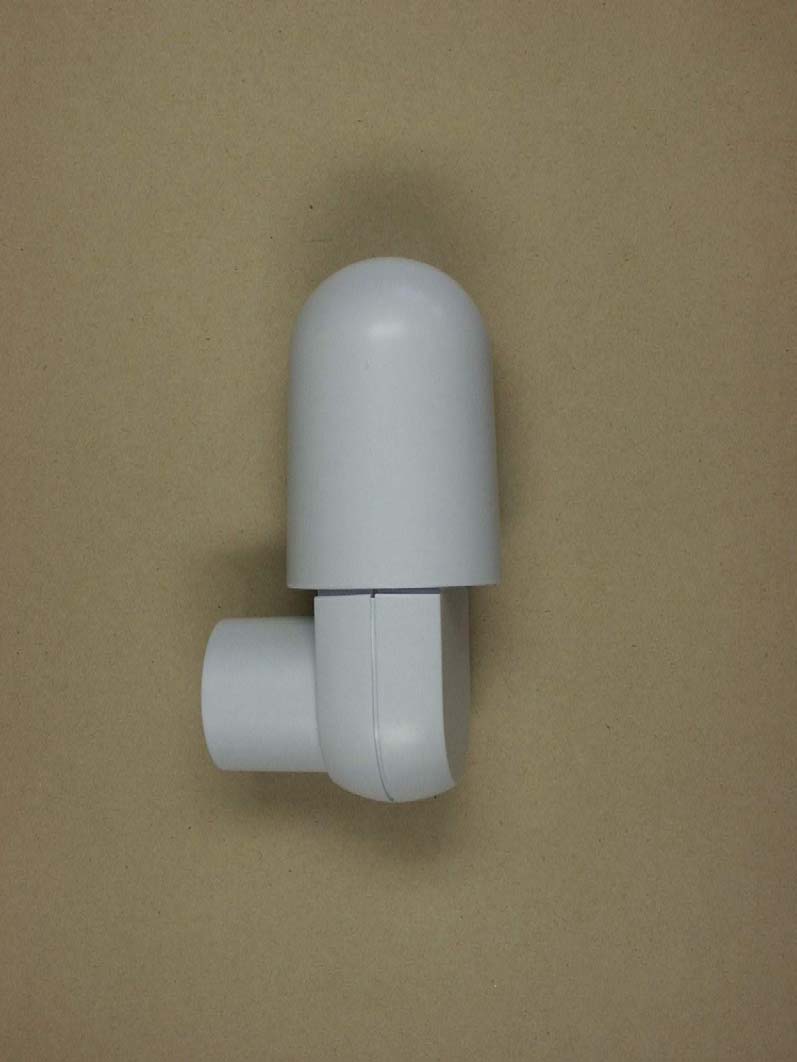

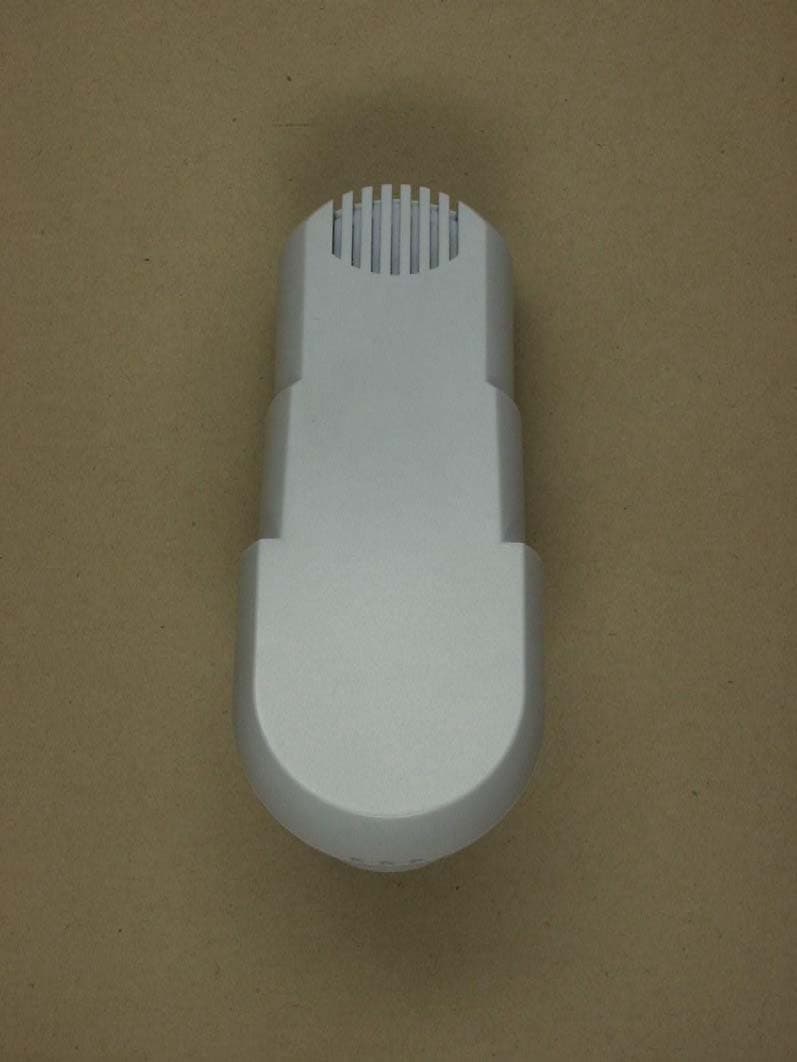

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 1 of 10 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 2 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 3 of 10

Electronics Limited Wireless temperature sensor Model: ASH 2200US TX: HFS300US / 433.92 MHz Battery: 2 x 1.5V LR6 / Mignon / AA FCC ID: RNT-ASH2200US This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Doc.No.: Tol.: Scale: Colour: Units.: Sheet:Date: Drawn by: Developer: note: Raw material: Part No: Desc: Name: No.:Project Elektronik AG Ver.Date Name 2539 ASH 2200US Nameplate US P010403001 Pantone blackC Willenborg Thoben 13.01.04 1/1 1:1 ±0.1mm

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 4 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 5 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 6 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 7 of 10

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART B and C Test report no.: G0M20311-8357-C-1 FCC ID: RNT-ASH2200US FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 1 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 2 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Futhermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 16.03.2004N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 16.03.2004Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 3 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY Accredited by: Bundesamt für Post und Telekommunikation (BAPT) DAR-REGISTRATION NUMBER: TTI-P-G 126/96-30 ACCREDITED COMPETENT BODY Accredited by: Bundesamt für Post und Telekommunikation (BAPT) DAR-REGISTRATION NUMBER: BPT-ZE-026/96-00 FCC FILED TEST LABORATORY REG. NO. 96970 A2LA Accredited Certification No.1983-01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 1.3Details of approval holder Name: ELV Electronics Ltd. Street: Kailey Industrial Centre No. 12 Fung Yip Str. Town: Chaiwan Country: Hong Kong Telephone: 0085223670322 Fax: 0085223670822 Contact: Shirley Hui Lai Chu Telephone: 0085223670322 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 4 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application :25.11.2003 Date of receipt of test item:25.11.2003 Date of test:03.11.2003-04.11.2003 1.5 Test item Description of test item:Funk-Außensensor - Transmitter Type identification:ASH 2200Brand Name: ELV Serial number:Test sample without serial number Transmitting frequency: 433,42 MHz Operation mode: simplex Transmitting mode: K1D Voltage supply:3,0 V DC (battery) Antenna:integral antenna Photos:see Annex Manufacturer: (if applicable) Name: DJY Electronics Co. Ltd. Street: S18101 3/F Fu Yuan # 3 Industrial Building Town: Shenzhen Country: P.R.C. Additional information:none ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 5 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART B §15.109 / SUBPART C § 15.203, §15.209, § 15.231e 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 3,0 V DC (battery) ETS Dr. Genz GmbH, GermanyRegistration number: G0M20311-8357-C-1Page 6 of 22 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spektrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ETS 0014AntennaHL 025Rohde&Schwarz ETS 0015AntennaHL 025Rohde&Schwarz ETS 0016AntennaVHAPSchwarzbeck ETS 0017AntennaVHAPSchwarzbeck ETS 0018AntennaUHAPSchwarzbeck ETS 0019AntennaUHAPSchwarzbeck ETS 0020AntennaDP 21MEB ETS 0021AntennaDP 3MEB ETS 0022AntennaSAS-200/ 521A.H. Systeme / USA ETS 0023AntennaDP 1MEB ETS 0024Antenna mastAF 2MEB ETS 0025Antenna mastAF 2MEB ETS 0026TripodHeinrich Deisel ETS 0027TripodHeinrich Deisel ETS 0028TripodSTA 2C. Lorenz AG ETS 0029TripodBerlebach ETS 0030Turn tableTT 1ETS ETS 0031Turn tableDS 412Heinrich Deisel ETS 0032ControllerHD 050Heinrich Deisel ETS 0033RF generatorSMGRohde&Schwarz ETS 0034RF generator/ AmplifierSMLRRohde&Schwarz ETS 0035RF generator/ AmplifierSMLMRohde&Schwarz ETS 0036RF amplifier10W 1000AM2Amplifier Research ETS 0037RF amplifier50W 1000Am…
