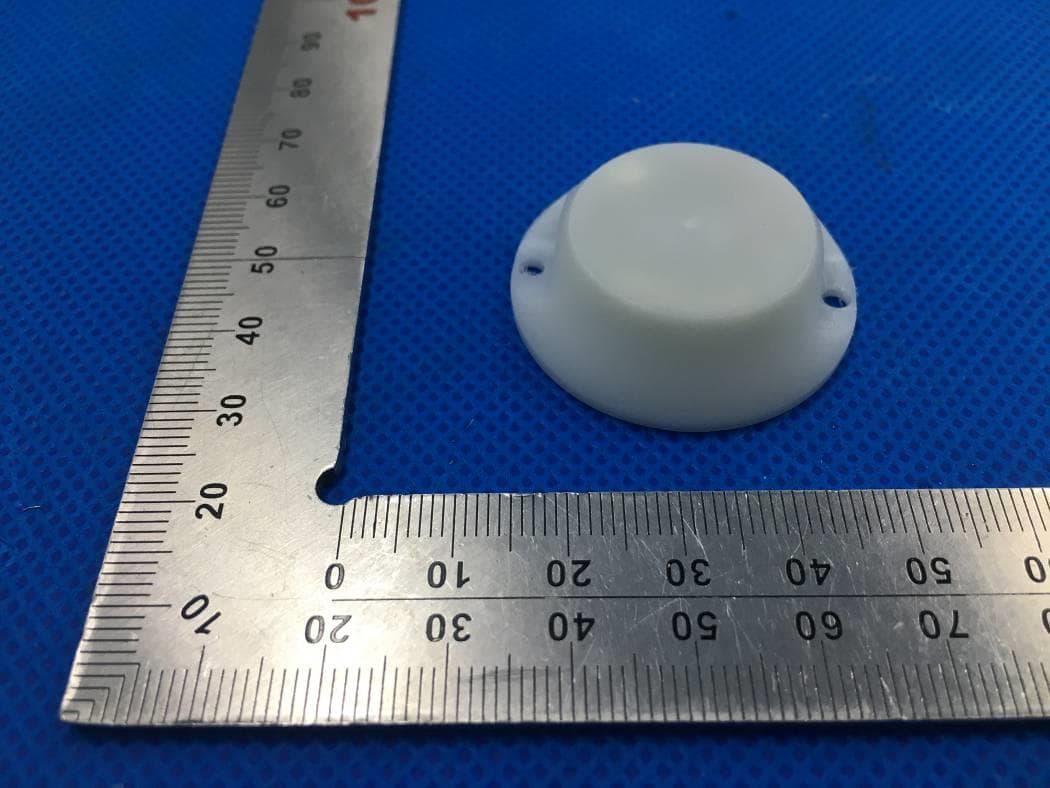

RVVBCOINPF1The BLUE COIN FAMILY is a tag used for advertising through an antenna.

Specifications could be modified without any notification. Non-contractual document. www.elainnovation.com Copyright © 2018 ELA Innovation RVVBCOINPF1_U serMan_EN.DOC X COIN Ref. IDF10XXX Very high range: up to 200 meters (open field) High lifecycle: up to 5 years Pick to light system: integrated LED Robust industrial casing - IP68 waterproof Integrated NFC chipset TECHNICAL SPECIFICATIONS Battery power supply 3 VDC - Lithium internal battery Frequency 2,4 GHz range Operating mode - Periodic data transmission - LED indicator light (ON/OFF switch) Power output Up to +4dBm (programmable) Transmission range Up to 200 meters (open field / + 4dBm) Transmission period 0,1 to 10 second (programmable) Lifecycle 5 years (Beacon rate = 10s with 0dBm power) Radio frame format ID: 15 characters name Unique 48 bits MAC address ID (ELA) compliant Settings & configuration Interface/Protocol: NFC Type 2 Device Manager software or Device Manager Mobile Android App Operating temperature -30°C to +70°C Battery level management 15% remaining battery warning Housing ∅ 36mm base - Thickness 10mm - 2 mounting ∅ 3mm holes, spaced of 32mm IP68 Waterproof - Weight 11g DELRIN (POM C) material – Food Grade (90/128/EEC) Standards EC (Europe): EN 300 328/EN 300 330/EN 301 489 & EN 55032 / EN 62368-1 FCC (USA): FCC PART 15 ISED/IC (Canada): RSS-247 / ICES-003 RoHS certified Accessory COIN HOLDER STICKER FCC ID RVVBCOINPF1 IC 20429-BCOINPF1 Specifications could be modified without any notification. Non-contractual document. www.elainnovation.com Copyright © 2018 ELA Innovation RVVBCOINPF1_U serMan_EN.DOC X FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Industry Canada Statement This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. Le dispositif ne doit pas produire de brouillage préjudiciable, et 2. Ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

ELA Innovation S.A. au capital de 396.822 € - RCS de Montpellier - 432 799 278 00036 – TVA FR78432799278 297, rue Maurice Béjart, 34080 MONTPELLIER, France - Tél. 33 (0)4 67 47 60 60 - www.ela.fr 1 Federal Communications Commission Authorization and Evaluation Division Montpellier, France, July 08, 2020 Subject: Confidentiality Request regarding application for certification of FCC ID: RVVBCOINPF1 Applicant: ELA Innovation S.A. Product: BLUE COIN FAMILY To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Parts List RVVBCOINPF1_BlkDia.pdf RVVBCOINPF1_Schem.pdf RVVBCOINPF1_OpDes.pdf RVVBCOINPF1_PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any queries, please do not hesitate to contact us. Yours faithfully, Pierre Bonzom, July 08, 2020

ELA Innovation S.A. au capital de 396.822 € - RCS de Montpellier - 432 799 278 00036 – TVA FR78432799278 297, rue Maurice Béjart, 34080 MONTPELLIER, France - Tél. 33 (0)4 67 47 60 60 - www.ela.fr 1 Montpellier, France, July 08, 2020 Subject: Certification of the BLUE COIN FAMILY Applicant: ELA Innovation S.A. Product: BLUE COIN FAMILY FCC ID: RVVBCOINPF1 IC ID: 20429-BCOINPF1 To Whom It May Concern: We would like to submit the above product for Certification concerning FCC and ISED certification. Please review all required documents enclosed. The BLUE COIN FAMILY meets the industrial requirements of people and equipment indoor location. This tracking system also makes possible movement tracking of handling machines in real time and thus facilitate fleet management inside buildings. Compliance for RF exposure requirement was demonstrated in the test report. If you have any queries, please do not hesitate to contact us. Yours faithfully, Pierre Bonzom, July 08, 2020

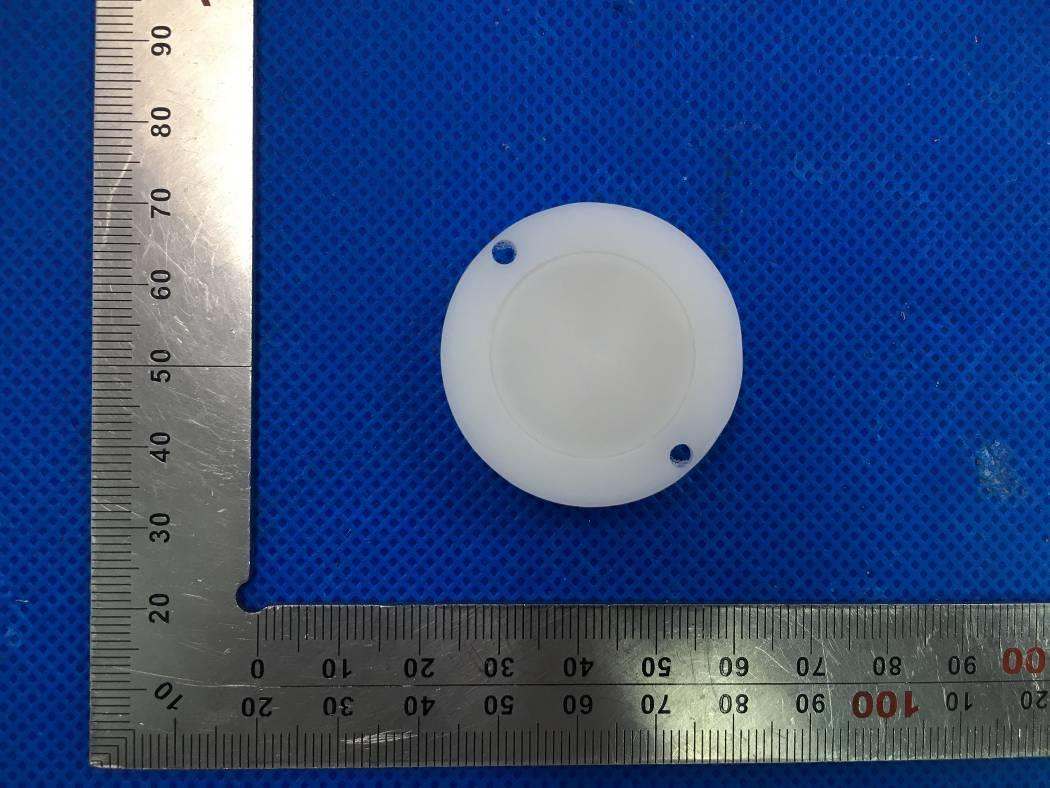

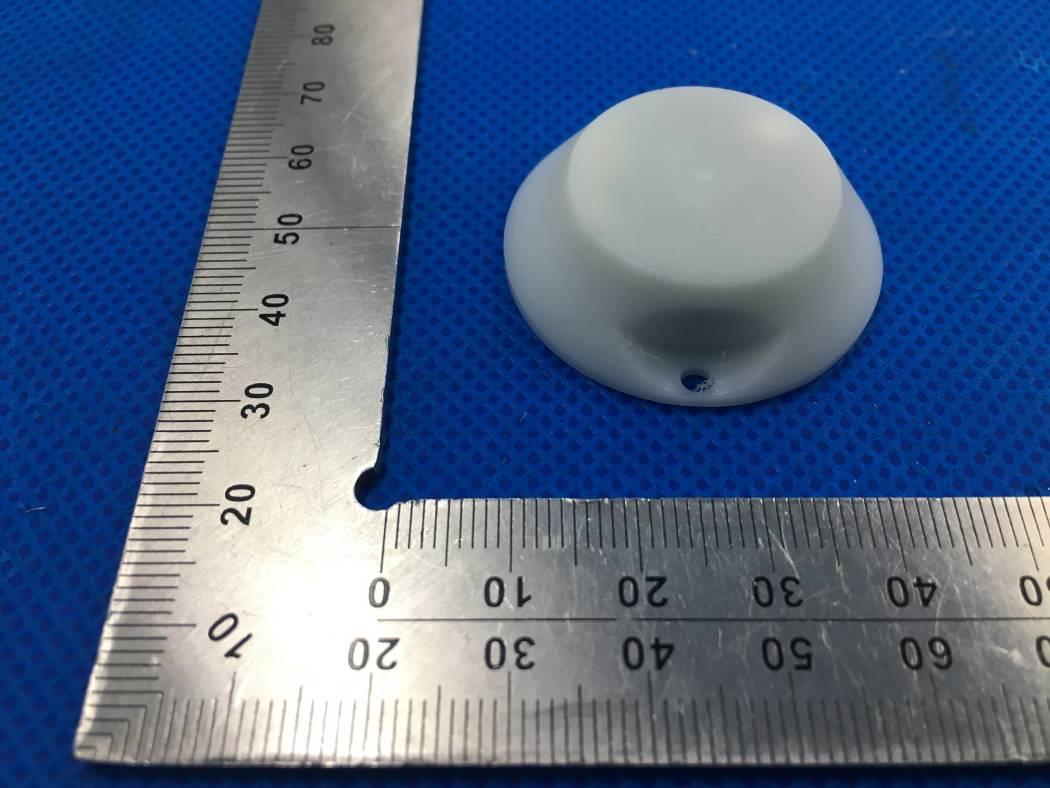

Page 1 FCC ID: RVVBCOINPF1 IC: 20429-BCOINPF1 EUT PHOTOGRAPHS TOP VIEW OF EUT BOTTOM VIEW OF EUT Page 2 FRONT VIEW OF EUT BACK VIEW OF EUT Page 3 LEFT VIEW OF EUT RIGHT VIEW OF EUT

Label Location FCC ID : RVVBCOINPF1 IC : 20429-BCOINPF1 Label Location

Label Sample FCC ID: RVVBCOINPF1 IC : 20429-BCOINPF1

Page 1 FCC ID: RVVBCOINPF1 IC: 20429-BCOINPF1 OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 Page 2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description BLUE COIN FAMILY Model Name IDF10XXX FCC ID RVVBCOINPF1 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BT(BLE): P t =-7.490dBm=0.18mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.18mW /5mm) .[√2.48(GHz)]= 0.057<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 2.4G GFSK: P t =-8.256dBm=0.15mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.15mW /5mm) .[√2.481(GHz)]= 0.047<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Note: BLE and 2.4G GFSK don't work at the same time. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 41 FCC Test Report Report No.: AGC00688200405FE03 FCC ID : RVVBCOINPF1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BLUE COIN FAMILY BRAND NAME : N/A MODEL NAME : IDF10XXX APPLICANT : ELA Innovation DATE OF ISSUE : Jun. 01, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00688200405FE03 Page 2 of 41 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 01, 2020 Valid Initial Release Report No.: AGC00688200405FE03 Page 3 of 41 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2.GENERAL INFORMATION................................................................................................................................ 6 2.1PRODUCT DESCRIPTION .......................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................ 7 2.4TEST METHODOLOGY ............................................................................................................................... 7 2.5 SPECIAL ACCESSORIES ........................................................................................................................... 7 2.6 EQUIPMENT MODIFICATIONS .................................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1 CONFIGURATION OF TESTED SYSTEM ................................................................................................ 10 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. 6 DB BANDWIDTH ......................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 17 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 17 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 22 Report No.: AGC00688200405FE03 Page 4 of 41 10.1 MEASUREMENT PROCEDURE ............................................................................................................. 22 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 22 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................... 22 10.4 LIMITS AND MEASUREMENT RESULT ................................................................................................. 22 11. RADIATED EMISSION ................................................................................................................................. 24 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 24 11.2. TEST SETUP .......................................................................................................................................... 25 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 26 11.4. …

Text truncated - open the document above for the full version.

FCC ID: RVVBCOINPF1 IC: 20429-BCOINPF1 EMC TEST SETUP PHOTOGRAPHS RADIATED EMISSION TEST SETUP (below 1G) RADIATED EMISSION TEST SETUP (above 1G) EN 61000-4-2 ESD TEST SETUP EN 61000-4-3 RS TEST SETUP(below 1G) EN 61000-4-3 RS TEST SETUP (above 1G) RF TEST SETUP PHOTOGRAPH
