RVVBPUCKPF2The BLUE PUCK FAMILY is a tag used for advertising through an antenna.

Specifications could be modified without any notification. Non-contractual document. www.elainnovation.com Copyright © 2018 ELA Innovation - FP Blue PUCK EN Blue PUCK FAMILY Ref. IDF26XXX Very long range: up to 500 meters (open field) High lifecycle: up to 16 years Robust industrial casing - IP69k waterproof Integrated NFC chipset TECHNICAL SPECIFICATIONS Battery power supply 3.6 VDC - Lithium internal battery Frequency 2,4 GHz range Operating mode - Periodic data transmission - LED indicator light Power output Up to +4dBm (programmable) Transmission range Up to 500 meters (open field / + 4dBm) Transmission period 0,1 to 10 second (programmable) Lifecycle Up to 18 years (Beacon rate = 10s with +4dBm) Radio frame format ID: 15 characters name Unique 48 bits MAC address ID (ELA) compliant Settings & configuration Interface/Protocol: NFC Type 2 Device Manager software Operating temperature • -40°C to +85°C Battery level management • 15% remaining battery warning Housing ∅ 57mm base - Thickness 20mm IP69k Waterproof - Weight 41g ULTRAFORM (POM C) material Standards CE (Europe): EN 300 328/ EN 300 330/ EN 301 489 / EN 50663 & EN 62479 / EN 62368-1 / EN 18031-1 FCC (USA): FCC PART 15 ISED/IC (Canada): RSS-247 / ICES-003 RoHS certified Accessory PUCK HOLDER STICKER - 2 mounting ∅ 4.5mm holes, spaced of 30mm FCC ID RVVBPUCKPF2 (located on the product label) IC 20429-BPUCKPF2 (located on the product label) Specifications could be modified without any notification. Non-contractual document. www.elainnovation.com Copyright © 2018 ELA Innovation - FP Blue PUCK EN Product commissioning Remove the product from its packaging. Check the integrity of the IP69k enclosure (manual page 1). The product is powered by a non-replaceable 3.6 VDC internal battery (manual page 1). There is no physical switch: activation and configuration depend on NFC programming. Sensor mounting The device must be mounted directly on a flat surface or using the PUCK HOLDER STICKER accessory. Ensure that the mounting surface does not degrade radio performance. Initial configuration via NFC Install the ELA Device Manager software from www.elainnovation.com (manual page 1). Place an NFC-compatible smartphone or NFC programmer near the central area of the device. Open ELA Device Manager. Read the device via NFC. Adjust the following parameters if needed: • transmission period (0.1 s to 10 s) • transmission power (up to +4 dBm) (all values taken from manual page 1) Validate the NFC write operation and verify that the parameters have been updated correctly. Normal operation The product periodically transmits its Bluetooth frames in “Periodic data transmission mode” (page 1). The LED indicator shows the transmission active/inactive status (manual page 1). The maximum open-field range can reach up to 500 m depending on the radio settings used. Maintenance When the battery reaches 15% remaining capacity, an internal warning is triggered (page 1). The battery is not replaceable: when it reaches end of life, replace the entire device. The IP69k enclosure must not be opened. Specifications could be modified without any notification. Non-contractual document. www.elainnovation.com Copyright © 2018 ELA Innovation - FP Blue PUCK EN FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. RF exposure test exclusion This equipment complies with FCC RF exposure limits for uncontrolled environments. To maintain compliance, a minimum separation distance of 20 cm must be maintained between the device and the user during normal operation. Industry Canada Statement This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This device meets the exemption from the routine evaluation limits in RSS-102. A minimum separation distance of 20 cm must be maintained between the device and the user. Le présent appareil est conforme aux CNR d’ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. Le dispositif ne doit pas produire de brouillage préjudiciable, et 2. Ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Cet appareil respecte les critères d’exemption de l’évaluation de routine définis par la norme RSS- 102. Une distance minimale de séparation de 20 cm doit être maintenue entre l’appareil et l’utilisateur.

PRODUCT VARIANT COVERAGE STATEMENT Context This document provides clarification regarding the FCC test report and the coverage of product variants sharing identical RF characteristics. Tested Configuration The FCC test report was conducted on the following configuration: • PMN (Product Marketing Name): Blue PUCK MAG • HVIN (Hardware Version Identification Number): IDF26243 • FVIN (Firmware Version Identification Number): FWB0410 • FCC ID: RVVBPUCKPF2 Variant Coverage Declaration We hereby declare that the tested configuration IDF26243 covers the following product variants: PMN HVIN FVIN FCC ID Blue PUCK MAG IDF26243 FWB0410 RVVBPUCKPF2 Blue PUCK ID IDF26240 FWB0410 RVVBPUCKPF2 Blue PUCK T EN12830 IDF26251 FWB0410 RVVBPUCKPF2 Technical Justification The products listed above share the same RF characteristics and technical specifications as tested and described in the FCC test report for model IDF26243. Specifically: • Identical RF Module: All variants utilize the same radio frequency module and antenna design • Same RF Output Power: Transmission power levels are identical across all variants • Identical Operating Frequencies: All models operate on the same frequency bands • Same Modulation Characteristics: Modulation schemes and parameters are unchanged • Equivalent EMC Performance: Electromagnetic compatibility characteristics are equivalent • Identical user manual and product label Variant Differentiation The technical suffixes (IDF26240, IDF26243, IDF26251) correspond to configuration variants that do not modify the RF characteristics tested in this report. Differences between variants are limited to: • Non-RF firmware features • Mechanical enclosure variations • Additional sensors or non-RF peripherals • Application-specific functionality (e.g., temperature monitoring compliance per EN12830) Variant descriptions: • BLUE PUCK MAG (IDF26243): beacon equipped with a magnetic sensor for open/close door detection. • BLUE PUCK ID (IDF26240): beacon featuring an LED indicator used for identification. • BLUE PUCK T EN12830 (IDF26251): beacon equipped with a temperature sensor for temperature monitoring. Regulatory Compliance • All future variants will comply with the same technical specifications as the models tested and described in this report • This list of technical references is not exhaustive - other variants sharing the same RF characteristics may be commercialized under the same FCC ID • Any variant with modified RF characteristics will be subject to separate FCC testing and certification Declaration We certify that the information provided in this document is accurate and complete to the best of our knowledge. Pierre BONZOM (CEO) ELA Innovation 04/12/2025 ANNEX 1 Product version information Interior pictures Exterior pictures PMN: Blue PUCK MAG HVIN: IDF26243 FVIN: FWB0410 FCC ID: RVVBPUCKPF2 Magnetic sensor mounted No Change PMN: Blue PUCK ID HVIN: IDF26240 FVIN: FWB0410 FCC ID: RVVBPUCKPF2 No sensor mounted PMN: Blue PUCK T EN12830 HVIN: IDF26251 FVIN: FWB0410 FCC ID: RVVBPUCKPF2 Temperature sensor mounted

Date: 25‐09‐2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA FCC ID or Grantee Code: RVV Applicant FRN: 0024160707 US Agent ‐ Attestation Statements / Part 2.911(d)(7) Filing ELA INNOVATION SA certifies, that as of 11‐03‐2025, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: RVVBPUCKPF2 ELA INNOVATION SA, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission‐related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of ELA INNOVATION SA for FCC ID: RVVBPUCKPF2. Designated U.S. Agent Information Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL 60174, USA Contact Person: Tim Payne Phone: +1 (708) 571‐3148 Email: [email protected] Sincerely, Company: ELA INNOVATION SA Designated Agent: FCC US Agent, LLC Company Representative: Pierre BONZOM (CEO) Designated Agent Representative: Tim Payne [U.S. Agent signature]

Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 25-09-2025 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: RVVBPUCKPF2 ELA INNOVATION SA (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. ELA INNOVATION SA (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, Pierre BONZOM (CEO) Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 25-09-2025 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: RVVBPUCKPF2 ELA INNOVATION SA (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Pierre BONZOM (CEO)

Rev 1/25/09 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RVVBPUCKPF2. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Parts List RVVBPUCKPF2_BlkDia.pdf RVVBPUCKPF2_Schem.pdf RVVBPUCKPF2_OpDes.pdf RVVBPUCKPF2_PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any queries, please do not hesitate to contact us Sincerely, Pierre Bonzom, September 23, 2025

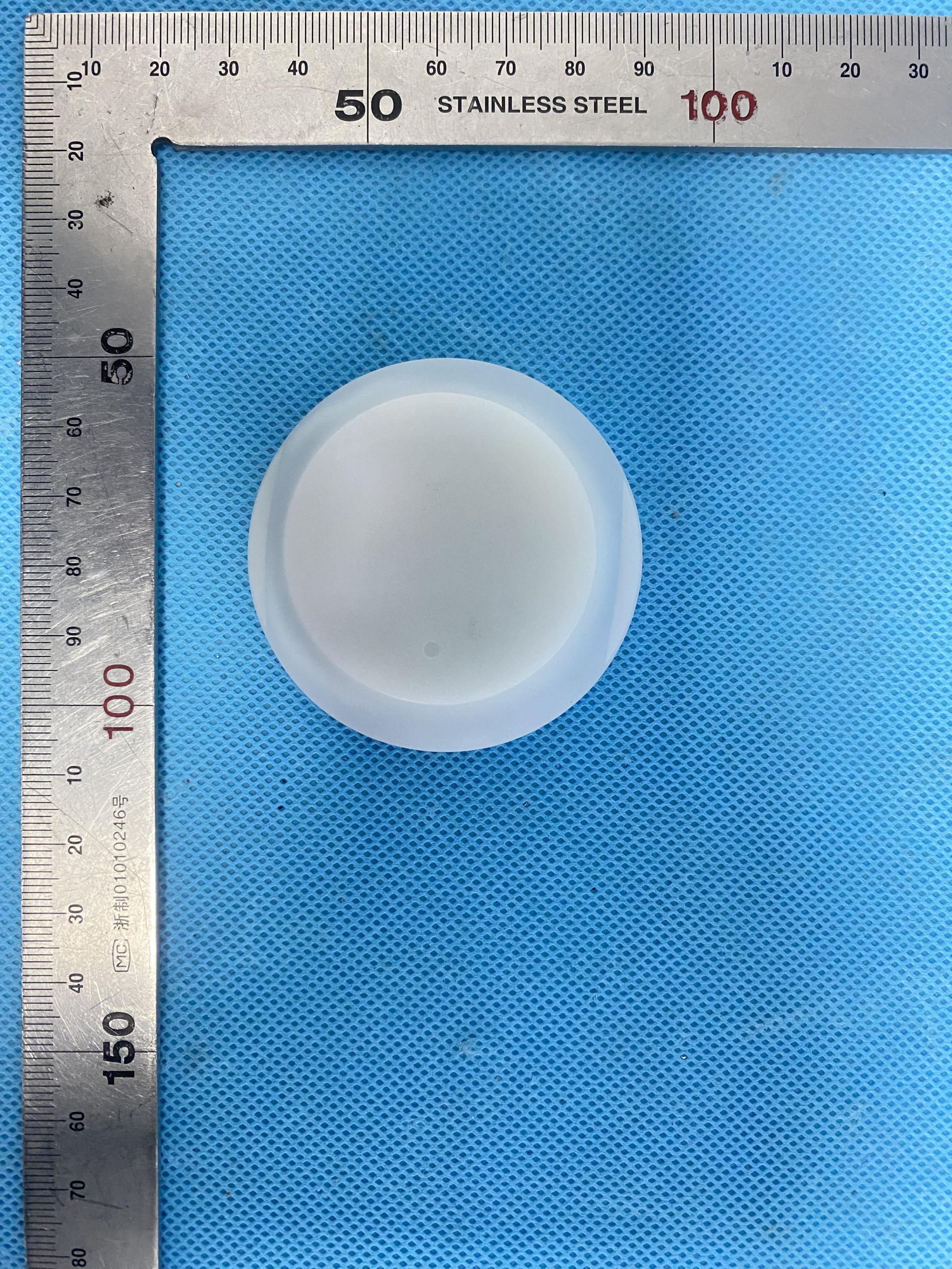

ReportNo.:AGC02762250204AP05 Page 1 of 3 EXTERNALPHOTOS TOPVIEWOFEUT BOTTOMVIEWOFEUT ReportNo.:AGC02762250204AP05 Page 2 of 3 FRONTVIEWOFEUT BACKVIEWOFEUT ReportNo.:AGC02762250204AP05 Page 3 of 3 LEFTVIEWOFEUT RIGHTVIEWOFEUT ****************************************EndofReport*************************************

Label Sample FCC ID: RVVBPUCKPF2 IC : 20429-BPUCKPF2

Label Location FCC ID : RVVBPUCKPF2 IC : 20429-BPUCKPF2 Label Location

ReportNo.:AGC02762250204AP05 Page 1 of 3 INTERNALPHOTOS OPENVIEWOFEUT(FIGURE1) INTERNALVIEWOFEUT(FIGURE1) ReportNo.:AGC02762250204AP05 Page 2 of 3 INTERNALVIEWOFEUT(FIGURE2) INTERNALVIEWOFEUT(FIGURE3) BTAntenna ReportNo.:AGC02762250204AP05 Page 3 of 3 INTERNALVIEWOFEUT(FIGURE4) BATTERYVIEWOFEUT ****************************************EndofReport************************************* NFCAntenna

Page1of10 RFExposureReport ReportNo.:AGC02762250204FH01 FCCID:RVVBPUCKPF2 APPLICATIONPURPOSE:OriginalEquipment PRODUCTDESIGNATION: BLUEPUCKMAG BRANDNAME: ELAINNOVATION MODELNAME: IDF26243,IDF26240,IDF26251 APPLICANT: ELAINNOVATION DATEOFISSUE: Dec.10,2025 STANDARD(S): FCCPart2SubpartJ§2.1091 REPORTVERSION:V1.3 AttestationofGlobalCompliance(Shenzhen)Co.,Ltd ReportNo.:AGC02762250204FH01 Page 2 of 10 ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/ Mar.12,2025 InvalidInitialRelease V1.11 st Oct.28,2025Invalid UpdatedtheFCCID,product nameandmodelname V1.22 nd Nov.28,2025InvalidUpdatesoftwareversion V1.33 rd Dec.10,2025Valid UpdatemodelnameandDevice Category ReportNo.:AGC02762250204FH01 Page 3 of 10 TableofContents 1.GeneralInformation..........................................................................................................................................4 2.ProductInformation..........................................................................................................................................5 2.1ProductTechnicalDescription....................................................................................................................5 3.TestEnvironment..............................................................................................................................................6 3.1AddressOfTheTestLaboratory.................................................................................................................6 3.2TestFacility..................................................................................................................................................6 3.3EnvironmentalConditions...........................................................................................................................7 4.PortableDeviceEvaluationMethodandLimit..............................................................................................8 5.MobileDeviceEvaluationMethodandLimit.................................................................................................9 6.MeasurementResults.....................................................................................................................................10 7.MeasurementEvaluation...............................................................................................................................10 ReportNo.:AGC02762250204FH01 Page 4 of 10 1.GeneralInformation Applicant ELAINNOVATION Address 297rueMauriceBéjart34080Montpellier-France Manufacturer ELAINNOVATION Address 297rueMauriceBéjart34080Montpellier-France Factory ELAINNOVATION Address 297rueMauriceBéjart34080Montpellier-France ProductDesignation BLUEPUCKMAG BrandName ELAINNOVATION TestModel IDF26243 SeriesModel(s) IDF26240,IDF26251 DifferenceDescription Exceptforthemodelnaming,allvariantsareidenticalinRFmodule,antenna design,modulationscheme,RFparameters,andelectromagneticcompatibility characteristics. Dateofreceiptoftestitem Feb.11,2025 DateofTest Feb.11,2025~Mar.12,2025 DeviationfromStandard Noanydeviationfromthetestmethod ConditionofTestSample Normal TestResult Pass TestReportFormNo AGCER-FCC-RFExposure-V1 Note:Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport. PreparedBy JackGui (ProjectEngineer) Dec.10,2025 ReviewedBy BiboZhang (Reviewer) Dec.10,2025 ApprovedBy AngelaLi (AuthorizedOfficer) Dec.10,2025 ReportNo.:AGC02762250204FH01 Page 5 of 10 2.ProductInformation 2.1ProductTechnicalDescription FrequencyBand(Operating) WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.32GHz/5.50GHz~5.70GHz WLAN:5.745GHz~5825GHz Bluetooth:2.402GHz~2.480GHz Other:NFC:13.56MHz HardwareVersionNRF1/2AA SoftwareVersionFWB0410 ModulationType BLEGFSK1MbpsGFSK2Mbps NFC:ASK MaximumTransmitterPower BLEGFSK1Mbps:-1.401dBm NFC:40.63dBμV/m(Peak) DeviceCategory Portable(<20cmseparation) Mobile(>20cmseparation) Others: AntennaDiversity Singleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity AntennaDesignation BT:PCBAntenna NFC:PCBAntenna AntennaGain BT:5.57dBi NFC:0dBi MinimumAssessmentDistance20mm EvaluationApplied MPEEvaluation SAREvaluation ReportNo.:AGC02762250204FH01 Page 6 of 10 3.TestEnvironment 3.1AddressOfTheTestLaboratory Laboratory:AttestationofGlobalCompliance(Shenzhen)Co.,Ltd. Address:1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet, Bao'anDistrict,Shenzhen,Guangdong,China 3.2TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: CNAS-LabCode:L5488 AttestationofGlobalCompliance(Shenzhen)Co.,Ltd.hasbeenassessedandprovedtofollowCNAS-CL01 AccreditationCriteriaforTestingandCalibrationLaboratories(identicaltoISO/IEC17025:2017General RequirementsfortheCompetenceofTestingandCalibrationLaboratories.) A2LA-LabCert.No.:5054.02 AttestationofGlobalCompliance(Shenzhen)Co.,Ltd.EMCLaboratoryhasbeenaccreditedbyA2LAfor technicalcompetenceinthefieldofelectricaltesting,andprovedtofollowISO/IEC17025:2017General RequirementsfortheCompetenceofTestingandCalibrationLaboratoriesandanyadditionalprogram requirementsintheidentifiedfieldoftesting. FCC-RegistrationNo.:975832 AttestationofGlobalCompliance(Shenzhen)Co.,Ltd.EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththeFCC(FederalCommunicationsCommission).Theacceptanceletterfromthe FCCismaintainedinourfileswithRegistration975832. IC-RegistrationNo.:24842(CABidentifier:CN0063) AttestationofGlobalCompliance(Shenzhen)Co.,Ltd.EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththeCertificationandEngineeringBureauofIndustryCanada.Theacceptance letterfromtheICismaintainedinourfileswithRegistration24842. ReportNo.:AGC02762250204FH01 Page 7 of 10 3.3EnvironmentalConditions NormalConditions Temperaturerange(°C) 15-35 Relativehumidityrange 20%-75% Pressurerange(kPa) 86-106 PowersupplyDC3.6Vbybattery ReportNo.:AGC02762250204FH01 Page 8 of 10 4.PortableDeviceEvaluationMethodandLimit FollowingFCCKDB447498D01v06“GeneralSARtestexclusiongui…

Text truncated - open the document above for the full version.

N° : ANT_PT_091225 Report subject to change without notice. Non-contractual document. www.ela.fr Copyright © 2020 ELA Innovation 1/7 Puck Antenna Gain Test Report N° : ANT_PT_091225 Report subject to change without notice. Non-contractual document. www.ela.fr Copyright © 2020 ELA Innovation 2/7 TABLE OF CONTENTS 1 DOCUMENT HISTORY ....................................................................................................................... 2 2 INTRODUCTION .................................................................................................................................... 3 Context .................................................................................................................................................... 3 3 DESIGN ANTENNE ................................................................................................................................ 3 Context .................................................................................................................................................... 3 4 PUCK LOW BAND – 2404 MHZ................................................................................................................. 4 5 PUCK CENTER BAND – 2440 MHZ ............................................................................................................ 4 6 PUCK HIGHER BAND – 2478 MHZ ............................................................................................................ 5 7 TABULAR FORM OF MEASUREMENT RESULTS FOR PUCK ................................................................................ 6 1 DOCUMENT HISTORY Version Date Author Nature of the Change 1.0 09/12/2025 YBi Creation N° : ANT_PT_091225 Report subject to change without notice. Non-contractual document. www.ela.fr Copyright © 2020 ELA Innovation 3/7 2 INTRODUCTION CONTEXT This report presents the radiation pattern characterization of the PIFA antenna integrated on our PCB-based PUCK product. The objective of this document is to present the radiation performance of the antenna at the three operating frequencies of interest.The following sections provide a summary table of the main results obtained at each frequency, as well as the 3D and 2D radiation patterns. Frequency Range (MHz) 2401 - 2481 Feed Point Impedance 50 ohms VSWR < 2:1 Polarization Type Linear Elevation Beamwidth Omni directional Peak Gain (dBi)@2404MHz 5,57 Peak Gain (dBi)@2440MHz 5,34 Peak Gain (dBi)@2478MHz 1,37 3 DESIGN ANTENNE CONTEXT The antenna performance was evaluated using a controlled measurement setup by the COREIOT laboratory. The tests were conducted with the antenna integrated into the enclosure. This setup ensures that the radiation patterns accurately reflect the in-situ behavior of the antenna under real operating conditions. • Device is placed in YZ plane. • Antenna is at +Y. N° : ANT_PT_091225 Report subject to change without notice. Non-contractual document. www.ela.fr Copyright © 2020 ELA Innovation 4/7 4 PUCK LOW BAND – 2404 MHZ This section presents the radiation characteristics of the antenna at 2404 MHz, including the 3D radiation pattern, 2D cuts, and a summary table with directivity, efficiency, peak EIRP, and gain. 5 PUCK CENTER BAND – 2440 MHZ This section presents the radiation characteristics of the antenna at 2444 MHz, including the 3D radiation pattern, 2D cuts, and a summary table with directivity, efficiency, peak EIRP, and gain. N° : ANT_PT_091225 Report subject to change without notice. Non-contractual document. www.ela.fr Copyright © 2020 ELA Innovation 5/7 6 PUCK HIGHER BAND – 2478 MHZ This section presents the radiation characteristics of the antenna at 2478 MHz, including the 3D radiation pattern, 2D cuts, and a summary table with directivity, efficiency, peak EIRP, and gain. N° : ANT_PT_091225 Report subject to change without notice. Non-contractual document. www.ela.fr Copyright © 2020 ELA Innovation 6/7 7 TABULAR FORM OF MEASUREMENT RESULTS FOR PUCK N° : ANT_PT_091225 Report subject to change without notice. Non-contractual document. www.ela.fr Copyright © 2020 ELA Innovation 7/7 The low, mid, and high frequency bands exhibit TRP values of 1.12 dB, 0.89 dB, and –3 dB, respectively, indicating that the low band radiates approximately 4.12 dB more power than the high band. This significant drop in TRP at higher frequencies is likely linked to poorer antenna matching in the upper band compared to the lower frequencies.

Page 1 of 50 FCCTestReport ReportNo.:AGC02762250204FR01 FCCID: RVVBPUCKPF2 APPLICATIONPURPOSE: OriginalEquipment PRODUCTDESIGNATION: BLUEPUCKMAG BRANDNAME: ELAINNOVATION MODELNAME: IDF26243,IDF26240,IDF26251 APPLICANT: ELAINNOVATION DATEOFISSUE: Dec.10,2025 STANDARD(S):FCCPart15SubpartC§15.247 REPORTVERSION:V1.3 AttestationOfGlobalCompliance(Shenzhen)Co.,Ltd ReportNo.:AGC02762250204FR01 Page2of50 ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/ Mar.12,2025 InvalidInitialRelease V1.11 st Oct.28,2025Invalid UpdatedtheFCCID, productnameandmodel name V1.22 nd Nov.28,2025Invalid Updatesoftwareversion andinstrumentequipment information V1.33 rd Dec.10,2025Valid Updatemodelnameand instrumentequipment information ReportNo.:AGC02762250204FR01 Page3of50 TableofContents 1.GeneralInformation..........................................................................................................................................5 2.ProductInformation..........................................................................................................................................6 2.1ProductTechnicalDescription....................................................................................................................6 2.2TestFrequencyList.....................................................................................................................................6 2.3RelatedSubmittal(S)/Grant(S).................................................................................................................7 2.4TestMethodology........................................................................................................................................7 2.5SpecialAccessories....................................................................................................................................7 2.6EquipmentModifications.............................................................................................................................7 2.7AntennaRequirement.................................................................................................................................7 3.TestEnvironment..............................................................................................................................................8 3.1AddressoftheTestLaboratory...................................................................................................................8 3.2TestFacility..................................................................................................................................................8 3.3EnvironmentalConditions...........................................................................................................................9 3.4MeasurementUncertainty...........................................................................................................................9 3.5ListofEquipmentUse...............................................................................................................................10 4.SystemTestConfiguration.............................................................................................................................12 4.1EUTConfiguration....................................................................................................................................12 4.2EUTExercise............................................................................................................................................12 4.3ConfigurationofTestedSystem................................................................................................................12 4.4EquipmentUsedInTestedSystem..........................................................................................................12 4.5SummaryofTestResults..........................................................................................................................13 5.DescriptionofTestModes.............................................................................................................................14 6.DutyCycleMeasurement...............................................................................................................................15 7.RFOutputPowerMeasurement....................................................................................................................16 7.1ProvisionsApplicable................................................................................................................................16 7.2MeasurementProcedure..........................................................................................................................16 7.3MeasurementSetup(BlockDiagramofConfiguration)...........................................................................16 7.4MeasurementResult.................................................................................................................................17 8.6dBBandwidthMeasurement.......................................................................................................................20 8.1ProvisionsApplicable................................................................................................................................20 8.2MeasurementProcedure..........................................................................................................................20 8.3MeasurementSetup(BlockDiagramofConfiguration)...........................................................................20 8.4MeasurementResults...............................................................................................................................21 9.PowerSpectralDensityMeasurement.........................................................................................................23 9.1ProvisionsApplicable..................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:AGC02762250204FR01 Page46of50 BandEdgeEmissionTestResultsforRestrictedBands EUTNameBLUEPUCKMAGModelNameIDF26243 Temperature18.7°CRelativeHumi…

Text truncated - open the document above for the full version.
