RVVELORAHL1The LR FAMILY is a tag used for data transmission through an antenna.

ELA INNOVATION SA
The LR FAMILY is a tag used for data transmission through an antenna. - FCC ID RVVELORAHL1 - ELA INNOVATION SA
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 02, 2021
Application Purpose
Original Equipment
Date of Application
Mar 02, 2021
Equipment Note
The LR FAMILY is a tag used for data transmission through an antenna.
Frequency Range
923.30000000 - 927.50000000
Company
ELA INNOVATION SA
Country
France

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product sheet LR IDF32XXXX BENEFITS • Industrial tag • Battery life : up to 20 years • Smart management of transmissions by motion detection and magnetic sensor • Compact and industrial casing – IP68 waterproof • Integrated NFC chipset TECHNICAL SPECIFICATIONS OPERATING MODE Frequency 915 MHz – LoRaWAN protocol Output power Up to +14 dBm (configurable) Range Up to 5000 m depending on the DR mode used Transmission period 300 seconds to 24 hours (adjustable value) Radio frame format 21 byte frame format including tag name (8 bytes), voltage in mV (2 bytes), magnetic sensor state (2 bytes) movement sensor state (3 bytes)* *Refer to the frames specifications for more information. Parameters & configuration Interface/protocol : NFC (Type 2) Remotely configurable LED activation, LORA class, DR mode, transmit power, parameters standard transmission frequency and motion, reset motion counters and magnetic detection LoRaWAN Network OTAA activation Motion mode Changing the transmission period when motion is detected (user configurable) Product sheet BATTERY Power supply 3.6 VDC – 2 LS14500 lithium battery replaceable by the user Battery life Up to 20 years* *Refer to battery life curves for more information Battery level Battery information included in the frame in mV CERTIFICATIONS Europe CE : EN 301 489, EN 300 220 & EN 300 330 Health : EN 62311 & EN 50665 Electric security : EN 60950-1 USA FCC : FCC PART 15 Canada ISED : RSS-247 RoHs Yes FCC ID RVVELORAHL1 IC 20429-ELORAHL1 HOUSING Dimensions 119 x 51 mm – height : 24 mm – 2 fixing holes type M4 Weight 125g Materials DELRIN (POM C) Waterproofness IP 68 Operating temperature -40°C to +85°C ACCESSORIES Tag support Ultra-strong double-sided adhesive: LORA STICKER (ACIOM202) RF exposure This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of the body. Product sheet FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Industry Canada Statement This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. Le dispositif ne doit pas produire de brouillage préjudiciable, et 2. Ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

Cover Letter(s)

Page 1 of 2 Applicant Confidentiality Letter (APPLICANT’S LETTERHEAD) FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Date Subject: Confidentiality Request for Exhibits under FCC ID: RVVELORAHL1 To Whom It May Concern: Pursuant of Section 0.457 and 0.459 of the Commission’s Rules and KDB 726920 D01 Confidentiality Request Procedures, we hereby request that the exhibits listed below, submitted in support of the certification application for FCC ID: RVVELORAHL1, be withheld permanently from public disclosure. Exhibit Type Document Number or Name Version/ or Revision File Name This request includes third party confidentiality for items not allowed to be accessed by Ela innovation. The below third party and its confidentiality documents are listed as below: Documents only accessible by Timco Engineering, Inc., as a TCB : Exhibit Type Document Number or Name Version/ or Revision File Name Schematics Module schematics Rev 1.0 TypeABZ-078_schematic_20200717.pdf BOM BOM Rev 1.0 ABZ-078 BOM_20190723.pdf Layout Module Part Layout Rev 1.0 JS-0739 module information.pdf Block Diagram Block Diagram n/a LoRa module Block Diagram_2019Aug.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Best Regards, Signature Pierre Bonzom, CEO ELA Innovation Page 2 of 2

Cover Letter(s)

ELA Innovation S.A. au capital de 396.822 € - RCS de Montpellier - 432 799 278 00036 – TVA FR78432799278 297, rue Maurice Béjart, 34080 MONTPELLIER, France - Tél. 33 (0)4 67 47 60 60 - www.ela.fr 1 Federal Communications Commission Authorization and Evaluation Division Montpellier, France, March 23, 2021 Subject: Confidentiality Request regarding application for certification of FCC ID: RVVELORAHL1 Applicant: ELA Innovation S.A. Product: LR FAMILY To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Parts List RVVELORAHL1_BlkDia.pdf RVVELORAHL1_Schem.pdf RVVELORAHL1_OpDes_V2.pdf RVVELORAHL1_PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any queries, please do not hesitate to contact us. Yours faithfully, Pierre Bonzom, March 23, 2021

Cover Letter(s)

ELA Innovation S.A. au capital de 396.822 € - RCS de Montpellier - 432 799 278 00036 – TVA FR78432799278 297, rue Maurice Béjart, 34080 MONTPELLIER, France - Tél. 33 (0)4 67 47 60 60 - www.ela.fr 1 Montpellier, France, March 23, 2021 Subject: Certification of the LR FAMILY Applicant: ELA Innovation S.A. Product: LR FAMILY FCC ID: RVVELORAHL1 To Whom It May Concern: We would like to submit the above product for Certification concerning FCC certification. Please review all required documents enclosed. The LR FAMILY meets the industrial requirements of equipment indoor/outdoor localization. Adapted to harsh industrial environments, combining strength, durability, and lifespan, the LR Family is based on LoRa Technology. This identifying tag makes possible the identification and localization of industrial equipment on very long range. Compliance for RF exposure requirement was demonstrated in the test report. If you have any queries, please do not hesitate to contact us. Yours faithfully, Pierre Bonzom, March 23, 2021

External Photos

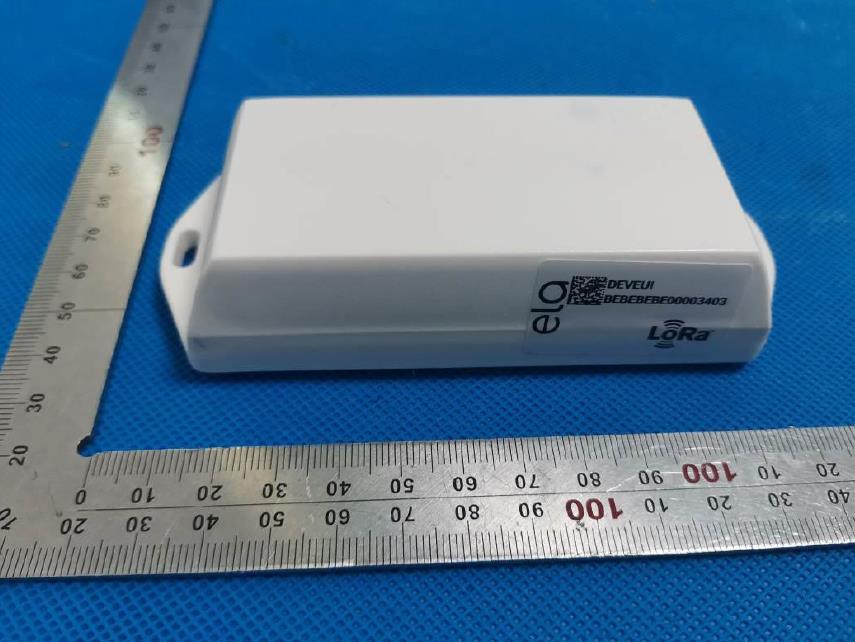

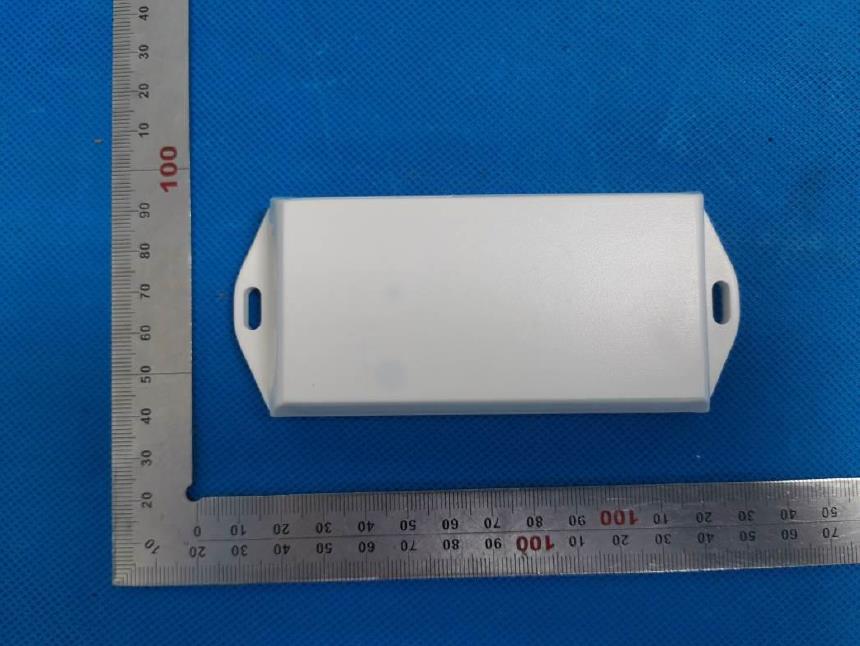

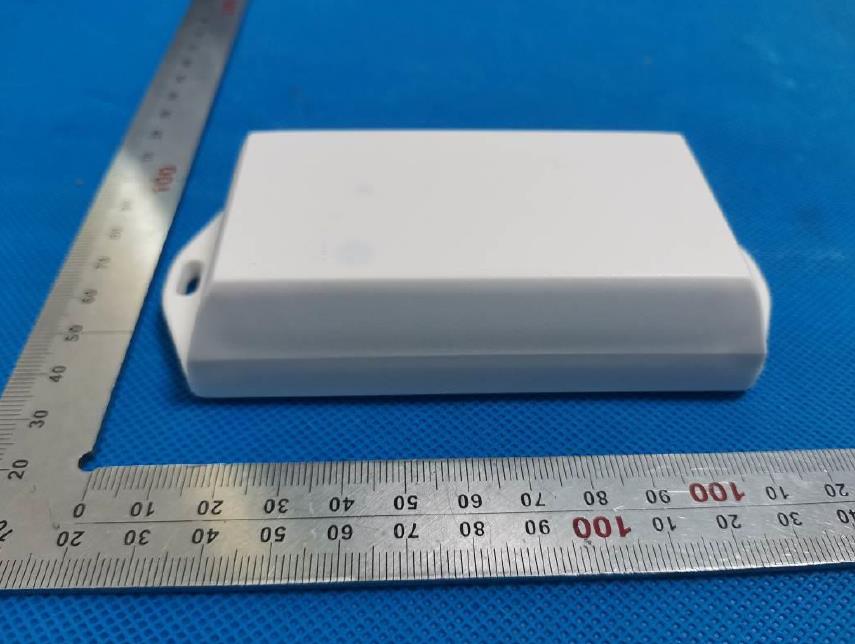

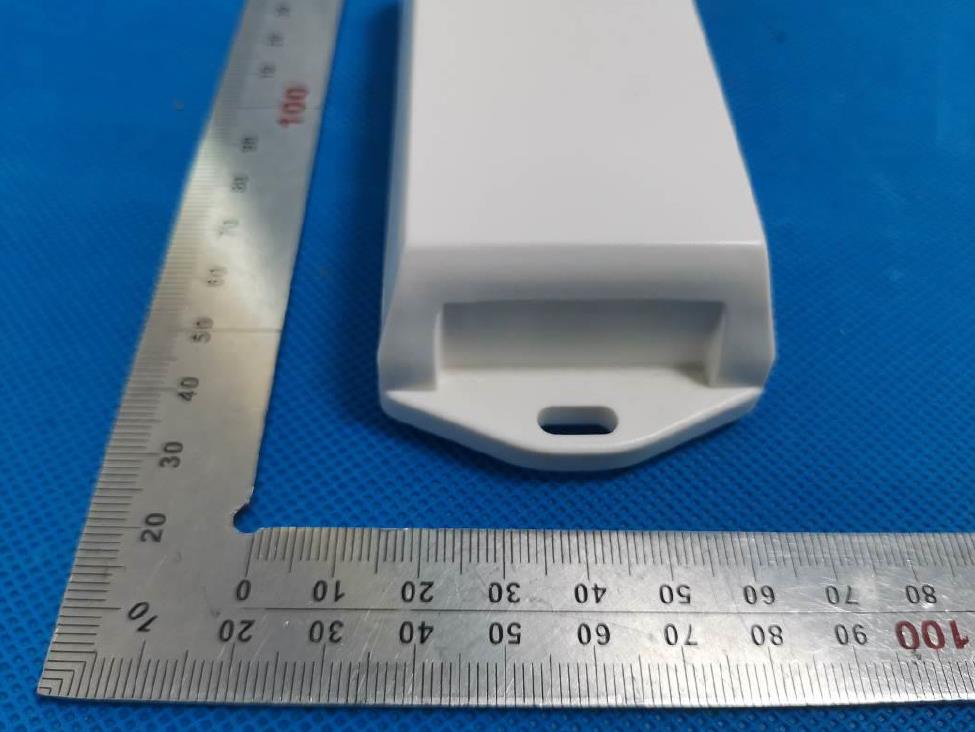

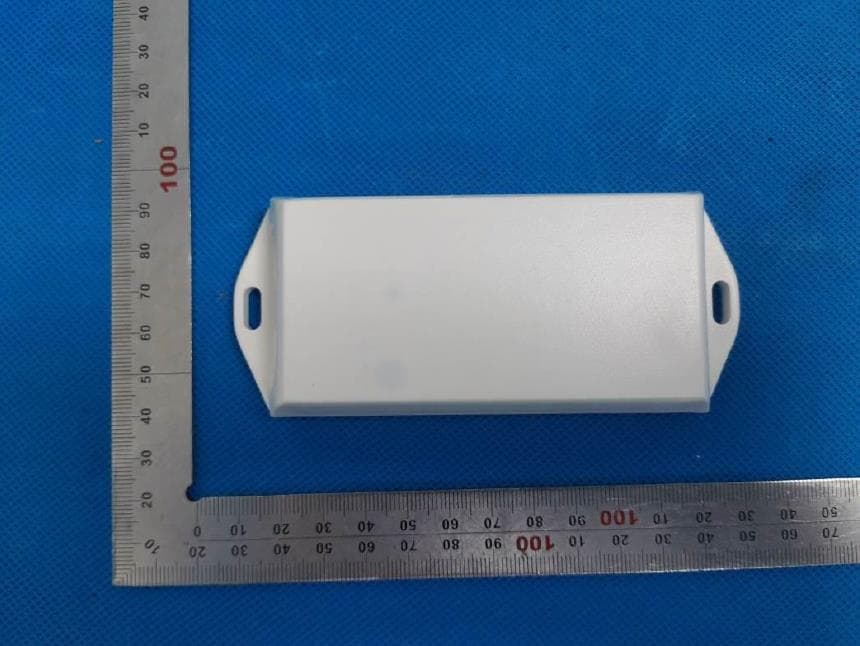

Page 1 FCC ID: RVVELORAHL1 IC: 20429- ELORAHL1 EUT PHOTOGRAPHS TOP VIEW BOTTOM VIEW Page 2 FRONT VIEW BACK VIEW Page 3 LEFT VIEW RIGHT VIEW

ID Label/Location Info

Label Location FCC ID : RVVELORAHL1 IC : 20429-ELORAHL1 Label Location

ID Label/Location Info

Label Sample FCC ID: RVVELORAHL1 IC : 20429-ELORAHL1

Internal Photos

Page 1 FCC ID: RVVELORAHL1 IC: 20429-ELORAHL1 OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 Page 2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Page 3 INTERNAL VIEW OF EUT-3 VIEW OF BATTERY

RF Exposure Info

RF EXPOSURE EVALUATION 1.PRODUCT INFORMATION Product DescriptionLR FAMILY Model NameIDF32XXXX FCC IDRVVELORAHL1 2.EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.346141.63(100)*30 1.34 -- 30824/f2.19/f(180/f 2 )*30 30 -- 30027.50.0730.230 300 -- 1500----f/150030 1500 -- 100,000----1.030 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source- based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. Antenna Gain=0dBi (Numeric 1), π=3.14 DTS: FHSS: Note: 1.Only the worst case recorded. 3.conclusion Compliance the RF exposure requirement FrequencyOutput PowerOutput PowerPower DensityPower Density Limit MHzdBmmWmW/cm 2 mW/cm 2 9030.4021.0970.000220.602 FrequencyOutput PowerOutput PowerPower DensityPower Density Limit MHzdBmmWmW/cm 2 mW/cm 2 902.314.23926.540.00530.602 Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Report

Page 1 of 54 FCC Test Report Report No.: AGC00688201002FE02A PRODUCT DESIGNATION :LR FAMILY BRAND NAME:N/A MODEL NAME:IDF32XXXX APPLICANT:ELA Innovation DATE OF ISSUE:Mar. 11, 2021 STANDARD(S):FCC Part 15.247 REPORT VERSION:V1.2 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00688201002FE02A Page 2 of 54 REPORT REVISE RECORD Report VersionRevise TimeIssued DateValid VersionNotes V1.0/Nov. 27, 2020InvalidInitial Release V1.11stJan. 27, 2021InvalidUpdate the comments. V1.22stMar. 11, 2021ValidUpdate the comments. Note: The original test report Ref. No. AGC00688201002FE02 (dated 2021-02-02), was modified on 2021-03- 11 to change the product designation, no further testing necessary. Report No.: AGC00688201002FE02A Page 3 of 54 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE.................................................................................................................4 2. GENERAL INFORMATION.............................................................................................................................5 2.1. PRODUCT DESCRIPTION........................................................................................................................5 2.2. TABLE OF CARRIER FREQUENCYS.......................................................................................................5 2.3. RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................7 2.4. TEST METHODOLOGY............................................................................................................................7 2.5. SPECIAL ACCESSORIES.........................................................................................................................7 2.6. EQUIPMENT MODIFICATIONS................................................................................................................7 2.7. ANTENNA REQUIREMENT......................................................................................................................7 3. MEASUREMENT UNCERTAINTY..................................................................................................................8 4. DESCRIPTION OF TEST MODES..................................................................................................................9 5. SYSTEM TEST CONFIGURATION...............................................................................................................10 5.1. CONFIGURATION OF TESTED SYSTEM..............................................................................................10 5.2. EQUIPMENT USED IN TESTED SYSTEM..............................................................................................10 5.3. SUMMARY OF TEST RESULTS.............................................................................................................10 6. TEST FACILITY.............................................................................................................................................11 7. PEAK OUTPUT POWER...............................................................................................................................12 7.1. MEASUREMENT PROCEDURE.............................................................................................................12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................12 7.3. LIMITS AND MEASUREMENT RESULT.................................................................................................13 8. 6 DB BANDWIDTH........................................................................................................................................17 8.1. MEASUREMENT PROCEDURE.............................................................................................................17 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................17 8.3. LIMITS AND MEASUREMENT RESULTS...............................................................................................17 9. CONDUCTED SPURIOUS EMISSION..........................................................................................................21 9.1. MEASUREMENT PROCEDURE.............................................................................................................21 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................21 9.3. MEASUREMENT EQUIPMENT USED....................................................................................................21 9.4. LIMITS AND MEASUREMENT RESULT.................................................................................................21 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY........................................................30 10.1. MEASUREMENT PROCEDURE...........................................................................................................30 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)..................................................................30 10.3. MEASUREMENT EQUIPMENT USED..................................................................................................30 10.4. LIMITS AND MEASUREMENT RESULT...............................................................................................30 11. RADIATED EMISSION................................................................................................................................35 11.1. MEASUREMENT PROCEDURE...........................................................................................................35 11.2. TEST SETUP.........................................................................................................................................36 11.3. LIMITS AND MEASUREMENT RESULT..........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: RVVELORAHL1 IC: 20429-ELORAHL1 EMC TEST SETUP PHOTOGRAPHS RADIATED EMISSION TEST SETUP (below 1G) RADIATED EMISSION TEST SETUP (above 1G)

Contact Information

Applicant

Pierre BONZOM(CEO)
[email protected]0033467476060Fax: 0033467275951

Test Firm

Attestation of Global Compliance (Shenzhen) Co., LDoris Li
[email protected]+86-755-25234088

Technical Specifications

#Rule PartsFrequency RangePower Output
215C923.3 MHz - 927.5 MHz1.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operating conditions for satisfying RF exposure compliance.
