RVVBPUCKTPRB1The BLUE PUCK T-PROBE

Product sheet – Ref. IDF25250 Specifications may be modified without any notification. Non-contractual document. www.elainnovation.com Copyright © 2020 ELA Innovation – FP Blue PUCK T PROBE 01A EN 1/2 TECHNICAL SPECIFICATIONS OPERATING MODE Frequency 2,4 GHz range Output power Up to +4 dBm (configurable) Range Up to 500 meters open field (+4dBm) Transmission period Advertising period (0,1 sec to 10 sec – configurable in seconds) Radio frame format Identifier (15 characters max) (15 bytes)* Temperature (in 0.1°C) (2 Bytes) *Refer to the frames specifications for more information Settings and configuration Interface/protocol : NFC (Type 2) Connected mode Datalogger download Battery level command Advertising mode Periodic transmission of the identifier and the instantaneous temperature BATTERY Power supply 3 VDC – Internal lithium battery Battery life Up to 15 years* *Refer to the battery life curves for more information Battery level Low battery warning in advertising frames (<15%) BLUE PUCK T-PROBE BENEFITS • Approved EN12830 v2018 • Very high autonomy : up to 15 years • High transmission range • Waterproof IP68 • Smart & secure programming by NFC • Over The Air Programming (OTAP) Product sheet – Ref. IDF25250 Specifications may be modified without any notification. Non-contractual document. www.elainnovation.com Copyright © 2020 ELA Innovation – FP Blue PUCK T PROBE 01A EN 2/2 CERTIFICATIONS Europe CE : EN 300 328, EN 300 330, EN 301 489, EN 62479, EN 62368-1 EN12830 USA FCC : FCC PART 15 Canada ISED : RSS-247/ICES-003 RoHs Yes FCC ID RVVBPUCKTPRB1 IC 20429-BPUCKTPRB1 HOUSING Dimensions PUCK housing : Ø 57 mm base - height 20 mm Probe : Ø 3 mm – Lenght 28 mm – M8 Cable : 1 m Weight 63 g Materials PUCK housing : DELRIN (POM C) Compatible with food products (90/128/EEC) Probe : Stainless steel () Cable : Teflon () Waterproof grade IP 68 Operating /storage temperature PUCK housing : -40°C to +85°C Probe : -80°C – +200°C ACCESSORIES Tag support and adhesive Tag support only Double-sided adhesive only PUCK HOLDER STICKER (ACIOM118B) PUCK HOLDER (ACIOM117B) PUCK STICKER (ACIOM188) 3M PT1100 - Ø 53mm – h : 1,1mm Product sheet – Ref. IDF25250 Specifications may be modified without any notification. Non-contractual document. www.elainnovation.com Copyright © 2020 ELA Innovation – FP Blue PUCK T PROBE 01A EN 3/2 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Industry Canada Statement This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. Le dispositif ne doit pas produire de brouillage préjudiciable, et 2. Ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

ELA Innovation S.A. au capital de 396.822 € - RCS de Montpellier - 432 799 278 00036 – TVA FR78432799278 297, rue Maurice Béjart, 34080 MONTPELLIER, France - Tél. 33 (0)4 67 47 60 60 - www.ela.fr 1 Federal Communications Commission Authorization and Evaluation Division Montpellier, France, January 28, 2021 Subject: Confidentiality Request regarding application for certification of FCC ID: RVVBPUCKTPRB1 Applicant: ELA Innovation S.A. Product: BLUE PUCK T-PROBE To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Parts List RVVBPUCKTPRB1_BlkDia.pdf RVVBPUCKTPRB1_Schem.pdf RVVBPUCKTPRB1_OpDes.pdf RVVBPUCKTPRB1_PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any queries, please do not hesitate to contact us. Yours faithfully, Pierre Bonzom, January 28, 2021

ELA Innovation S.A. au capital de 396.822 € - RCS de Montpellier - 432 799 278 00036 – TVA FR78432799278 297, rue Maurice Béjart, 34080 MONTPELLIER, France - Tél. 33 (0)4 67 47 60 60 - www.ela.fr 1 Montpellier, France, January 28, 2021 Subject: Certification of the BLUE PUCK T-PROBE Applicant: ELA Innovation S.A. Product: BLUE PUCK T-PROBE FCC ID: RVVBPUCKTPRB1 IC ID: 20429-BPUCKTPRB1 To Whom It May Concern: We would like to submit the above product for Certification concerning FCC and ISED certification. Please review all required documents enclosed. The BLUE PUCK T-PROBE meets the industrial requirements of people and equipment indoor location. This tracking system also makes possible movement tracking of handling machines in real time and thus facilitate fleet management inside buildings. Compliance for RF exposure requirement was demonstrated in the test report. If you have any queries, please do not hesitate to contact us. Yours faithfully, Pierre Bonzom, January 28, 2021

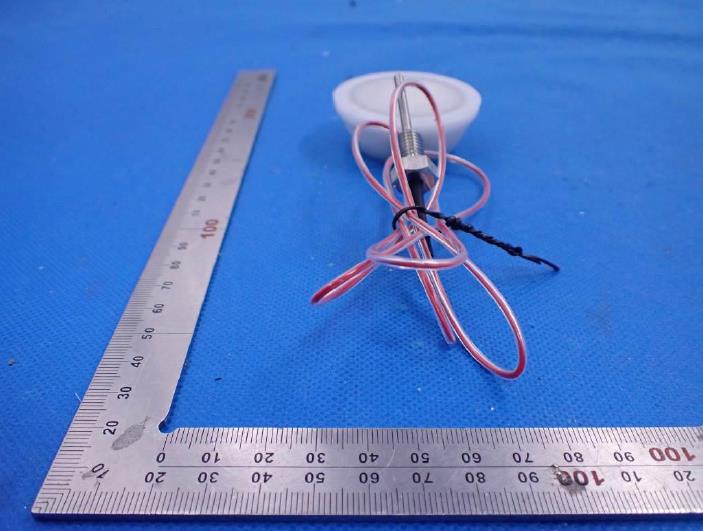

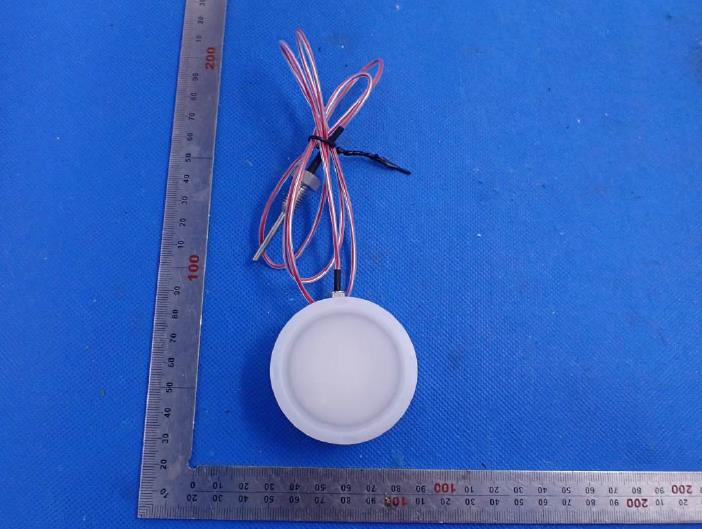

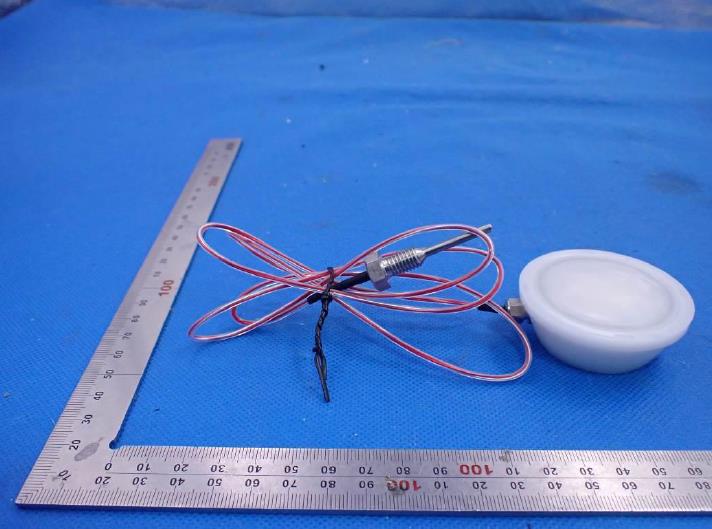

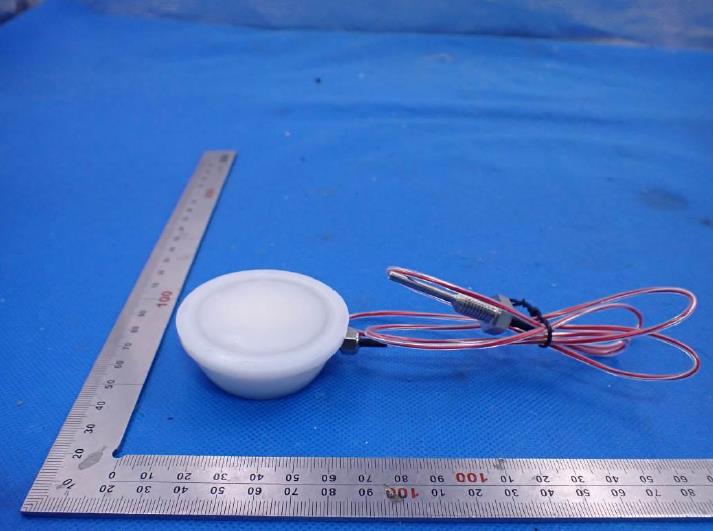

Page 1 FCC ID: RVVBPUCKTPRB1 IC: 20429-BPUCKTPRB1 EUT PHOTOGRAPHS Page 2 Page 3

Label Location FCC ID : RVVBPUCKTPRB1 IC : 20429-BPUCKTPRB1 Label Location

Label Sample FCC ID: RVVBPUCKTPRB1 IC : 20429-BPUCKTPRB1

Page 1 FCC ID: RVVBPUCKTPRB1 IC: 20429-BPUCKTPRB1 Page 2

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description BLUE PUCK T-PROBE Model Name IDF25250 FCC ID RVVBPUCKTPRB1 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BT(BLE): P t =-4.913dBm=0.32mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.32mW /5mm) .[√2.44(GHz)]= 0.099<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 2.4G GFSK: P t =1.495dBm=1.41mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.41mW /5mm) .[√2.401(GHz)]= 0.437<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Note: BLE and 2.4G GFSK don't work at the same time. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 46 FCC Test Report Report No.: AGC00688201109FE03 FCC ID : RVVBPUCKTPRB1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BLUE PUCK T-PROBE BRAND NAME : N/A MODEL NAME : IDF25250 APPLICANT : ELA Innovation DATE OF ISSUE : Jan. 18, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00688201109FE03 Page 2 of 46 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 18, 2021 Valid Initial Release Report No.: AGC00688201109FE03 Page 3 of 46 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 5 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 6 2.4. TEST METHODOLOGY ............................................................................................................................. 6 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 6 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 6 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 7 4. DESCRIPTION OF TEST MODES ................................................................................................................... 8 5. SYSTEM TEST CONFIGURATION .................................................................................................................. 9 5.1. CONFIGURATION OF TESTED SYSTEM ................................................................................................. 9 5.2. EQUIPMENT USED IN TESTED SYSTEM ................................................................................................ 9 5.3. SUMMARY OF TEST RESULTS ................................................................................................................ 9 6. TEST FACILITY .............................................................................................................................................. 10 7. PEAK OUTPUT POWER ................................................................................................................................ 11 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 11 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 11 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 12 8. 6 DB BANDWIDTH ......................................................................................................................................... 14 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 14 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 16 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 16 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 16 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 16 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 16 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 24 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 24 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 24 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 24 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 24 11. RADIATED EMISSION ................................................................................................................................. 26 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 11.2. TEST SETUP .......................................................................................................................................... 27 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 28 11.4. TEST RESULT .................................…

Text truncated - open the document above for the full version.

FCC ID: RVVBPUCKTPRB1 IC: 20429-BPUCKTPRB1
