RVVBLITEPF1The BLUE LITE FAMILY is a tag used for advertising through an antenna.

www.elainnovation.com Copyright © 2018 ELA Innovation LITE Ref. IDF28XXX • Ultra-compact 45 x 23,2 x 5,3 mm • Very high range: up to 300 meters (open field) • High lifecycle: up to 5 years • Pick to light system: integrated LED • Replaceable battery • Robust industrial casing – IP65 • Integrated NFC chipset TECHNICAL SPECIFICATIONS Operating modes Periodic transmission of identifier data LED indicator (ON/OFF command) Parameters and configuration Interface/protocol NFC (Type 2) Configuration: Device Manager Suite / Mobile application (Windows / Android) • Activation / deactivation • Name (15 characters max.) and transmit power • Transmission period (0,1 sec to 10 sec - configurable in seconds) Frequency 2.4 GHz range Output power Up to +4 dBm Range Up to 300 meters open field (+4 dBm) Power supply 3 VDC – replaceable CR2032 battery Battery life - Up to 5 years - Battery voltage reading command using Connected mode - 15% remaining battery warning *For more detailed battery lifetime specification please refer to autonomy spec sheet Operating temperature -30°C to +70°C Housing Rectangle 45mm length, 23.2mm width, 5.3mm height 1 hole for M2 fixing IP65 - Weight 8g Casing: ABS+PC (UL94V0, halogen-free, medical grade) Seal: TPE Standards CE (Europe): EN 300 328/EN 300 330, EN 301 489, EN 62311, EN 62368 FCC (USA): FCC PART 15 ISED (Canada): RSS-247/ICES-003 RoHS certified Accessories ACIOM 204 (High adhesive back side ref: 3M468P) FCC ID RVVBLITEPF1 IC 20429-BLITEPF1 www.elainnovation.com Copyright © 2018 ELA Innovation FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Industry Canada Statement This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. Le dispositif ne doit pas produire de brouillage préjudiciable, et 2. Ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

ELA Innovation S.A. au capital de 396.822 € - RCS de Montpellier - 432 799 278 00036 – TVA FR78432799278 297, rue Maurice Béjart, 34080 MONTPELLIER, France - Tél. 33 (0)4 67 47 60 60 - www.ela.fr 1 Federal Communications Commission Authorization and Evaluation Division Montpellier, France, September 30, 2020 Subject: Confidentiality Request regarding application for certification of FCC ID: RVVBLITEPF1 Applicant: ELA Innovation S.A. Product: BLUE LITE FAMILY To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Parts List RVVBLITEPF1_BlkDia.pdf RVVBLITEPF1_Schem.pdf RVVBLITEPF1_OpDes.pdf RVVBLITEPF1_PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any queries, please do not hesitate to contact us. Yours faithfully, Pierre Bonzom, September 30, 2020

ELA Innovation S.A. au capital de 396.822 € - RCS de Montpellier - 432 799 278 00036 – TVA FR78432799278 297, rue Maurice Béjart, 34080 MONTPELLIER, France - Tél. 33 (0)4 67 47 60 60 - www.ela.fr 1 Montpellier, France, September 30, 2020 Subject: Certification of the BLUE LITE FAMILY Applicant: ELA Innovation S.A. Product: BLUE LITE FAMILY FCC ID: RVVBLITEPF1 IC ID: 20429-BLITEPF1 To Whom It May Concern: We would like to submit the above product for Certification concerning FCC and ISED certification. Please review all required documents enclosed. The BLUE LITE FAMILY meets the industrial requirements of people and equipment indoor location. This tracking system also makes possible movement tracking of handling machines in real time and thus facilitate fleet management inside buildings. Compliance for RF exposure requirement was demonstrated in the test report. If you have any queries, please do not hesitate to contact us. Yours faithfully, Pierre Bonzom, September 30, 2020

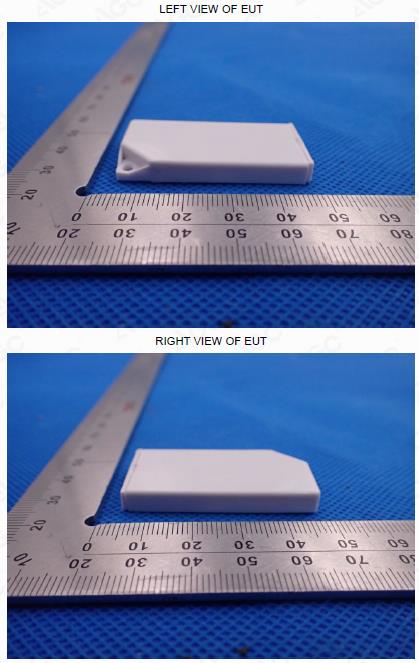

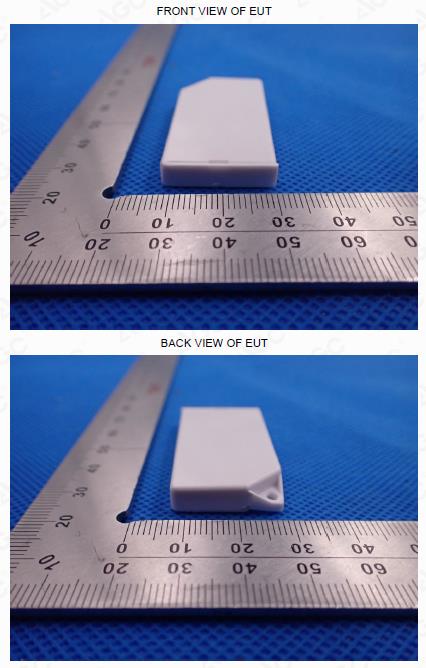

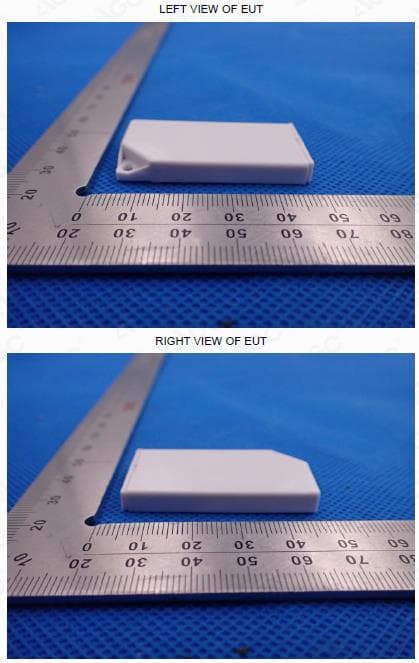

Page 1 FCC ID: RVVBLITEPF1 IC: 20429-BLITEPF1 EUT PHOTOGRAPHS Page 2 Page 3

Label Location FCC ID : RVVBLITEPF1 IC : 20429-BLITEPF1 Label Location

Label Sample FCC ID: RVVBLITEPF1 IC : 20429-BLITEPF1

Page 1 FCC ID: RVVBLITEPF1 IC: 20429-BLITEPF1

Page 1 of 45 FCC Test Report Report No.: AGC00688200801FE03 FCC ID : RVVBLITEPF1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BLUE LITE FAMILY BRAND NAME : N/A MODEL NAME : IDF28XXX APPLICANT : ELA INNOVATION DATE OF ISSUE : Sep. 02, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00688200801FE03 Page 2 of 45 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep. 02, 2020 Valid Initial Release Report No.: AGC00688200801FE03 Page 3 of 45 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 5 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 6 2.4. TEST METHODOLOGY ............................................................................................................................. 6 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 6 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 6 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 7 4. DESCRIPTION OF TEST MODES ................................................................................................................... 8 5. SYSTEM TEST CONFIGURATION .................................................................................................................. 9 5.1. CONFIGURATION OF TESTED SYSTEM ................................................................................................. 9 5.2. EQUIPMENT USED IN TESTED SYSTEM ................................................................................................ 9 5.3. SUMMARY OF TEST RESULTS ................................................................................................................ 9 6. TEST FACILITY .............................................................................................................................................. 10 7. PEAK OUTPUT POWER ................................................................................................................................ 11 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 11 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 11 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 12 8. 6 DB BANDWIDTH ......................................................................................................................................... 14 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 14 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 16 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 16 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 16 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 16 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 16 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 24 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 24 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 24 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 24 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 24 11. RADIATED EMISSION ................................................................................................................................. 26 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 11.2. TEST SETUP .......................................................................................................................................... 27 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 28 11.4. TEST RESULT ....................................…

Text truncated - open the document above for the full version.

FCC ID: RVVBLITEPF1 IC: 20429-BLITEPF1
