RVVCOIN10XXWireless Active RFID sensors

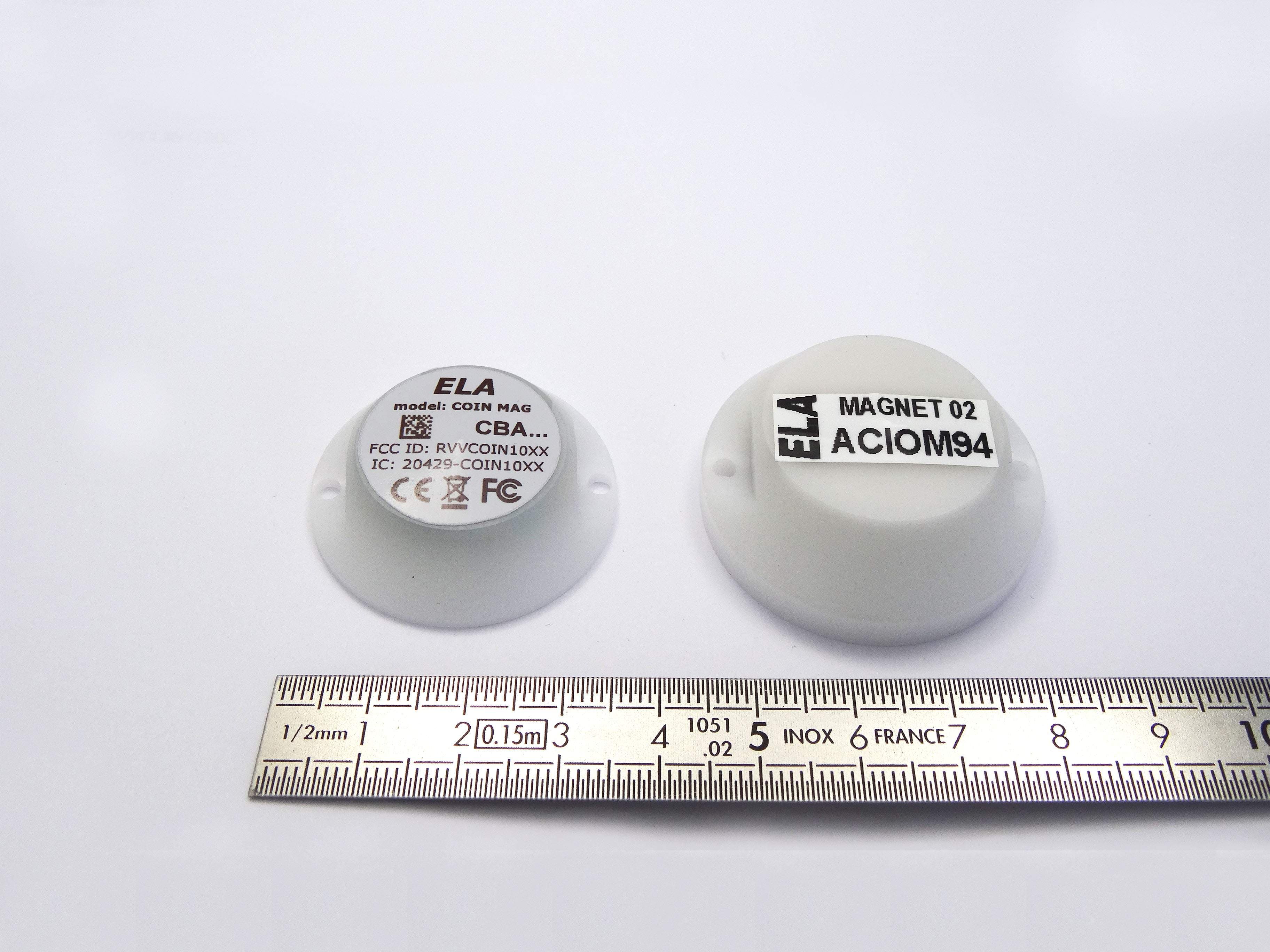

Specifications could be modified without any notification. Non contractual document. www.rfid-ela.eu Copyright © 2015 ELA Innovation The Wireless RFID solution to DETECT any loss of magnetic contact for INDOOR and OUTDOOR applications Internal magnetic sensor High receiving range: up to 80m (open field) Autonomy: 2 to 5 years (depending on the defined cycle of ID’s emission) IP68 Waterproof Compact anti-hanging shape Technical specifications Battery power supply 3.6 VDC Frequency 433.92 MHz Identifier settings ID code on 12 bits + 12 bits for state change Digital operating mode Immediate emission of ID frame in the case of state change on the falling edge: ID+001 hexa or on the leading edge: ID+000 hexa Added user-programmable periodic transmission frame (keep alive feature) Magnetic switching detection 10-13mm edge to edge Hysteresis Around 9mm Operating temperature -30°C to +70°C Settings & configuration By SCIEL PROG IR tool and ERW configuration software Battery level management Specific code sent at the end of the battery’s life : XXXFFF (XXX : ID code) Housing ∅ 36mm base – thickness 10mm – Waterproof –DELRIN material - 2 mounting ∅ 3mm holes, spaced of 32mm This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Standards EN 301 489 – 3: 2002 V1.4.1 EN 300 220 – 2007: V2.1.2 RoHS Certified CE, FCC part 15 FCC ID: RVVCOIN10XX IC: 20429-COIN10XX COIN MAG Ref. IDF1064

Federal Communications Commission Authorization and Evaluation Division Montpellier, France, November 12, 2015 Subject: Confidentiality Request regarding application for certification of FCC ID: RVVCOIN10XX Applicant: Pierre BONZOM Product: COIN Model: COIN MAG To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Parts List COIN MAG BlkDia.pdf COIN MAG Schem.pdf COIN MAG OpDes.pdf COIN M AG PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any queries, please do not hesitate to contact us. Regards, Pierre BONZOM, November 12, 2015

Montpellier, France, November 12, 2015 Subject: RADIO Certification of the COIN MAG product Applicant: Pierre BONZOM Product: COIN Model: COIN MAG FCC ID: RVVCOIN10XX IC ID: 20429-COIN10XX To Whom It May Concern: We would like to submit the above product for Certification concerning FCC and Canadian rules. Please review all required documents enclosed. This application is a Wireless Active RFID sensors for magnetic contact real-time monitoring. Compliance for RF exposure requirement was demonstrated in this test report. If you have any queries, please do not hesitate to contact us. Regards, Pierre Bonzom, November 12, 2015

 Siège Social : Emitech - 3, rue des Coudriers - Z.A. de l’Observatoire - 78180 MONTIGNY LE BX - France Siret : 344 545 645 00022 - Tél. : 33 (0)1 30 57 55 55 - Fax : 33 (0)1 30 43 74 48 - E-mail : [email protected] - URL : www.emitech.fr S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B RR051-14-106269-1-A Ed.1 This test report cancels and replaces test report RR051-14-106269-1-A Ed. 0 CERTIFICATION test report According to the standards: CFR 47 FCC PART 15 Equipment under test: COIN_MAG FCCID: RVVCOIN10XX Company: ELA INNOVATION DISTRIBUTION: Mr DARMON (Company: ELA INNOVATION) Number of pages: 17 with 5 appendixes Technical Verification and Ed. Date Modified Written by Quality Approval pages Name Visa Name Visa See T. LEDRESSEUR O. ROY 1 23-DEC-15 margin vertical line Duplication of this test report is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. RR051-14-106269-1-A Ed. 1 Page 2 out of 17  DESIGNATION OF PRODUCT: COIN_MAG Serial number (S/N): Not communicated Reference / model (P/N): COIN10XX Software version: 44.06 MANUFACTURER: ELA INNOVATION COMPANY SUBMITTING THE PRODUCT: Company: ELA INNOVATION Address: 297, rue Maurice Béjart 34080 Montpellier France Responsible: Mr DARMON DATES OF TEST: 10-DEC-2014 and 12-DEC-2014 TESTING LOCATION: EMITECH ANGERS laboratory at JUIGNE SUR LOIRE (49) FRANCE EMITECH ANGERS open area test site in JUIGNE SUR LOIRE (49) FRANCE 21 rue de la Fuye 49610 Juigne sur Loire France FCC 2.948 Listed Site Registration Number: 90469 FCC Accredited under US-EU MRA Designation Number: FR0009 Test Firm Registration Number: 873677 TESTED BY: T. LEDRESSEUR RR051-14-106269-1-A Ed. 1 Page 3 out of 17  CONTENTS TITLE PAGE 1. INTRODUCTION ....................................................................................................................... 4 2. PRODUCT DESCRIPTION .......................................................................................................... 4 3. NORMATIVE REFERENCE ......................................................................................................... 4 4. TEST METHODOLOGY .............................................................................................................. 5 5. TEST EQUIPMENT CALIBRATION DATES ................................................................................... 5 6. TESTS AND CONCLUSIONS ...................................................................................................... 6 7. RADIATED EMISSION LIMITS .................................................................................................... 8 8. PERIODIC OPERATION IN THE BAND 40.66 – 40.70 MHz AND ABOVE 70 MHz .............................. 10 APPENDIX 1: Photos of the equipment under test APPENDIX 2: Test set up APPENDIX 3: Test equipment list APPENDIX 4: 6dB bandwidth APPENDIX 5: 20dB bandwidth RR051-14-106269-1-A Ed. 1 Page 4 out of 17  1.INTRODUCTION This document presents the result of RADIO test carried out on the following equipment: COIN_MAG, in accordance with normative reference. 2.PRODUCT DESCRIPTION Class: B Utilization: indoor use Antenna type and gain: Integral antenna, gain unknown Operating frequency range: 433.92 MHz Number of channels: 1 Channel spacing: not concerned Frequency generation: quartz Power source: 3.0Vdc by a CR2032 battery Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. 3.NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. CFR 47 FCC Part 15 (2013) Radio Frequency Devices ANSI C63.4 (2009) Methods of Measurement of Radio-Noise Emissions from Low- voltage Electrical and Electronics Equipment in the range of 9 kHz to 40 GHz. RR051-14-106269-1-A Ed. 1 Page 5 out of 17  4.TEST METHODOLOGY Radio performance tests procedures given in CFR 47 part 15: Subpart B –Unintentional Radiators Paragraph 109: Radiated emission limits Subpart C – Intentional Radiators Paragraph 203: Antenna requirement Paragraph 205: Restricted bands of operation Paragraph 209: Radiated emission limits; general requirements Paragraph 215: Additional provisions to the general radiated emission limitations Paragraph 231: Periodic operation in the band 40.66-40.70 MHZ and above 70 MHz 5.TEST EQUIPMENT CALIBRATION DATES Equipment Model Type Last verification Next verification Validity 0180 Receiver ESVP Rohde & Schwarz 18/01/2013 18/01/2015 18/03/2015 1922 Low-noise amplifier 1 to 18 GHz Microwave DB 20/08/2014 20/08/2016 20/10/2016 4088 FSP 40 Rhode& Schwarz 22/08/2013 22/08/2015 22/10/2015 7310 High pass filter HP12/1200- 5AA Filtek 16/01/2014 16/01/2016 16/03/2016 8511 Préamplificateur 8447D Hewlett Packard 22/08/2013 22/08/2015 22/10/2015 8526 Schwarzbeck VHBB 9124 Biconical antenna 12/06/2012 12/06/2016 12/08/2016 8530 Bi-log antenna CBL6112A Chase 05/03/2013 05/03/2017 05/05/2017 8533 HFH2-Z2 Loop antenna 11/02/2014 11/02/2016 11/04/2016 8535 Antenna 3115 Electrometrics 29/10/2012 29/10/2016 29/12/2016 8543 Schwarzbeck UHALP 9108A Log periodic antenna 12/06/2012 12/06/2016 12/08/2016 8593 SIDT Cage 2 Full anechoic room / / / 8671 Meteo station WS-9232 La Crosse Technology 04/09/2014 04/09/2016 04/11/2016 8675 AOIP MN5102B Multimeter 15/01/2013 15/01/2015 15/03/2015 8732 Emitech OATS 23/08/2013 23/08/2016 23/10/2016 8750 La Crosse Technology WS- 9232 Meteo station 03/09/2014 03/09/2016 03/11/2016 8896 Satellite synchronized frequency standard GPS8 ACQUISYS / / / 10392 High pass filter H500-8CN BL Microwave 24/07/2013 …

Text truncated - open the document above for the full version.

RR 051- 14-1 06269-1-A Ed. 0 Page 13 out of 17  Test set up Anechoic chamber RR 051- 14-1 06269-1-A Ed. 0 Page 14 out of 17  Open area test site
