RVW22312.4 GHz 802.11 Access Point

March 16, 2004 External-Antenna Nortel Networks WLAN - Access Point Quick Installation Guide External-Antenna Nortel Networks WLAN - Access Point Quick Installation Guide System Release 2.0 This Guide contains several sections allowing you to install an AS-1200-BG-EXT or AS-1200-ABG-EXT Nortel Networks WLAN - Access Point or an AS-1200-ABG-EXT-RE Nortel Networks WLAN - Remote Edge Access Point (Remote Edge Access Point). These models contain internal 802.11a and 802.11b/g antennas and connectors for optional external 802.11a and 802.11b/g antennas. If you are installing an AS-1200-BG-INT or AS-1200-ABG-INT Nortel Networks WLAN - Access Point with internal 802.11a and 802.11b/g antennas and no connectors for optional external antennas, please refer to the Internal-Antenna Airespace Access Point Quick Installation Guide . •Overview •Step 1: Collecting Required Tools and Supplies •Step 2: Configuring the Nortel Networks WLAN - Access Point or Remote Edge Access Point Before Installation •Step 3: Preparing Mounting Locations •Step 4: Mounting the Nortel Networks WLAN - Access Points •Step 5: Returning MAC Information •Planning Notes •FCC Statements for Nortel Networks WLAN - Access Points ATTENTION!Special Considerations While Nortel Networks WLAN - Access Points have been engineered for easy installation, there are some guidelines that are very important to the end users: •PLACE Nortel Networks WLAN - Access Points NO MORE THAN 140 FEET APART FROM EACH OTHER. Placing Nortel Networks WLAN - Access Points further apart almost always results in poor coverage. •DO NOT MOUNT Nortel Networks WLAN - Access Points OUTSIDE BUILDINGS. •DO NOT MOUNT Nortel Networks WLAN - Access Points ON BUILDING PERIMETER WALLS UNLESS THE OPERATOR WANTS TO PROVIDE COVERAGE OUTSIDE THE BUILDING. •MAKE SURE that plenum-mounted Nortel Networks WLAN - Access Points and Remote Edge Access Points are powered using Power Over Ethernet (POE) to comply with safety regulations. March 16, 20042 External-Antenna Nortel Networks WLAN - Access Point Quick Installation Guide •MAKE SURE THAT THE Nortel Networks WLAN - Access Points ARE INSTALLED VERTICALLY. Nortel Networks WLAN - Access Points ARE DESIGNED TO BE INSTALLED VERTICALLY, either standing up in a plenum or hanging from a ceiling, to create the largest coverage area per Nortel Networks WLAN - Access Point. Hanging the Nortel Networks WLAN - Access Point from the ceiling provides the best RF coverage. •DO NOT MOUNT Nortel Networks WLAN - Access Point ANTENNAS WITHIN ONE METER (3 FT.) OF ANY METAL OBSTRUCTIONS. THE RF WAVES FROM Nortel Networks WLAN - Access Points ARE BLOCKED AND/OR REFLECTED BY METAL OBJECTS, such as metal HVAC ducts, conduit, pipes, bookcases, elevator shafts, stairwells, and metal walls. REFER TO THE Nortel Networks WLAN - Access Point Deployment Guide BEFORE MOUNTING Nortel Networks WLAN - Access Points NEAR METAL OBSTRUCTIONS. •WHEN MOUNTING Nortel Networks WLAN - Access Points IN THE CORNER OF A RIGHT-ANGLE HALLWAY INTERSECTION, MOUNT THE Nortel Networks WLAN - Access Point AT A 45-DEGREE ANGLE TO THE TWO HALLWAYS. The Nortel Networks WLAN - Access Point internal antennas are not omnidirectional, and will cover a larger area if mounted this way. March 16, 20043 Overview OverviewOverview This guide is designed to provide you with the information needed to mount AS-1200-BG-EXT and AS-1200-ABG-EXT Nortel Networks WLAN - Access Points and AS-1200-ABG-EXT-RE Nortel Networks WLAN - Remote Edge Access Points (Remote Edge Access Points). Nortel Networks WLAN - Access Points and Remote Edge Access Points are part of the innovative Nortel Networks 2200 series (Nortel Networks 2200 series), and require no manual configuration after they are mounted. This document assumes that a site survey has been performed as described in the Nortel Networks WLAN - Access Point Deployment Guide section in the Nortel Networks Product Documentation, that Nortel Networks WLAN - Access Point and Remote Edge Access Point locations and mounting options have been selected, and that you have one Nortel Networks WLAN - Access Point or Remote Edge Access Point per indicated location. After the site survey is done, you should have a map indicating the following: •AP and Remote Edge Access Point locations. •AP and Remote Edge Access Point mounting options: in the middle of a ceiling/hallway, in the ceiling plenum, projecting away from the wall, or flat against the wall. •AP and Remote Edge Access Point power options: power supplied by the AC-to-DC power supply orderable from the factory, or Power over Ethernet (PoE) from the (UNUSED PRODUCT), another network device, or a PoE injector/hub (usually located in a wiring closet). Note: Plenum-mounted Nortel Networks WLAN - Access Points and Remote Edge Access Points MUST BE powered using Power Over Ethernet (POE) to comply with safety regulations. If you do not have a map, make one so you can record the MAC addresses from each location and return them to the to the person who is planning or managing this wireless network. Refer to the following sections to install the Nortel Networks WLAN - Access Points. Note: When mounting Nortel Networks WLAN - Access Points and Remote Edge Access Points, make sure to maintain a 20 cm (8 in.) separation between the Nortel Networks WLAN - Access Points or Remote Edge Access Points and bystanders to comply with FCC RF exposure regula- tions. Refer to the FCC Statements for Nortel Networks WLAN - Access Points section for more information. For more details about Nortel Networks WLAN - Access Point and Remote Edge Access Point installa- tions, refer to the Planning Notes section at the end of this document. March 16, 20044 Step 1: Collecting Required Tools and Supplies Step 1: Collecting Required Tools and SuppliesStep 1: Collecting Required Tools and Supplies •One Nortel Networks WLAN - Access Point or Remote Edge Access Point per location. •Nortel Networks WLAN - Access Point and Remote Edge Access Point Mou…

Text truncated - open the document above for the full version.

March 16, 2004 Internal-Antenna Nortel Networks WLAN - Access Point Quick Installation Guide Internal-Antenna Nortel Networks WLAN - Access Point Quick Installation Guide System Release 2.0 This Guide contains several sections allowing you to install an AS-1200-BG-INT or AS-1200-ABG-INT Nortel Networks WLAN - Access Point. These models contain internal 802.11a and 802.11b/g antennas and no connectors for optional external antennas. If you are installing an AS-1200-BG-EXT or AS-1200-ABG-EXT Nortel Networks WLAN - Access Point or an AS-1200-ABG-EXT-RE Nortel Networks WLAN - Remote Edge Access Point (Remote Edge Access Point) with internal 802.11a and 802.11b/g antennas and connectors for optional external 802.11a and 802.11b/g antennas, please refer to the External-Antenna Airespace Access Point Quick Installation Guide. •Overview •Step 1: Collecting Required Tools and Supplies •Step 2: Configuring the Nortel Networks WLAN - Access Point Before Installation •Step 3: Preparing Mounting Locations •Step 4: Mounting the Nortel Networks WLAN - Access Points •Step 5: Returning MAC Information •Planning Notes •FCC Statements for Nortel Networks WLAN - Access Points ATTENTION!Special Considerations While Nortel Networks WLAN - Access Points have been engineered for easy installation, there are some guidelines that are very important to the end users: •PLACE Nortel Networks WLAN - Access Points NO MORE THAN 140 FEET APART FROM EACH OTHER. Placing Nortel Networks WLAN - Access Points further apart almost always results in poor coverage. •DO NOT MOUNT Nortel Networks WLAN - Access Points OUTSIDE BUILDINGS. •DO NOT MOUNT Nortel Networks WLAN - Access Points ON BUILDING PERIMETER WALLS UNLESS THE OPERATOR WANTS TO PROVIDE COVERAGE OUTSIDE THE BUILDING. •MAKE SURE that plenum-mounted Nortel Networks WLAN - Access Points are powered using Power Over Ethernet (POE) to comply with safety regulations. March 16, 20042 Internal-Antenna Nortel Networks WLAN - Access Point Quick Installation Guide •MAKE SURE THAT THE Nortel Networks WLAN - Access Points ARE INSTALLED VERTICALLY. Nortel Networks WLAN - Access Points ARE DESIGNED TO BE INSTALLED VERTICALLY, either standing up in a plenum or hanging from a ceiling, to create the largest coverage area per Nortel Networks WLAN - Access Point. Hanging the Nortel Networks WLAN - Access Point from the ceiling provides the best RF coverage. •DO NOT MOUNT Nortel Networks WLAN - Access Point ANTENNAS WITHIN ONE METER (3 FT.) OF ANY METAL OBSTRUCTIONS. THE RF WAVES FROM Nortel Networks WLAN - Access Points ARE BLOCKED AND/OR REFLECTED BY METAL OBJECTS, such as metal HVAC ducts, conduit, pipes, bookcases, elevator shafts, stairwells, and metal walls. REFER TO THE Nortel Networks WLAN - Access Point Deployment Guide BEFORE MOUNTING Nortel Networks WLAN - Access Points NEAR METAL OBSTRUCTIONS. •WHEN MOUNTING Nortel Networks WLAN - Access Points IN THE CORNER OF A RIGHT-ANGLE HALLWAY INTERSECTION, MOUNT THE Nortel Networks WLAN - Access Point AT A 45-DEGREE ANGLE TO THE TWO HALLWAYS. The Nortel Networks WLAN - Access Point internal antennas are not omnidirectional, and will cover a larger area if mounted this way. March 16, 20043 Overview OverviewOverview This guide is designed to provide you with the information needed to mount Nortel Networks WLAN - Access Points (Nortel Networks WLAN - Access Points). Nortel Networks WLAN - Access Points are part of the innovative Nortel Networks 2200 series (Nortel Networks 2200 series), and require no manual configuration after they are mounted. This document assumes that a site survey has been performed as described in the Nortel Networks WLAN - Access Point Deployment Guide section in the Nortel Networks Product Documentation, that Nortel Networks WLAN - Access Point locations and mounting options have been selected, and that you have one Nortel Networks WLAN - Access Point per indicated location. After the site survey is done, you should have a map indicating the following: •AP locations. •AP mounting options: in the middle of a ceiling/hallway, in the ceiling plenum, projecting away from the wall, or flat against the wall. •AP power options: power supplied by the AC-to-DC power supply orderable from the factory, or Power over Ethernet (PoE) from the (UNUSED PRODUCT), another network device, or a PoE injector/hub (usually located in a wiring closet). Note: Plenum-mounted Nortel Networks WLAN - Access Points and Remote Edge Access Points MUST BE powered using Power Over Ethernet (POE) to comply with safety regulations. If you do not have a map, make one so you can record the MAC addresses from each location and return them to the to the person who is planning or managing this wireless network. Refer to the following sections to install the Nortel Networks WLAN - Access Points. Note: When mounting Nortel Networks WLAN - Access Points, make sure to maintain a 20 cm (8 in.) separation between the Nortel Networks WLAN - Access Points and bystanders to comply with FCC RF exposure regulations. Refer to the FCC Statements for Nortel Networks WLAN - Access Points section for more information. For more details about Nortel Networks WLAN - Access Point installations, refer to the Planning Notes section at the end of this document. March 16, 20044 Step 1: Collecting Required Tools and Supplies Step 1: Collecting Required Tools and SuppliesStep 1: Collecting Required Tools and Supplies •One Nortel Networks WLAN - Access Point per location. •Nortel Networks WLAN - Access Point Mounting Kits, factory-supplied with each Nortel Networks WLAN - Access Point. •Optional Nortel Networks WLAN - Access Point Mounting Kits, factory-orderable. •Optional external AC-to-DC power supplies, factory-orderable. •Map showing Nortel Networks WLAN - Access Point locations, and mounting and power options. •Screwdrivers, drills, and ladder. •An assortment of sheet metal and drywall screws and toggle bolts. •CAT-5 (or higher) cables to connect the Nortel Networks WLAN - A…

Text truncated - open the document above for the full version.

To: Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: FCC 15.203 Compliance, Non-Standard Antenna Connector Requirement Gentlemen, The Nortel Networks access point radios are available in versions that incorporate only internal antennas as well as a version that incorporates antenna connectors for connection to external antennas. FCC ID: RVW2230 Model 2230 FCC ID: RVW2231 Model 2231 IC: 332R-2230 Model 2230 IC 332R-2231 Model 2231 These connectors used in these models are “Reverse TNC” connectors and are currently FCC 15.203 compliant. Additionally, it is Nortel’s intent that these IEEE 802.11 access point radios be professionally installed and NOT installed by the end user of the system. If you have any questions, please do not hesitate to contact me at: [email protected] or (408) 832-7053 Sincerely, David Waitt Consultant representing Nortel Networks

4655 Great America Parkway Santa Clara, California 95054 www.nortelnetworks.com To: Mr. Tim Johnson, American TCB From: David Waitt Subject: IEEE802.11 B/G access point A/B/G up-grade process Date: 25 Mar 2004 This letter outlines the procedure that will be followed to allow upgrade of the IEEE802.11 B/G access point to an IEEE802.11 A/B/G access point. If there are any questions or if additional information is required, please contact me at [email protected] On behalf of Alcatel, David Waitt Upgrading from 802.11 B/G to 802.11 A/B/G This grant is for an 802.11 B/G radio. It is possible to upgrade the radio to a dual band 802.11 A /B /G radio by installing an additional 802.11 card in the open slot within the radio. Alcatel understands the FCC concerns regarding “User Upgrades”. In order to assure that the Alcatel radios remain compliant after an upgrade from 802.11 B/G to 802.11 A/B/G and has been performed correctly, Alcatel will handle upgrades in the following manner. Alcatel has negotiated contracts with different contractors qualified to install and perform the upgrade. Alcatel has instructed the contractors on how to properly perform the upgrade. Once the process is complete, the contractor is then placed on an “Alcatel Approved List” of upgrade contractors. The end user (typically an IT department) of the Alcatel access point will then be instructed that in order for the Alcatel 802.11 network to remain FCC compliant, any “multi-band” upgrade effort must be performed by one of the Alcatel qualified contractors in their area. The upgrade process consists of two basic steps: 1: Installing the module: To preclude the opening of the access door by someone other than the trained professional responsible for upgrading/maintaining the system, Alcatel has elected to secure the access door with “Security hardware” that can only be removed using very specialized tools not available at local hardware stores. It should be noted that removal of the access door only allows access to the various connectors to allow installation of an 802.11A card. It does NOT allow access to the antennas inside the device. The contractor opens the radio via the access door and simply installs an 802.11 module in the “A” slot of the radio. Connect the internal coax cables to the module and re-install the access door. 2: Re-labeling the device: The installer will then re-label the device over the previous FCC ID label to indicate the correct FCC ID for the newly upgraded device.

To: Federal Communications Commission Industrie Canada From: Nortel Networks Subject: Justification for Class A classification of the following FCC IDs FCC ID: RVW2230 RVW2231 IC: 332R-2230 332R-2231 Date: 5 March 2004 Gentlemen, The purpose of this letter is to provide justification for classifying the above products as Class A. All of the devices are similar IEEE802.11 access points with the exception that they are either A/B/G or B/G radios as indicated by their FCC ID. The Nortel 2230 and 2231 products are intended only for industrial / corporate environments. Marketing of the products will not be targeted at individuals for residential use. The 2230 and 2231 will not be available for purchase at consumer oriented retail outlets. If any further information is required, please do not hesitate to contact me at the email address below. David Waitt Consultant representing Nortel [email protected]

4655 Great America Parkway Santa Clara, California 95054 www.nortelnetworks.com To: Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for Certification Application Gentlemen, On behalf of Nortel Networks Inc., I request that the following documents: • Any/All circuit schematics. • Any/All electrical block diagrams • Any/All parts lists • Associated with the following Part 15 Certification applications (FCC ID): RVW2230 RVW2231 be withheld from public disclosure per Section 0.459 of the FCC Rules. This request is made under the provisions of Section 0.457(d) of the FCC rules and Sections 552(b)(4) of the Freedom of information Act. These Sections authorize withholding from public inspection, materials which would be privileged as a matter of law if retained by the person submitting them in addition to materials, which would not customarily be released to the public, by that person. If you have any questions, please do not hesitate to contact me at: [email protected] or (408) 832-7053 Sincerely, David Waitt Consultant representing Nortel Networks

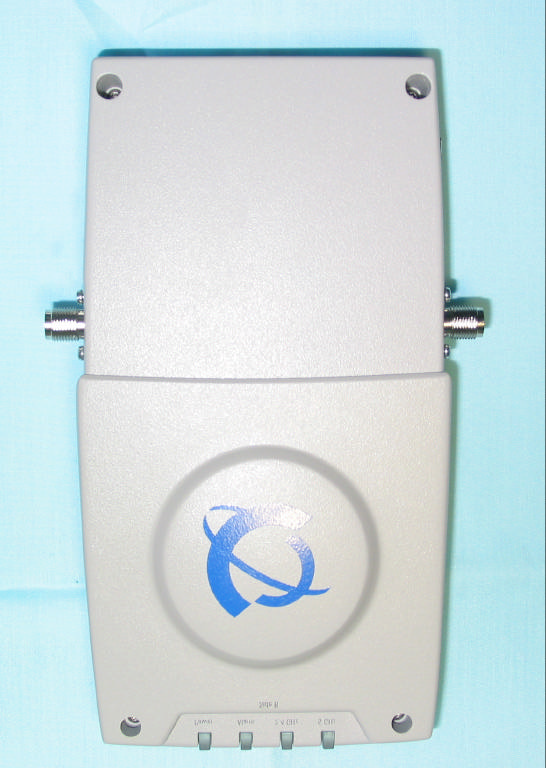

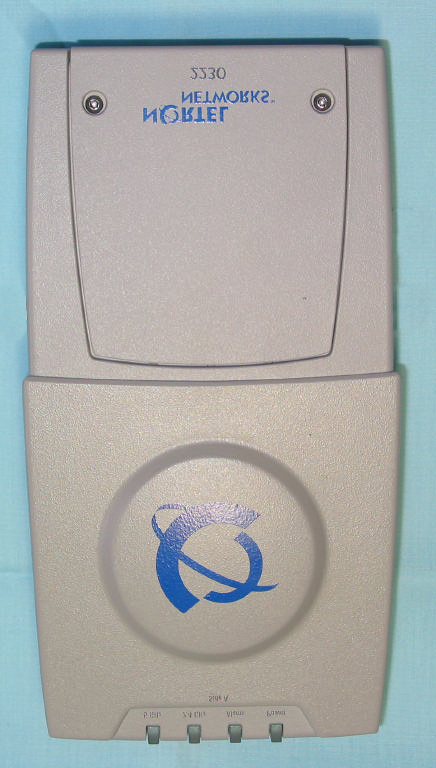

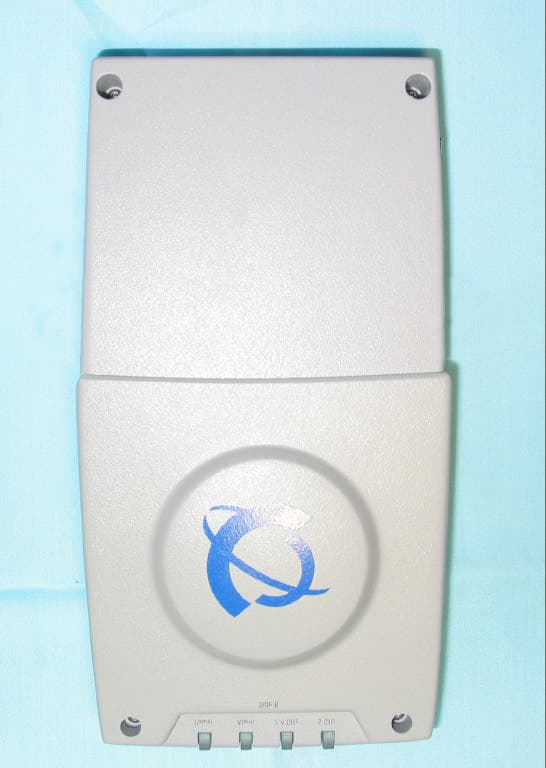

4655 Great America Parkway Santa Clara, California 95054 www.nortelnetworks.com External Product Photos Nortel Networks IEEE 802.11 Access Point. Models: 2231 & 2231 INT (Internal and External Antenna Versions, B/G) FCC Part 15 Certification Application Industrie Canada RSS-210 Application Prepared by: David Waitt 202 Calvert Drive #217 Cupertino, Ca. 95014 [email protected] (408) 832 7053 Nortel, BG, EXT, Side 1 Nortel, BG, EXT, Side 2 Nortel, BG, EXT, LEFT and RIGHT sides Nortel, BG, EXT, Antenna Connector Detail Nortel, INTERNAL antenna version, Side 1 Nortel, INTERNAL antenna version, Side 2 Nortel, INTERNAL antenna version, LEFT and RIGHT sides Nortel Networks Access point, Security Screw detail

4655 Great America Parkway Santa Clara, California 95054 www.nortelnetworks.com To: Office of Engineering and Technology Federal Communications Commission 445 12TH ST SW Washington DC 20554 Re: FCC ID: RVW2231 IC: 332R-2231 Certification Application Regulatory Compliance Label Drawing Gentlemen, The label shown below will appear on the Nortel access point radio specified above and will be located on the bottom of the unit as shown. Only ONE of the labels below will appear on the unit. The labels have the same FCC ID. The ONLY difference is the model number, denoting whether or not the unit is an internal antenna only radio. FCC ID: RVW2231 IC: 332R-2231 FCC ID: RVW2231 IC: 332R-2231

4655 Great America Parkway Santa Clara, California 95054 www.nortelnetworks.com Internal Product Photos Nortel IEEE 802.11 Access Point. Models: 2231 & 2231 INT FCC Part 15 Certification Application Prepared by: David Waitt 202 Calvert Drive #217 Cupertino, Ca. 95014 [email protected] (408) 832 7053 802.11 Access Point PCA, 802.11 A side 802.11 Access Point PCA, 802.11 BG side Antenna Detail, BG side Antenna Detail, A side Module Detail, BG Side Coax to Ext 2.4 GHz antenna, Left Coax to Ext 2.4 GHz antenna, Right Module Detail Side 1 Module Detail Side 2

To: Federal Communications Commission Industrie Canada From: Nortel Networks Subject: Theory Of Operations FCC: RVW2231 IC: 332R-2231 Date: 11 Mar 2004 Gentlemen, Below is a brief explanation of the operation of the Nortel access point Radio The Nortel radio is an IEEE 802.11 B/G Access point (AP) intended to be professionally installed and configured in corporate and industrial environments. The access point is powered either by an external 48V power supply or via power over Ethernet. The device utilizes a mini PCI module manufactured by an outside vendor. The modules incorporated into the Omni Access Point radio are IEEE802.11 A/B/G mini PCI modules. However the functionality of the module is determined by the mini PCI slot in which the module is inserted. (See internal photos) The device does not include a “Turbo” mode. INTERNAL ANTENNA VERSION The AP utilizes integral antennas on the 802.11 B/G band. The access point effectively includes only a single 2.4GHz patch antenna, however, there are actually two 2.4 GHz antennas internal to the access point chassis. The module switches rapidly between the two antennas and when a signal is detected, the access point uses the antenna offering the best transmission characteristics. At any one time, there is only one antenna connected to the internal PCI module. The effective gain of the 2.4 GHz internal antenna path (the antenna switch and the antenna itself) is 6.8dBi. The diagrams below outline the RF path from the output of the mini PCI module to the integral antennas within the access point. In the internal antenna version shown below, the software prohibits the switching of the FET antenna switches. 2.4 GHz RF Block Diagram (Internal Antenna Version) 802.11 mini PCI module Antenna Diversity FET Switch Approx -1dB Trace Internal Patch Antennas, 7.8 dBi Each Trace Net effective 2.4 GHz antenna gain: 6.8 dBi Primary Output Aux Output FET Switch Approx -1dB INTERNAL/EXTERNAL ANTENNA VERSION Additionally, there is a version of the access point which allows connection of external antennas. When External antennas are connected to the access point, the configuration software switches the internal antenna switches into the EXT position. The antenna diversity functionality described earlier works in the same manor for the external antennas. The external antennas used with the access point must be “patch” type antennas and have a net effective gain (antenna gain - cable loss) equal to 6.8 dBi or less. At any one time, ONLY the internal or external antennas may be selected. It is NOT possible to configure the access point to rapidly toggle between external and internal antennas. The only difference between the internal only version and the internal / external version of the access point is the addition of a small coax cable to an external 15.203 compliant antenna connector in the chassis. 2.4 GHz RF Block Diagram (Internal / External Antenna Version) Additionally, the device has been tested for compliance to the FCC Part 15 Class A limits. A report has been prepared and is on file at Nortel Inc. If any further information is required, please do not hesitate to contact me at the email address below. David Waitt Consultant representing Nortel [email protected] 802.11 mini PCI module Antenna Diversity FET Switch Approx -1dB Trace Internal Patch Antennas, 7.8 dBi Each Trace Net effective 2.4 GHz antenna gain: 6.8 dBi Primary Output Aux Output FET Switch Approx -1dB Power for the initial grant measured from this point.

Nortel Access Point Models 2230 & 2231 2.4 GHz External Antenna(s) Pictures and data sheets Prepared by: David Waitt 202 Calvert Drive #217 Cupertino, Ca. 95014 [email protected] (408) 832 7053 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: 2.4 GHz External Antenna Gentlemen, The attached data sheets for the 2.4 GHz external patch antennas indicates that the available gains in this series are 3dBi , 5dBi and 9 dBi. Nortel is only using the 3dBi and 5 dBi antennas of this series. It is NOT using the 9dBi antenna If you have any questions, please do not hesitate to contact me at: [email protected] or (408) 832-7053 Sincerely, David Waitt Consultant representing Nortel Features: Specifications: Element Type Air-Loaded Patch Frequency Range 2400-2500 MHz Peak Gain 3 dBi Polarization 1 Linear Impedance 50 ohms Maximum Input Power 50 watts VSWR (Min. Performance) 1.5:1 Connector Customer Choice Dimensions (cm) 6.4 x 6.3 x 1.7 cm Housing Coating Material ABS Operating Temperature -40º to +70ºC Storage Temperature -40º to +70ºC Includes a low-loss, RG 142, plenum rated “pigtail” cable. 1 Contains both vertical and horizontal components, the ratio of which varies with the spatial location. Cables & Connectors: Part Number Cable Connector CAF94101 12” RG-142 Plenum Rated Coax SMA-Male CAF94170 12” RG-142 Plenum Rated Coax N-Female CAF94150 36” RG-142 Plenum Rated Coax RP-TNC CAF94144 36” RG-142 Plenum Rated Coax RP-TNC 2400 MHz Sphere Part Number (P/N): CAF94101 CAF94170 CAF94150 CAF94144 2400 MHz Sphere – 10/30/02 Omnidirectional Antenna ƒ Omnidirectional antenna provides a considerable gain improvement over traditional dipole antennas, within a remarkably small case that perfectly blends into any environment. ƒ It is particularly applicable in environments such as offices and hospitals, where aesthetics are critical to successful wireless deployment and wide angle coverage is necessary. ƒ For easy installation, the Sphere quickly attaches to a ceiling tile frame with a standard metal clip. Azimuth Plane Cut perpendicular to the antenna and perpendicular to the cable Elevation Plane Cut perpendicular to the antenna alon g the cable axis Omni Plane Cut in the plane of the antenna parallel to the cable Sphere 2400 Xertex Products Reliability Without the Expense... FEATURES & OPTIONS: In-Building Reliable coverage is always a priority in streamlining the effectiveness of wireless devices. This is especially crucial in commercial, office, campus and residential environments that strive to cover a multitude of users in an open space or long corridor. Centurion’s Whisper directional and Terrace bi-directional antennas offer an affordable option for in-building antenna systems. Our innovative designs blend into any atmosphere and provide excellent coverage in high traffic areas. WHI SPER - Directional Antenna • Self contained in a durable sleek radome, the Whisper is designed to blend in anywhere - residential, campus or commercial • Inexpensive yet reliable, the Whisper utilizes Centurion's patented technology to achieve maximum efficiency. • Typical applications include wireless local loop, in-building wireless (voice and data), WLAN, DECT, WPBX, and broadband Internet access. TERRACE - Bi-directional Antenna • Utilizes a patented low-profile design to provide coverage in corridors or long hallways • Provides outstanding performance in healthcare and office environments, where a long hallway presents a design or coverage challenge DIRECTIONAL/BI-DIRECTIONAL ANTENNAS AntennasA www.centurion.com Telematics 802.11/Bluetooth In-Building Mobile Phones LMR Power Specifications subject to change without notice Copyright © 2001 Centurion Wireless Technologies, Inc. All Rights Reserved www.centurion.com 3425 N.44th St., LINCOLN, NE 68504 USA SALES PHONE 800.228.4563 • SALES FAX 800.826.3774 INTERNATIONAL PHONE 402.474.0706 • FAX 402.467.4528 In-Building DIRECTIONAL/BI-DIRECTIONAL ANTENNAS All centurion products are designed for maximum efficiency and are customizable and scalable to meet your frequency and application requirements. SPECIFICATIONS: PATTERNS: As displayed in these typical patterns, In-Building Directional and Bi- Directional antennas offer superior high-gain reception over a broad area. General specifications for In-Building Directional and Bi-Directional Antennas: ELEMENT TYPE Air-Loaded Patch FREQUENCY RANGE 806-2500 MHz PEAK GAIN 5.0-9.0 dBi POLARIZATION 1 Linear IMPEDANCE 50 ohms MAXIMUM INPUT POWER 50 watts FRONT/BACK RATIO 18-20 dBi VSWR (MIN. PERFORMANCE) 1.5:1-2.0:1 RADOME MATERIAL (INDOOR) ABS or Luran RADOME MATERIAL (OUTDOOR) Kydex 2 or Luran 2 1 Polarization axis is parallel to the cable axis, or along the long axis of the antenna for models without cable pigtails. 2 UV tolerance rated to 7 years of outdoor exposure. AZIMUTH PLANE cut perpendicular to the antenna and perpendicular to the cable ELEVATION PLANE cut perpendicular to the antenna along the cable axis OMNI PLANE Spherical Projection AZIMUTH PLANE cut perpendicular to the antenna and perpendicular to the cable ELEVATION PLANE cut perpendicular to the antenna along the cable axis OMNI PLANE cut perpendicular to the antenna along the cable axis TYPICAL WHISPER ANTENNA PATTERNS TYPICAL TERRACE ANTENNA PATTERNS Elevation Azimuth Centurion 2.4 GHz 3dBi (#94150) antenna Centurion 2.4 GHz 5dBi (#94149) antenna

4655 Great America Parkway Santa Clara, California 95054 www.nortelnetworks.com Mobile Power Density Calculation for FCC ID: RVW2231 The Nortel Networks access point, Model 2231 and 2231 INT are IEE802.11 B /G radios. The access points operate on the 2.4 GHz ISM band. Operating Environment: The operating environment for the for the radio in all cases is a fixed, uncontrolled environment, however, the devices are classified as being “Mobile”, Therefore the exposure at 20 cm is calculated. Fixed, Uncontrolled Environment: The FCC limit for the power density for uncontrolled exposure to RF devices operation at 2.4GHz at a distance of 20 cm is: 1 mW/cm 2 Power density is calculated from the following equation Exposure (mW/cm 2 ) = EIRP(mW) * Duty Cycle 4*PI* Radius 2 (cm) Where: Radius = 20 cm Duty Cycle = assumed to be 100% to yield a worst case result. NOTE: Maximum allowable certified external antenna gain: 6.8 dBi 2.4GHz ISM Band MPE distance Calculation Using the highest power measured on the 2.4 GHz ISM band. MAX Pout: 20.4 dBm (109.65 mW) MAX Ant Gain 6.8 dBi (4.78x) EIRP: 27.2 dBm (524.80 mW EIRP) Calculating power density at a distance of 20 cm yields: Delta = specification - result 1 mW/cm 2 - .1043 mw/cm 2 = .8956 mw/cm 2 = -9.817 dB below limit 524.127 5026.54 8 524.127 * 1 4 * Pi * 20 2 Power = Density .1043 mw/cm 2

4655 Great America Parkway Santa Clara, California 95054 www.nortelnetworks.com EMI Test Report and Technical Documentation on Nortel 802.11 Access Point. Models: 2231 & 2231 INT FCC ID: RVW2231 FCC Part 15.247 Certification Application Industrie Canada RSS210 Certification Prepared by: David Waitt 202 Calvert Drive #217 Cupertino, Ca. 95014 david@wai…
