RXZ-WA41RWireless ADSL 2+ ROUTER

    User’sManual        March2010 Wireless ADSL 2 + ROUTER WA41R 1 FCCWarning    FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser’sauthoritytooperatethisequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation.  IMPORTANTNOTE: FCCRadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled environment.Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceofabout eightinches(20cm)betweentheradiatorandyourbody. ThistransmittermustnotbecoͲlocatedoroperatedinconjunctionwithanyotherantennaor transmitter.     This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. ! Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2004/108/EC), Low-voltage Directive (2006/95/EC), the procedures given in European Council Directive 99/5/EC and 2004/104/EC. The equipment was passed. The test was performed according to the following European standards: zEN 300 328 V.1.7.1 zEN 301 489-1 V.1.8.1 / EN 301 489-17 V.2.1.1 zEN 62311 zEN 60950-1 Regulatory statement (R&TTE) zEuropean standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; zIn France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. Operation of this device is subjected to the following National regulations and may be prohibited to use if certain restriction should be applied. D=0.030m is the minimum safety distance between the EUT and human body when the E-Field strength is 61V/m. D=0.020m 0984 E=10.49221 V/m is the maximum E-Field strength when safety distance between the EUT and human body is maintained at least 20cm, which is below 61V/m as required in Annex III table 2 of EC Council Recommendation (1999/519/EC). This proves that the unit complies with the EN 62311 for RF exposure requirement. 2 All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Contents 1. Introduction ........................................................................... 4 1.1 Introduction to Wireless LAN ADSL2+ router ............................ 4 1.2 Product Features ..................................................................... 4 2. Hardware Installation ........................................................... 7 2.1 System Requirements .............................................................. 7 2.2 Package Contents ................................................................... 7 2.3 Front Panel Indicators and Description .................................... 7 2.4 Back Panel.............................................................................. 8 2.5 Connect Related Devices.......................................................... 9 3. Connecting Wireless LAN ADSL2+ Router via Ethernet ...........10 3.1 Setup ADSL2+ router via Ethernet Cable ................................ 10 3.2 Configure TCP/IP................................................................... 10 4. Configure Wireless LAN ADSL2+ Router via HTML Interface ...26 4.1 Login .................................................................................... 26 4.2 Status ................................................................................... 28 4.3 LAN ...................................................................................... 29 4.4 Wireless................................................................................ 30 4.4.1 Basic Settings .............................................................. 30 4.4.2 Advanced Settings ....................................................... 32 4.4.3 Security ....................................................................... 33 4.4.4 Access Control ............................................................. 34 3 4.4.5 WPS ............................................................................ 35 4.4.6 MBSSID ....................................................................... 35 4.5 WAN .................................................................................... 36 4.5.1 Channel Configuration ................................................. 36 4.5.2 ATM Settings ............................................................... 37 4.5.3 ADSL Settings ................................…

Text truncated - open the document above for the full version.

19 Step 5: Select Internet Protocol Version 4 (TCP/IPv4) then click Properties: Configure IP address Automatically : Step 6: Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to finish the configuration. 20 Configure IP Address Manually : Step 7: Select Use the following IP address and Use the following DNS server addresses. IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). 21 Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1. Preferred DNS server: Fill in preferred DNS server IP address. Alternate DNS server: Fill in alternate DNS server IP address. You can use ping command under DOS prompt to check if you have setup TCP/IP protocol correctly and if your computer has successfully connected to this router. 1) Type ping 192.168.1.1 under DOS prompt and the following messages will appear: If the communication link between your computer and router is not setup correctly, after you type ping 192.168.1.1 under DOS prompt following messages will appear: Pinging 192.168.1.1 with 32 bytes of data: Request timed out. Request timed out. Request timed out. This failure might be caused by cable issue or something wrong in configuration procedure. For Windows 7 Step 1: Click Start then select Control Panel. 22 Step 2: Double-click Network and Sharing Center icon. 23 Step 3: Select “Local Area Connection #”. (local network your ADSL hooked up with) Step 4: Select Properties: Step 5: Select Internet Protocol Version 4 (TCP/IPv4) then click Properties: 24 Configure IP address Automatically : Step 6: Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to finish the configuration. 25 Configure IP Address Manually : Step 7: Select Use the following IP address and Use the following DNS server addresses. IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1. Preferred DNS server: Fill in preferred DNS server IP address. Alternate DNS server: Fill in alternate DNS server IP address. You can use ping command under DOS prompt to check if you have setup TCP/IP protocol correctly and if your computer has successfully connected to this router. 1) Type ping 192.168.1.1 under DOS prompt and the following messages will appear: 26 If the communication link between your computer and router is not setup correctly, after you type ping 192.168.1.1 under DOS prompt following messages will appear: Pinging 192.168.1.1 with 32 bytes of data: Request timed out. Request timed out. Request timed out. This failure might be caused by cable issue or something wrong in configuration procedure. 4. Configure Wireless LAN ADSL2+ Router via HTML Interface Wireless LAN ADSL2+ Router supports a Web-based (HTML) GUI to allow users to configure Router setting via Web browser. 4.1 Login 1) Launch the Web browser. 2) Enter the default IP address http://192.168.1.1 27 3) Entry of the username and password will be displayed. Enter the default login User Name and Password as admin and admin. The main webpage will be displayed as below: 28 4.2 Status This page displays the ADSL router’s current status and settings. Click “Refresh” button to update the status. 29 4.3 LAN This page shows the current setting or LAN interface. You can set IP address and subnet mask for LAN interface in this page. 30 IP Address -- The IP Address which your LAN hosts use to identify the device’s LAN port. Subnet Mask -- LAN Subnet mask. Apply Change -- Click to save the setting to the configuration. New parameters will take effect after save into flash memory and reboot the system. 4.4 Wireless 4.4.1 Basic Settings This page is used to configure the parameters for wireless LAN clients who may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters. 31 Band: This is the range of frequencies the gateway will use to communicate with your wireless devices. As you’re looking for products in stores or on the Internet, you might notice that you can choose equipment that supports six different wireless networking technologies: 2.4 GHz(B), 2.4 GHz(G), 2.4 GHz(B+G), 2.4 GHz(N), 2.4 GHz(G+N), and 2.4 GHz(B+G+N). Mode: Default set to AP mode. SSID: Specify the network name. Each Wireless LAN network uses a unique Network Name to identify the network. This name is called the Service Set Identifier (SSID). When you set up your wireless adapter, you specify the SSID. If you want to connect to an existing network, you must use the make up your own name and use it on each computer. The name can be up to 20 characters long and contain letters and numbers. Channel Width: There have 2 options – 20MHZ and 40 MHZ Control Sideband: Specify if the extension channel should be in the Upper or Lower sideband. Channel Number: Sets the channel on which the gateway operates. Radio Power (mW): A milliwatt (mW) is also a unit of power. To put it simply, a milliwatt is 1/1,000 of a watt. The reason you need to be concerned with milliwatts is because most of the 32 802.11 equipment that you will be using transmits at power levels between 1 and 100 mW Associated Clients: This table shows MAC address, transmission, reception packet counters and encrypted status for each associated wireless clients. 4.4.2 Advanced Settings These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the change will have on your Access Point. Authentication Type: There has 3 types – Open System, Shared Key, and Auto Fragment Threshold: Fragmentation Threshold sets the frame size of incoming messages (ranging from 256 to 2346 bytes) used as fragmentation boundary. If the frame size is too big, the heavy interference affects transmission reliability. If the frame size is too small, i…

Text truncated - open the document above for the full version.

39 MBS -- Maximum Burst Size, a traffic parameter that specifies the maximum number of cells that can be transmitted at the peak cell rate. Apply Changes -- Set new PVC OoS mode for the selected PVC. New parameters will take effect after save into flash memory and reboot the system. See section “Admin” for save details. Undo -- Discard your settings. 4.5.3 ADSL Settings The ADSL Settings page allows you to select any combination of DSL training modes. ADSL modulation -- Choose preferred xdsl standard protocols. -- G.lite : G.992.2 Annex A -- G.dmt : G.992.1 Annex A -- T1.413 : T1.413 issue #2 -- ADSL2 : G.992.3 Annex A -- ADSL2+ : G.992.5 Annex A 40 AnnexL Option -- Enable/Disable ADSL2/ADSL2+ Annex L capability AnnexM Option -- Enable/Disable ADSL2/ADSL2+ Annex M capability. ADSL Capability -- “Bitswap Enable”: Enable/Disable bitswap capability. “SRA Enable”: Enable/Disable SRA (seamless rate adaptation) capability. Tone Mask -- Choose tones to be masked. Masked tones will not carry any data. Apply Changes -- Click to save the setting to the configuration and the modem will be retrained. 4.6 Service There are three sub-menus for Service configuration: DHCP Settings, DNS, Firewall, UPnP, and RIP. 4.6.1 DHCP This page is used to configure [DHCP Relay] and [DHCP Server]. [DHCP Server] By default, the device is configured as a DHCP server, with a predefined IP address pool of 192.168.1.2 through 192.168.1.100 (subnet mask 255.255.255.0). 41 IP Pool Range -- Specify the lowest and highest addresses in the pool. Max Lease Time -- The Lease Time is the amount of time that a network user is allowed to maintain a network connection to the device using the current dynamic IP address. At the end of the Lease Time, the lease is either renewed or a new IP is issued by the DHCP server. The amount of time is in units of seconds. The default value is 86400 seconds (1 day). The value –1 stands for the infinite lease. Domain Name -- A user-friendly name that refers to the group of hosts (subnet) that will be assigned addresses from this pool. Apply Changes -- Set new DHCP server configuration. New parameters will take effect after save into flash memory and reboot the system. Undo – Discard your changes. [DHCP Relay] Some ISPs perform the DHCP server function for their customers’ home/small office network. In this case, you can configure this device to act as a DHCP relay agent. When a host on your network requests Internet access, the device contacts your ISP to obtain the IP configuration, 42 and then forward that information to the host. You should set the DHCP mode after you configure the DHCP relay. DHCP Mode -- Specify the IP address of your ISP’s DHCP server. Requests for IP information from your LAN will be passed to the default gateway, which should route the request appropriately. Apply Changes -- Click to save the setting to the configuration. 4.6.2 DNS There are two submenus for the DNS Configuration: [DNS Server] and [Dynamic DNS]. [DNS Server] This page is used to select the way to obtain the IP addresses of the DNS servers. 43 Attain DNS Automatically -- Select this item if you want to use the DNS servers obtained by the WAN interface via the auto-configuration mechanism. Set DNS Manually -- Select this item to configure up to three DNS IP addresses. Apply Changes -- Set new DNS relay configuration. New parameters will take effect after save into flash memory and reboot the system. [Dynamic DNS] Each time your device connects to the Internet, your ISP assigns a different IP address to your device. In order for you or other users to access your device from the WAN-side, you need to manually track the IP that is currently used. The Dynamic DNS feature allows you to register your device with a DNS server and access your device each time using the same host name. The Dynamic DNS page allows you to enable/disable the Dynamic DNS feature. 44 DDNS provider -- There are two DDNS providers to be selected in order to register your device with: DynDNS and TZO. A charge may occur depends on the service you select. Hostname -- Domain name to be registered with the DDNS server User Name -- User-name assigned by the DDNS service provider. Password -- Password assigned by the DDNS service provider. Email -- Enter Email for TZO settings. Key -- Enter key for TZO settings. Add -- Click Add to add this registration into the configuration. Remove -- Select an existing DDNS registration by clicking the radio button at the Select column of the Dynamic DNS Table. Click Remove button to remove the selected registration from the configuration. 4.6.3 Firewall Firewall contains several features that are used to deny or allow traffic from passing through the device. 4.6.3.1 IP/Port Filtering The IP/Port filtering feature allows you to deny/allow specific services or applications in the forwarding path. 45 Outgoing Default Action -- Specify the default action on the LAN to WAN forwarding path. Incoming Default Action -- Specify the default action on the WAN to LAN forwarding path. Apply Changes -- Click to save the setting of default actions to the configuration. Direction -- Traffic forwarding direction. Protocol -- There are 3 options available: TCP, UDP and ICMP. Rule Action -- Deny or allow traffic when matching this rule. Source IP Address -- The source IP address assigned to the traffic on which filtering is applied. Source Subnet Mask -- Subnet-mask of the source IP. Source Port -- Starting and ending source port numbers. Destination IP Address -- The destination IP address assigned to the traffic on which filtering is applied. Destination Subnet Mask -- Subnet-mask of the destination IP. Destination Port -- Starting and ending destination port numbers. Delete Selected -- Delete selected filtering rules from the filter table. You can click the checkbox at the Select column to select the filtering rule. Delete All -- Delete all filtering rules from the filter table. 46 4.6.3.2 MAC Filtering The MAC filtering fea…

Text truncated - open the document above for the full version.

59 Outbound Priority -- The priority level for the traffic that matches this classification rule. The possible selections are (in the descending priority): p0, p1, p2, p3. Precedence -- Select this field to mark the IP precedence bits in the packet that match this classification rule. TOS (Type of Service) -- Select this field to mark the IP TOS bits in the packet that match this classification rule. 802.1p -- Select this field to mark the 3-bit user-priority field in the 802.1p header of the packet that match this classification rule. Note that this 802.1p marking is workable on a given PVC channel only if the VLAN tag is enabled in this PVC channel. [QoS Quese] This page displays the list of QoS Queue Configuration. 4.7.7 Remote Access The Remote Access function can secure remote host access to your DSL device from LAN and WLAN interfaces for some services provided by the DSL device. 60 LAN -- Check/un-check the services on the LAN column to allow/un-allow the services access from LAN side; and “WAN”. WAN -- Check/un-check the services on the WAN column to allow/un-allow the services access from WAN side. WAN Port -- This field allows the user to specify the port of the corresponding service. Take the HTTP service for example; when it is changed to 8080, the HTTP server address for the WAN side is http://dsl_addr:8080 , where the dsl_addr is the WAN side IP address of the DSL device. 4.7.8 Others Here you can set some other advanced settings 61 IP Pass through -- The available interfaces are listed. You have to select one for advanced configuration. Lease Time -- The Lease Time is the amount of time that a network user is allowed to maintain a network connection to the device using the current IP address. Allow LAN access – Check this option to enable the LAN access 4.8 Diagnostic The DSL device supports some useful diagnostic tools. 4.8.1 Ping Once you have your DSL device configured, it is a good idea to make sure you can ping the network. A ping command sends a message to the host you specify. If the host receives the message, it sends messages in reply. To use it, you must know the IP address of the host you are trying to communicate with and enter the IP address in the Host Address field. Click Go! To start the ping command, the ping result will then be shown in this page 62 Host Address -- The IP address you want to ping. 4.8.2 ATM Loopback In order to isolate the ATM interface problems, you can use ATM OAM loopback cells to verify connectivity between VP/VC endpoints, as well as segment endpoints within the VP/VC. ATM uses F4 and F5 cell flows as follows: í F4: used in VPs í F5: used in VCs An ATM connection consists of a group of points. This OAM implementation provides management for the following points: í Connection endpoint: the end of a VP/VC connection where the ATM cell are terminated í Segment endpoint: the end of a connection segment. This page allows you to use ATM ping, which generates F5 segment and end-to-end loop-back cells to test the reach-ability of a segment endpoint or a connection endpoint. 63 Select PVC -- Select the PVC channel you want to do the loop-back diagnostic. Flow Type -- The ATM OAM flow type. The selection can be F5 Segment or F5 End-to-End. Loopback Location ID -- The loopback location ID is the field for the loop-back cell. The default value is all Fs to indicate the endpoint of the segment or connection. 4.8.3 ADSL This page shows the ADSL diagnostic result. Click Start button to start the ADSL diagnostic. 64 4.8.4 Diagnostic Test The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides. 65 Select the Internet Connection -- The available WAN side interfaces are listed. You have to select one for the WAN side diagnostic. 4.9 Admin 4.9.1 Commit/Reboot Whenever you use the Web configuration to change system settings, the changes are initially placed in temporary storage. These changes will be lost if the device is reset or turn off. To save your change for future use, you can use the commit function 66 Commit and Reboot -- Whenever you use the web console to change system settings, the changes are initially placed in temporary storage. To save your changes for future use, you can use the Commit/Reboot function. This function saves your changes from RAM to flash memory and reboot the system. IMPORTANT! Do not turn off your modem or press the Reset button while this procedure is in progress. 4.9.2 Backup/Restore This page allows you to backup and restore your configuration into and from file in your host. 67 4.9.3 Password The first time you log into the system, you use the default password. There are two-level logins: admin and user. The admin and user password configuration allows you to change the password for administrator and user. 68 User Name -- Selection of user levels are: admin and user. Old Password -- Enter the old password for this selected login. New Password -- Enter the new password here. Confirmed Password -- Enter the new password here again to confirm. 4.9.4 Upgrade Firmware To upgrade the firmware for the DSL device: í Click the Browse button to select the firmware file. í Confirm your selection. í Click the Upload button to start upgrading. IMPORTANT! Do not turn off your DSL device or press the Reset button while this procedure is in progress. 69 4.9.5 ACL Configuration The Access Control List (ACL) is a list of permissions attached to the DSL device. The list specifies who is allowed to access this device. If ACL is enabled, all hosts cannot access this device except for the hosts with IP address in the ACL table. 70 ACL Capability -- Enable/disable the ACL function Enable -- Check to enable this ACL entry Interface-- Select the interface domain: LAN or WAN IP Address -- Enter the IP address that allows access to this device. Subnet Mask -- Enter the Subnet Mask that allows access to this device. 4.9.6 Time Zone Simple Network Timing Protocol (SN…

Text truncated - open the document above for the full version.

PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Date:May 24, 2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: RXZ-WA41R , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards,

PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Date:May 24, 2010 Federal Communications Commission Authorization and Evaluation Division FCC IDRXZ-WA41R Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application

PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Date:May 24, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. James Lee Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Model Name: WA41R Brand Name: PRO-NETS / Speed Com+ / Jet Com FCC ID: RXZ-WA41R Product Name: Wireless ADSL 2+ ROUTER

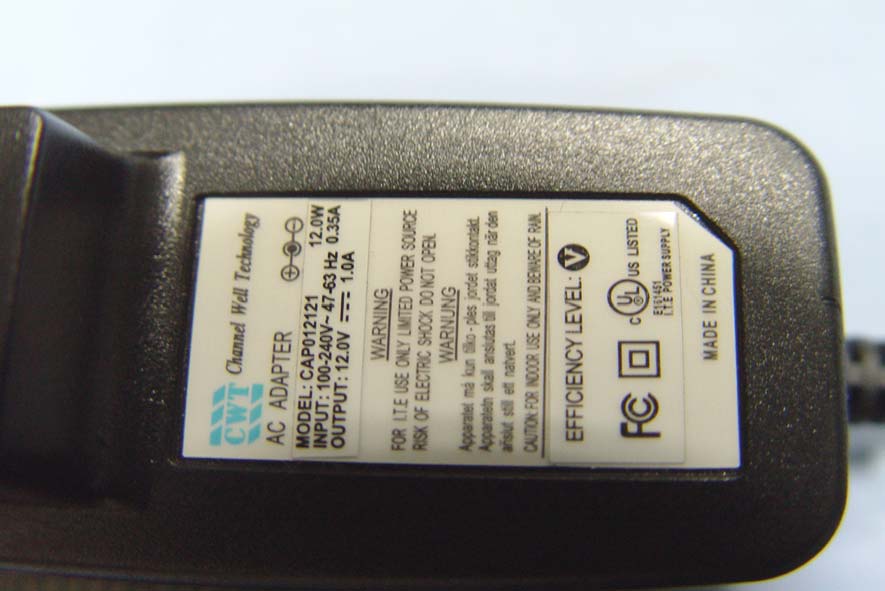

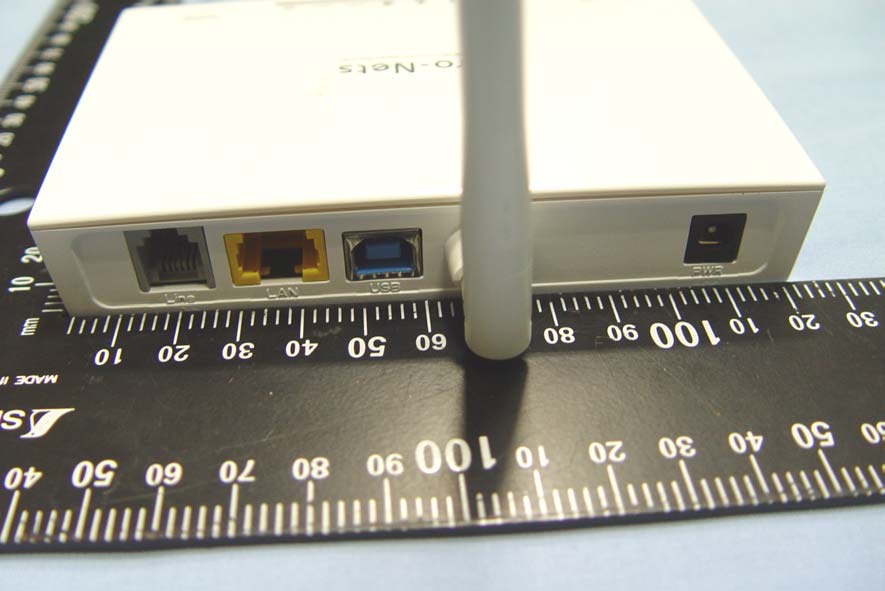

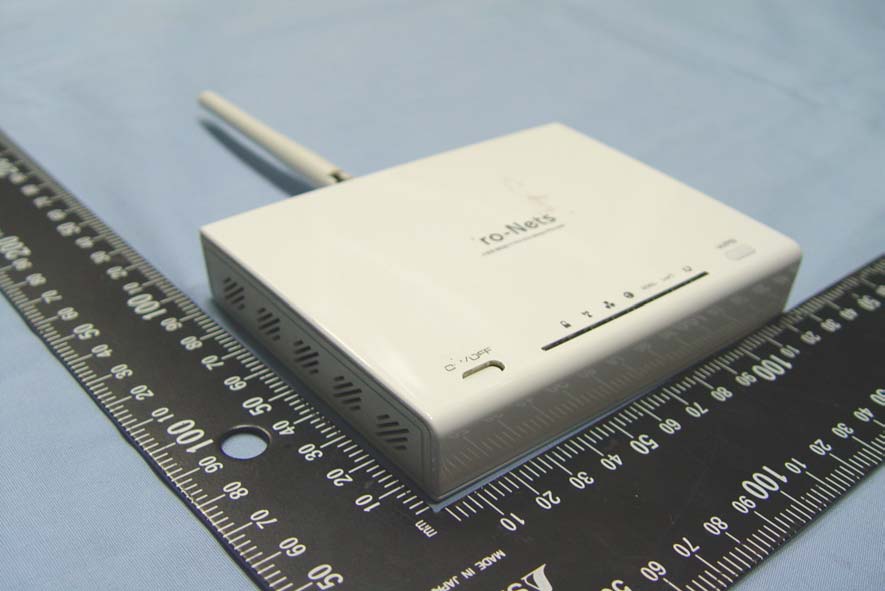

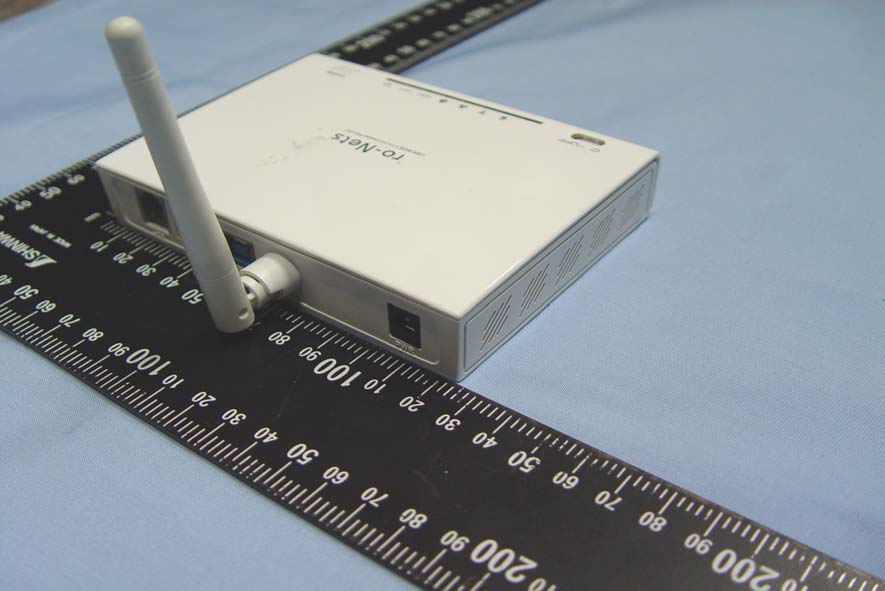

Compliance Certification Services Inc. Report No.: T100319201 Date of Issue: May 20, 2010 A1 - 1 Total Page: 6 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100319201 Date of Issue: May 20, 2010 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T100319201 Date of Issue: May 20, 2010 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100319201 Date of Issue: May 20, 2010 A1 - 4 Rev. 00

WA41R WA41R WA41R size: 49.3x19.5 mm 49.5 mm 19.5 mm 2032200000 PRO-NETS / Speed Com+ / Jet Com 0984 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful nterference and (2) this device must accept any interference received, icluding interference that may cause undesired operation

Compliance Certification Services Inc. Report No.: T100319201 Date of Issue: May 20, 2010 A1 - 5 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100319201 Date of Issue: May 20, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100319201 Date of Issue: May 20, 2010 A1 - 7 Rev. 00

٥ᢟҾ཰ިҽԖज़Ϧљ ARISTOTLE ENTERPRISES !!܍ᇡ!!ҙ!!ፎ!!ਜ! ! ࠼ЊӜᆀ;! Dvtupnfs! ௘ຬ೯ૻࣽިמҽԖज़Ϧљ ቷ୘਑ဦ;! Qbsu!Op/! RFA-02-C2H1-06-150-қ ࠔӜ;! Eftdsjqujpo! 2.4GHz-คႉᇙํา-1.13,L=150mm! კဦ;! Esbxjoh!Op/! RFA-02-C2H1-06-150-қ.DWG! ࠼Њ਑ဦ;! Esbxjoh!Op/! ! рቷᛝക: ࢗᔠ TEST BY ਡჹ CHECK BY ᇡ܍ APPROVE BY ੦؝ڬޱ໳ࣿᄃྨЎ ܍ᇡᛝക: ࢗᔠ TEST BY ਡჹ CHECK BY ᇡ܍ APPROVE BY ֟Ӧ:ѠчᑜύکѱಶӀၡ63ဦ8ኴ ႝ၉:02-2225-8209 ໺੿:02-2225-7523 ߄ൂጓဦǺQP-0603-F02 ҁǺހA Specifications Frequency range 2400 MHz – 2500 MHz Antenna gain 2 dBi VSWR 2.0 : 1 Max. Polarization Linear, vertical Impedance 50 Ө Temperature - 10к to +55к Connector I-PEX Cable 1.13 DESCRIPTION : Swivel Access Point Antenna MODEL NO : RFA-02-C2H1-06-150-ػ 1.1 ELECTRICAL Frequency Range: 2400~2500 MHZ Gain: 2.0dBi VSWR: Љʳ2 Polarization: Linear, Vertical ImpedanceΚʳ50Өʳ Connector: IPEX MHF Cable:ӽ1.13mm 1.2 MECHANICAL ConditionΚNon operating during test. Material : PCABS(UL94V-0) Endurance Number of 90° rotation of the connectorΚ1000 cycles (min.) MandatoryΚGuaranty of functionalities after test. Bending: Number of 90̓at the hinge parts and bending on one direction with1 цʳforceΚ1000 cycles MandatoryΚNo mechanical damage tolerated. Guaranty of functionalities after test. Antenna resistance Tests are applicable to all parts and both sides. Traction: Tractions force applied 3 times on plugs during 15 secondΚ5цʳ MandatoryΚNo mechanical damage tolerated. Guaranty of functionalities after test. 1.3 ENVIROMENTAL Storage ConditionΚʳNon operating during test. Cold: -40кʳduring 72h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +80кʳduring 96h (IEC 68-2-2 standard Bb/Bd test) Humidity: +40кʳat 95%R.H. during 4 days (IEC 68-2-56 standard Cb test) MandatoryΚNo mechanical or visible damage tolerated. Guaranty of functionalities after test. Operation ConditionΚʳOperating during test. Cold: -10кʳduring 48h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +55кʳduring 48h (IEC 68-2-2 standard Bb/Bd test) Composite: -10кto +55кʳ95%R.H 4 cycles(IEC 68-2-30 standard Nb test) MandatoryΚNo mechanical or visible damage tolerated. Guaranty of functionalities during and after test. ׷፦᛾ܴ-Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) ׷፦᛾ܴ-Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) ׷፦᛾ܴ-Coaxial Cable (for SGS-Coaxial Cable KHCX-32AWG-SB-TA CE/2005/34307) RoHS REPORT INDEX-RFA-02-C2H1-06-150- ػ NAME ࠎ ᚨ ೸ RoHS report 1 ANTENNA HOUSING/HINGE-ABS PA757 CHI MEI CORPORATION KA/2007/10032 2 IPEX IPEX JP. CO., LTD. CS/2006/90209 3 COAXIAL CABLE KHCX- ͫ˄ˁ˄ˆ 3-1 GRAY PLASTIC JACKET SWCC SHOWA DEVICE TECHNOLOGY CO., LTD. CE/2006/B3245 3-2 SILVER COLORED METAL FOIL SWCC SHOWA DEVICE TECHNOLOGY CO., LTD. CE/2006/B3239C 3-3 TRANSPARENT PLASTIC SWCC SHOWA DEVICE TECHNOLOGY CO., LTD. CE/2006/B3239A 3-4 SILVER COLORED METAL WIRE SWCC SHOWA DEVICE TECHNOLOGY CO., LTD. CE/2006/B3239B

Compliance Certification Services Inc. Report No.: T1…
