RXZ-WPE81RWireless PCIE Card

IEEE 802.11n Wireless PCI Express Adapter User’s Manual December 2010 1 FCC Warning This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in acco rdance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipme nt off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to whi ch ‐ Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must acce pt any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co‐located or operated in conjunction wi th any other antenna or transmitter. 2 IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co‐location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re ‐evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Revision History Revision History V1 1st Release All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. 3 CONTENTS 1. INTRODUCTION.............................................................................................. 4 1.1 LED INDICATOR............................................................................................. 4 1.2 PACKAGE CONTENTS....................................................................................... 4 1.3 BEFORE YOU START......................................................................................... 4 1.4 HARDWARE INSTALLATION................................................................................ 4 2. DRIVER INSTALLATION................................................................................... 5 3. CONNECT TO A NETWORK ............................................................................. 8 4 1. Introduction This is a wireless PCI Express adapter that delivers unrivaled wireless performance for your Desktop PC. It complies with IEEE 802.11n draft standard and backward compatible with IEEE 802.11b/g. With this adapter, you can easily upgrade your Desktop PC wireless connectivity. Get a better Internet experience with a faster wireless connection so you can enjoy smooth digital phone calls, gaming, downloading, and video streaming. This product is made in ISO9001 approved factory and complies with FCC part 15 regulations and CE approval. 1.1 LED Indicator LED Light Status Description ACT Blinking Data is being transmitted or received. 1.2 Package Contents ‧ One Wireless PCI Express Adapter ‧ Two External Antennas ‧ One CD‐ROM (Drivers, User’s Manual) If any of the above items is missing, contact your dealer immediately. 1.3 Before you start You must have the requirements as follow, ‧ A computer with an available PCI Express slot ‧ At least a 300MHz processor and 32MB memory ‧ Windows XP/Vista/Win7 support ‧ A CD‐ROM drive ‧ Wireless PCI Express Adapter properly installed 1.4 Hardware Installation STEP1: Turn off your computer and remove its cover STEP2: Insert the wireless PCI Express card to an available PCI Express slot firmly. STEP3: Secure this card to the rear of the computer chassis and put back the cover. STEP4: Secure the antenna to antenna connector of the card. STEP5: Turn on the computer. 5 2. Driver Installation STEP1: Found New Hardware Wizard is displayed after the adapter is installed and the computer is restarted. Please click Close (or Cancel) to continue. STEP2: Insert Installation CD into CD‐ROM drive then windows below will appear. Click Install Driver to begin device driver installation. 6 STEP3: The Install Wizard screen will display as below and click Next to begin driver installation. STEP4: Please wait for a while during the adapter is configuring your new software installation. 7 STEP5: After the setup wizard has successfully installed wireless LAN, choose Yes, I want to restart my computer now and click Finish to exit the wizard. To check if the adapter is properly installed, you can right‐click My Computer Æ choose Properties Æ click Device Manager. 8 3. Connect to a network STEP1: On the system tray, right‐click Network icon and choose Open Network and Sharing Center. STEP2: Click Connect to a network to view the currently actives networks STEP3: Select an available network and click Connect to begin the connection. 9 STEP4: Please wait for while during the network is connecting. STEP5: Enter the network security key if necessary. ST…

Text truncated - open the document above for the full version.

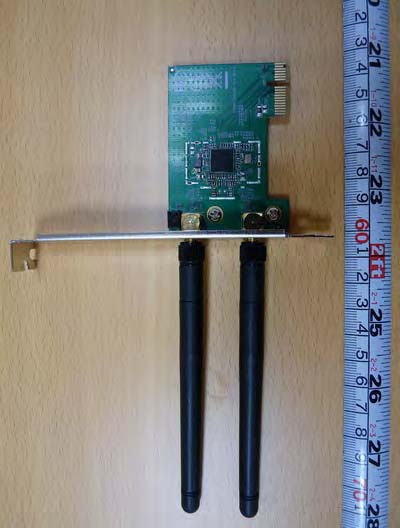

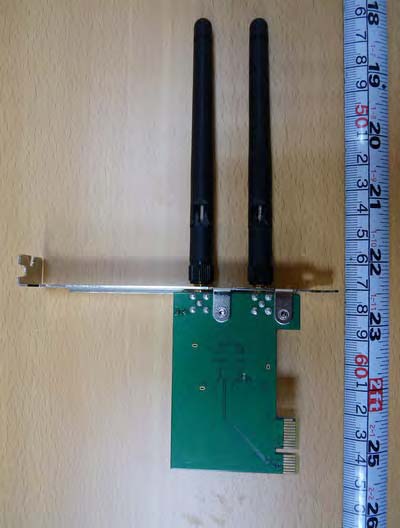

Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 2 of 8 EUT Photos Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 3 of 8 Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 4 of 8

Label & Location

Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 2 of 8 EUT Photos Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 3 of 8 Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 4 of 8

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 26.34 (dBm) Maximum peak output power at antenna input terminal: 430.52 (mW) Antenna gain(maximal): 1.58 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.1353 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

of Applicant: Pro-Nets Technology Corporation Address: 15F., No.669, Bannan Rd., Zhonghe Dist., New Taipei City 23557, Taiwan (R.O.C.) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21103-11373-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Wireless PCIE Card Model No.: WPE81R FCC ID: RXZ-WPE81R Registration number: W6M21103-11373-C-1 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 53 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location ....................................................................................................................... 3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST ..................................................................................................................6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE............................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 20 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 20 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 21 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 22 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 32 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 37 3.8 PEAK POWER SPECTRAL DENSITY...................................................................................... 44 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 51 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 52 APPENDIX Registration number: W6M21103-11373-C-1 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 53 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: April 15, 2010 Kevin Wang Date WTS-Lab. Name Signature Technical responsibility for area of testing: April 15, 2010 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21103-11373-C-1 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 53 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) Company Worldwide Testing Services(Taiwan) Co.,…

Text truncated - open the document above for the full version.

Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 5 of 8 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 6 of 8 Above 1GHz Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 7 of 8 RF Registration number: W6M21103-11373 FCC ID: RXZ-WPE81R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 8 of 8 Set Up Photo of Conducted Emission
