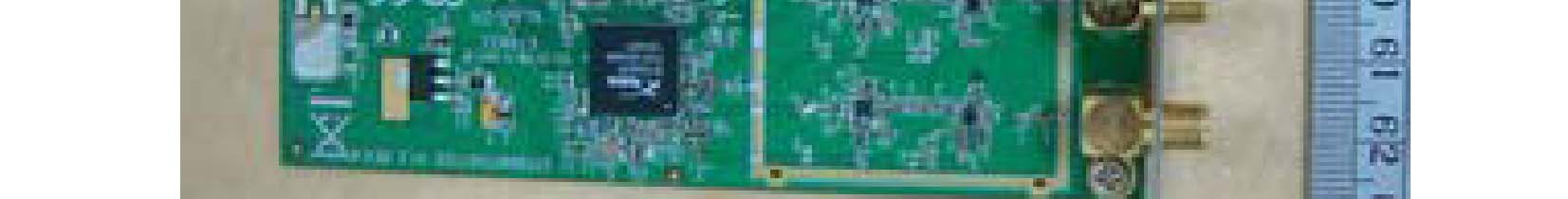

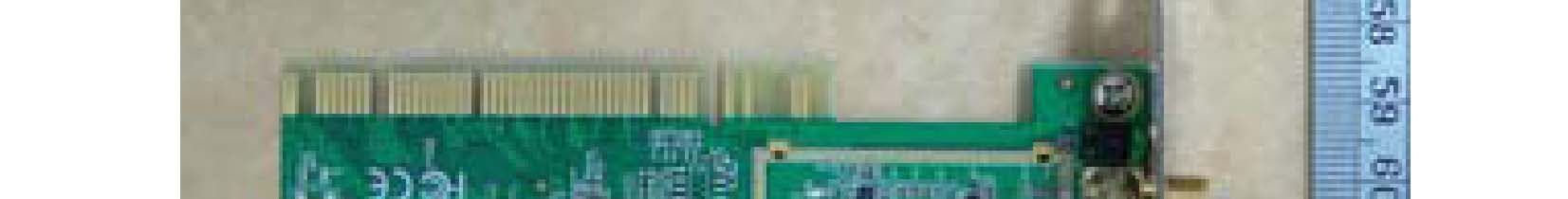

RXZ-WP82RLWireless PCI Card

IEEE 802.11n Wireless LAN PCI Adapter User’s Manual October 2010 1 FCC Warning This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which ‐ Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: All Telecom and safety Tests only include this content hardware device only. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co‐located or operated in conjunction with any other antenna or transmitter. Modular Approval Statement: This device is intended to be used only for OEM integrator under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co‐located with any other transmitter or antenna. 2 IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co‐location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re ‐evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Revision History Revision History V1.0 1st release All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. 3 Contents 1. Introduction........................................................................... 4 1.1 Features ................................................................................................... 4 1.2 Familiar with your new wireless network card ......................................... 4 1.3 Package Contents..................................................................................... 5 1.4 Before you start ....................................................................................... 5 1.5 Hardware Installation............................................................................... 5 2. Installation Procedure............................................................... 6 3. Wireless Network Configuration Utility........................................ 12 3.1 RaUI Wireless Utility & Windows Zero Configuration (WZC)................... 12 3.2 Start RaUI Utility .................................................................................... 17 3.3 Profile .................................................................................................... 24 3.3.1 Add/Edit Profile.......................................................................... 25 3.3.2 Example to Add Profile in Profile ................................................ 26 3.4 Network................................................................................................. 28 3.5 Advanced ............................................................................................... 30 3.6 Statistics................................................................................................. 32 3.7 WMM..................................................................................................... 33 3.8 WPS ....................................................................................................... 39 3.9 SSO......................................................................................................... 42 3.10 CCX....................................................................................................... 43 3.11 About ................................................................................................... 44 3.12 Link Status............................................................................................ 44 4. Soft‐AP Function.................................................................... 45 4.1 Switch to AP mode and Basic Configuration ........................................... 45 4.2 Security Settings..................................................................................... 48 4.3 Access Control........................................................................................ 49 4.4 MAC Table.............................................................................................. 50 4.5 Event Log................................................................................................ 50 4.6 Statistics......................................…

Text truncated - open the document above for the full version.

WP82RL FCC ID:RXZ-WP82RL 38 mm 8 mm R=1 mm <> WP82RL FCC ID:RXZ-WP82RL Label location

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.91 (dBm) Maximum peak output power at antenna input terminal: 195.4339 (mW) Antenna gain(maximal): 1.6 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0622 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.
