RXZ-WR861RWireless Router

11n Wireless Broadband Router User’s Manual APRIL 2011 1 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which - Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. IEEE802.11b or 802.11g operation of this product in the USA is firmware-limited to channels 1 through 11. Notice Changes or modifications to the equipment, which are not approved by the party responsible for compliance could affect the user's authority to operate the equipment. Company has an on-going policy of upgrading its products and it may be possible that information in this 2 document is not up-to-date. Please check with your local distributors for the latest information. Copyright 2011 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Revision History Revision History V1 1 st Release 3 Table of Contents 1. Introduction ........................................................................................................... 5 1.1 Features ...................................................................................................... 5 1.2 Specifications............................................................................................. 5 1.3 Package Contents..................................................................................... 7 1.4 System Requirements ................................................................................ 7 1.5 LEDs Indication & Connectors of Wireless Router ................................... 8 1.6 Installation Instruction ............................................................................... 8 2. PC Configuration................................................................................................... 8 2.1 TCP/IP Networking Setup ........................................................................ 10 3. Configure Wireless Router via Web Based Utility ............................................. 22 3.1 Access Web Based Configuration Utility ............................................... 22 3.2 Setup Wizard ............................................................................................. 23 3.2.1 Operation Mode ............................................................................. 24 3.2.2 Time Zone Setting ............................................................................ 25 3.2.3 LAN Interface Setup ....................................................................... 25 3.2.4 WAN Interface Setup ..................................................................... 26 3.2.5 Wireless Basic Settings .................................................................... 26 3.2.6 Wireless Security Setup ................................................................... 27 3.3 Operation Mode....................................................................................... 28 3.4 Wireless...................................................................................................... 28 3.4.1 Basic Settings ................................................................................... 28 3.4.2 Advanced Settings ......................................................................... 30 3.4.3 Security ............................................................................................. 32 3.4.4 Access Control ................................................................................ 33 3.4.5 WDS Setting ...................................................................................... 34 3.4.6 Site Survey ........................................................................................ 36 3.4.7 WPS .................................................................................................... 36 3.4.8 Schedule .......................................................................................... 37 3.5 TCP/IP Settings .......................................................................................... 38 3.5.1 LAN Interface................................................................................... 38 3.5.…

Text truncated - open the document above for the full version.

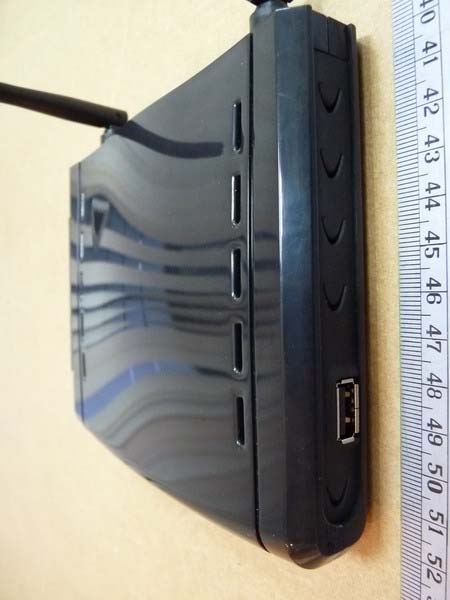

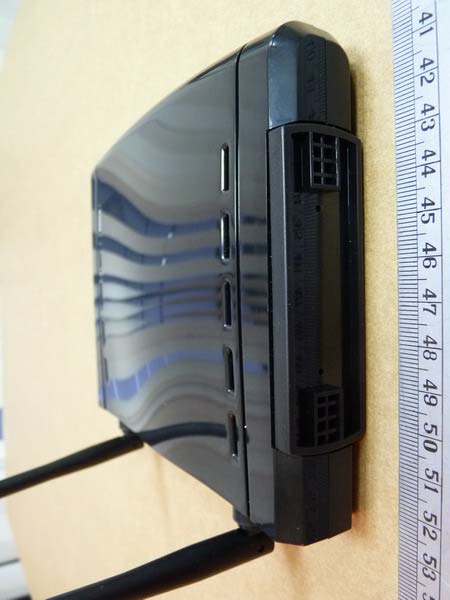

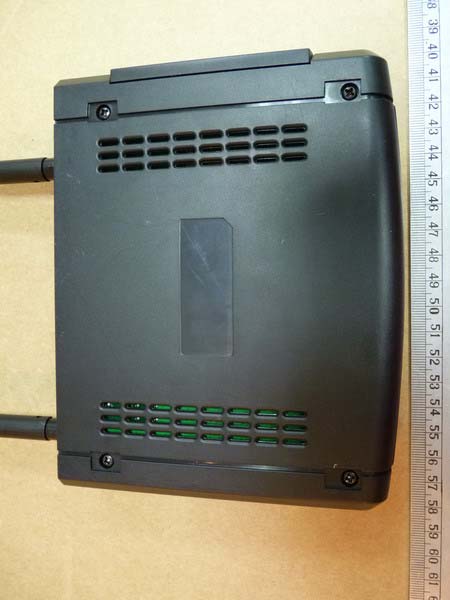

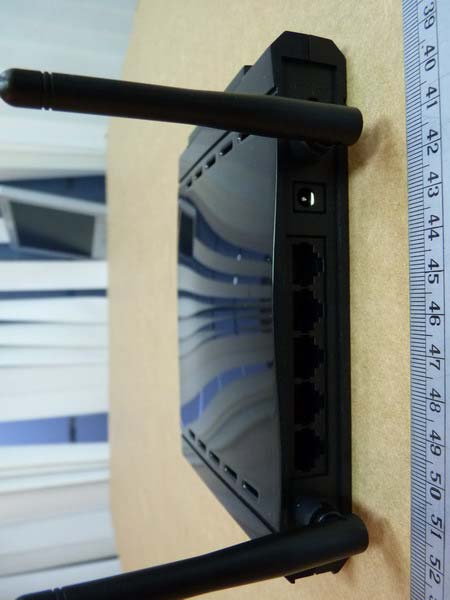

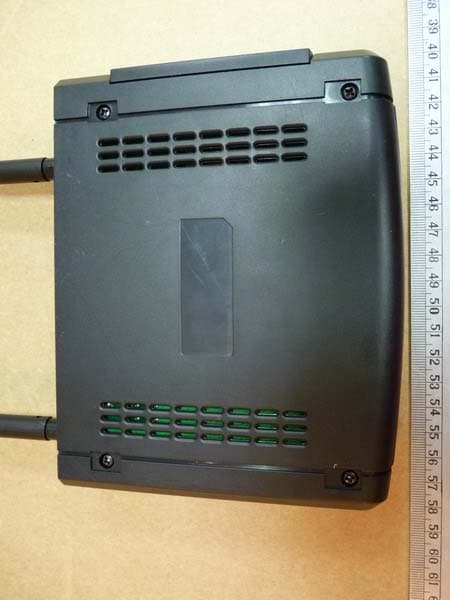

Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 2 of 17 External Photos Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 3 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 4 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 5 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 6 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 7 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 8 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 9 of 17

Corner Radius:R1.5mm 49*19 mm C4m m WR861R FCC ID: RXZ-WR861R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Rating: 5V ,2A 2032200000768 中性WR861R-安規貼紙 49*19mm，C4mm，3R=1.5mm，50#消銀特多龍，霧面

Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 10 of 17 Internal Photos Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 11 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 12 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 13 of 17

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 13.30 (dBm) Maximum peak output power at antenna input terminal: 21.37 (mW) Antenna gain(maximal): 2.0 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2437 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0067 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the user’s body.

of Applicant: Pro-Nets Technology Corporation Address: 15F., No.669, Bannan Rd., Zhonghe Dist., New Taipei City 23557, Taiwan (R.O.C.) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21104-11399-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Wireless Router Model No.: WR861R FCC ID: RXZ-WR861R Registration number: W6M21104-11399-C-1 FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 53 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST ..................................................................................................................6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE............................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 20 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 20 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 21 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 22 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 32 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 37 3.8 PEAK POWER SPECTRAL DENSITY...................................................................................... 43 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 50 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 51 APPENDIX Registration number: W6M21104-11399-C-1 FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 53 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: May 23, 2011 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: May 23, 2011 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21104-11399-C-1 FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 53 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F…

Text truncated - open the document above for the full version.

Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 14 of 17 Set Up Photo of Radiated Emission EMI Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 15 of 17 Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 16 of 17 RF Registration number: W6M21104-11399-FCC FCC ID: RXZ-WR861R Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 17 of 17 Set Up Photo of Conducted Emission
