RXZ-WA45R1Wireless ADSL Router

    IEEE802.11n WirelessLAN4Ͳport ADSL2+Router   User’sManual                January2011 1 FCCWarning ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,uses,andcan radiateradiofrequencyenergy and,ifnotinstalledandusedinaccordancewiththeinstructions,may causeharmfulinterferencetoradiocommunication.However,thereisnoguaranteethatinterference willnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturning theequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthat towhich Consultthedealeroranexperiencedradio/TVtechnicianforhelp.thereceiverisconnected. FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser’sauthoritytooperatethisequipment. ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation.  IMPORTANTNOTE: FCCRadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled  environment.Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceofabout eightinches(20cm)betweentheradiatorandyourbody. ThistransmittermustnotbecoͲlocatedoroperatedinconjunctionwithanyotherantennaor transmitter.IEEE802.11bor802.11goperationofthisproductintheUSA is firmwareͲlimitedtochannels1through11.   Notice Changesormodificationstotheequipment,whicharenotapprovedbythepartyresponsibleforcompliance couldaffecttheuser'sauthoritytooperatetheequipment.CompanyhasanonͲgoingpolicyofupgradingits productsanditmaybepossiblethatinformationinthisdocumentisnotupͲtoͲdate.Please checkwithyour localdistributorsforthelatestinformation.  2 Copyright 2011AllRightsReserved. Nopartofthisdocumentcanbecopiedorreproducedinanyformwithoutwrittenconsentfromthe company. Trademarks: Alltradenamesandtrademarksarethepropertiesoftheirrespectivecompanies. RevisionHistory RevisionHistory V11 st Release                           3 TableofContents 1.Introduction...................................................................................................................5 1.1Features ............................................................................................................. 5 1.2PackageContents ............................................................................................... 8 1.3SystemRequirements......................................................................................... 8 1.4LEDsIndication&ConnectorsofWirelessRouter ............................................... 8 1.5ConnectRelatedDevice...................................................................................... 9 2.PCConfiguration.......................................................................................................... 10 2.1TCP/IPNetworkingSetup ................................................................................. 10 3.ConfigureWirelessRouterviaWebBasedUtility ......................................................... 21 3.1Login ................................................................................................................ 21 3.2Status............................................................................................................... 23 3.3LAN .................................................................................................................. 23 3.4Wireless ........................................................................................................... 24 3.4.1BasicSettings ....................................................................................... 24 3.4.2Advanced Settings................................................................................ 26 3.4.3Security................................................................................................ 27 3.4.4AccessControl...................................................................................... 28 3.4.5WPS ..................................................................................................... 28 3.4.6MBSSID................................................................................................ 29 3.5WAN................................................................................................................. 30 3.5.1ChannelConfiguration.......................................................................... 30 3.5.2ATMSettings........................................................................................ 31 3.5.3ADSLSettings ....................................................................................... 33 3.6Service.............................................................................................................. 34 3.6.1DHCP.................................................................................................... 34 3.6.2DNS.......................…

Text truncated - open the document above for the full version.

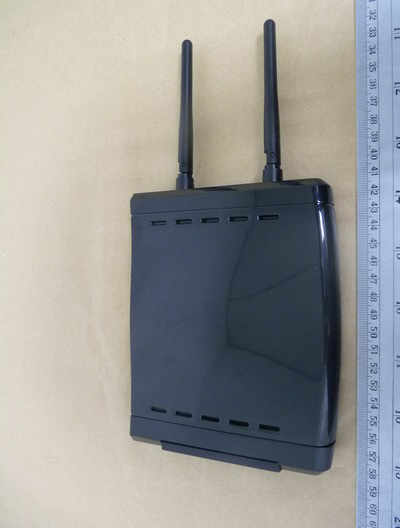

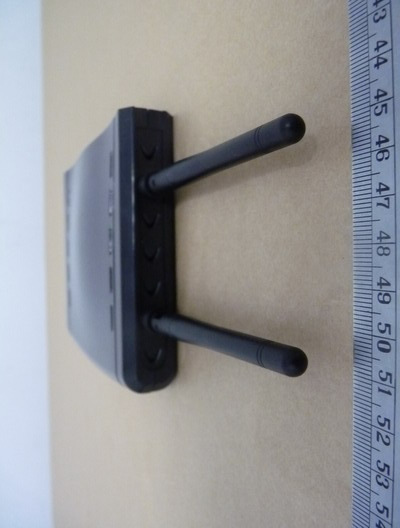

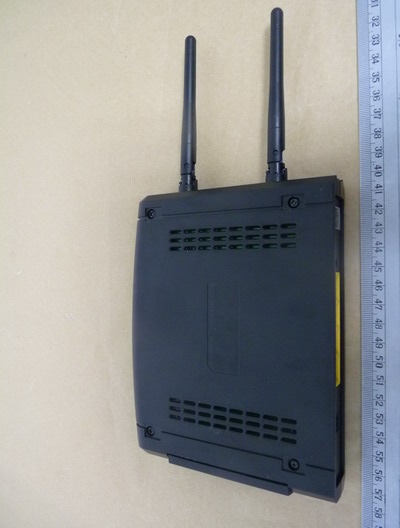

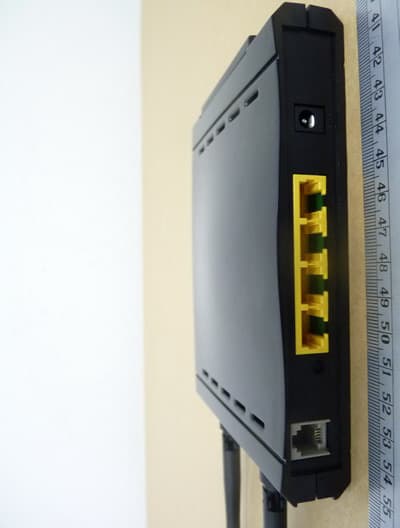

Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 16 External Photos Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 16 Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 16 Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 16 Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 16 Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 16 Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 16 Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 16

Label & Location

Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 16 Internal Photos Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 16 Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 16 Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 16

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.91 (dBm) Maximum peak output power at antenna input terminal: 45.81 (mW) Antenna gain(maximal): 2.08 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0146 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

of Applicant: Pro-Nets Technology Corporation Address: 7F,No.95,Lide St.,Chung Ho City 235 Taipei Taiwan R.O.C. Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21101-11170-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Wireless ADSL Router Model No.: WA45R1 FCC ID: RXZ-WA45R1 Registration number: W6M21101-11170-C-1 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 34 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location ....................................................................................................................... 3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 A PPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 TEST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST .................................................................................................................. 6 2.1 S UMMARY OF TEST RESULTS................................................................................................. 6 2.2 TEST ENVIRONMENT............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 G ENERAL TEST PROCEDURE............................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 SPURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 29 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 30 3.8 P EAK POWER SPECTRAL DENSITY...................................................................................... 31 3.9 RADIATED EMISSION FROM DIGITAL PART......................................................................... 32 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 33 APPENDIX Registration number: W6M21101-11170-C-1 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 34 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: January 25, 2011 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: January 25, 2011 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21101-11170-C-1 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 34 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F,…

Text truncated - open the document above for the full version.

Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 16 Set Up Photo of Radiated Emission EMI Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 15 of 16 RF Registration number: W6M21101-11170 FCC ID: RXZ-WA45R1 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 16 Set Up Photo of Conducted Emission
