RXZ-WAR25TCWireless ADSL2/2+ Modem Router

802.11g Wireless Four Port ADSL2+ Router User’s Manual March 2006 1 Copyright Copyright  2005 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company. Disclaimer This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. Caution This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. 2 Contents 1 Introduction.................................................................................................... 5 1.1 Introduction to this ADSL2+ router.............................................................................5 1.2 Product Features.......................................................................................................5 2 Hardware Installation............................................................................ 8 2.1 System Requirements................................................................................................8 2.2 Package Contents......................................................................................................8 2.3 Front Panel Indicators and Description......................................................................8 2.4 Back Panel Indicators and Description......................................................................9 2.5 Connect Related Devices..........................................................................................9 3 Connecting ADSL2+ Router via Ethernet.......................................... 10 3.1 Setup ADSL2+ Router via Ethernet Cable...............................................................10 3.2 Configure TCP/IP.....................................................................................................10 4 Configure ADSL2+ Router via HTML Interface ................................. 20 4.1 Login........................................................................................................................20 4.2 Navigating the Web Configurator.............................................................................21 5 Quick Start Wizard .............................................................................. 22 5.1 Setting a New Password..........................................................................................24 5.2 Choose your Time Zone...........................................................................................24 5.3 Set your Internet Connection...................................................................................25 5.3.1 Configuring Dynamic IP Address ........................................................................25 5.3.2 Configuring Static IP Address..............................................................................26 5.3.3 Configuring PPPoE .............................................................................................27 5.3.4 Configuring PPPoA .............................................................................................28 5.3.5 Configuring Bridge Mode ....................................................................................28 5.3.6 Multiplexing .........................................................................................................29 5.3.7 VPI and VCI ........................................................................................................30 5.4 Finishing the Wizard................................................................................................30 6 Interface Setup .................................................................................... 31 6.1 Internet.....................................................................................................................31 6.1.1 ATM VC and QoS ................................................................................................32 6.1.2 Encapsulation......................................................................................................33 6.2 LAN..........................................................................................................................37 3 6.2.1 Router Local IP ...................................................................................................38 6.2.2 Explaining RIP Setup ..........................................................................................38 6.2.3 DHCP Server.......................................................................................................39 6.2.4 DHCP Relay ....................................................................…

Text truncated - open the document above for the full version.

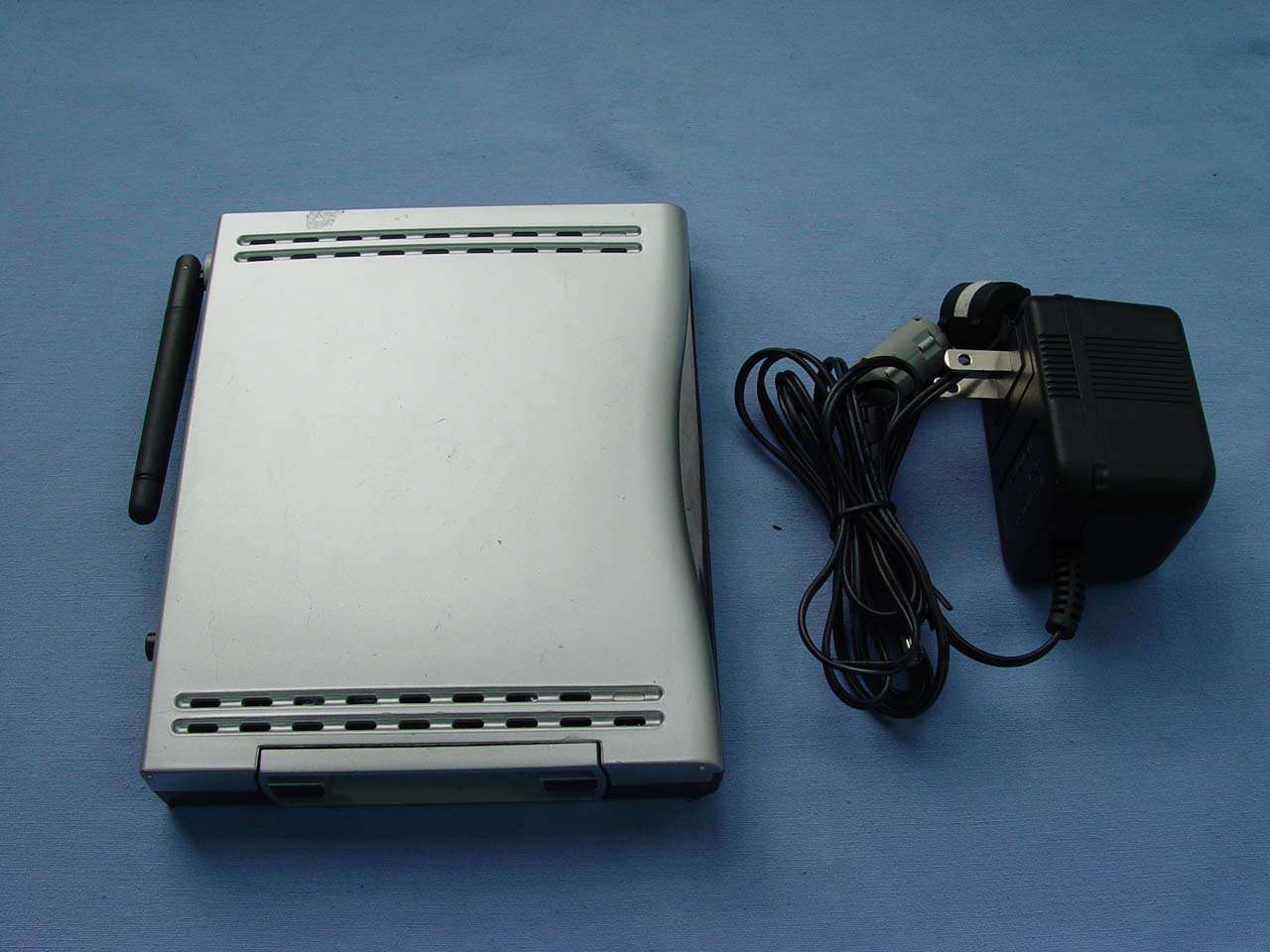

Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 1 Total Page: 9 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 5 Rev.00

Corner Radius:R1.5mm 49*19 mm C4mm 2032300000113 中性15/16模WR514R安規貼紙 49*19mm，三面導角R1.5，單邊斜角C4，50#消銀龍，霧面 WAR25TC IEEE 802.11g FCC ID: RXZ-WAR25TC This device is intended only form OEM integrators under the following conditions:(1)The antenna must be installed such that 20cm is maintained between the antenna and users, and (2)The transmitter module may not be co-located with any other transmitter or antenna.

Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 60117205 Date of Issue: June 1, 2006 Page 9 Rev.00

RFA-02-C2H1-06-65 Specifications Frequency range 2400 MHz – 2500 MHz Antenna gain 0 dBi VSWR 2.0 : 1 Max. Polarization Linear, vertical Impedance 50 Temperature - 10 to +55 Connector I-PEX Cable 1.13

Compliance Certification Services Inc. Report No.: 60117205-RP1 FCC ID: RXZ-WAR25TC Date of Issue: May 24, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 59 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless ADSL2/2+ Modem Router Model: WAR25TC, SWARTR-5400, WAR25TC-A, WAR25TC-B Tr a d e Na me : PRO-NETS, SpeedCom+, NetoDragon, UPSPEED, MENTOR, Digocom, Asmax, Nilox, MECER, ViewTech, SAFECOM, MOTOFAX, MICROTOP Issued to PRO-NETS TECHNOLOGY CORPORATION 7F,No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60117205-RP1 FCC ID: RXZ-WAR25TC Date of Issue: May 24, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................33 7.6 SPURIOUS EMISSIONS ................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................52 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................55 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................57 Compliance Certification Services Inc. Report No.: 60117205-RP1 FCC ID: RXZ-WAR25TC Date of Issue: May 24, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless ADSL2/2+ Modem Router Trade Name PRO-NETS, SpeedCom+, NetoDragon, UPSPEED, MENTOR, Digocom, Asmax, Nilox, MECER, ViewTech, SAFECOM, MOTOFAX, MICROTOP Model Number WAR25TC, SWARTR-5400, WAR25TC-A, WAR25TC-B Model Discrepancy All the specification and layout are identical except they come with different model numbers and trade names for marketing purpose. Power Supply OEM / AA-091A I/P: 120VAC, 60Hz, 12W O/P: 9VAC, 1A Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 21.92dBm IEEE 802.11g: 18.69 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps Number of Channels 11 Channels Antenna Specification Dipole Antenna / Gain: 0 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manu…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60117205-RP1 FCC ID: RXZ-WAR25TC Date of Issue: May 24, 2006 Page 57 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60117205-RP1 FCC ID: RXZ-WAR25TC Date of Issue: May 24, 2006 Page 58 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60117205-RP1 FCC ID: RXZ-WAR25TC Date of Issue: May 24, 2006 Page 59 Rev. 00 Powerline Conducted Emissions Setup Photos
