RXZ-WM61RLWireless Mini PCI

Wireless 54Mpbs Mini-MINI-PCI Adapter User’s Manual - 1 - 2 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which - Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Copyright 1999 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from 3 the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Revision History Revision History V1.0 First release Caution: This user guide information is only provided to OEM or module installer. Do not supply to the end user. 4 5 Contents 1. Introduction ........................................................................................... 4 1.1 Features ..................................................................................................................4 1.2 Package Contents .................................................................................................. 4 1.3 LED Indicator .......................................................................................................... 4 2. Install Driver & Utility .......................................................................... 5 2.1 For Windows XP/2000.............................................................................................. 5 2.2 For Windows ME .................................................................................................... 11 2.3 For Windows 98SE ................................................................................................. 15 3. Wireless Network Configuration Utility............................................... 22 3.1 General ..................................................................................................................... 22 3.2 Profile ...................................................................................................................... 22 3.3 Available Network ................................................................................................... 18 3.4 Advanced ................................................................................................................ 23 3.5 Status........................................................................................................................ 25 3.6 Statistics ................................................................................................................... 25 4. Glossary ................................................................................................ 26 6 1. Instruction Congratulations on purchasing this Wireless 54Mbps MINI-PCI Adapter. This Wireless MINI-PCI Adapter is designed to comply with IEEE 802.11g Wireless LAN standard and it is suitable for any laptop computers and provides maximum data transfer rate up to 54 Mbps. It provides up to a 128-bit level of WEP security to your wireless data transfers. The wireless MINI-PCI adapter comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP/2000/Me/98SE in either Ad-Hoc mode (without an access point or router) or Infrastructure mode (with an access point or router), the configuration of your working environment, or the capabilities or limitations of your computer systems. 1.1 Features ‧ Up to 54Mbps data transfer rates ‧ Supports 64/128-bit WEP data encryption function for high level of security ‧ Supports WPA and WPA2 advanced WLAN security ‧ Supports Infrastructure mode ‧ Supports Ad-Hoc mode (peer-to-peer communication among any wireless users, no Access Point required) ‧ Supports automatic fallback increase data security and reliability ‧ Supports Power Save mode ‧ Compliant with MINI-PCI v2.2 1.2 Package Contents ‧ One Wireless MINI-PCI Adapter ‧ One CD disk includes driver, utility and user’s manual 2. Installation for Windows platform The following section will assist you to in installing wireless LAN Adapter successfully. You will first install soft…

Text truncated - open the document above for the full version.

Pro-Nets Technology Corporation 7F, No.95, Lide St., Chung Ho City, 235 Taipei, Taiwan R.O.C. Federal Communications Commission Dear Sir, We, the undersigned, hereby authorize ETS Dr.Genz Taiwan PS Co.,Ltd. to act on our behalf in all matters relating to application for Product Name : ” WIRELESS MINI PCI , Model Number : WM61RL , FCC ID : RXZ-WM61RL ” authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ETS Dr. Genz Taiwan PS Co., Ltd. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse act of 1988.21 U.S.C.862. For a definition of a “ party ” for these purposes see 47 C.F.R.1.200(b). By: By: ALEX CHEN ( Signature ) ( Printed ) Title: Manager Applicant: Pro-Nets Technology Corporation Address: 7F, No.95, Lide St., Chung Ho City, 235 Taipei, Taiwan R.O.C. Tel: +886-2-8221-8385 # 713 Fax: +886-2-3234-5818 Date: Feb.16.2006

Pro-Nets Technology Corporation 7F, No.95, Lide St., Chung Ho City, 235 Taipei, Taiwan R.O.C. Federal Communications Commission FCC ID : RXZ-WM61RL Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagrams, Schematics and Part List, Operational Description By: By: ALEX CHEN ( Signature ) ( Printed ) Title: Manager Applicant: Pro-Nets Technology Corporation Address: 7F, No.95, Lide St., Chung Ho City, 235 Taipei, Taiwan R.O.C. Tel: +886-2-8221-8385 # 713 Fax: +886-2-3234-5818 Date: Feb.16.2006

FeCID: RXZ-WM61RL - - ---- -- -~ :s...=.~PRO-NE,~ Pro-NetsTechnologyCorporation Address: 7F.No.95,LideSt,ChungHoCity235,Taipei,Taiwan, R.O.C. Contactper.Mr.SamYu TellFax:(02)8221-8385/(02)3234-5818 E-mail:[email protected] FederalCommW1icationsCommnission EquipmentAuthorizationDivision ApplicationProcessingBranch 7435OaklandMillsRoad Columbia)Maryland21046 Subiect:802.11bIgWIRELESSMINIPCICARD Gentleman: WehavethefollowingattestationtotheeightrequirementsdescribedbyFCCpublicnotice DAOO-1407"Part15UnlicencedModularTransmitterApproval". 1.RFshielding. Themodel,WM61RL(WlRELESSMINIPCICARD)hasanownRFshielding. Theshieldingis madebymetalandcompletelyaddedtoRFpartduringourmanufacturing. It is noteasilyremovedmodule. Pleasereferto theassemblydrawingandanexternalphotograph. 2.Excessivedataratesorovermodulation. Themodulecircuitbuffersallmodulationandcontrolof thetransmitter. Thecontrolof thetransmitteris viadatacommandsandsoftwareinstructionscontainedwithin themodule. Thetransmitteris testedwiththemoduleoperatedat themaximumpower.Datacommandsare reducedthepowerof transmitterbutdonotinfluencethemodulationcontents. 3.Powersupplyregulation. Themodulehasitsownpowersupplyregulatortoinsurecompliancewithpart15requirements regardlessof thequalityorlevelofexternalDCsupplyingthemodulefromtheendproduct. Pleaserefertotheattachedschematicsanddiagrams. Theregulatoroperateswithinthe+3.3vdc+-O.2Vrange. --- --- -- 4.Antennaanduniquecouplerrequirementstoantennaconnector. Theantennais anintegraltypeandthereis noantennaconnector. Pleasefind11DeclarationconcerningAntennaSpecification11fordetail. (1)Nomodificationof antennawillbeallowed. (2)TheendproductmustbecertifiedbyFCC,ifcustomerwillusetheotherantenna. 5.Stand-aloneconfiguration. Themodulartransmitterhasbeenperformedthetestingasa standaloneandthenconfirmed thecompliance.Pleasereferto theTestreport. (No.W6M20602-6575-C-l& W6M20602-6575-C-2) 6.LabelwithownFCCIDnumberandexteriorlabel. Themoduleis labeledwithownFCCIDnumber.Pleaserefertothedrawingoflabelandan assemblydrawingforitslocationonthemodule. Thelabelmadebypolyethyleneterephthalate(PET)sheetis affixedtothemodulebya high-strengthadhesive. SincetheFCCID numberwillnotbevisiblewhenthemoduleis installedinsidetheendproductt Pleasereferto the"UserGuideInformation11. 7.Compliantwithanyspecificruleoroperatingrequirements. Themoduleasmanufacturedis completelycontrolledbytheonboardprocessor.Thereareno influencesto theoperationof thetransmittertheendcaninducethatwilloperatethemodule outsideof scopeof theregulations.Th~necessaryexplanationforusertobecompliedwiththis requirementis containedunthemanuaL 8.RFexposurerequirements. Thismodulemaybeinstalledintoanyendproductmobileapplications. Becausethemoduleonlyradiatesverylowpowerlevels.it complieswithRFexposure requirements. Sincerelyyours, Signature: -T -- --

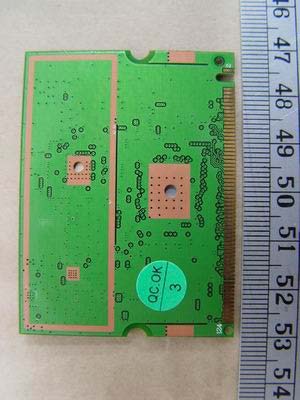

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. External Photo ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd.

Model Name : WM61RL FCC ID Label & Location 8 mm 38 mm

Pro-Nets Technology Corporation 7F, No.95, Lide St., Chung Ho City, 235 Taipei, Taiwan R.O.C. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description : WIRELESS MINI PCI Model No : WM61RL The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : WIRELESS MINI PCI will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no : W6M20602-6575-C-1 and the accompanying calculations. Company: Pro-Nets Technology Corporation Address: 7F, No.95, Lide St., Chung Ho City City: Taipei 235 Country: Taiwan R.O.C. Date : Feb.16.2006 Signature

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.18 (dBm) Maximum peak output power at antenna input terminal: 41.51 (mW) Antenna gain(maximal): 1.8 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.014866 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 12.30 (dBm) Maximum peak output power at antenna input terminal: 17.01 (mW) Antenna gain(maximal): 1.8 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0060919 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST-REPORT FCC Part 15 C for IEEE 802.11 b device FCC ID: RXZ-WM61RL Test report no.: W6M20602-6575-C-1 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20602-6575-C-1 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 43 TABLE OF CONTENTS 1GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 T ESTING LABORATORY......................................................................................................... 4 1.2.1Location ....................................................................................................................... 4 1.2.2Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 A PPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 T EST STANDARDS.................................................................................................................. 6 2TECHNICAL TEST .................................................................................................................. 7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 T EST ENVIRONMENT.............................................................................................................. 7 2.3 T ESTEQUIPMENT LIST.......................................................................................................... 8 3TEST RESULTS (ENCLOSURE).......................................................................................... 14 3.1 P EAKOUTPUT POWER (TRANSMITTER) ............................................................................... 15 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 16 3.2.1Transmitter................................................................................................................. 16 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS..................................................................... 16 3.4 T RANSMITTER RADIATEDEMISSIONS IN RESTRICTED BANDS............................................. 17 3.5 S PURIOUSEMISSIONS(TX) .................................................................................................. 18 3.6 M INIMUM 6 DBBANDWIDTH.............................................................................................. 25 3.7 P EAKPOWER SPECTRAL DENSITY....................................................................................... 26 3.8 RADIATEDEMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 27 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 33 APPENDIX ....................................................................................................................................... 35 A PPENDIXA.................................................................................................................................... 36 A PPENDIXB .................................................................................................................................... 37 A PPENDIXC .................................................................................................................................... 38 A PPENDIXD.................................................................................................................................... 39 A PPENDIXE .................................................................................................................................... 40 A PPENDIXF .................................................................................................................................... 41 A PPENDIXG.................................................................................................................................... 42 A PPENDIXH.................................................................................................................................... 43 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20602-6575-C-1 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 43 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in …

Text truncated - open the document above for the full version.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST-REPORT FCC Part 15 C for IEEE 802.11 g device FCC ID : RXZ-WM61RL Test report no.: W6M20602-6575-C-2 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 40 TABLE OF CONTENTS 1GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 T ESTING LABORATORY......................................................................................................... 4 1.2.1Location ....................................................................................................................... 4 1.2.2Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 A PPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 T EST STANDARDS.................................................................................................................. 6 2TECHNICAL TEST .................................................................................................................. 7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 T EST ENVIRONMENT.............................................................................................................. 7 2.3 T ESTEQUIPMENT LIST.......................................................................................................... 8 3TEST RESULTS (ENCLOSURE).......................................................................................... 14 3.1 P EAKOUTPUT POWER (TRANSMITTER) ............................................................................... 15 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 16 3.2.1Transmitter................................................................................................................. 16 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS..................................................................... 16 3.4 T RANSMITTER RADIATEDEMISSIONS IN RESTRICTED BANDS............................................. 17 3.5 S PURIOUSEMISSIONS(TX) .................................................................................................. 18 3.6 M INIMUM 6 DBBANDWIDTH.............................................................................................. 23 3.7 P EAKPOWER SPECTRAL DENSITY....................................................................................... 24 3.8 RADIATEDEMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 25 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 30 APPENDIX ....................................................................................................................................... 32 A PPENDIXA.................................................................................................................................... 33 A PPENDIXB .................................................................................................................................... 34 A PPENDIXC .................................................................................................................................... 35 A PPENDIXD.................................................................................................................................... 36 A PPENDIXE .................................................................................................................................... 37 A PPENDIXF .................................................................................................................................... 38 A PPENDIXG.................................................................................................................................... 39 A PPENDIXH.................................................................................................................................... 40 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 40 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in…

Text truncated - open the document above for the full version.

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. Set Up Photo ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20602-6575-C-2 FCC ID: RXZ-WM61RL ETS Dr.Genz Taiwan PS Co., Ltd.
