RXZ-WM71RL1WIRELESS MINI PCI

Wireless 54Mpbs MIMO Mini-PCI Adapter User’s Manual USA Compliance statement to FCC This module complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4.1 RF exposure compliance This module may be installed into any end product in mobile device applications. Because the module only radiates very low power levels, it complies with RF exposure requirements. Requirements to end product The following provisions for end product will be required on the FCC regulation, part 15. (1) Antenna Pro-Netswishes that our customer shall use the WM71RL1 module without any modifications including antenna. If customer use a unique antenna, the FCC certification is required for the end product. (2) Markings To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product. Contains Transmitter Module FCC ID:RXZ-WM71RL1 Any similar wording that expresses the same meaning may be used. (3) Caution to user for modification The following caution is expressed on the user manual. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device. (4) Compliance statement to FCC The following statement is expressed on the user manual. This module complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesired operation. Copyright 1999 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Revision History Revision History V1.0 First release Caution: This user guide information is only provided to OEM or module installer. Do not supply to the end user. 1 Revision History RevDateMaintainDescriptor 0.0.1.003/31/05Kathy Ko 1. Create RT61 ATE Driver 2. Start Frame OID change to RT_OID_802_11_START_TX_FRAMES 3. For High ChannelΚTX power value range is 0~36 Content 1. SYSTEM REQUIREMENT.....................................................................................................................3 2. INSTALL ATE DRIVER ..........................................................................................................................3 3. RACONFIG UTILITY .............................................................................................................................9 3.1 BUILD RACONFIG UTILITY.................................................. ....................................................................9 3.1.1 Set Include file path......................................................................................................................................9 3.1.2 Set Library file path ....................................................................................................................... ............10 3.1.3 Set DDK path ............................................................................................................................................. 11 2 1. System Requirement Windows 2000/XP Microsoft Virtual C++ 6.0 Platform SDK DDK 3790 2. Install ATE Driver Step 1 Insert the RT61 Card bus / Mini PCI / PCI. Figure 2-1 Search New device. 3 Step 2 Select Advance installation. Figure 2-2 Select Advance installation Step 3 Select manual installation. Figure 2-3 Select manual installation 4 Step 4 Select device type Network Adapter. Figure 2-4 Select device type Step 5 Select device driver from Have Disk Figure 2-5 Select device driver from “Have Disk” 5 Step 6 Select the ATE driver directory Figure 2-6 Select the ATE driver directory Step 7 Select Network Adapter. Figure 2-7 Select Network Adapter. 6 Step 8 Pop up the warning wizard for asking you if you really want to install the RT2561, RT2661 ATE Driver”. Press “Continue Install”. Figure 2-8 asking you if you really want to install the deiver Step 9 Installing Figure 2-9 Installing 7 Step 10 Complete the driver installation. Figure 2-10 Complete the driver installation. Step 11 Open Device Manager to check whether the ATE driver installs success. Figure 2-11 Open Device manager to check whether success 8 9 RALINK RT61 ATE Driver User Guide & Release Note 3. RaConfig Utility 3.1 Build RaConfig Utility 3.1.1Set Include file path Step 1ΚSelect ToolsÆOptions Step 2ΚInsert the Microsoft SDK’s Include file path Figure 3-1 Set Include file path 10 RALINK RT61 ATE Driver User Guide & Release Note 3.1.2Set Library file path Step 1ΚSelect ToolsÆOptions Step 2ΚInsert the Microsoft SDK’s Library file path Figure 3-2 Set Library file path 11 RALINK RT61 ATE Driver User Guide & Release Note 3.1.3Set DDK path Step 1ΚSelect Project Æ Settings Step 2ΚMake sure the path of Windows DDK 3790 is correct in “C/C++” tag of Project Settings.. Figure 3-3Check DDK path in C/C++ tag 12 RALINK RT61 ATE Driver User Guide & Release Note Step 3ΚMake sure the path of Windows DDK 3790 is correct in “Link” tag of Project Settings. Figure 3-4 Check DDK path in Link tag

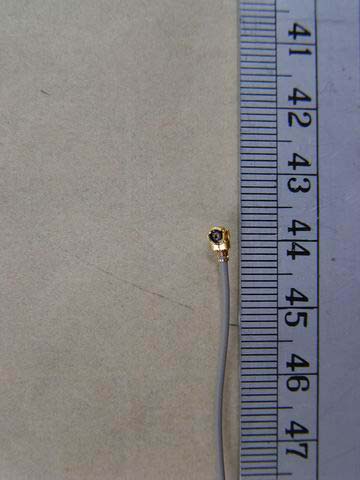

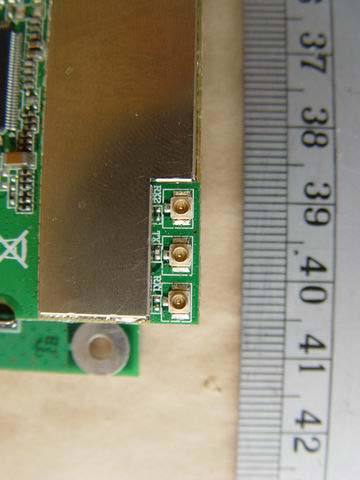

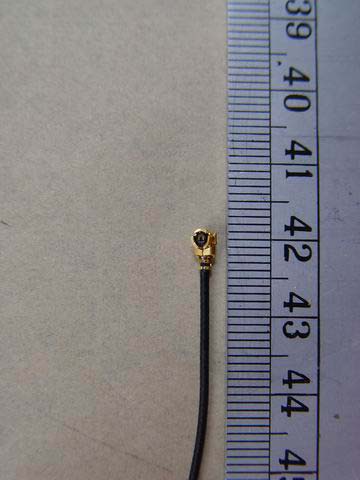

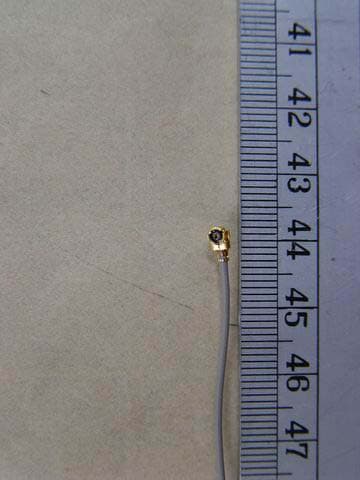

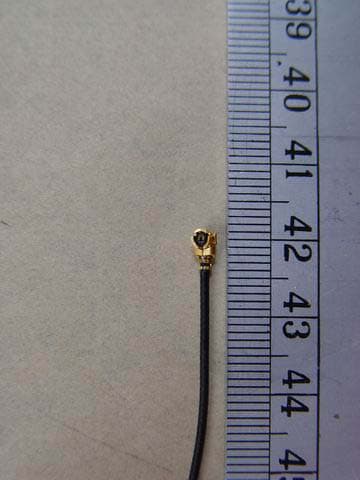

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 Antenna 1 (TX) ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 Antenna 2 (RX) ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 Antenna 3 (RX) ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6705-C-2 FCC ID: RXZ-WM71RL1 ETS Dr.Genz Taiwan PS Co., Ltd.

Model Name : WM71RL1 FCC ID Label & Location 8 mm 38 mm

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 12.48 (dBm) Maximum peak output power at antenna input terminal: 17.7 (mW) Antenna gain(maximal): 1.8 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.06339 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 13.17 (dBm) Maximum peak output power at antenna input terminal: 20.7 (mW) Antenna gain(maximal): 1.8 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.007413 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST-REPORT FCC Part 15 C for IEEE 802.11 b device FCC ID: RXZ-WM71RL1 Test report no.: W6M20603-6705-C-1 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20603-6705-C-1 FCC ID: RXZ-WM71RL1 ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 36 TABLE OF CONTENTS 1GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 T ESTING LABORATORY......................................................................................................... 4 1.2.1Location ....................................................................................................................... 4 1.2.2Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 A PPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 T EST STANDARDS.................................................................................................................. 6 2TECHNICAL TEST .................................................................................................................. 7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 T EST ENVIRONMENT.............................................................................................................. 7 2.3 T ESTEQUIPMENT LIST.......................................................................................................... 8 3TEST RESULTS (ENCLOSURE).......................................................................................... 13 3.1 P EAKOUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.2.1Transmitter................................................................................................................. 15 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 T RANSMITTER RADIATEDEMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 S PURIOUSEMISSIONS(TX) .................................................................................................. 17 3.6 M INIMUM 6 DBBANDWIDTH.............................................................................................. 21 3.7 P EAKPOWER SPECTRAL DENSITY....................................................................................... 22 3.8 R ADIATEDEMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 23 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 26 APPENDIX ....................................................................................................................................... 28 A PPENDIXA.................................................................................................................................... 29 A PPENDIXB .................................................................................................................................... 30 A PPENDIXC .................................................................................................................................... 31 A PPENDIXD.................................................................................................................................... 32 A PPENDIXE .................................................................................................................................... 33 A PPENDIXF .................................................................................................................................... 34 A PPENDIXG.................................................................................................................................... 35 A PPENDIXH.................................................................................................................................... 36 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20603-6705-C-1 FCC ID: RXZ-WM71RL1 ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 36 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published…
