RXZ-WM81RLWIRELESS MINI PCI

IEEE802.11n draft 2.0 Mini-PCI Adapter User’s Manual 1 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which - Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Modular Approval Statement: This device is intended to be used only for OEM integrator under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. 2 IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling: This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in visible area with the following: “ Contains RF Module FCC ID: RXZ-WM81RL ” End Product Manual Information : The user manual for end users must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitters”. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Copyright 2006 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from the company. Revision History Revision History V1.0 First release All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. 3 Contents 1. Introduction ................................................................... 4 1.1 Features ................................................................. 4 1.2 LED Indicator ......................................................... 4 1.3 Package Contents ................................................... 5 1.4 Before you start...................................................... 5 2. Installation Procedure .................................................... 5 2.1 Install the Driver & Utility........................................ 5 3. Wireless Network Configuration Utility .......................... 10 3.1 Profile................................................................... 12 3.2 Link Status ........................................................... 13 3.3 Site Survey ........................................................... 14 3.3.1 Configure the Profile..........................................................15 3.3.2 Authentication and Security..............................................17 3.3.3 802.1x Setting-Certification ...............................................19 3.3.4 802.1x Setting-CA Server...................................................21 3.4 Statistics .............................................................. 22 3.5 Advanced.............................................................. 23 3.6 QoS....................................................................... 25 3.6.1 Configure to enable Wi-Fi Multi-Media .............................25 3.6.2 Enable WMM – Power Save Enable ..................................26 3.6.3 Enable DLS (Direct Link Setup).........................................27 3.7 WPS...................................................................... 32 3.7.1 To Add to AP using PIN Method .......................................33 3.7.2 To Add to AP using PBC Method......................................37 3.8 About.............................................................…

Text truncated - open the document above for the full version.

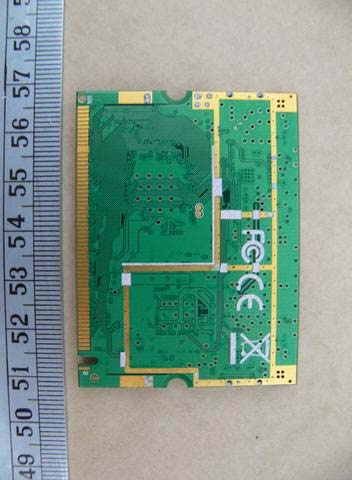

Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Pictures External Photos Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd.

38 mm 8mm

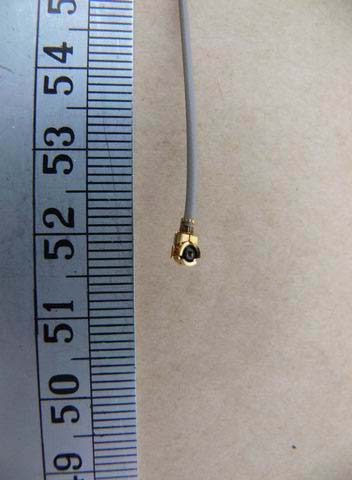

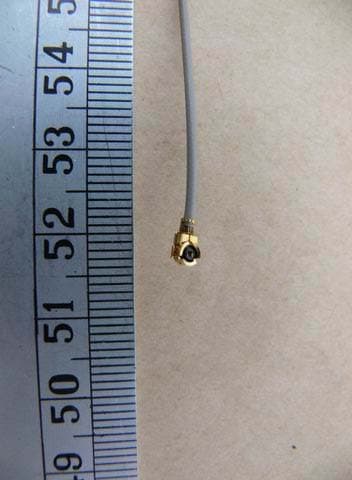

Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Pictures External Photos Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd.

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.44 (dBm) Maximum peak output power at antenna input terminal: 44.055 (mW) Antenna gain(maximal): 2.71 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.006 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the user’s body.

of Applicant: Pro-Nets Technology Corporation Address: 7F, No.95, Lide St, Chung Ho City Taipei 235 Taiwan R.O.C Tested and Prepared by ETS DR. GENZ TAIWAN PS CO., LTD FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC ID: RXZ-WM81RL 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] Report No.: W6M20703-7950-C-1 FCC TEST REPORT for WIRELESS MINI PCI Model No.: WM81RL Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 35 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 T ESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 A PPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 T EST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 T EST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 2.4 G ENERAL TEST PROCEDURE............................................................................................... 10 3 TEST RESULTS (ENCLOSURE).......................................................................................... 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.2.1 Transmitter................................................................................................................. 15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 M INIMUM 6 DB BANDWIDTH.............................................................................................. 24 3.7 P EAK POWER SPECTRAL DENSITY....................................................................................... 25 3.8 R ADIATED EMISSION FROM DIGITAL PART AND RECEIVER L.O. ........................................ 27 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 33 APPENDIX ....................................................................................................................................... 35 Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 35 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: April 26, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: April 26, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr.Genz Taiwan PS Co., Ltd. 4 of 35 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei Cou…

Text truncated - open the document above for the full version.

Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Set Up Photo of Radiated Emission EMI mode Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. RF mode Registration number: W6M20703-7950-C-1 FCC ID: RXZ-WM81RL ETS Dr. Genz Taiwan PS Co., Ltd. Set Up Photo of Conducted Emission
