RXZ-WM81RL1WIRELESS MINI PCI

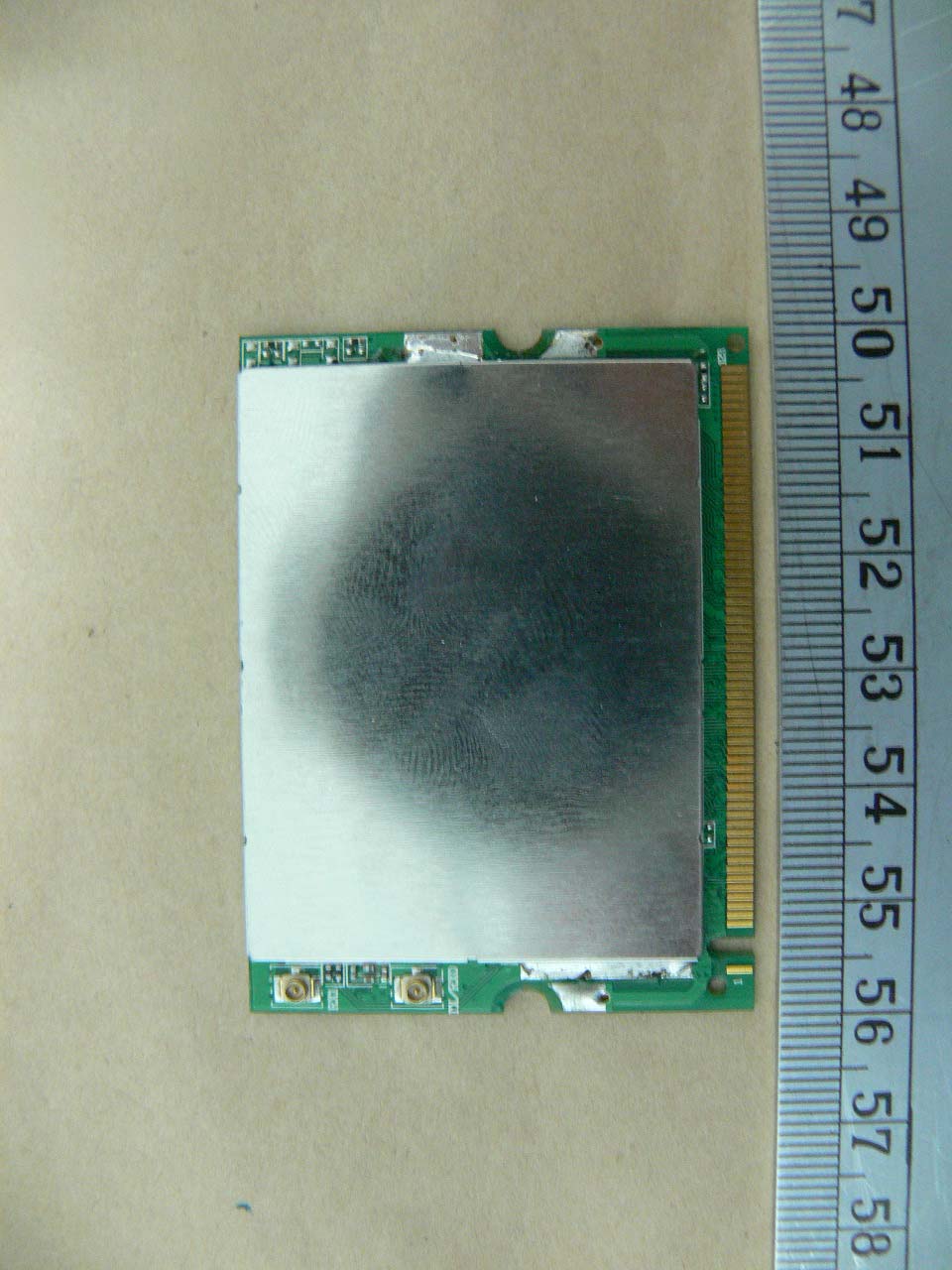

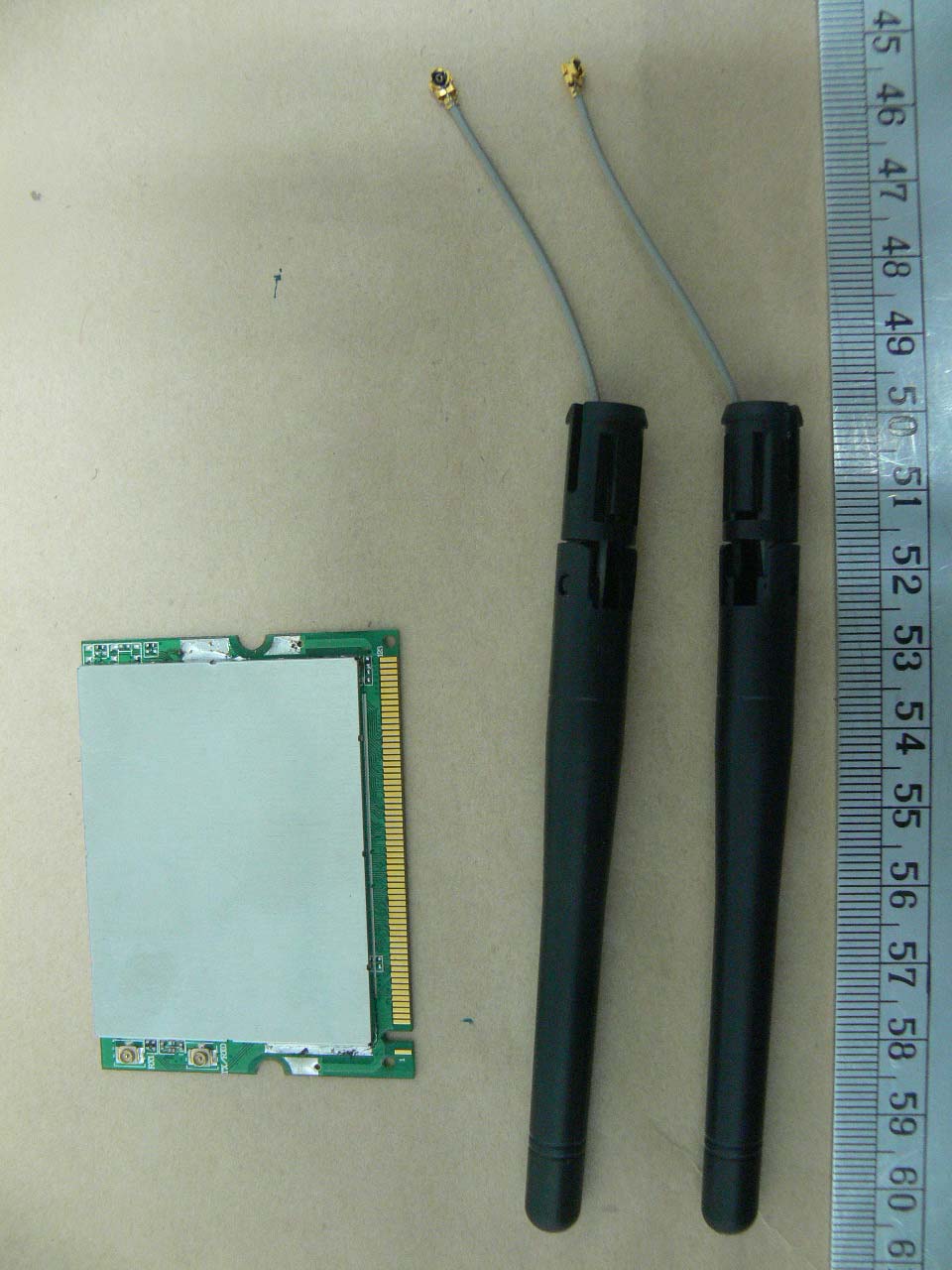

Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Appendix page 144 of 150 Pictures External Photos Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Appendix page 145 of 150 Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Appendix page 146 of 150

32 mm 16 mm

Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Appendix page 147 of 150 Internal Photos Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Appendix page 148 of 150

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.61 (dBm) Maximum peak output power at antenna input terminal: 91.41132 (mW) Antenna gain(maximal): 2.71 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.032 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the user’s body.

of Applicant: Pro-Nets Technology Corporation Address: 7F, No.95, Lide St, Chung Ho City Taipei 235 Taiwan R.O.C Tested and Prepared by ETS Product Service (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Accredited No.: 1983.02 PTCRB Accredited Type Certification Test House FCC ID: RXZ-WM81RL1 Report No.: W6M20712-8768-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for WIRELESS MINI PCI Model No.: WM81RL1 Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Page 2 of 31 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 NOTES................................................................................................................................... 3 1.2 TESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 APPLICATION DETAILS.......................................................................................................... 5 1.5 GENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 TEST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 TEST ENVIRONMENT.............................................................................................................. 7 2.3 TEST EQUIPMENT LIST.......................................................................................................... 8 2.4 G ENERAL TEST PROCEDURE............................................................................................... 10 3 TEST RESULTS (ENCLOSURE).......................................................................................... 12 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 RADIATED EMISSION ON THE BAND EDGE........................................................................... 25 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 26 3.8 P EAK POWER SPECTRAL DENSITY....................................................................................... 27 3.9 RADIATED EMISSION FROM DIGITAL PART......................................................................... 28 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 29 APPENDIX...............................................................................................................................31 Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Page 3 of 31 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS Product Service (Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: December 25, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: December 25, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Page 4 of 31 1.2 Testing laboratory 1.2.1 Location OATS No.5-1…

Text truncated - open the document above for the full version.

Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Appendix page 149 of 150 Set Up Photo of Radiated Emission Registration number: W6M20712-8768-C-1 FCC ID: RXZ-WM81RL1 ETS Product Service (Taiwan) Co., Ltd. Appendix page 150 of 150 Set Up Photo of Conducted Emission
