RXZ-WP61RRealtek WLAN 54Mbps PCI Adapter

Wireless 54Mpbs PCI Adapter User’s Manual (For SOHO Users) September , 2005 1 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which - Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Copyright 1999 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from 2 the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Revision History Revision History V1.0 First release 3 Contents 1. Introduction ........................................................................................... 4 1.1 Features ..................................................................................................................4 1.2 Package Contents .................................................................................................. 4 1.3 LED Indicator .......................................................................................................... 4 2. Install Driver & Utility .......................................................................... 5 2.1 For Windows XP/2000.............................................................................................. 5 2.2 For Windows ME .................................................................................................... 11 2.3 For Windows 98SE ................................................................................................. 15 3. Wireless Network Configuration Utility............................................... 22 3.1 General ..................................................................................................................... 22 3.2 Profile ...................................................................................................................... 22 3.3 Available Network ................................................................................................... 18 3.4 Advanced ................................................................................................................ 23 3.5 Status........................................................................................................................ 25 3.6 Statistics ................................................................................................................... 25 4. Glossary ................................................................................................ 26 4 1. Instruction Congratulations on purchasing this Wireless 54Mbps PCI Adapter. This Wireless PCI Adapter is designed to comply with IEEE 802.11g Wireless LAN standard and it is suitable for any laptop computers and provides maximum data transfer rate up to 54 Mbps. It provides up to a 128-bit level of WEP security to your wireless data transfers. The wireless PCI adapter comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP/2000/Me/98SE in either Ad-Hoc mode (without an access point or router) or Infrastructure mode (with an access point or router), the configuration of your working environment, or the capabilities or limitations of your computer systems. 1.1 Features ‧ Up to 54Mbps data transfer rates ‧ Supports 64/128-bit WEP data encryption function for high level of security ‧ Supports WPA-PSK advanced WLAN security ‧ Supports Infrastructure mode ‧ Supports Ad-Hoc mode (peer-to-peer communication among any wireless users, no Access Point required) ‧ Supports automatic fallback increase data security and reliability ‧ Supports Power Save mode ‧ Compliant with PCI v2.2 1.2 Package Contents ‧ One Wireless PCI Adapter ‧ One Detachable Antenna ‧ One CD disk includes driver, utility and user’s manual 1.3 LED Indicator LED Light Status Description Flashing Wireless LAN has Activity (ACT) data being sent. ACT / LINK On Wireless LAN has been activated. 5 2. Install Driver & Utility Note: If you have installed the Wireless PCI Card driver & utility before,…

Text truncated - open the document above for the full version.

亞 驪 企 業 有 限 公 司 ARISTOTLE ENTERPRISES 承 認 申 請 書 客戶名稱: Customer 捷超通訊科技股份有限公司 廠商料號: Part No. RFA-02-C2M2 品名: Description RFA-02-C2M2 圖號: Drawing No. RFA-02-C2M2.DWG 客戶料號: Drawing No. 出廠簽章: 檢 查 TEST BY 核 對 CHECK BY 承 認 APPROVE BY 周沂珮 黃秋芳 廖煥文 承認簽章: 檢 查 TEST BY 核 對 CHECK BY 承 認 APPROVE BY 地址:台北縣中和市連城路246號3樓 電話:02-2225-8209 傳真:02-2225-7523 表單編號：QP-0603-F02 版本：A ****************************************************** I N D E X ****************************************************** RFA-02-C2M2 1. Specification 2. Radiation Pattern 2.1 E-plane pattern 2.2 H-plane pattern 3. VSWR Test Data 1. Specification DESCRIPTION : Swivel Access Point Antenna MODEL NO : RFA-02-C2M2 1.1 ELECTRICAL Frequency Range: 2400~2500 MHZ Gain: 2.5dBi (min.) VSWR: 2 Polarization: Linear, Vertical Impedance 50 Connector: RP-SMA PLUG 1.2 MECHANICAL ConditionNon operating during test. Material : PCABS(UL94V-0) Endurance Number of 90° rotation of the connector1000 cycles (min.) MandatoryGuaranty of functionalities after test. Bending: Number of 90at the hinge parts and bending on one direction with1 force1000 cycles MandatoryNo mechanical damage tolerated. Guaranty of functionalities after test. Antenna resistance Tests are applicable to all parts and both sides. Traction: Tractions force applied 3 times on plugs during 15 second5 MandatoryNo mechanical damage tolerated. Guaranty of functionalities after test. 1.3 ENVIROMENTAL Storage Condition Non operating during test. Cold: -40 during 72h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +80 during 96h (IEC 68-2-2 standard Bb/Bd test) Humidity: +40 at 95%R.H. during 4 days (IEC 68-2-56 standard Cb test) MandatoryNo mechanical or visible damage tolerated. Guaranty of functionalities after test. Operation Condition Operating during test. Cold: -10 during 48h (IEC 68-2-1 standard Ab/Ad test) Dry heat: +55 during 48h (IEC 68-2-2 standard Bb/Bd test) Composite: -10to +55 95%R.H 4 cycles(IEC 68-2-30 standard Nb test) MandatoryNo mechanical or visible damage tolerated. Guaranty of functionalities during and after test. 2. Radiation Pattern 2.1 E-plane pattern -30 -25 -20 -15 -10 -5 0 5 10 0 30 60 90 120 150 180 210 240 270 300 330 -30 -25 -20 -15 -10 -5 0 5 10 Peak Gain 2.40 GHz (2.71) 2.45 GHz (2.68) 2.50 GHz (2.44) E-plane 2.40 GHz 2.45 GHz 2.50 GHz 2.2 H-plane pattern -30 -25 -20 -15 -10 -5 0 5 10 0 30 60 90 120 150 180 210 240 270 300 330 -30 -25 -20 -15 -10 -5 0 5 10 Peak Gain 2.40 GHz (2.63) 2.45 GHz (2.50) 2.50 GHz (2.47) H-Plane 2.40 GHz 2.45 GHz 2.50 GHz 3.VSWR Test Data SPECIFICATION FOR APPROVAL DOCUMENT: A30178B001 STYLE： 200°C 30V RG-178B/U SIZE: 7/0.102 SCCS RECOGNIZED: WONDERFUL WIRE CABLE CO.,LTD OFFICE：72WU KONG 6TH ROAD, WU KU IND. DISTRICT TAIPEI HSIEN,TAIWAN TEL：(02)22988033 FAX：(02)22988031-2 FACTORY：17 PEI YUAN ROAD, CHUNG-LI IND. PARK TAIWAN, R.O.C. TEL：(03)4527777 FAX：(03)4517214 WONDERFUL WIRE CABLE CO., LTD SPECIFICATION STYLE 200°C 30V COAXIAL DOCUMENT NO : A30178B001 SIZE RG-178B/U ESTABLISHED DATE: 2000/06/29 STANDARD : MIL-C-17 Size AWG 30 Material ---- Silver-Coated Copper Clad Steel Conductors No. ---- 7 Conductors Size mm 0.102 Conductor O.D. mm 0.30 Average Thickness mm 0.28 Diameter mm 0.86 Material ---- FEP Insulation Color ---- Clear Material ---- Silver-Coated Copper Construction mm 16 / 3 / 0.10 Braid Coverage % 95 Average Thickness mm 0.25 Diameter mm 1.80 ±0.05 Material ---- FEP Jacket Color ---- Brown Marking M17/93-RG178B/U WONDERFUL Drawing AK001/210X297/1.0 PAGE : 1 EDITION : 1.0 REVISED DATE : MAKER : CONFIRM : APPROVAL : WONDERFUL WIRE CABLE CO., LTD SPECIFICATION Electrical & Physical Properties Item RG-178B/U Rating Temp Voltage 200°C 30V Conductor Resistance 838.0 OHM/KM/20°C MAX. Insulation Resistance 100 MEGA OHM/KM MIN. Dielectric Strength AC 1.0 KV/Minute Spark Test 0.5 KV Tensile Strength2500 PSI MIN.( 1.76 Kg / ｍ㎡) Unaged Elongation 200% MIN. Tensile StrengthUNAGED MIN.75%(168HRS×232°C) Insulation Aged Elongation UNAGED MIN.75%(168HRS×232°C) Tensile Strength2500 PSI MIN.( 1.76 Kg / ｍ㎡) Unaged Elongation 200% MIN. Tensile StrengthUNAGED MIN.75%(168HRS×232°C) Jacket Aged Elongation UNAGED MIN.75%(168HRS×232°C) Nom. Impedance 50 Ohms VSWR MAX. 1.3 at 0.4G~3GHz Nom. Vel. of Prop. 69.5% Flame Test VW-1 OK 50MHz 100MHz400MHz900MHz1.8GHz 3GHz Attenuation (dB/100m) 34.4 45.9 91.8 139.4 207.5 308.2 AK001/210X297/1.0 PAGE : 2 EDITION : 1.0 REVISED DATE : MAKER : CONFIRM : APPROVAL :

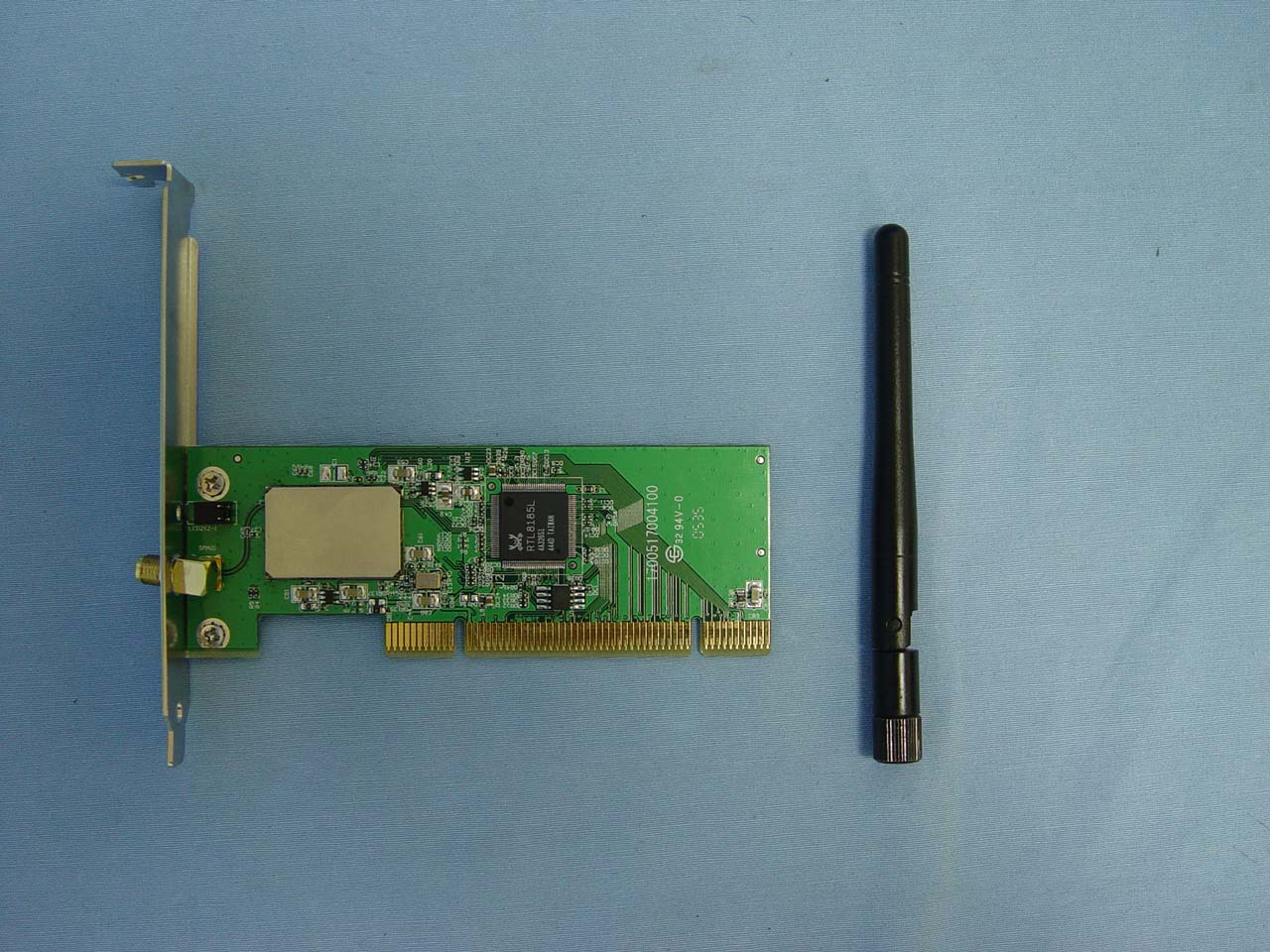

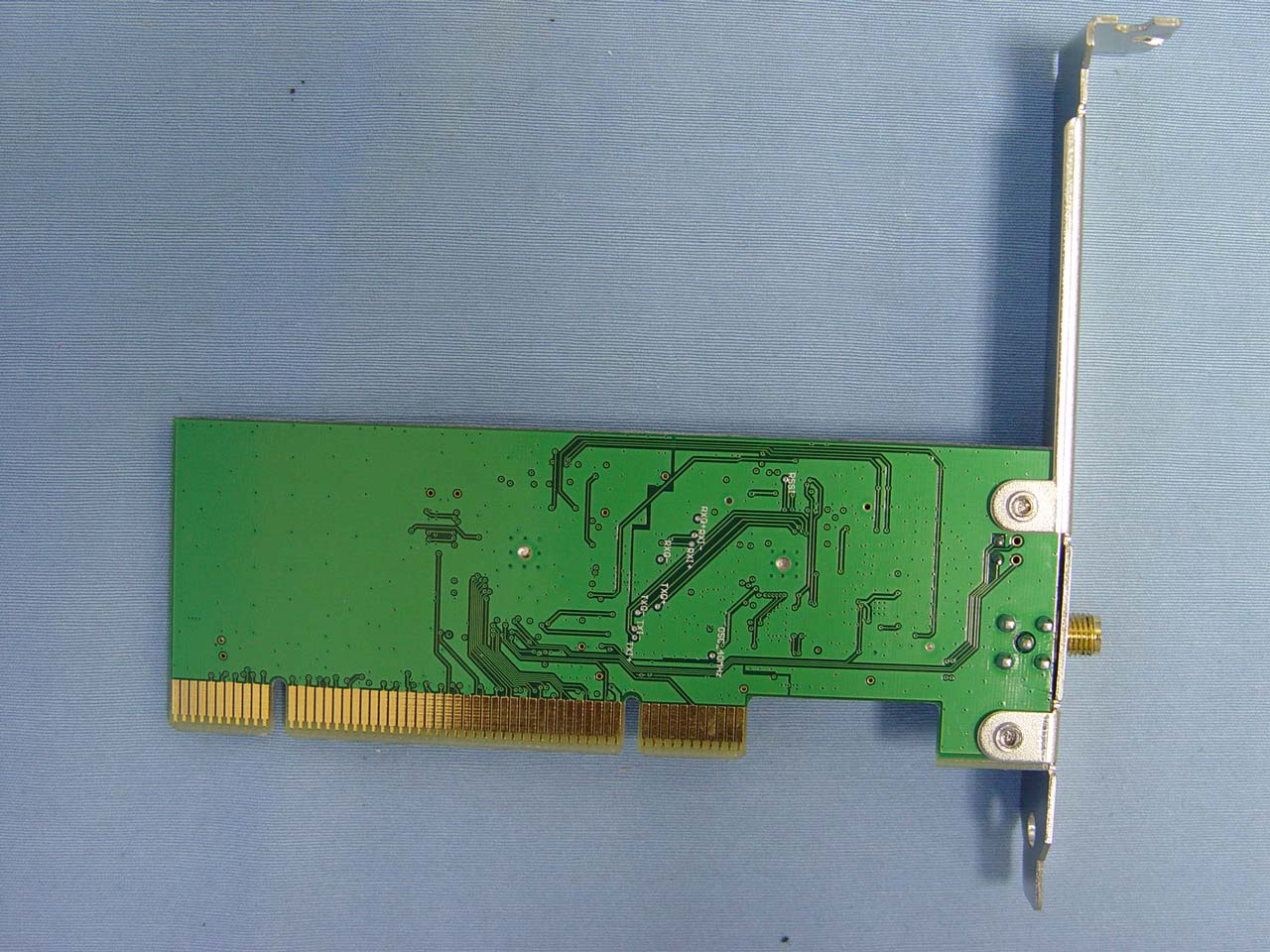

Compliance Certification Services Inc. Report No: 50902207 Date of Issue: September 26, 2005 Page 1 Total Page: 5 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50902207 Date of Issue: September 26, 2005 Page 2 Rev.00

WP61R 38 mm 8 mm R=1 mm 料號： 品名：中性WP61R Rating Label 規格：38*8mm, 4R1, 80磅銅版紙 0984 FCC ID:RXZ-WP61R WP61R 0984 FCC ID:RXZ-WP61R

Compliance Certification Services Inc. Report No.: 50902207-RP1 FCC ID: RXZ-WP61R Date of Issue: September 26, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 59 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Realtek WLAN 54Mbps PCI Adapter Trade Name / Model: PRO-NETS, SpeedCom+, NetoDragon / WP61R Upspeed / WLAN170065-N Wayjet / WT-PC80211G INEXO / CR054G N/A / PROTECH PWR-504 ORANGE, GENX, TORNADO / PC80211G Leadership / 3360 N/A / 911646 ENCORE / ENLWI-G2 Issued to PRO-NETS TECHNOLOGY CORPORATION 7F, No. 95, Li-De St., Chung Ho City 235, Ta i p e i , Ta i w a n R . O . C . Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50902207-RP1 FCC ID: RXZ-WP61R Date of Issue: September 26, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................9 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................33 7.6 RADIO FREQUENCY EXPOSURE........................................................................................................38 7.7 SPURIOUS EMISSIONS ................................................................................................................40 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................54 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................57 Compliance Certification Services Inc. Report No.: 50902207-RP1 FCC ID: RXZ-WP61R Date of Issue: September 26, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: PRO-NETS TECHNOLOGY CORPORATION 7F, No. 95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Equipment Under Test: Realtek WLAN 54Mbps PCI Adapter Trade Name / Model: PRO-NETS, SpeedCom+, NetoDragon / WP61R Upspeed / WLAN170065-N Wayjet / WT-PC80211G INEXO / CR054G N/A / PROTECH PWR-504 ORANGE, GENX, TORNADO / PC80211G Leadership / 3360 N/A / 911646 ENCORE / ENLWI-G2 Date of Test: September 13 ~ 20, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50902207-RP1 FCC ID: RXZ-WP61R Date of Issue: September 26, 2005 Page 57 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 50902207-RP1 FCC ID: RXZ-WP61R Date of Issue: September 26, 2005 Page 58 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 50902207-RP1 FCC ID: RXZ-WP61R Date of Issue: September 26, 2005 Page 59 Rev. 00 Powerline Conducted Emissions Setup Photos
