RXZ-WP71RLWireless PCI Card

MIMO Wireless LAN Card User’s Manual (For SOHO Users) May , 2006 1 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which - Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Copyright 1999 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from 2 the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Revision History Revision History V1.0 First release 3 Contents 1. Install Driver & Utility ......................................................................4 2. Wireless Network Configuration Utility............................................... 10 3.1 Profile........................................................................................................................ 10 3.2 Link Status .............................................................................................................. 11 3.3 Site Survey .............................................................................................................. 11 3.4 Statistics .................................................................................................................. 14 3.5 Advanced.................................................................................................................. 14 3.6 About ........................................................................................................................ 15 3. Glossary ................................................................................................ 16 4 1. Install Driver & Utility Note: If you have installed the Wireless PCI Card driver & utility before, please uninstall the old version first. Note: The following installation was operated under Windows XP. (Procedures will be same for Windows 2000 / Windows ME / Windows 98SE) Step1: Turn off your PC. Step2: Insert the Wireless PCI card into the PCI slot of your computer, and turn on your PC again. The system will automatically find the device and search for its driver. Please click Cancel to continue. 5 Step3: Insert Wireless PCI LAN Card Installation CD into CD-ROM drive then windows below will appear. Click Install Driver & Utility to begin device driver installation. Step4: Please wait for a while during the Setup Wizard is preparing the setup. 6 Step5: Please read the following license agreement. Use the scroll bear to view the rest of this agreement. Select Yes to accept the agreement. Step6: Choose Configuration Tool, Ralink Configuration Tool, and click Next to continue. 7 Step7: Choose Optimize Mode Configuration of TxBurst or WiFi and click Next. Step8: Please wait for a while during the Wiirless LAN Card is configuring your new software installation. 8 Step9: When Utility setup is completed, the Wireless LAN Card utility’s main page will automatically show up on your screen. Step10: Please restart your computer after the setup has finished installing. Choose Yes, I want to restart my computer and click Finish button. 9 To check if Wireless PCI card is properly installed, you can right-click My Computer Æ choose Properties Æ click Device Manager. To enable the Wireless LAN Card Configuration Utility, you can right-click the icon Æ on the desktop system tray and choose “Launch Config Utilities” to open the utility. 10 2. Wireless Network Configuration Utility The Configuration Utility is an application that helps you to configure the Wireless LAN PCI Card and monitor the link status and statistics during the communication process. Note: In Windows XP Operation System, there has 2 more ways to configure Wireless LAN Card: Use Zero Configuration as Configuration Utility (Windows XP default) and Switch to AP Mode. You can choose these different configurations to setup your Wireless LAN Card. 2.1 Profile In the “Profile”, you can view the current using Available Point(s). You can Add, Delete, Edit, or Activate the current Available Point(s). Also you can duplicate the AP or Set current A…

Text truncated - open the document above for the full version.

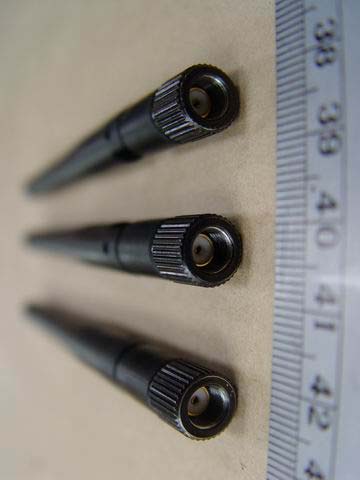

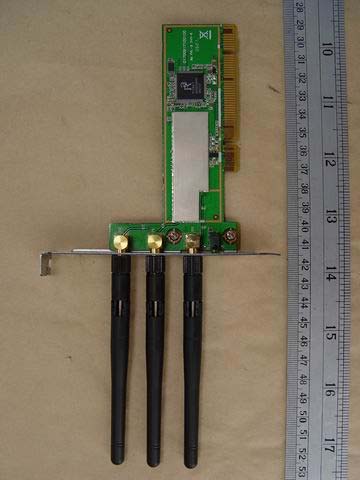

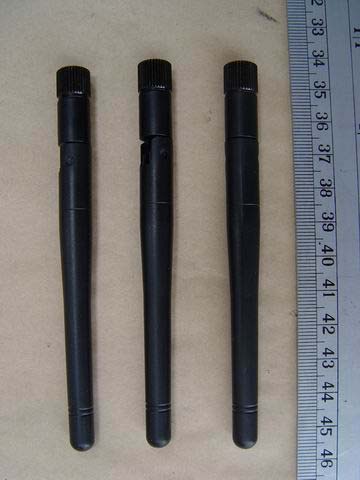

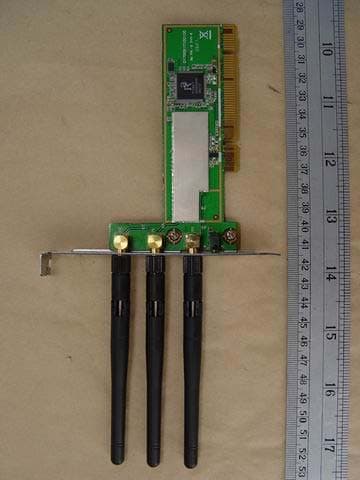

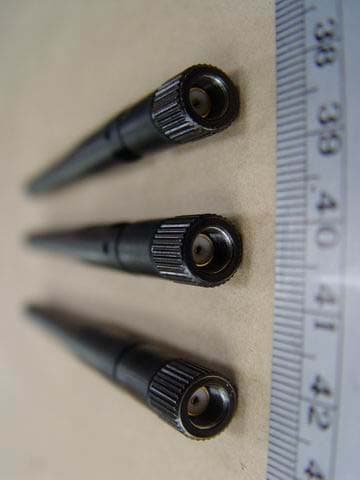

ETS DR.GENZ TAIWAN PS CO., LTD Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. Antenna 3(RX) Antenna 1(TX)Antenna 2(RX) ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd.

Model Name : WP71RL FCC ID Label & Location WP71RL FCC ID:RXZ-WP71RL WP71RL FCC ID:RXZ-WP71RL 38 mm 8 mm R=1 mm <>

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4 π R² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 15.95 (dBm) Maximum peak output power at antenna input terminal: 39.35501 (mW) Antenna gain(maximal): 2.09 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.125255 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4 π R² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.49 (dBm) Maximum peak output power at antenna input terminal: 44.57 (mW) Antenna gain(maximal): 2.09 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.014187 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC Part 15 C for IEEE 802.11 b device FCC ID: RXZ-WP71RL Test report no.: W6M20603-6773-C-1 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 36 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 TESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 APPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 TEST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 TEST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 3 TEST RESULTS (ENCLOSURE).......................................................................................... 13 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.2.1 Transmitter................................................................................................................. 15 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 SPURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 M INIMUM 6 DB BANDWIDTH.............................................................................................. 21 3.7 PEAK POWER SPECTRAL DENSITY....................................................................................... 22 3.8 RADIATED EMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 23 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 26 APPENDIX ....................................................................................................................................... 28 A PPENDIX A.................................................................................................................................... 29 APPENDIX B .................................................................................................................................... 30 A PPENDIX C .................................................................................................................................... 31 APPENDIX D.................................................................................................................................... 32 A PPENDIX E .................................................................................................................................... 33 APPENDIX F .................................................................................................................................... 34 APPENDIX G.................................................................................................................................... 35 A PPENDIX H.................................................................................................................................... 36 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 36 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or publ…

Text truncated - open the document above for the full version.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC Part 15 C for IEEE 802.11 g device FCC ID : RXZ-WP71RL Test report no.: W6M20603-6773-C-2 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20603-6773-C-2 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 36 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 T ESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 A PPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 T EST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 T EST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 3 TEST RESULTS (ENCLOSURE).......................................................................................... 13 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.2.1 Transmitter................................................................................................................. 15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 M INIMUM 6 DB BANDWIDTH.............................................................................................. 21 3.7 P EAK POWER SPECTRAL DENSITY....................................................................................... 22 3.8 RADIATED EMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 23 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 26 APPENDIX ....................................................................................................................................... 28 A PPENDIX A.................................................................................................................................... 29 A PPENDIX B .................................................................................................................................... 30 A PPENDIX C .................................................................................................................................... 31 A PPENDIX D.................................................................................................................................... 32 A PPENDIX E .................................................................................................................................... 33 A PPENDIX F .................................................................................................................................... 34 A PPENDIX G.................................................................................................................................... 35 A PPENDIX H.................................................................................................................................... 36 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20603-6773-C-2 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 36 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be repro…

Text truncated - open the document above for the full version.

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. Set up Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20603-6773-C-1 FCC ID: RXZ-WP71RL ETS Dr.Genz Taiwan PS Co., Ltd.
