RXZ-WP72RL1Wireless PCI Card

IEEE 802.11n Wireless PCI Card User’s Manual 1 FCCWarning    FCC Caution: ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation.  IMPORTANTNOTE: FCCRadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled environment.Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceofabout eightinches(20cm)betweentheradiatorandyourbody. ThistransmittermustnotbecoͲlocatedoroperatedinconjunctionwithanyotherantennaor transmitter.     This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 2   RevisionHistory RevisionHistory V1.1strelease     Allbrandandproductnamesmentionedinthismanualaretrademarksand/orregisteredtrademarks oftheirrespectiveholders. ! Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2004/108/EC), Low-voltage Directive (2006/95/EC), the procedures given in European Council Directive 99/5/EC and 2004/104/EC. The equipment was passed. The test was performed according to the following European standards: zEN 300 328 V.1.7.1 zEN 301 489-1 V.1.8.1 / EN 301 489-17 V.2.1.1 zEN 62311 zEN 60950-1 Regulatory statement (R&TTE) zEuropean standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; zIn France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. Operation of this device is subjected to the following National regulations and may be prohibited to use if certain restriction should be applied. D=0.030m is the minimum safety distance between the EUT and human body when the E-Field strength is 61V/m. D=0.020m 0984 E=9.67977 V/m is the maximum E-Field strength when safety distance between the EUT and human body is maintained at least 20cm, which is below 61V/m as required in Annex III table 2 of EC Council Recommendation (1999/519/EC). This proves that the unit complies with the EN 62311 for RF exposure requirement. 4 Contents 1. Introduction...................................................... 5 1.1 Features ....................................................................... 5 1.2 Familiar with your new wireless network card ............. 5 1.3 Package Contents ......................................................... 6 1.4 Before you start............................................................ 7 1.5 Hardware Installation................................................... 7 2. Installation Procedure.......................................... 8 3. Wireless Network Configuration Utility................... 15 3.1 RaUI Wireless Utility & Windows Zero Configuration (WZC) 15 3.2 Start RaUI Utility ......................................................... 21 3.3 Profile ........................................................................ 28 3.3.1 Add/Edit Profile ................................................ 29 3.3.2 Example to Add Profile in Profile....................... 30 3.4 Network..................................................................... 32 3.5 Advanced ................................................................... 34 3.6 Statistics ..................................................................... 36 3.7 WMM ......................................................................... 37 3.8 WPS ........................................................................... 43 3.9 SSO............................................................................ 47 3.10 CCX.......................................................................... 48 3.11 About ....................................................................... 48 3.12 Link Status................................................................ 49 4. Soft-AP Function............................................... 50 4.1 Switch to AP mode and Basic Configuration ................ 50 4.2 Security Settings ......................................................... 53 4.3 Access Control ............................................................ 54 4.4 MAC Table .................................................................. 55 4.5 Event Log.................................................................... 55 4.6 Statistics ..................................................................... 56 4.7 About ..........................................................…

Text truncated - open the document above for the full version.

30 Network Type: There are two types, infrastructure and 802.11 Ad-Hoc mode. Under Ad-Hoc mode, user can also choose the preamble type, the available preamble type includes auto and long. In addition to that the channel field will be available for setup in Ad-Hoc mode. Tx Power: You can select the wireless output power here. If you’re not too far from AP (good signal reception), you can select a lower output power to save energy; for a distant access point, you can select a higher output power. It’s suggested to select “Auto” to let setup utility decide the best output power for you. Preamble: Select the preamble for Ad hoc mode here. Available option are “Auto” and “Long”. RTS Threshold: User can adjust the RTS threshold number by sliding the bar or key in the value directly. The default value is 2347. Fragment Threshold: User can adjust the Fragment threshold number by sliding the bar or key in the value directly. The default value is 2346. Channel: Only available for setting under Ad-Hoc mode. User can choose the channel frequency to start their Ad-Hoc network. Authentication Type: There are 7 type of authentication modes supported by RaUI. They are Open, Shared, LEAP, WPA, WPA-PSK, WPA2, WPA2-PSK. Encryption Type: For open and shared authentication mode, the selection of encryption type are None and WEP. For WPA, WPA2, WPA-PSK and WPA2-PSK authentication mode, the encryption type supports both TKIP and AES. 802.1x Setting: It is an authentication for WPA and WPA2 certificate to server. WPA Pre-Shared Key: This is the shared secret between AP and STA. For WPA-PSK and WPA2-PSK authentication mode, this field must be filled with character longer than 8 and less than 32 lengths. WEP Key: Only valid when using WEP encryption algorithm. The key must matched AP’s key. There are several formats to enter the keys: Î Hexadecimal – 40bits: 10 Hex characters Î Hexadecimal – 128bits: 26 Hex characters. Î ASCII – 40bits: 5 ASCII characters Î ASCII – 128bits: 13 ASCII characters Show Password: Check this box and all passphrases or security keys you inputted will be displayed as you type, but not replace your input with asterisk. Use 802.1x: If the access point you wish to connect requires 802.1x authentication, please click on ‘Use 802.1x’ box, then click ‘802.1X’ tab to set 802.1x parameters. 3.3.2 Example to Add Profile in Profile Step 1: Click Add in Profile function 31 Step 2: Add Profile page will pop up. Step 3: Change profile name to what you want to connect. Pull down the SSID and select one intended AP. The AP list is the result of last Network. 32 Step 4: To set authentication/encryption information for the access point, please click “Auth.\Encry.” Tab. Step 5: Then, you can see the profile which you set appear in the profile list. Click “Activate” to activate the profile setting. 3.4 Network Under the Network function, system will display the information of surrounding APs from last scan result. List information includes SSID, BSSID, Signal, Channel, Encryption algorithm, Authentication and Network type as below: 33 [Definition of each field] Sorted by >>: You can decide how to sort all listed access point by SSID, Channel, Signal (Signal strength). Show dBm: Check this box to show the signal strength of access point, instead of percentage. Rescan: Click this button to rescan access points. You can click this button for several times, if the access point you wish to use does not show in the list. Add to Profile: You can store a specific access point to profile, so you can link to that access point directly next time without inputting authentication key again. Connect: Connect to a selected access point. You have to select an access point from the list first and then click “Connect” to connect to the selected access point. [Icons & Buttons] Î Indicate connection is successful. Î Indicate network type is infrastructure mode. Î Indicate network type is Ad-Hoc mode. Î Indicate security-enabled wireless network. Î Indicate 802.11a wireless mode Î Indicate 802.11b wireless mode. Î Indicate 802.11g wireless mode. Î Indicate 802.11n wireless mode. Î Indicate the AP lists are sorted by SSID, Channel, or Signal. Î Command to connect to the selected network. Î Issue a rescan command to wireless NIC to update information on surrounding wireless network. Î Add the selected AP to Profile setting. It will bring up profile page and save user’s setting to a new profile. [Connected Network] (1) When RaUI first ran, it will select the best AP to connect automatically. 34 (2) If user wants to connect to other AP, He can click “Connect: button for the intended AP to make connection. (3) If the intended network has encryption other than “Not Use”, RaUI will bring up the security page appropriate information to make the connection. (4) When you double-click on the intended AP, you can see AP’s detail information. 3.5 Advanced This wireless network card provides several advanced settings for experienced wireless users. You can change these settings to increase data transfer performance, or change operation mode. Wireless Mode: Select wireless mode. Support 2.4G only. Enable Tx Burst: Ralink’s proprietary frame burst mode. Enable TCP Windows Size: Enhance throughout. Fast Roaming at: Fast to roaming, setup by transmit power. Select your Country Region Code: The available channel differs from different countries. For example: USA (FCC) is channel 1-11, Europe (ETSI) is channel 1-13. The operating frequency channel will be restricted to the country user located before importing. If you are in different country, you have to adjust the channel setting to comply the regulation of the country. Supporting region code for this section has CH1-11, CH1-13, CH10-11, CH10-13, CH14, CH1-14, CH3-9, and CH5-13. Please refer to below Channel Classification and range, Country Channel list to select your Country Region Code: 35 Figure 1: Channel Classification and range Figure 2: Country Channel list Apply: Save the save changes …

Text truncated - open the document above for the full version.

PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Date:July 27, 2010 Subject: Ad Hoc Mode Function Declaration RXZ-WP72RL1 To Whom it may concern, This device is acting as slave and operating on 2.4GHz band. Ad Hoc function is available and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards,

PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Date: July 5, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID:RXZ-WP72RL1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours,

PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Date:July 5, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. James Lee / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. James Lee / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours,

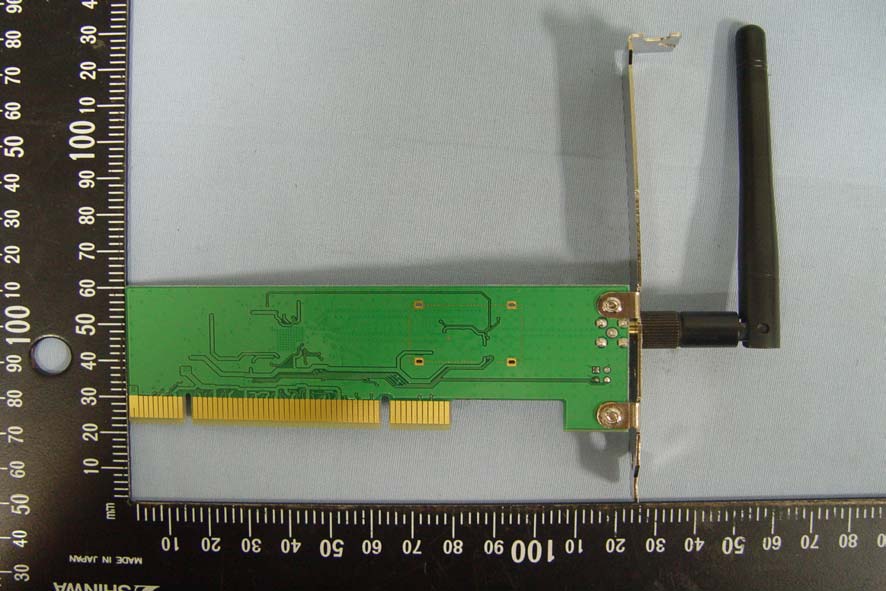

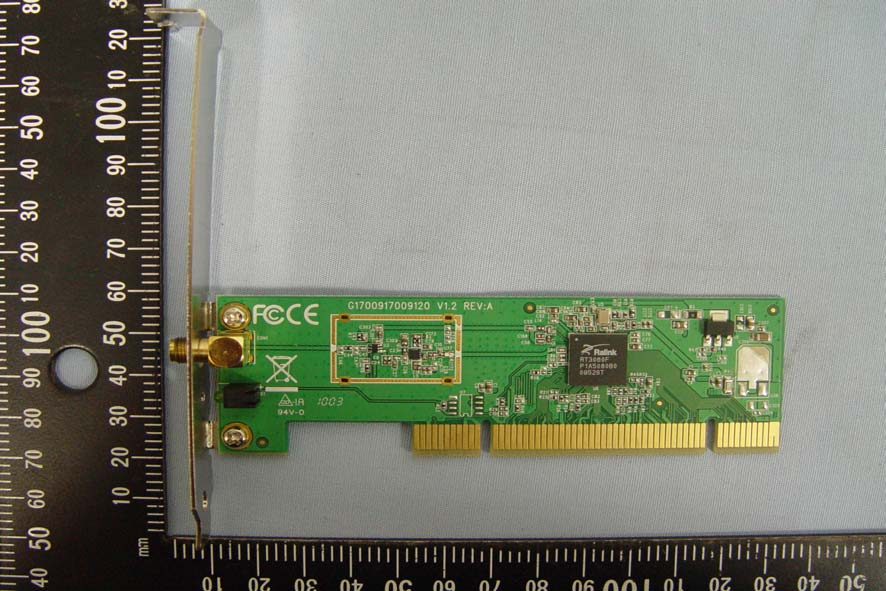

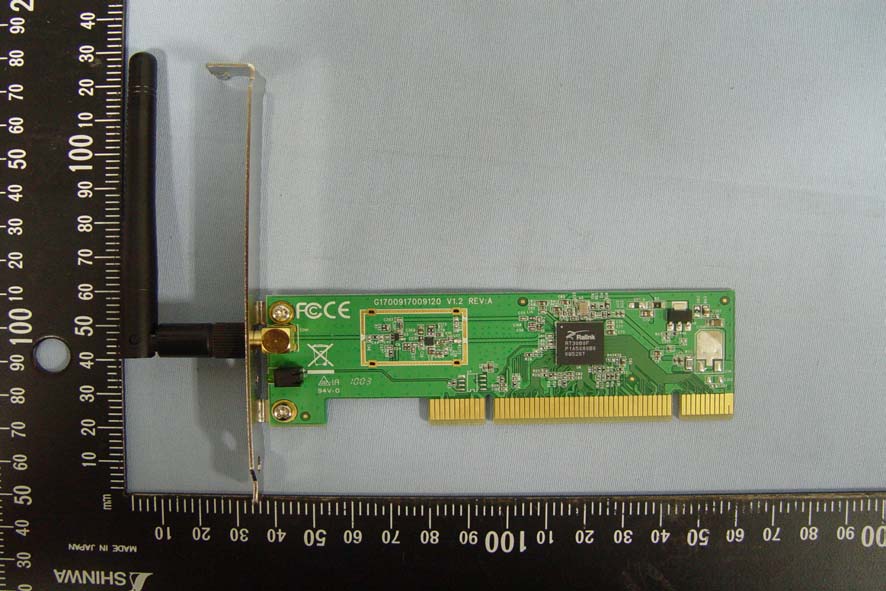

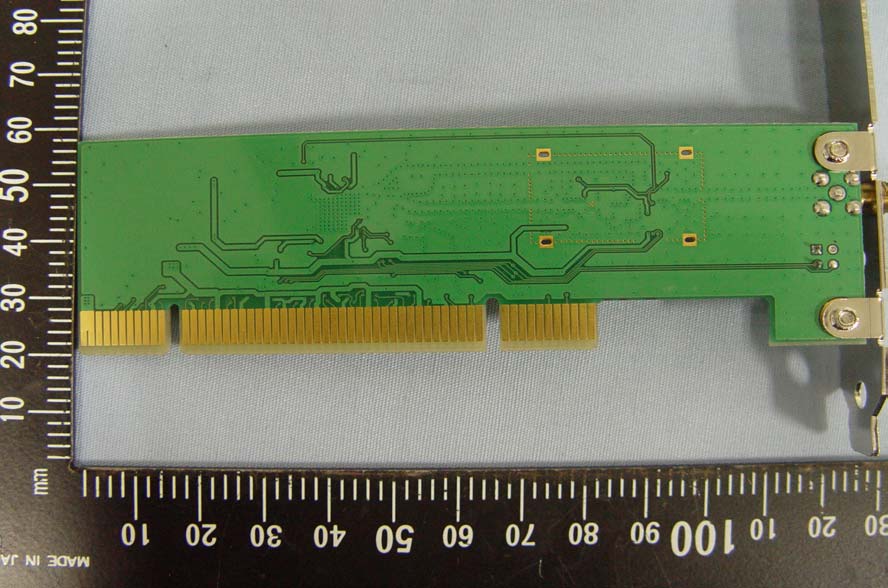

Compliance Certification Services Inc. Report No.: T100621201 Date of Issue: July 1, 2010 A1 - 1 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100621201 Date of Issue: July 1, 2010 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T100621201 Date of Issue: July 1, 2010 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100621201 Date of Issue: July 1, 2010 A1 - 4 Rev. 00

FCC ID:RXZ-WP72RL1 WP72RL1 0984 0984 FCC ID:RXZ-WP72RL1 WP72RL1 SIEZ:26x11mm,ٱ႕ࢍػᎭठ౐ PRO-NETS / Speed Com+ / Jet Com PRO-NETS / Speed Com+ / Jet Com

Compliance Certification Services Inc. Report No.: T100621201 Date of Issue: July 1, 2010 A1 - 1 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100621201 Date of Issue: July 1, 2010 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T100621201 Date of Issue: July 1, 2010 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100621201 Date of Issue: July 1, 2010 A1 - 4 Rev. 00

Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Page 78 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless PCI Card Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 10.12 dBm(10.28 mW) IEEE 802.11g mode: 14.88 dBm(30.76 mW) draft 802.11n Standard-20 MHz Channel mode: 12.83 dBm(19.18 mW) draft 802.11n Wide-40 MHz Channel mode: 13.72 dBm(23.55 mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 14.88dBm (30.76 mW) at 2412MHz (with 1.58 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. MPE EVALUATION Not applicable. Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Page 79 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Page 80 Rev. 00 IEEE 802.11b mode: EUT output power = 10.28mW Numeric Antenna gain = 1.58 Æ Power density = 0.003232 mW / cm2 IEEE 802.11g mode: EUT output power = 30.76 mW Numeric Antenna gain = 1.58 Æ Power density = 0.009672 mW / cm2 draft 802.11n Standard-20 MHz Channel mode: EUT output power =19.18 mW Numeric Antenna gain = 1.58 Æ Power density = 0.006031mW / cm2 draft 802.11n Wide-40 MHz Channel mode: EUT output power = 23.55mW Numeric Antenna gain = 1.58 Æ Power density = 0.007405 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 81 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless PCI Card Model: WP72RL1 Trade Name: PRO-NETS / Speed Com+ / Jet Com Issued to PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................9 4.3 MEASUREMENT UNCERTAINTY .............................................................................................10 5. FACILITIES AND ACCREDITATIONS ........................................................................................11 5.1 FACILITIES .......................................................................................................................................11 5.2 EQUIPMENT......................................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................13 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................13 6.2 SUPPORT EQUIPMENT ...............................................................................................................13 7. FCC PART 15.247 REQUIREMENTS.............................................................................................14 7.1 6DB BANDWIDTH.............................................................................................................................14 7.2 PEAK POWER....................................................................................................................................22 7.3 BAND EDGES MEASUREMENT ................................................................................................24 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................41 7.5 SPURIOUS EMISSIONS.................................................................................................................49 7.6 RADIATED EMISSIONS ..............................................................................................................56 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................73 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................76 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................79 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Taipei, Taiwan R.O.C. Equipment Under Test: Wireless PCI Card Trade Name: PRO-NETS / Speed Com+ / Jet Com Model: WP72RL1 Date of Test: June 28 ~ 30, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Complia…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Page 81 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Page 82 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: T100621201-RP1 FCC ID: RXZ-WP72RL1 Date of Issue: July 2, 2010 Page 83 Rev. 00 Powerline Conducted Emissions Setup Photos
