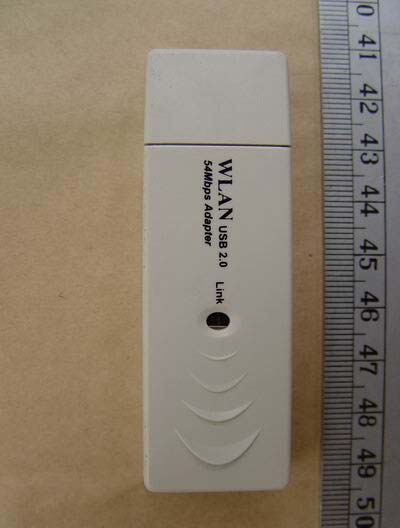

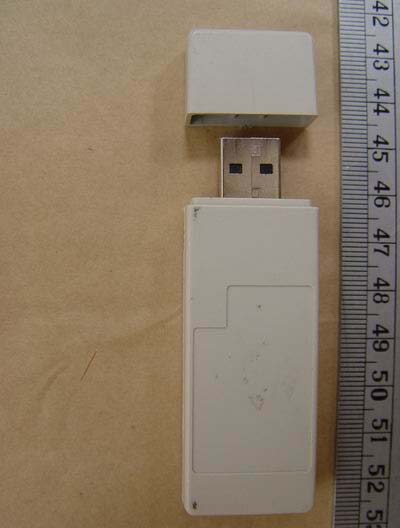

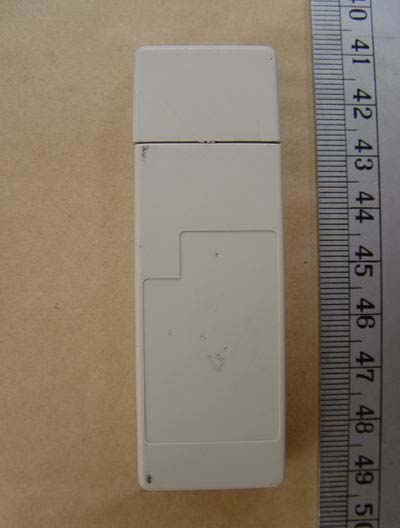

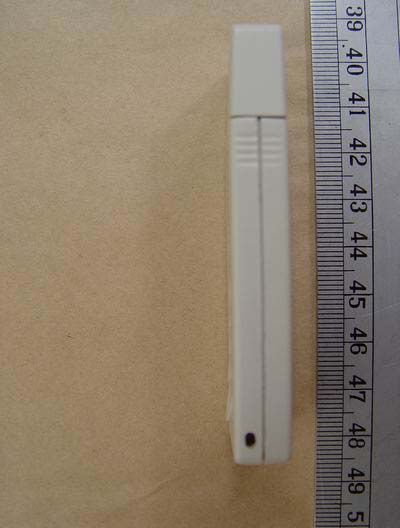

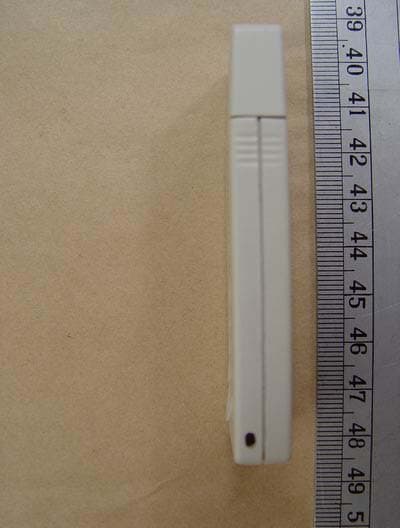

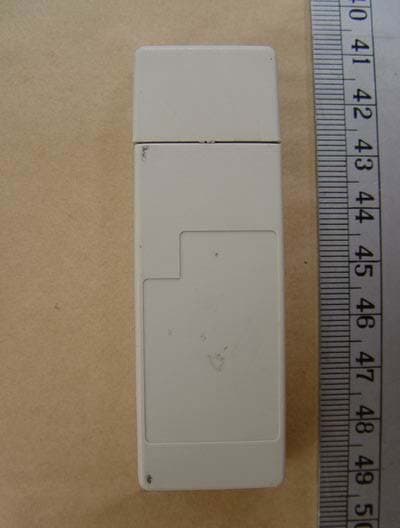

RXZ-WU61RLUSB WIRELESS LAN CARD

Wireless 54Mbps USB 2.0 Adapter User’s Manual (For SOHO Users) August , 2006 1 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which - Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Copyright 2006 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from the company. 2 Revision History Revision History V1.0 First release All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. 3 Contents 1. Introduction.............................................................................................4 1.1 Features ................................................................................................... 4 1.2 LED Indicator ........................................................................................... 4 1.3 Package Contents ................................................................................... 4 2. Installation Procedure ............................................................................5 2.1 Install Driver & Utility................................................................................. 5 3. Wireless Network Configuration Utility ..............................................11 3.1 Profile ..................................................................................................... 12 3.2 Link Status ............................................................................................. 13 3.3 Site Survey............................................................................................. 14 3.3.1 Configure the Profile................................................................. 15 3.3.2 Authentication and Security .................................................... 18 3.3.3 802.1x Setting-Certification ...................................................... 20 3.3.4 802.1x Setting-CA Server ......................................................... 22 3.4 Statistics ................................................................................................ 23 3.5 Advanced ............................................................................................... 24 3.6 QoS ......................................................................................................... 27 3.6.1 Configure to enable Wi-Fi Multi-Media .................................... 27 3.6.2 Enable WMM – Power Save ...................................................... 29 3.6.3 Enable DLS (Direct Link Setup) ............................................... 30 3.7 About ...................................................................................................... 34 4. Troubleshooting ...................................................................................36 4 1. Introduction Congratulations on purchasing this Wireless 54Mbps USB 2.0 Adapter. Wireless 54Mbps USB 2.0 Adapter is a convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. It provides up to a 128-bit level of WEP security to your wireless data transfers. The wireless USB 2.0 adapter comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP/2000/Me/98SE in either Ad-Hoc mode (without an access point or router) or Infrastructure mode (with an access point or router). The IEEE 802.11g Ethernet standard allows you to connect computers and 802.11g compatible devices at speeds up to 54Mbps*, dependent upon the distance between wireless adapters, the configuration of your working environment, or the capabilities or limitations of your computer systems. 1.1 Features z Up to 54Mbps data transfer rates z Supports 64/128-bit WEP data encryption function for high level of security z Supports WPA-PSK advanced WLAN security z Supports Infrastructure mode z Supports Ad-Hoc mode (peer-to-peer communication among any wireless users, no Access Point require…

Text truncated - open the document above for the full version.

ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 35 of 56 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 36 of 56 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 37 of 56 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 38 of 56 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 39 of 56 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 40 of 56 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 41 of 56 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 42 of 56 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 43 of 56

WU61RL FCC ID:RXZ-WU61RL 36 mm 16.5 mm R=1 mm [ ]

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 18.65 (dBm) Maximum peak output power at antenna input terminal: 73.28 (mW) Antenna gain(maximal): 1.42 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.02070 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 18.31 (dBm) Maximum peak output power at antenna input terminal: 67.76 (mW) Antenna gain(maximal): 1.42 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.019143 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC Part 15 C for IEEE 802.11 b device FCC ID: RXZ-WU61RL Test report no.: W6M20606-7087-C-1 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-1 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 34 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 TESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 APPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 TEST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 TEST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 3 TEST RESULTS (ENCLOSURE).......................................................................................... 13 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.2.1 Transmitter................................................................................................................. 15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 SPURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 M INIMUM 6 DB BANDWIDTH.............................................................................................. 20 3.7 PEAK POWER SPECTRAL DENSITY....................................................................................... 21 3.8 RADIATED EMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 22 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 24 APPENDIX ....................................................................................................................................... 26 A PPENDIX A.................................................................................................................................... 27 APPENDIX B .................................................................................................................................... 28 A PPENDIX C .................................................................................................................................... 29 APPENDIX D.................................................................................................................................... 30 A PPENDIX E .................................................................................................................................... 31 APPENDIX F .................................................................................................................................... 32 APPENDIX G.................................................................................................................................... 33 A PPENDIX H.................................................................................................................................... 34 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-1 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 34 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or publi…

Text truncated - open the document above for the full version.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC Part 15 C for IEEE 802.11 g device FCC ID: RXZ-WU61RL Test report no.: W6M20606-7087-C-2 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 56 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 TESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 APPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 TEST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 TEST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 3 TEST RESULTS (ENCLOSURE).......................................................................................... 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 14 3.2.1 Transmitter................................................................................................................. 14 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 14 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 15 3.5 SPURIOUS EMISSIONS (TX) .................................................................................................. 16 3.6 M INIMUM 6 DB BANDWIDTH.............................................................................................. 19 3.7 PEAK POWER SPECTRAL DENSITY....................................................................................... 20 3.8 RADIATED EMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 21 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 23 APPENDIX ....................................................................................................................................... 25 A PPENDIX A.................................................................................................................................... 26 APPENDIX B .................................................................................................................................... 27 A PPENDIX C .................................................................................................................................... 28 APPENDIX D.................................................................................................................................... 29 A PPENDIX E .................................................................................................................................... 30 APPENDIX F .................................................................................................................................... 31 APPENDIX G.................................................................................................................................... 32 A PPENDIX H.................................................................................................................................... 33 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr. Genz Taiwan PS Co., Ltd. 3 of 56 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or publ…

Text truncated - open the document above for the full version.

ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. 49 of 56 Set Up Photos ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd. ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7087-C-2 FCC ID: RXZ-WU61RL ETS Dr.Genz Taiwan PS Co., Ltd.
