RXZ-WU61SSiS WLAN 54Mbps USB 2.0 Adapter

1 Wireless 54Mpbs USB 2.0 Adapter Wireless 54Mpbs USB 2.0 Adapter User’s Manual (For SOHO Users) 2 Wireless 54Mpbs USB 2.0 Adapter FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which - Consult the dealer or an experienced radio/TV technician for help. the receiver is connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Copyright 1999 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Revision History Revision History V1.0 First release FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting. 3 Wireless 54Mpbs USB 2.0 Adapter Contents 1. Introduction ............................................................................................................ 4 1.1 Features ...............................................................................................................................4 1.2 Package Contents ................................................................................................................4 1.3 LED Indicator .......................................................................................................................4 2. IP Address .............................................................................................................. 5 3. Install Driver/Utility ............................................................................................... 6 3.1 For Windows XP and Windows 2000 ....................................................................................6 3.2 For Windows ME ..................................................................................................................9 3.3 For Windows 98SE ................................................................................................................12 4. Wireless Network Configuration ......................................................................... 17 Method 1 - Configured at “Windows XP Configuration”...............................................................17 Method 2 - Configured at “SiS Advanced Configuration” ...........................................................17 NetStatus Setting .......................................................................................................18 Site Scan Setting .......................................................................................................18 Statistics Setting ........................................................................................................20 Encryption Setting........................................................................................................21 Info Setting .................................................................................................................22 Profile Setting .............................................................................................................23 5. Troubleshooting ................................................................................................... 24 6. Glossary ............................................................................................................. 25 D=0.01673m is the minimum distance between the EUT and human body to meet the E-field strength of 61V/m. 4 Wireless 54Mpbs USB 2.0 Adapter 1. Instruction Congratulations on purchasing this Wireless 54Mbps USB 2.0 Adapter. Wireless 54Mbps USB 2.0 Adapter is a convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. It provides up to a 128-bit level of WEP security to your wireless data transfers. The wireless USB 2.0 adapter comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Window…

Text truncated - open the document above for the full version.

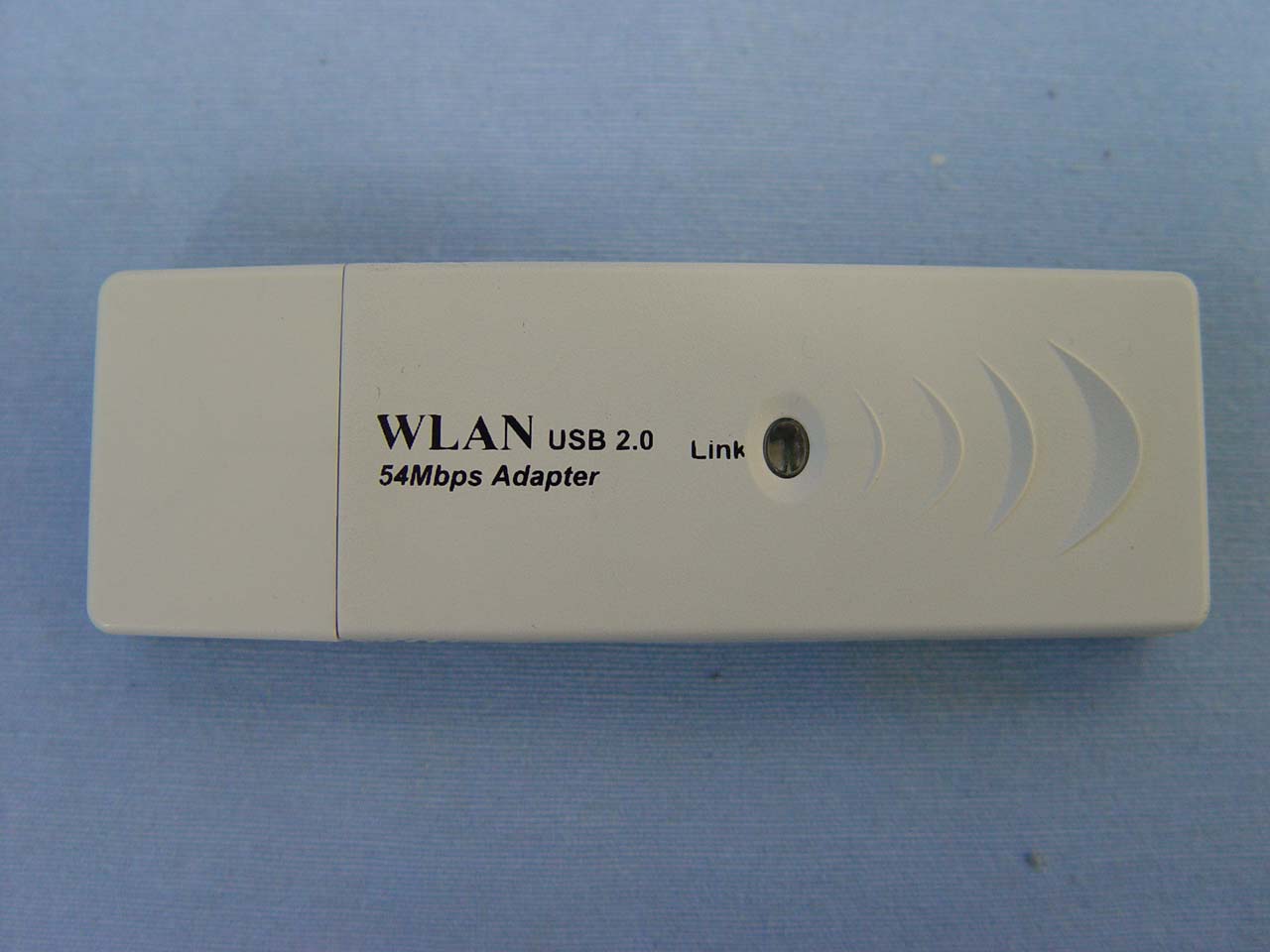

Compliance Certification Services Inc. Report No: 51006217 Date of Issue: November 11, 2005 Page 1 Total Page: 3 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

WU61S 36 mm 16.5 mm R=1 mm [ ][ ] 2032300000074 中性WU61S Rating Label 36*16.5mm, 導角R1mm,50番消銀龍,霧面 0984 FCC ID:RXZ-WU61S S/N: WU61S 0984 FCC ID:RXZ-WU61S S/N:

Compliance Certification Services Inc. Report No: 51006217 Date of Issue: November 11, 2005 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 51006217 Date of Issue: November 11, 2005 Page 3 Rev.00

Compliance Certification Services Inc. Report No.: 51006217-RP1 FCC ID: RXZ-WU61S Date of Issue: December 14, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 57 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For SiS WLAN 54Mbps USB 2.0 Adapter Trade Name / Model Number PRO-NETS, SpeedCom+, NetoDragon, ORANGE, GENX, TORNADO / WU61S Upspeed / WLAN170066-N Wayjet / WT-US54GS INEXO / UR055g N/A / PROTECH PWR-504, 911385 Leadership / 3860 ENCORE / ENLWI-G2 Issued to PRO-NETS TECHNOLOGY CORPORATION 7F, No.95, Li-De St., Chung Ho City 235, Ta i p e i , Ta i w a n , R . O . C . Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 51006217-RP1 FCC ID: RXZ-WU61S Date of Issue: December 14, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................7 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES .........................................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................15 7.3 AVERAGE POWER............................................................................................................................19 7.4 BAND EDGES MEASUREMENT ................................................................................................23 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................32 7.6 SPURIOUS EMISSIONS ................................................................................................................37 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................51 APPENDIX 1 RADIO FREQUENCY EXPOSURE ..............................................................................54 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP ..............................................................................55 Compliance Certification Services Inc. Report No.: 51006217-RP1 FCC ID: RXZ-WU61S Date of Issue: December 14, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product SiS WLAN 54Mbps USB 2.0 Adapter Trade Name / Model PRO-NETS, SpeedCom+, NetoDragon, ORANGE, GENX, TORNADO / WU61S Upspeed / WLAN170066-N Wayjet / WT-US54GS INEXO / UR055g N/A / PROTECH PWR-504, 911385 Leadership / 3860 ENCORE / ENLWI-G2 Model Discrepancy All the above models are identical except for the designation of trade names and model numbers. Power Supply Powered from host device. Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 13.40 dBm IEEE 802.11g: 13.52 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps Number of Channels 11 Channels Antenna Specification Printed Antenn…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 51006217-RP1 FCC ID: RXZ-WU61S Date of Issue: December 14, 2005 Page 55 Rev. 00 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 51006217-RP1 FCC ID: RXZ-WU61S Date of Issue: December 14, 2005 Page 56 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 51006217-RP1 FCC ID: RXZ-WU61S Date of Issue: December 14, 2005 Page 57 Rev. 00 Powerline Conducted Emissions Setup Photos
