S8L-100306HEPARF Power Amplifer HePA850/NTQA50UA

RF Power Amplifiers Andrew Corporation – Power Amplifier Group Propriety – Use pursuant to Company Instruction 1 of 1 High Efficiency Power Amplifier HePA850 Model: RF100306 (NTQA50UA) Operation Instruction Date: January 9, 2006 Version. 1.2 Ref# : FCC ID: S8L-100306HEPA IC ID: 2237F-RF100306 RF Power Amplifiers Andrew Corporation – Power Amplifier Group Propriety – Use pursuant to Company Instruction 2 of 2 Introduction This document presents description of the Andrew Corporation 850 Band HePA (High Efficiency Power Amplifier) amplifiers. The HePA850 amplifier is a high power, RF amplifier intended to provide signal amplification and conditioning. The HePA850 amplifier is compatible with GSM and EDGE air interfaces operating in U.S. domestic cell sites where FCC compliance is mandatory. The Cell band (869 MHz to 894 MHz) HePA850 RF power amplifier is capable of amplifying a single carrier of different modulation types to a composite power level of 60Watts. HePA850 Specifications The HePA850 provide linear amplification of single-carrier signals in the cellular frequency band. The HePA850 have the following specifications: Parameter Specification Operating RF Band 869-894MHz In band RF gain 48dB (Tolerance ±2dB) Input signal types GSM or EDGE single carrier Bandwidth 20dB Pass Bandwidth ( Duplexer applied): 32MHz Occupied BW: GSM 248KHz & EDGE 245KHz Input DC Power -48 VDC, nominal DC voltage input range -38VDC to -58.5VDC Input/Output Connector 50 Ohm /50Ohm Rated Output Power @ -38VDC to -58.5VDC input 60W average for GSM/ 45W average for EDGE DC-RF Efficiency 28%, rated output power, nominal input voltage Physical dimensions 10” x 14” x 3” Weight < 15lbs Cooling technique External cooling when the Amplifier is placed in the customer frame. Temperature Range 0°C to +60°C meeting specifications. Table 1 HePA850 Specifications Functional Blocks: The Andrew HePA is comprised of the following functional areas: − Preamplifier with unit gain control This block gives to the unit its specified gain through 3 amplifier stages and helps keeping this gain constant over temperature through a variable attenuator, this one being controlled by the controller circuit. − Amplifier power Final stage RF Power Amplifiers Andrew Corporation – Power Amplifier Group Propriety – Use pursuant to Company Instruction 3 of 3 This stage brings the signal to its desired high power level, it is the heart of the RF section of the unit. The unit power, linearity and efficiency directly come from this block. − Power conversion and conditioning circuit This block is made of a DC/DC converter and various voltage regulators to do the interface between the customer supply network and the internal functions of the unit. It provides all the voltages and signal interface to the internal blocks of the unit. − Controller circuit This block is the “intelligence” of the unit, it is based on the CPU and computes all the internal functions of the unit. These are the power up sequences, the performances compensation over temperature, manages the monitoring and control of the unit, it also records many events in the so called flight recorder . − Communications circuit The communication circuit is associated to the controller circuit to communicate with the outside world. It handles the customer specific protocol to bring in and out all monitoring and control commands. Figure PA Configuration Analogical interface Power Supply distribution. Current measurement -48V power supply Analog interface RF PART RF input Power detector RF Output RF Power Amplifiers Andrew Corporation – Power Amplifier Group Propriety – Use pursuant to Company Instruction 4 of 4 Inputs and Outputs: The amplifier is powered from a DC supply voltage, which can range from -38VDC to - 58.5VDC. The DC power is brought into the amplifier through a D-Sub connector located on the face plate of the amplifier. A second multipoint connector located on the amplifier face plate is used for serial communication, monitoring and control. This connector is used both during factory tests and at the system level by the customer . Alarms and operating state are communicated to the outside world through the serial communications bus and through the face plate LED. The RF signal is brought into the amplifier through a female SMA type connector located on the face plate of the amplifier. The amplifier RF signal is brought out of the amplifier through a N type connector located on the face plate of the amplifier. Control System: A microprocessor controller is used to control the amplifier alarm system, control environmental compensation of the amplifier. Figure HePA850 Face plate view Alarm LED RF output N connector DC Power Connector 3W3 D-Sub Captive Screw Mounting Monitoring& control Multipoint connector RF input SMA connector RF Power Amplifiers Andrew Corporation – Power Amplifier Group Propriety – Use pursuant to Company Instruction 5 of 5 Figure HePA850 side view The alarms are mapped to front panel LED behavior, as indicated: - LED red =major alarm/reset/disable : the PA is not operational - LED green = the PA is operational = synch present, no alarm, PA ready to amplify The amplifier monitoring and control is also managed through a serial link and a customer specific protocol. Installation and Operation Set-Up The HePA850 is easy to operate and use, only requiring a special cables for DC power and serial bus control connection into the customer frame. RF input and output connections are done with industry standard SMA and N connectors. FCC Statements : FCC ID: S8L-100306HEPA This devise complies with Part 2, 15 & 22 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning Changes of modifications not expressly approved by the manufacturer could void the user’s authority to operate the equi…

Text truncated - open the document above for the full version.

Chris Harvey From: W Li [[email protected]] Sent: Tuesday, January 17, 2006 11:12 AM To: Compliance Certification Services Subject: Re: Andrew Corporation, FCC ID: S8L-100306HEPA, Assessment NO.: AN05T5348, Notice#1 Page 1 of 2 1/17/2006 Dear Chris, Thanks a lot for your email. The below is the answer for your questions: Compliance Certification Services <[email protected]> wrote: Wei Li, I have reviewed the above referenced TCB application and find that the following items need to be addressed before the review can be completed: 1. The request for Confidentiality submitted with this application was one generated for Industry Canada. Please submit a Request for Confidentiality for the FCC/TCB application if you wish for portions of this application to be held from public view. Please change the letters in FCC and IC applications. I just misplaced them. 2. The Users Manual statement of compliance indicates that this device is in compliance with FCC Pt. 24, when this device has been submitted for certification to FCC Pt. 22. While the statement of compliance with Pt. 22 is not required by the FCC (only Pt. 15 requires this statement) including Pt. 24 in this statement is confusing. Please either remove the reference to Pt. 24 or change it to reference Pt. 22. Please see the revised manual ( I uploaded the old one. sorry) 3. The test data for band edge spurious emissions compliance used signals at 869.4 and 893.6MHz, which are one channel removed from the band edges for this band (we would expect data for 869.2 and 893.8 MHz for full band). Please confirm that the actual band of operation with supporting data. Per applicant's technical spec.: the e xtreme end of the band is not use, e.g. the first and last channels are not used for actual RF transmissions. Tx band: 869.4 -893.6MHz. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e- mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey charvey [email protected] This replys are also applied to its IC application. Please let me know if you need any info. Thank again. Wei Page 2 of 2 1/17/2006

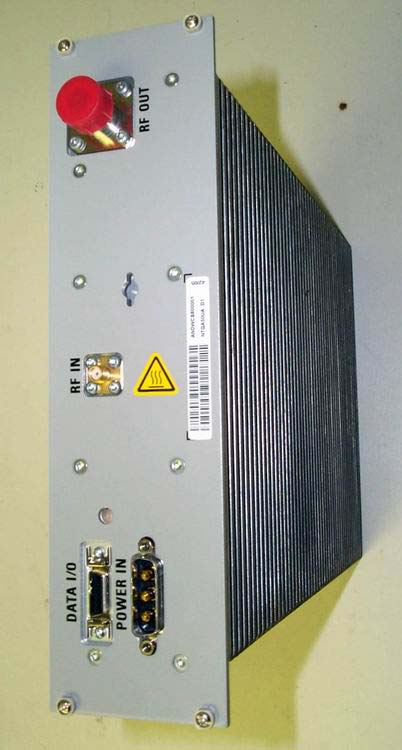

EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 71 of 71 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 HEPA850 Front EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 72 of 72 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 HEPA850 Rear

EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 64 of 64 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 9. FCC ID Labeling FCC ID Label (The statement may be shown in its User Manual) FCC Label Location (back of EUT) FCC ID: S8L-100306HEPA This device complies with Part 2, 15 & 22 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. an d (2) this device must accept any interference received, including interference that may cause undesire d FCC ID Label

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) Single Channel Power Amplifier HePA850 Applicant Andrew Corporation In Accordance With FCC Part 22, Subpart H Test by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date December 5, 2005 AC Lab Report Number 0048-051121-01-FCC The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Compliance Laboratory 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 2 of 2 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Index Section 1. Summary of Test Results....................................................................... 3 Section 2. General Equipment Specification......................................................... 5 Section 3. RF Output Power....................................................................................... 7 Section 4. Occupied Bandwidth.............................................................................. 11 Section 5. Spurious Emissions at Antenna Terminals..................................... 25 Section 6. Field Strength of Spurious................................................................... 55 Section 7. Frequency Stability................................................................................ 61 Section 8. Test Equipment List............................................................................... 63 Section 9. FCC ID Labeling....................................................................................... 64 Section 10. Maximum Permissible Exposure...................................................... 65 Section 11. Setup Photos......................................................................................... 66 Section 12. EUT Photos............................................................................................. 70 EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 3 of 3 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model Name: Single Channel Power Amplifier HePA850 Parts No.: RF100306 (NTQA50UA) General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 22, Subpart H. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advance Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advance Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 4 of 4 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data 22.913(a) 500W ERP Complies RF Power Output 24.232(a) 100W EIRP N/A* Occupied Bandwidth (Voice & SAT) 2.1049(i) Mask N/A* Occupies Bandwidth (Wideband Data) 2.1049(i) Mask N/A* Occupied Bandwidth (Digital) 2.1049(i) Mask Complies 22.917 -13 dBm Complies Spurious Emissions at Antenna Terminals 24.238 -13 dBm N/A* 22.917 -13 dBm Complies Field Strength of Spurious Emissions 24.238 -13 dBm E.I.R.P. N/A* 22.355 1.5 ppm N/A* Frequency Stability 24.235 0.05 ppm N/A* * These items are NOT applied to the EUT. The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist.Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 Wei Li Date: December 5, 2005 Lab Manager Advanced Compliance Lab EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 5 of 5 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment Specification Supply Voltage 48VDC Cellular DL/ 869-894MHz Frequency Range PCS N/A Modulation CDMA 2000 WCDMA GSM EDGE TDMA Type of Emissions F9W F9W GXW G7W DXW Rated Power 45W w/Edge and 60W w/GSM average Operating Power 45W for Edge 60W for GSM Output Impedance 50ohm F1-F1 F1-F2 N/A Frequency Translation Software Duplexer Change Full Band Coverage DC voltages and DC currents per 2.1033(c)(8) The input supply to the transmitter was set at 27 Volts DC. The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). HEPA850 Amplifier RF Output, DC Current and RF Input Power are all average values. Measured Maximum Overdrive RF output: 50.89dBm Measured DC voltage: 48.0V Measured DC current: 5.93A. Measured Rated RF output: 47.75dBm (60W) w/ GSM and 46.50dBm (45W) w/ EDGE Measured DC voltage: 48.0V Measured DC current: 4,20A.(GSM) & 3.53A (EDGE) Measured Minimum RF output: -2.67dBm Measured DC voltage: 48.0V Measured DC current: 1.25A EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 6 of 6 Advanced Compliance Laboratory, Inc. 6 Randolph Way, H…

Text truncated - open the document above for the full version.

EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 66 of 66 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 11. Setup Photos RF Output Power EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 67 of 67 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Spurious Emissions at Antenna Terminal EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 68 of 68 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Occupied Bandwidth EUT: Single Channel Power Amplifier Model: HePA850/RF100306 Report Number: 0048-051121-01-FCC Page 69 of 69 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Field Strength of Spurious
