S8L-RRH800L1800MHz 2x50W RRH RF101017

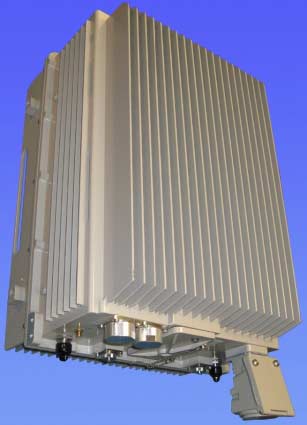

EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 41 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 RF101017 Front EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 42 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 RF101017 Rear EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 43 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 RF101017 Top and Bottom View

EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 35 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 9. FCC ID Labeling FCC ID Label FCC Label Location (Right side of EUT) FCC ID: S8L-RRH800L1 This device complies with Part 2, 15 & 90 of the FCC Rules. Operation is subject to the following two condit ions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label

EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 36 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 10. Maximum Permissible Exposure MPE estimate is given per 2.1091 of FCC Rules: Calculation Equation: S d GP 20 10 282.0 + ×= Where, P--max. Output Power, G—Antenna Gain and S—Power Density Factor from §1.1310. Plug all three items into the equation, and yields, Power Density MPE Limit (mW/ cm 2 ) Output Power (dBm) Server Antenna Gain (dBi) Donor Antenna Gain (dBi) Server MPE Distance (cm) Donor MPE Distance (cm) NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. N/A FOR THIS CASE ----AMPLIFIER/RRH ONLY, NO ATENNNA PRESENT.

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) 800MHz 2x50W RRH RF101017 Applicant Andrew Corporation In Accordance With FCC Part 90 & Part 2 & Part 15 Tested by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date August 2, 2011 AC Lab Report Number 0048-110627-01 The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Compliance Laboratory 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 2 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Index Section 1. Summary of Test Results.....................................................................3 Section 2. General Equipment Specification.......................................................5 Section 3. RF Output Power....................................................................................7 Section 4. Occupied Bandwidth........................................................................... 10 Section 5. Spurious Emissions at Antenna Terminals.................................... 15 Section 6. Field Strength of Spurious................................................................. 27 Section 7. Frequency Stability.............................................................................. 32 Section 8. Test Equipment List............................................................................. 34 Section 9. FCC ID Labeling.................................................................................... 35 Section 10. Maximum Permissible Exposure.................................................... 36 Section 11. Setup Photos...................................................................................... 37 Section 12. EUT Photos......................................................................................... 40 EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 3 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Product Name.: 800MHz 2x50W RRH Model/Parts No. : RF101017 S/N: YF11800044 General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 2, Part 15 & Part 90. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advance Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advance Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 4 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data Test Description FCC Part Sec. Limit Result RF Power Output 2.1046 90.635 1000W ERP Complies Occupied Bandwidth (Digital) 2.1049(i) * Complies Spurious Emissions at Antenna Terminals 2.1051 90.691 -20dBm@bandedge -13dBm@out-of-band Complies Field Strength of Spurious Emissions 2.1053 90.691 -13dBm Complies* Frequency Stability 2.1055 90.213 1.5ppm Complies * See Sprint’s waiver letter for 90.209’s 25KHz bandwidth limitation. The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist. Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 Wei Li Date: August 2, 2011 Lab Manager Advanced Compliance Lab EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 5 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment Specification Supply Voltage -48VDC (extend -37V to -57V) TX/ 862MHz- 869MHz Frequency Range 800MHz Band RX/ 817MHz-824MHz Modulation LTE CDMA GSM EDGE TDMA Type of Emissions F9W F9W GXW G7W DXW Rated Power 50W (+47dBm) average @ each Tx Port Total two Individual Tx Ports presented with total output power: 100W (non-MIMO) Output Impedance /Nominal OCBW 50ohm / 1.27MHz F1-F1 F1-F2 N/A Frequency Translation Software Duplexer Change Full Band Coverage DC voltages and DC currents per 2.1033(c)(8) The input supply to the transmitter was set at -48 Volts DC. The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). RF101017 RRH RF Output, DC Current and RF Input Power are all average values. Measured Rated RF output: 47dBm ( 41.2W) Measured DC voltage: -48.0V Measured DC current: 7.95A. Measured Minimum RF output: -16.09dBm (0.025mW) Measured DC voltage: -48.0V Measured DC current: 2.84A Tune-up procedure per 2.1033(c) (9) There are no user accessible adjustments or tuning in this EUT. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. EUT: 800MHz 2x50W RRH Model: RF10101…

Text truncated - open the document above for the full version.

EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 37 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 11. Setup Photos RF Output Power EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 38 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Spurious Emissions at Antenna Terminal EUT: 800MHz 2x50W RRH Model: RF101017 FCC ID: S8L-RRH800L1 Report Number: 0048-110627-01 Page 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Field Strength of Spurious
