S8L-RRH700L1Remote Radio Head RRH 2x40W 700MHz RF101002

Key Specifications: Base-Station Interface: CPRI High Speed Digital I/O (Cellular LTE Traffic + Control)2 Duplexed Antenna Ports: Tx Frequency Range: 728-746MHz; 40WRF(+46.0dBm) max each port; Rx Frequency Range: 698-716MHz; sensitivity -101.5dBm(10MHz LTE) Power Input: -48VDC nominal; Load Current 7.4 ADC (with 2x40WRF) 2x40W RRH-700-L1 for E-UTRAN Band 13 ( FCC ID:S8L-RRH700L1) Product Description Functional Block Diagram 2 x 40W 700MHz RRH-see another file 2x40W 700MHz RRH-700L1 – I nterface Ports 3) Tx1/Rx1 Port4) Tx2/Rx2 Port Duplexed Antenna PortsInput/Output.Down-link RF Out: 746 - 756MHz; +46 dBm(40W each)Up-link RF In: 777 – 787MHz; -102dBm to -40dBm 7) Antenna Line Device Port: Input/Output.RS485 signaling+12V/1.0A; +24V/0.85A 5) DC Power Port: Input.-48V (-38.5V to 58V)With Tx1=Tx2=40W, 7A 2.2A after boot-up3.0A bias ON, no RF 8) External Alarms 1-3 9) External Alarms 4-6 10) Tx1 Monitor Port: Output.-40dBc sample of RF on Tx1/Rx1 port 12) Auxiliary Rx1 Port13) Auxiliary Rx2 PortInput/Output.Bypass internal LNA or Feed additional external Receivers from here. 11) Tx2 Monitor Port: Output.-40dBc sample of RF on Tx2/Rx2 port 1) Primary CPRI Port2) Secondary CRPI Port:Serial Digital Traffic & Control Input/Output.(accepts optical or electrical SFP modulesSupported Data rates: Rate 2: 1.2288GbpsRate 3: 2.457.6GbpsRate 4: 3.0720Gbps 2x40W 700MHz RRH-700L1 – M aintenance Panel Serial RS232 ConnectionJTAG DSP 14) Ethernet Maintenance Port: Input/Output10/100 Base-T Reset Switch Status LED FCC Statement/ FCC ID: S8L-RRH700L1 This device complies with Part 2, 15 and 27 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may causeundesired operation. Warning Changes of modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3).

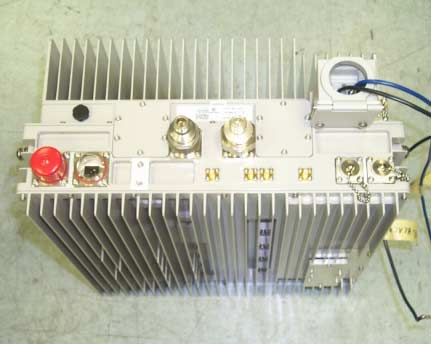

EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01 Page 38 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 RF101002 Front EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01 Page 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 RF101002 Rear

EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01 Page 32 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 9. FCC ID Labeling FCC ID Label (The statement may be shown in its User Manual) FCC Label Location (back of EUT) FCC ID: S8L-RRH700L1 This device complies with Part 2, 15 & 27 of the FCC Rules. Operation is subject to the following two condit ions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label

EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01 Page 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 10. Maximum Permissible Exposure MPE estimate is given per 2.1091 of FCC Rules: Calculation Equation: S d GP 20 10 282.0 + ×= Where, P--max. Output Power, G—Antenna Gain and S—Power Density Factor from §1.1310. Plug all three items into the equation, and yields, Power Density MPE Limit (mW/ cm 2 ) Output Power (dBm) Server Antenna Gain (dBi) Donor Antenna Gain (dBi) Server MPE Distance (cm) Donor MPE Distance (cm) NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. N/A FOR THIS CASE ----AMPLIFIER/RRH ONLY, NO ATENNNA PRESENT.

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) RRH 2x40W 700MHz RF101002 Applicant Andrew Corporation In Accordance With FCC Part 27 & Part 2 & Part 15 Tested by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date June 4, 2010 AC Lab Report Number 0048-100315-01R The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Compliance Laboratory 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01R Page 2 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Index Section 1. Summary of Test Results.....................................................................3 Section 2. General Equipment Specification.......................................................5 Section 3. RF Output Power....................................................................................7 Section 4. Occupied Bandwidth........................................................................... 10 Section 5. Spurious Emissions at Antenna Terminals.................................... 15 Section 6. Field Strength of Spurious................................................................. 34 Section 7. Frequency Stability.............................................................................. 38 Section 8. Test Equipment List............................................................................. 40 Section 9. FCC ID Labeling.................................................................................... 41 Section 10. Maximum Permissible Exposure.................................................... 42 Section 11. Setup Photos...................................................................................... 43 Section 12. EUT Photos......................................................................................... 46 EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01R Page 3 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Product Name.: RRH 2x40W 700MHz Model/Parts No. : RF101002 S/N: YF100900062 General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 2, Part 15 & Part 27. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advance Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advance Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01R Page 4 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data RF Power Output 27.50(c) 1000W/MHz ERP Complies Occupied Bandwidth (Digital) 2.1049(i) Mask Complies Emissions 27.53(c) 27.53(c)(1)(3)(5)(6) Complies Emissions 27.53(f) 27.53(f) Complies* RF Safety 27.52 1.1307(b) 2.1091 2.1093 Complies* Frequency Stability 27.54 2.1055 Complies * These items are NOT applied to the EUT. The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist. Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 Wei Li Date: June 4, 2010 Lab Manager Advanced Compliance Lab EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01R Page 5 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment Specification Supply Voltage -48V(extend -39.5V to -57V) TX/ 746 MHz- 756MHz Frequency Range 700MHz Band /Block upper C RX/ 777MHz-787MHz Modulation LTE CDMA GSM EDGE TDMA Type of Emissions F9W F9W GXW G7W DXW Rated Power 40W (46.02dBm) average @ each Tx Port Total two Tx Ports presented with total combined output power: 80W Output Impedance /Nominal OCBW 50ohm / 9MHz F1-F1 F1-F2 N/A Frequency Translation Software Duplexer Change Full Band Coverage DC voltages and DC currents per 2.1033(c)(8) The input supply to the transmitter was set at -48 Volts DC. The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). RF101002 RRH RF Output, DC Current and RF Input Power are all average values. Measured Rated RF output per Tx port: 46.15dBm ( 41.2W) Measured DC voltage: -48.0V Measured DC current: 7.53A. Measured Minimum RF output per Tx port: -16.09dBm (0.025mW) Measured DC voltage: -48.0V Measured DC current: 2.84A Tune-up procedure per 2.1033(c) (9) There are no user accessible adjustments or tuning in this EUT. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01R Page 6 Advanced Complian…

Text truncated - open the document above for the full version.

EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01R Page 43 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 11. Setup Photos RF Output Power EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01R Page 44 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Spurious Emissions at Antenna Terminal EUT: RRH 2x40W 700MHz Model: RF101002 FCC ID: S8L-RRH700L1 Report Number: 0048-100315-01R Page 45 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Field Strength of Spurious
